Цех Регулируемый легкий 1t 2t 3t 5t 7 5 t 10t 15t 20t Складной Мини козловой кран из алюминиевого
- Категории: Gantry Cranes >>>
- Поставщик: Henan,Kino,Cranes,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

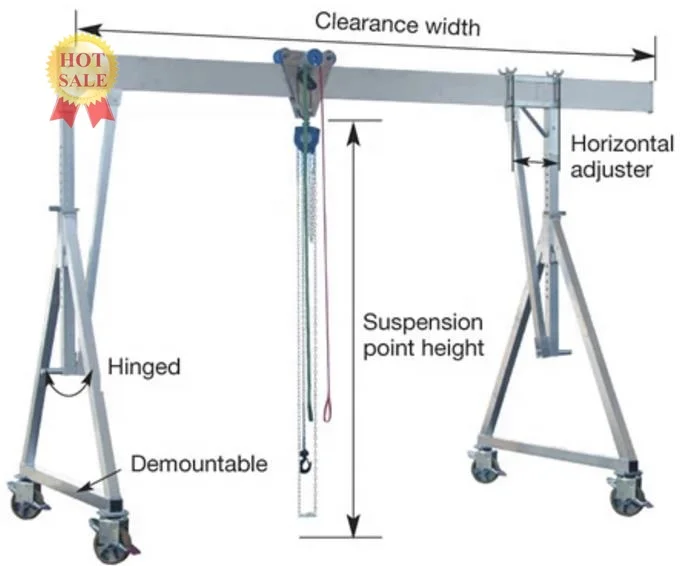

Kinocranes Workshop Aluminum Alloy Folding Small Gantry Crane is designed for transporting and lifting materials.
Small lift Gantry Crane which is manufactured for the medium and small factory or company daily production need. It applies to model manufacture and installing situation, automobile factories, producing department and other lifting occasions.
The aluminium gantry crane can move easily, disassemble and install quickly, cover little area. The structure design reasonably, can withstand 500 ~ 2000 kg weight, span up to 8 meters.
Small lift Gantry Crane which is manufactured for the medium and small factory or company daily production need. It applies to model manufacture and installing situation, automobile factories, producing department and other lifting occasions.
The aluminium gantry crane can move easily, disassemble and install quickly, cover little area. The structure design reasonably, can withstand 500 ~ 2000 kg weight, span up to 8 meters.
Product Details
Specification
Rated Load (ton) | Total Height (mm) | Max. Lifting Height (mm) | Outside Span (mm) | Inner Span (mm ) | Height (mm) |
0.5 | 3000 | 2420 | 2000 | 1880 | 460 |
0.5 | 3000 | 2420 | 3000 | 2880 | 460 |
0.5 | 4000 | 3420 | 3000 | 2880 | 460 |
0.5 | 4000 | 3420 | 4000 | 3880 | 460 |
1 | 3000 | 2470 | 2000 | 1880 | 410 |
1 | 3000 | 2470 | 3000 | 2880 | 410 |
1 | 4000 | 3470 | 3000 | 2880 | 410 |
1 | 4000 | 3470 | 4000 | 3880 | 410 |
2 | 3000 | 2215 | 2000 | 1800 | 535 |
2 | 3000 | 2215 | 3000 | 2800 | 535 |
2 | 4000 | 3215 | 3000 | 2800 | 535 |
2 | 4000 | 3215 | 4000 | 3800 | 535 |
3 | 3000 | 2122 | 2000 | 1800 | 685 |
3 | 3000 | 2122 | 3000 | 2800 | 685 |
3 | 4000 | 3122 | 3000 | 2800 | 685 |
3 | 4000 | 3122 | 4000 | 3800 | 685 |

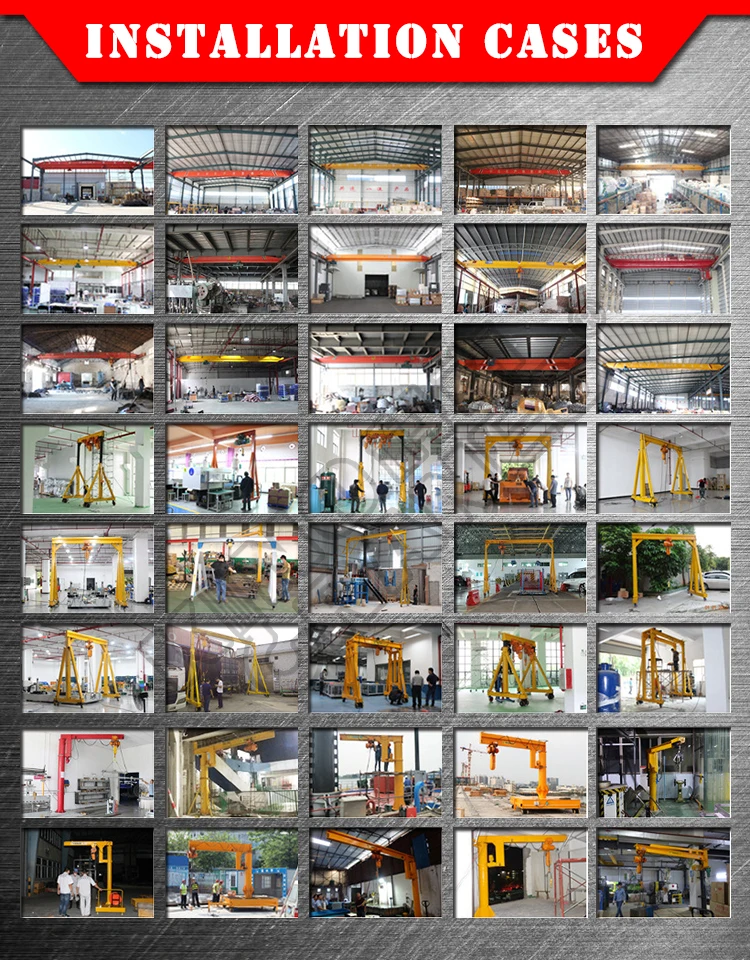

Project Case
Company Profile
FAQ
1. Please send the following requirements :
1). Lifting capacity 2). Lifting height 3). Power supply 4). Span 5) Span or lifting height is adjustable ?
2. Warranty : One Year
3. Installation : Engineer available to service machine overseas
4.Payment Terms : T/T ,LC ,WU,Cash ---30% as deposit ,70% before delivery .
5.Delivery Time : Within 7---10 days after your payment
1). Lifting capacity 2). Lifting height 3). Power supply 4). Span 5) Span or lifting height is adjustable ?
2. Warranty : One Year
3. Installation : Engineer available to service machine overseas
4.Payment Terms : T/T ,LC ,WU,Cash ---30% as deposit ,70% before delivery .
5.Delivery Time : Within 7---10 days after your payment
