OVERVIEW Column mounted jib crane is a kind of crane that fixed on the ground. Its operation area is circular due to its has a rotatable cantilever. Combined with hoist unit like electric hoist, chain hoist, chain block, it can realize transportation of cargos in its coverage.
Details Product
APPLICATION It’s widely used in production lines, assembly lines and work station of machine tools, mines and workshops, warehouses, docks, etc. FEATURE & ADVANTAGE Small space occupied, easy installation, convenient for workers to use, flexible rotation , high efficiency. INSTALLATION 1 . Column installation: Lift the column vertically. Set all bolts in foundation right through bolt holes on bottom flange of the column. Then adjust column verticality and tighten all nuts. 2. Arm/jib/cantileverinstallation
Before installation, lifting hoist should be installed on the arm/jib/cantilever and fixed. Aligning shaft of column to turntable hole at end of jib/arm, then assemble arm and column together slowly. After parts are in place, tighten the fixing bolts. Then install the power supply ring. Test beam rotation with a rope and rotating should be flexible without jamming and abnormal phenomenon. 3.Drive unitinstallation: Make cycloid reducer match with ring gear on column. Make sure that drive gear meshes with large ring gear, then fixed the reducer to flange by bolts.. parameter type:BZ Model
Lifting capacity:1Ton-50Ton litfing height:1m-10m working duty:A3

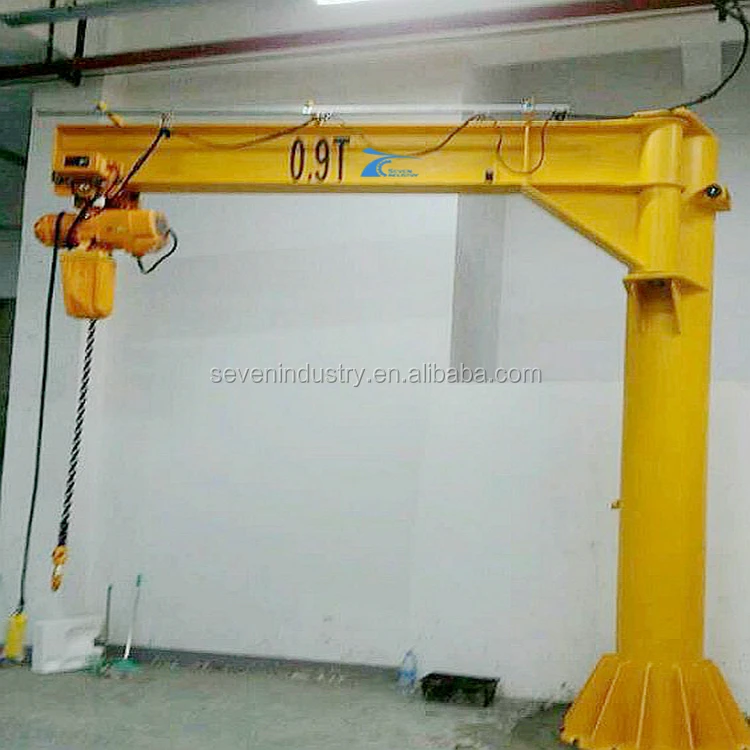

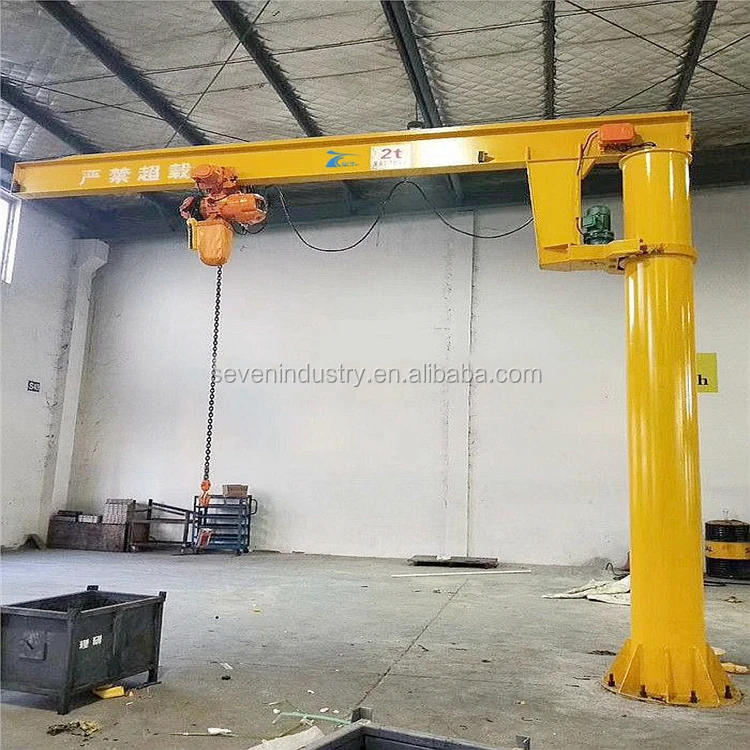

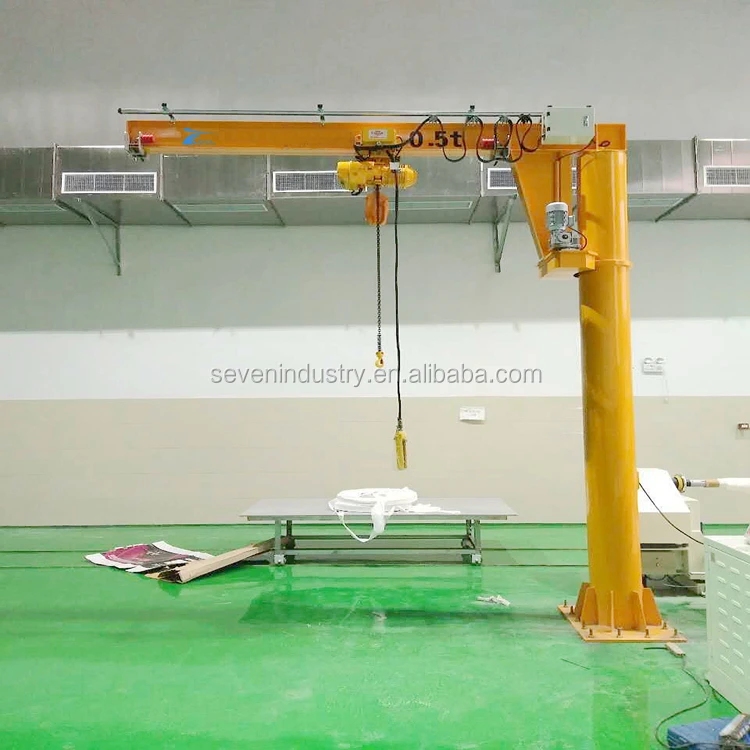

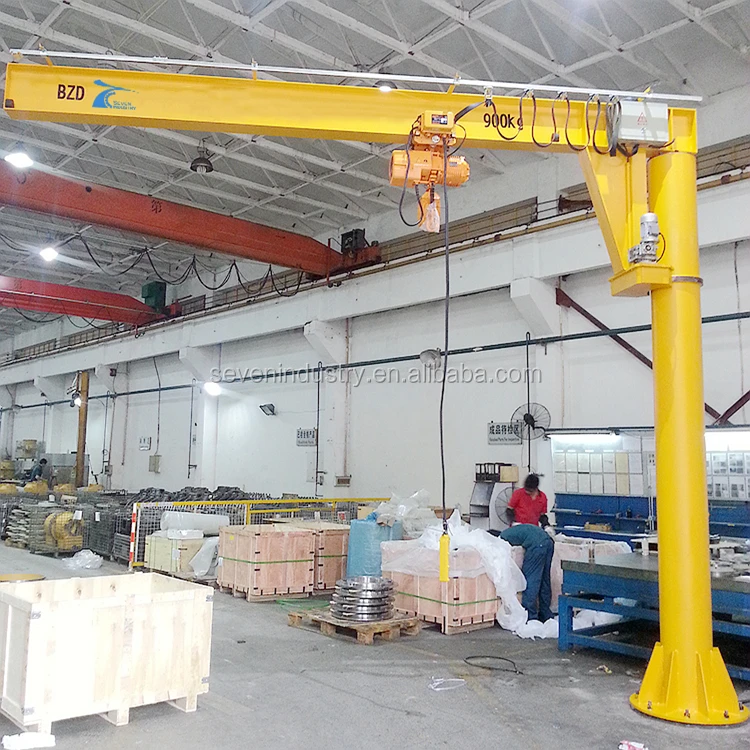

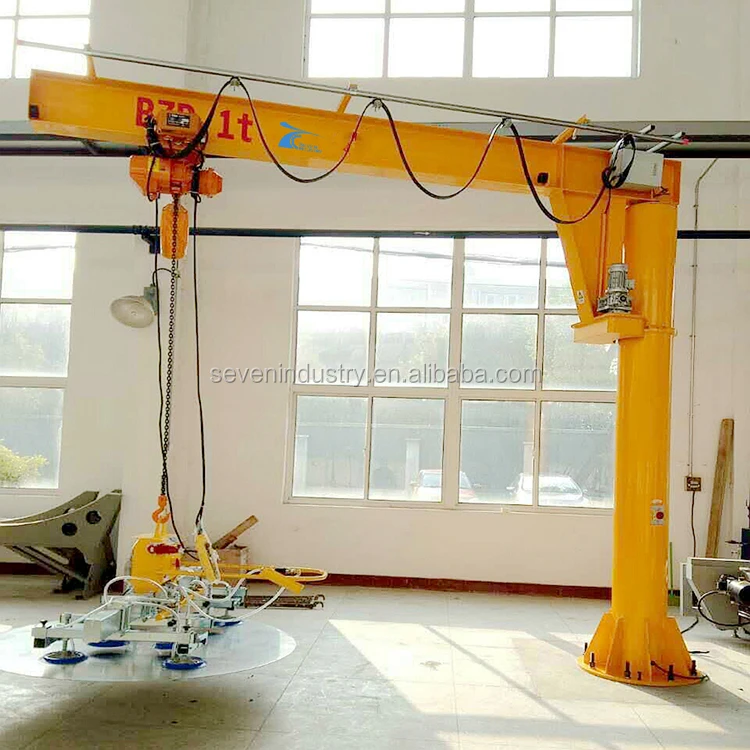

Detailed Images
Related Products
Packing&Shipping
1. 1.Components are packed in high-quality Fumigation free wooden box to reduce transportation deformation. 2.Steel structure are warpped in Plastic sheeting.Reduce wear and tear during transportation. Delivery:
1. If size avalibale container ship, usually container. 2. small size, usually truncated by bulk carrier or container. 3. The mode of transportation is based on economical and safety.
After Sales Service
Company Introduction
SEVENCRANE (Henan Seven Industry Co., Ltd) is a professional Cranes and Hoists Manufacturer in Henan China. Our company main product include gantry crane, overhead crane, jib crane, hoist and lifting equipment and related accessories. Our company serves a wide range of industries including machinery, metallurgy, power industry, rail ways water conservancy, ports, mines, coal, petroleum, chemical industry, etc. Products are exported to Europe, Africa, Southeast Asia, South America and other regions With high quality products , extremely better services and cost-effective. We provide butler-style services to our customers at all stages, and fully consider the solutions for the purchase, transportation, installation and after sale process of cranes. Our slogan: First class service-safe-efficient-reliable. And we treat our customer extreme sincerely. We will be extreme glad to makes friends with you from all over the world and also hope to establish long-term better cooperation relationship with you. Company name: SEVENCRANE (Henan Seven Industry Co., Ltd) Address: Huida xintiandi, qilihe north road, Zhengdong new district, Zhengzhou city, Henan province, China. Products: Overhead cranes, Gantry cranes, JIB crane, Hoist, Winch, Work Platform, Crane parts.
FAQ
If you want to inquire about overhead crane lifting equipment, please confirm with us the details as below. Then we will quote you a better price. 1. What kind of goods will this crane lift? 2. Lift capacity? 3. Span? 4. Lift height? 5. Lifting speed? 6. Working duty? 7. Travel length? 8. Power supply in your local? 9. Nearest port? 10. Control model? Let's start our business from your clicking. Looking forward to receiving your letter.
