Смарт-3D 3 в 1 Многофункциональный цифровой стоматологический клкт 3d сканер рентгеновский сканирования стоматологическое
- Категории: Other Radiology Equipment & Accessories >>>
- Поставщик: LargeV,Instrument,Corp.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Company Profile
Technical Specifications
Tube Current(mA) | min: 2 max: 10 (60kV) |
Tube Voltage(kV) | min: 60 max: 100 (6mA) |
Focal Spot Size | 0.5（IEC336） |
CT Sensor Type | CMOS Flat Panel Detector |
Detector Size(cm) | 13 × 13 |

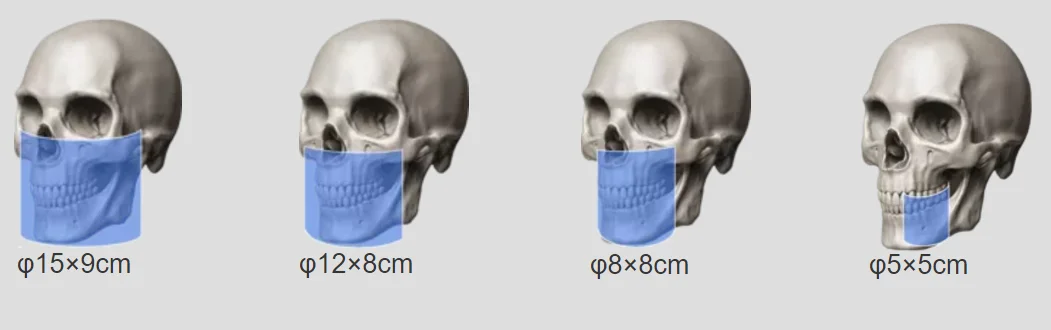

CT Field of View [D(cm) × H(cm)] | 15 × 9 , 8 × 8 , 5 × 5 / 12 × 8 , 8 × 8 , 5 × 5 |
CT Voxel Size(mm) | 0.25 0.15 0.1 |
CT Spatial Resolution(lp/mm) | 2.0 |
CT Scanning Time(s) | 13 |
CT Reconstruction Time(s) | 15~40 |
Pan Sensor Type | CMOS Flat Panel Detector |
Pan Image Size(mm) | 233 × 96 |
Pan Pixel(mm) | 0.1 |
Pan Scanning Time(s) | 6 -18 |
Ceph Sensor Type | CCD TDI Detector |
Ceph Imaging Size(mm) | （158~256）× 193 |
Ceph Pixel(μm) | 27 |
Ceph Scanning Time(s) | 7~11 |
Weight(kg) | With Ceph function:335 Without Ceph function:285 |
Unit Dimensions(mm) | 1978 (W) × 1526 (D) × 1693 ~ 2393(H) |
Packing Size(mm) | Case 1&2 (With Ceph) ：1830×1300×880，292Kg & 242Kg Case 1&2(without Ceph): 1830×1300×880，259Kg & 227Kg |
Power | single-phase, AC220V/230V ± 10% 10A 50Hz ± 1Hz |
Products Description
Inherited from decades-long development and refinements in radiological imaging, Smart3D delivers a vast variety of applications in dental diagnostics. Due to the outstanding image quality and its versatility, Smart3D offers a superb and stable 3-in-1 extraoral imaging solution for the benefit of general dentistry, implantology, endodontics, orthodontics and others maxillofacial surgery. While maintaining its superior performance, it comes with a surprisingly convenient pricing plan to grow with your practice. Simply a smart and reliable choice, just as the name suggests.
High-Definition Image - Helps Accurate Diagnosis and Treatment
※ 0.5mm small focus tube ensures outstanding image quality.
※ Resolution up to 2.0lp/mm, voxel size of 0.1~0.25mm optional.
Low Dose
Boosted by the deep-learning based CT reconstruction algorithm, the Smart3D is now able to obtain the more defined tomography while further reducing the radiation dose by 83%, once again topping the industrious standard in respect of low dose control.
Metal Artifact Reduction
With the new TrueMAR correction module for metal artifact removal, the system can intelligently correct metal artifact, avoid over modifying and save the original clinical data.
AI Introduction
AI + CBCT
With the new deep-learning based CT reconstruction algorithm, even though we reduce 75% radiation dose, system still can obtain a good clear CBCT image.
AI + Panorama
Together with new intelligent auto-focus technology, and multi-layer panoramic hardware, the system can automatically fit the best panoramic curves and reconstruct a better image.
Together with new intelligent auto-focus technology, and multi-layer panoramic hardware, the system can automatically fit the best panoramic curves and reconstruct a better image.
Before optimization
After optimization
AI + Ceph measurement
The neural network, trained by big data, can automatically identify orthodontic anatomical landmark points, draw anatomical structures and output measurement reports according to the selected measurement methods.
Certifications
Customer Photos
