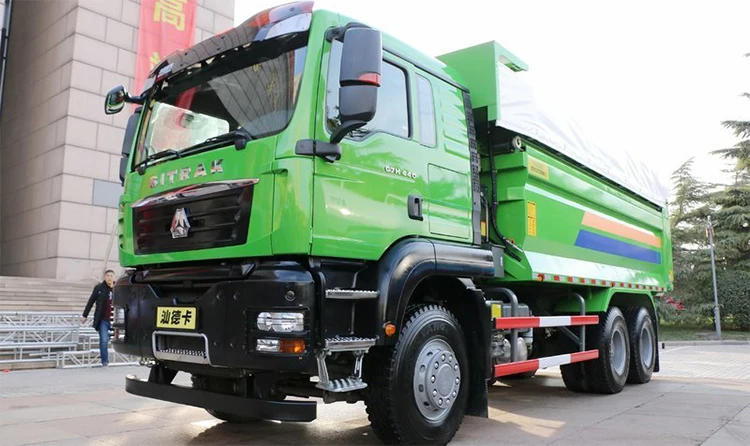

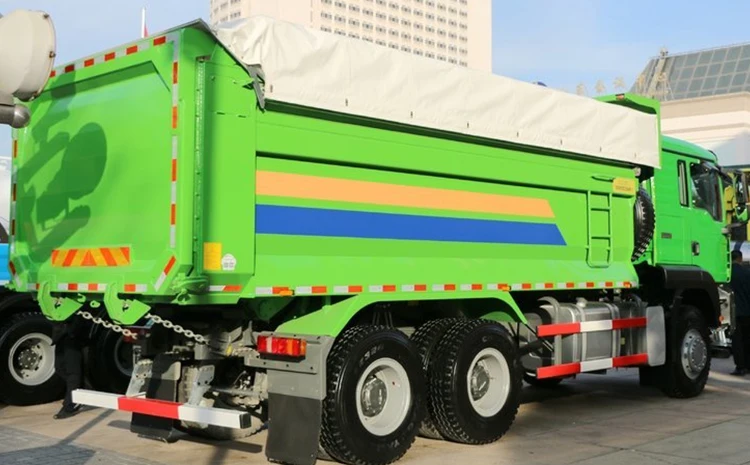

Shacman Mounted Automatic Canopy 6x4 mineral transport tipping truck
Product Description
Parameter
Model
Dump Truck
Wheelbase(mm)
3625+1350
Drive Type
6×4
Wheel Tread (Front/Rear)(mm)
1500/1739
Kerb Mass(kg)
11220
Rims
8.50V-20
Gross Vehicle Weight(kg)
25000
Tyre
12.00R20
Rated Loading Capacity(kg)
40000
Max Speed(km/h)
75
External Dimension(mm)
8545×2496×3170
Max. Gradeability(%)
30%
Internal Cargo Sizes(mm)
6000×2300×1500
Approach/Departure Angle
19°/23°
Front Axle
HF 9,drum
Driving Axle
HC16,double reduction
Engine
4-stroke direct injection diesel engine,6-cylinder in-line with water cooling,turbo-charging and intercooling
Fuel Tank Capacity (L)
380L iron tank
Rated Power(kW)/Rev(r/min)
247/2200
Transmission
10 speeds forward ,2 reverse
Steering System
Hydraulic steering with power assistance
Electric System
Battery:2x12V/165Ah;
Alternator:28V-1500 KW;
Starter:7.5 Kw/24 V;
Brake System
Service brake
With dual-circuit compressed air brake
Park brake
Power spring brake acting on front & rear wheel
Color and Logo
Optional and customized
Details

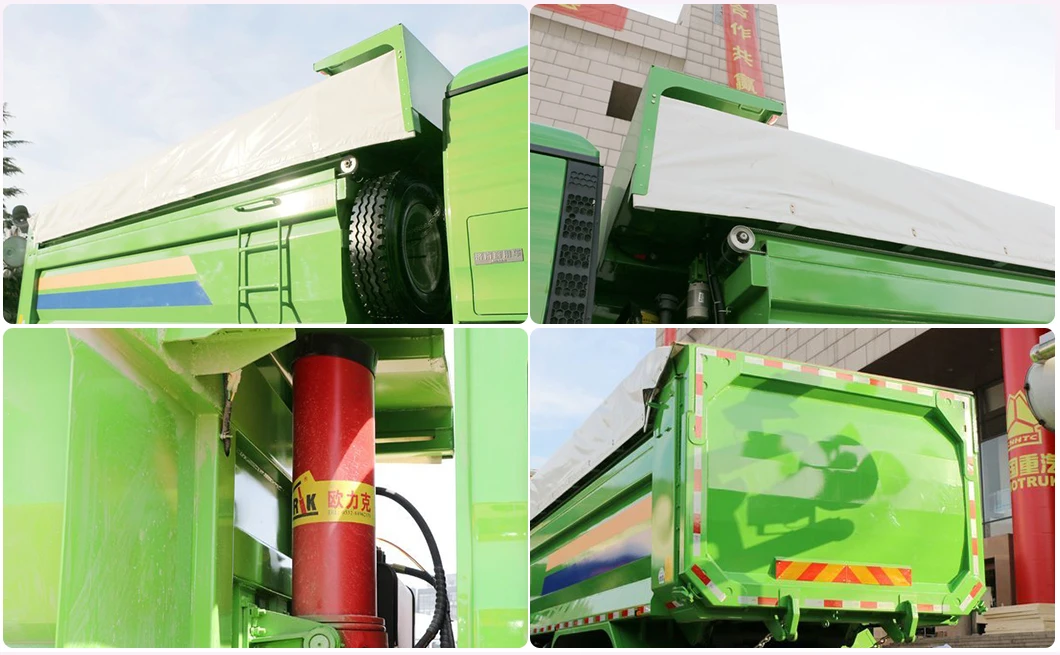

The upper part:

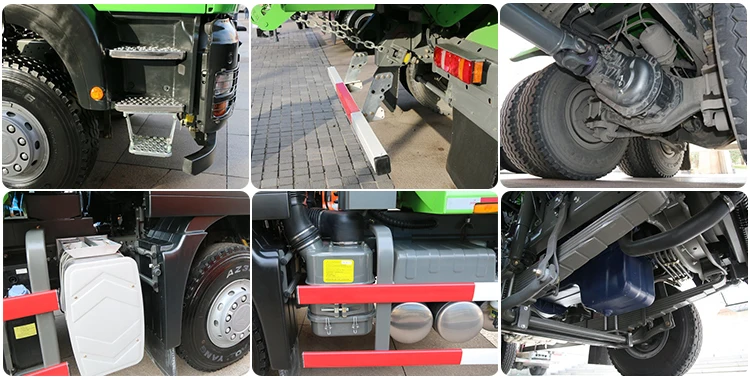

The chassis:

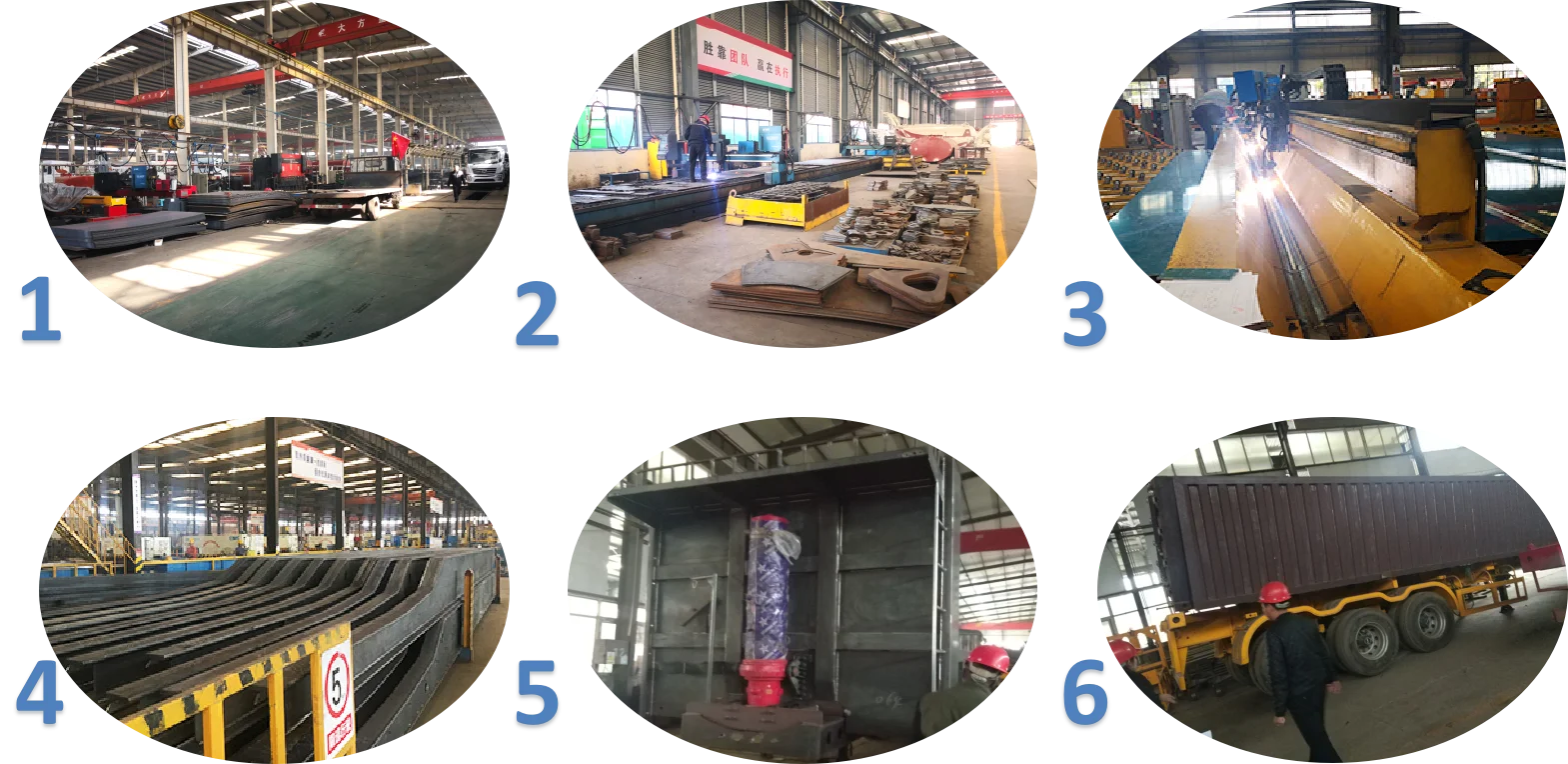

Factory
Advanced equipment and rich experience worker are applied during the whole producing process to ensure the quality of tanker semi trailer.
Related Products
Henan Jushixin Transportation Equipment Co.,Ltd is the professional manufacturer of tanker semi trailer,such as bulk cement powder tanker semi trailer, liquid tanker semi trailer and liquidized gas tanker semi trailer, with high standard machinery and automatic equipment,powerful R&D team and elite sales team, we have built a long business relationship with many world famous enterprises.We can customize different kinds of tanker semi trailer as per your request, pls contact us if any interests, sincerely expect to our cooperation in the near future.
Shipping
Our Company
FAQ
Q: Can I have the drawings ?
A:Yes, we will make the more precise drawings after getting the down payment,and will send this drawing to you for your confirmation before production.
Q: Can I customize the trailer?
A:Yes,you can choose as your actual request, then tell us the needs. We will communicate with technology and production and implement your customized trailer.
Q: How can I pay the money without risk?
A:You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
