Product Description
Vibrating sifter belongs to a high precision fine powder separation machine. High screen efficiency and novel design are the main features of vibrating sifter. It adds the special cleaning device- bouncing ball. It can bounce up and down while the screen cloth is shaking, which can effectively avoid clogging. The sealing structure design and all- closed type which can be avoid polluting the environment . The installation is very safe and convenient .
Working principle of vibrating sifter

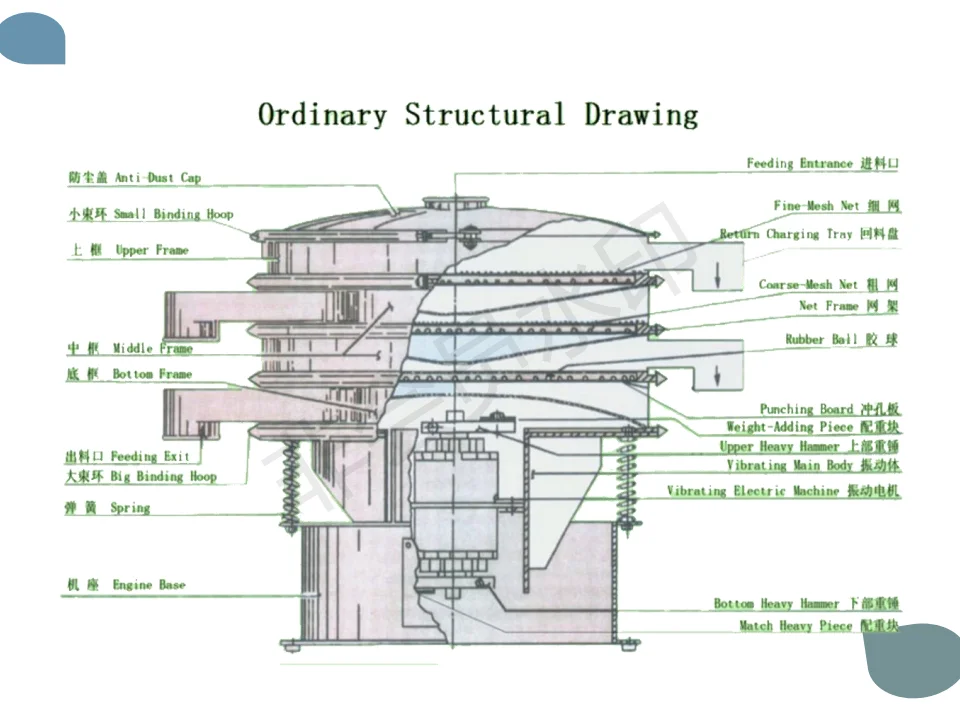

The vibrating sifter is made up of spring buffer, base, upper and lower heavy hammer,vibrating motor, screen frame, clamp ring,vibrating body, inlet and outlet port, dust proof cover and other parts. The exciting force will generate by the rotation of vibrating motor.
The exciting force drives the vibrating body to vibrate. So the materials on the screen cloth can shake to reach the objective that filters different grade materials., The adjustable eccentric hammer is driven to the center line through the motor, caused centrifuged force under the state of unbalance and so that the materials from regular spiral. Speed and track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights

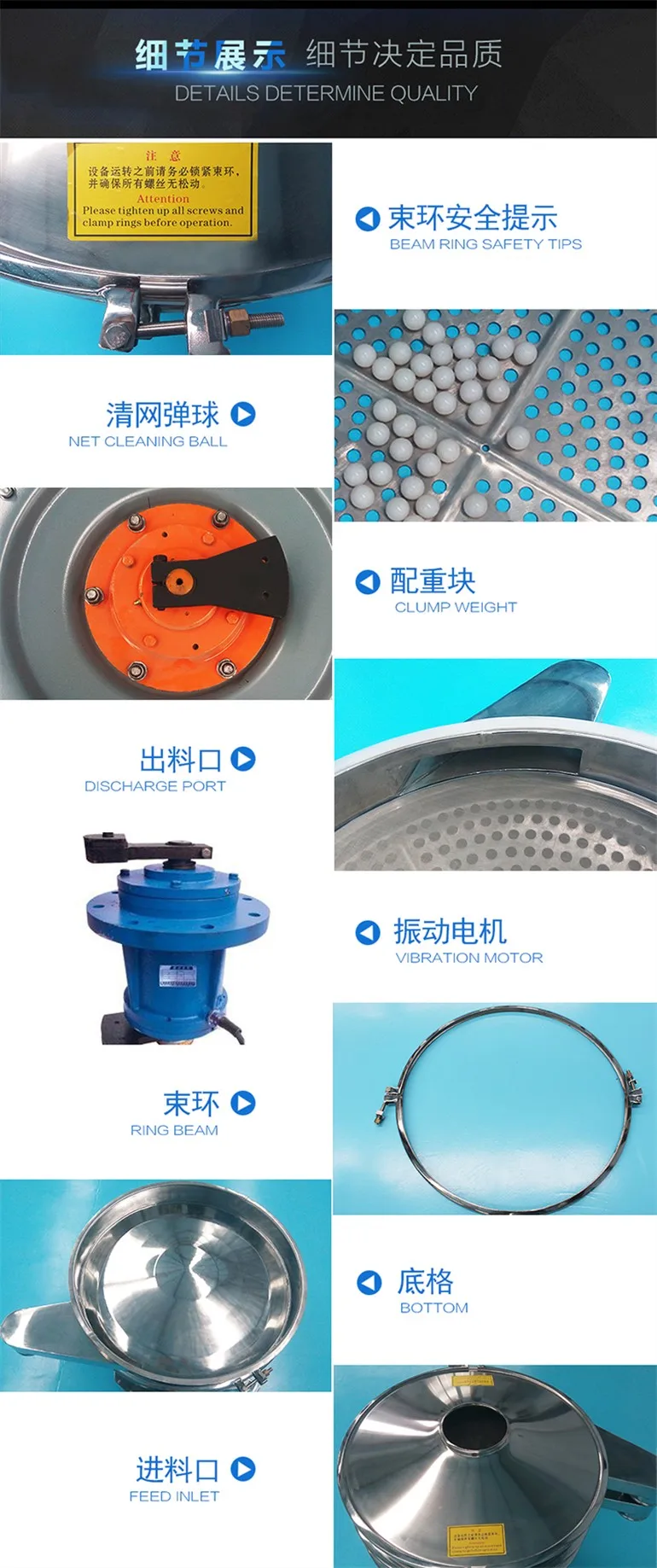

Detailed Images
The application of vibrating sifter
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes
1.Chemical Industry: colophony, dope, industry leechdom, cosmetic, paint
2.Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
3.Food Industry: sugar, amylum, rice powder, milk powder, soyabean milk, angel cake, sauce, juice.
4.Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water
recycling.
5.Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese,electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
2.Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
3.Food Industry: sugar, amylum, rice powder, milk powder, soyabean milk, angel cake, sauce, juice.
4.Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water
recycling.
5.Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese,electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
Size Information
Size Code | Diameter (mm) | Mesh Area per deck (m2) | Number of decks | Power (KW) | Maximum size to process(mm) |
S494-B | 430 | 0.13 | 1-5 | 0.25 | 20 |
S496-B | 610 | 0.16 | 1-5 | 0.5 | 20 |
S498-B | 760 | 0.44 | 1-5 | 0.75 | 30 |
S4910-B | 910 | 0.63 | 1-5 | 0.8 | 30 |
S4912-B | 1120 | 1.03 | 1-5 | 1.5 | 30 |
S4915-B | 1460 | 1.65 | 1-5 | 2.2 | 50 |
S4918-B | 1728 | 2.4 | 1-5 | 2.5 | 50 |
S4920-B | 1910 | 2.98 | 1-5 | 2.5 | 60 |
Packing&Shipping
Company Introduction
Xinxiang Dongzhen Machinery Co., Ltd found in 1987 which has a professional team, is a manufacturer of vibrating sifters,tiny electromagnetic feeders, linear vibrating screens, centrifugal sifters, tumbler screens,gyratory screens and aluminum foil tape with well quipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in mining,pharmacy,food, chemical,metal powder and other industries.
FAQ
Q: What information do we need to help you choose a perfect machine?
1. Name and feature of the raw material
2.Aim of using: get rid of impurity, filtration, grading
3.granularity distribution
4.Handling capacity: kg /h, L/h
5.The raw material size: (mesh or mm)
6.The moisture of the material
7.The material of construction (stainless steel SUS 304 or 316, carbon steel Q 235 A)
8.How many layers you need?
9.The voltage , frenquency, phase (single or three)
Note: You'd better send us the relevent pictures or some materials you want to sift , it can assure us to recommend the suitable machine for you.
Q:Can I ask some special and customize design?
A: Yes, we can make a suitable machine for you according to your request.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based
on different situations.
Best service for clients is our goal. As a professional company in manufacturing the separator sieving , ultrasonic vibrator screens, tiny electromagnetic feeders, centrifugal sifters, tumbler screens, gyratory screens and so on , we are pleased to ooffer you the best product in a reasonable price.
If you have any questions or sugestions for our products , please feel free to contact with us . We are pleased to accept your valuable advice.
1. Name and feature of the raw material
2.Aim of using: get rid of impurity, filtration, grading
3.granularity distribution
4.Handling capacity: kg /h, L/h
5.The raw material size: (mesh or mm)
6.The moisture of the material
7.The material of construction (stainless steel SUS 304 or 316, carbon steel Q 235 A)
8.How many layers you need?
9.The voltage , frenquency, phase (single or three)
Note: You'd better send us the relevent pictures or some materials you want to sift , it can assure us to recommend the suitable machine for you.
Q:Can I ask some special and customize design?
A: Yes, we can make a suitable machine for you according to your request.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based
on different situations.
Best service for clients is our goal. As a professional company in manufacturing the separator sieving , ultrasonic vibrator screens, tiny electromagnetic feeders, centrifugal sifters, tumbler screens, gyratory screens and so on , we are pleased to ooffer you the best product in a reasonable price.
If you have any questions or sugestions for our products , please feel free to contact with us . We are pleased to accept your valuable advice.
