High Efficiency River Sand Suction Dredger 650mm Cutter Head For Gold Mining
Product Description

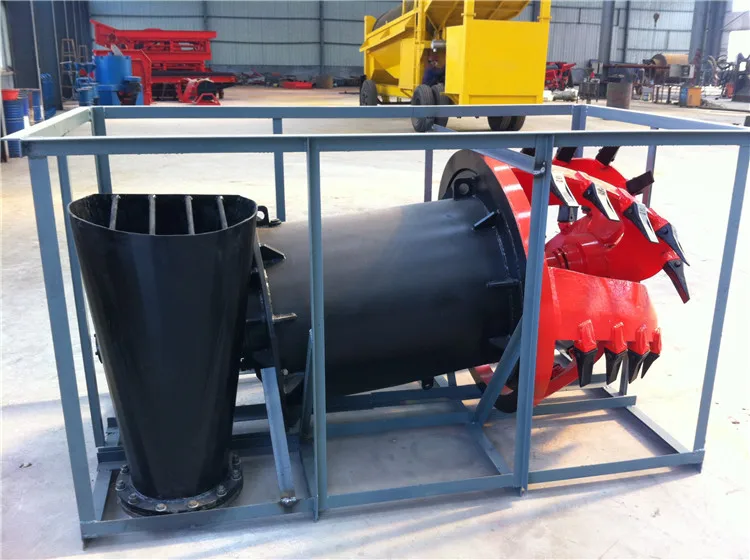

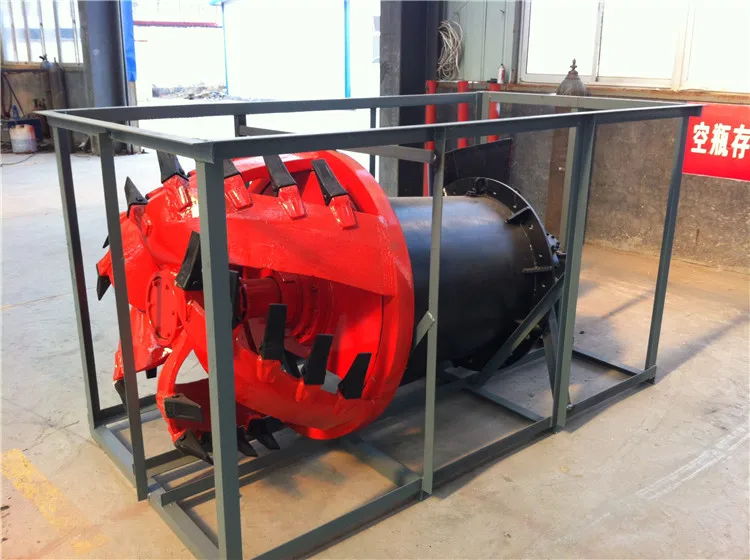

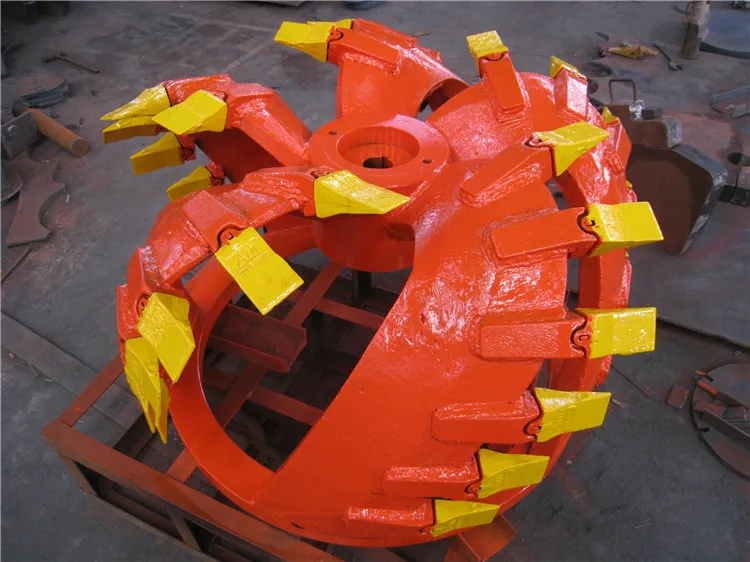

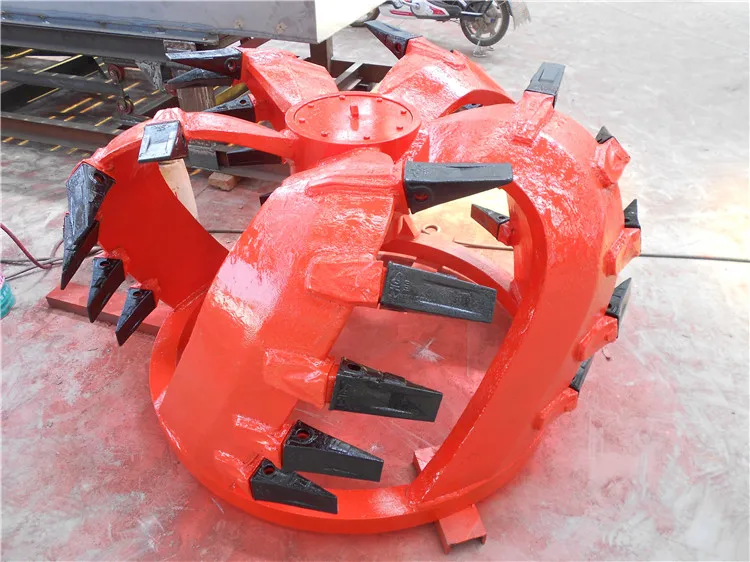

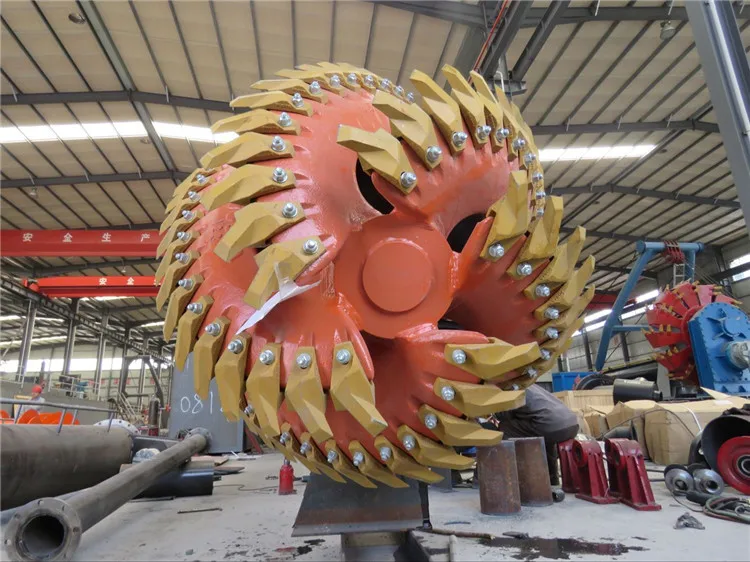

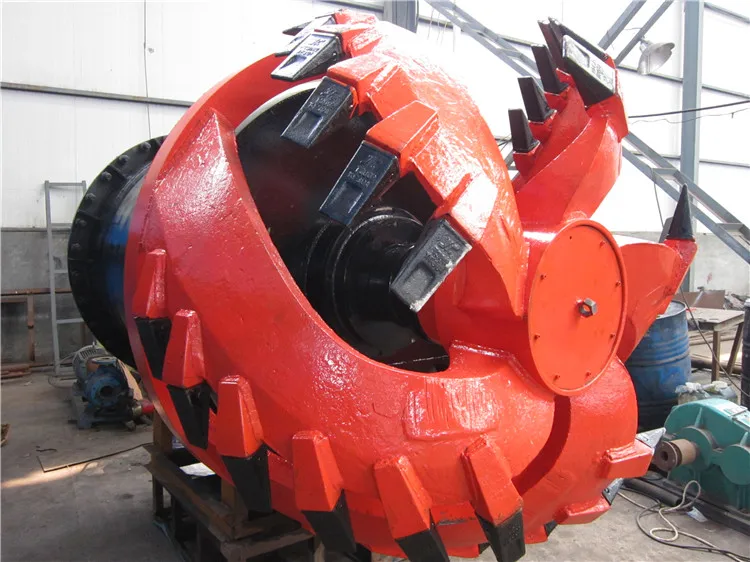

The Cutter head is equipped at the forefront of the cutter suction dredger. Since the dredging process starts with excavation and slurry creation, a cutter suction dredger's performance is mainly defined by its cutter head.
Specification
Model | CSD-150 | CSD-200 | CSD-250 | CSD-300 | CSD-450 | CSD-500 | |||||
Cutter Dia. | 1000 | 1300 | 1300 | 1500 | 1700 | 2050 | |||||
Power(kw) | 30 | 50 | 50 | 80 | 170 | 300 | |||||
Displacement | 3960 | 10170 | 10170 | 11870 | 21490 | 42000 | |||||
Torque | 9.5 | 22 | 22 | 25 | 50 | 96 | |||||
Cutting speed | 1.6 | 2.0 | 2.0 | 2.4 | 2.7 | 3.2 | |||||
Working pressure | 16 | ||||||||||
Cutter teeth | 25/ZGM13 | 30/ZGM13 | 35/ZGM13 | 40/ZGM13 | |||||||
Cutter arm quantity | 5 | ||||||||||
Cutter arm material | ZG35SiMn | ||||||||||
Replace frequency | 180 | 180 | 180 | 160 | 130 | 120 | |||||
Features:
* 1. complete range
* 2. up to 3000mm in diameter
* 3. up to 1,400kW of the cutting power
* 4. refined teeth and cutting edge design
* 5. variety of cutterheads to meet your requirement
* 6. low cost for productivity
* 7. easy maintenance (replaceable teeth system)
* 1. complete range
* 2. up to 3000mm in diameter
* 3. up to 1,400kW of the cutting power
* 4. refined teeth and cutting edge design
* 5. variety of cutterheads to meet your requirement
* 6. low cost for productivity
* 7. easy maintenance (replaceable teeth system)
Packing & Delivery
Packaging Details:Standard export case.
Port:Shanghai, Qingdao, etc.
Lead Time :Shipped in 60 days after payment.
Lead Time :Shipped in 60 days after payment.
Relative Products
Main Products: Gold trommel, centrifugal concentrator, vibrating sluice, clay washer, vibrating screen, gold dredger etc.was well sold both home and abroad.
Customer Photos
Our products have Exported to Russia, Laos, Vietnam, Kazakhstan, Tajikistan, North Korea, the Philippines, Mongolia, Myanmar, Papua New Guinea,Indonesia, Fiji,South Africa, Ghana, Benin,
Company Profile
1.Shandong Eterne Machinery Co., Ltd. is a modern enterprise comes from Weifang city, Shandong Province, China, which is integrating R & D, production and service including mining equipment and river clean machine.
2.ET machienry had been exported to many countries of the world such as America, Russia, Indonesia, Uzbekistan, Algeria, Mongoliaetc more than 20 countries.
3.Eterne people make full use of technology and brand advantages, established a developed sales network throughout China, at the same time we established a good after-sales service network, can provide customers with quality technical advice and installation and maintenance services.
2.ET machienry had been exported to many countries of the world such as America, Russia, Indonesia, Uzbekistan, Algeria, Mongoliaetc more than 20 countries.
3.Eterne people make full use of technology and brand advantages, established a developed sales network throughout China, at the same time we established a good after-sales service network, can provide customers with quality technical advice and installation and maintenance services.
FAQ
1. Are you factory?
Yes, established in 2003, over 15 years factory.
Yes, established in 2003, over 15 years factory.
2. How big are you?
In total 6 work shops, 15,000㎡, office 3000㎡, 80 workers.
3. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment.
4. Whats the capacity of the
from 5TPH to 450TPH.
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required.
In total 6 work shops, 15,000㎡, office 3000㎡, 80 workers.
3. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment.
4. Whats the capacity of the
from 5TPH to 450TPH.
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required.
