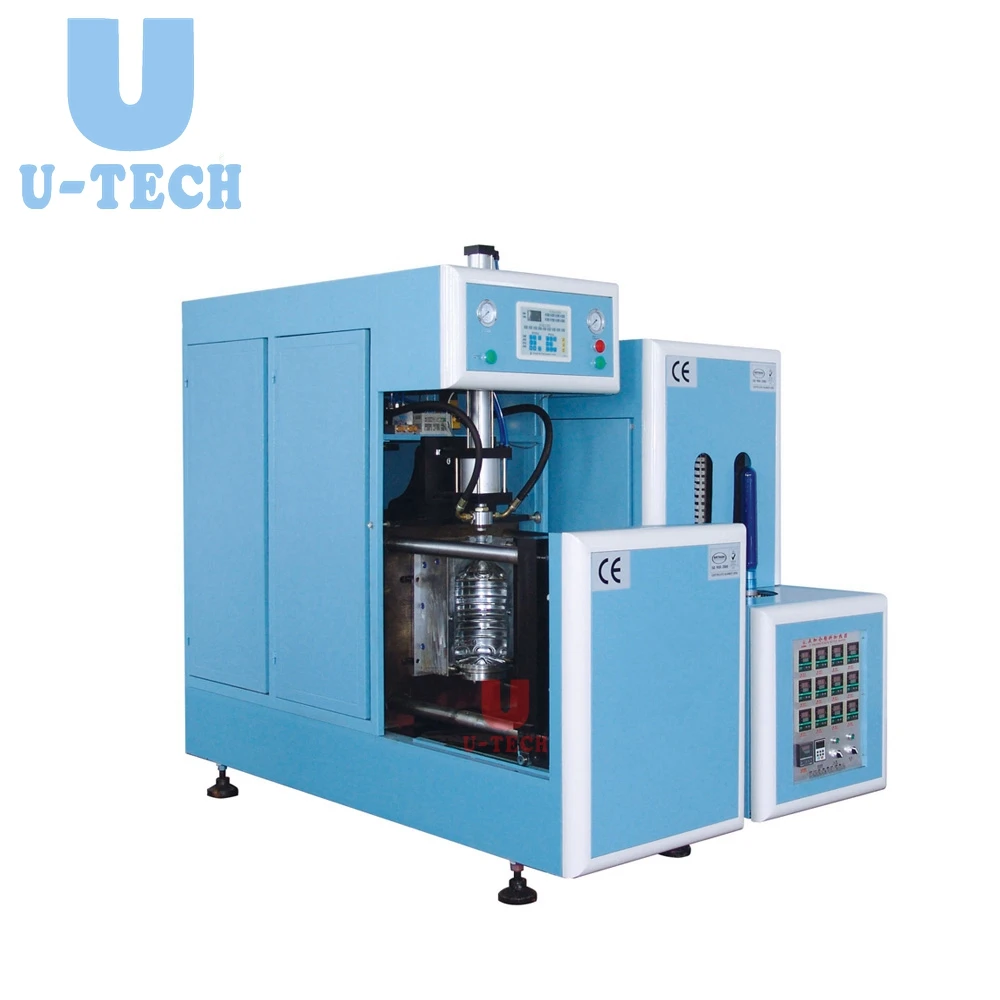

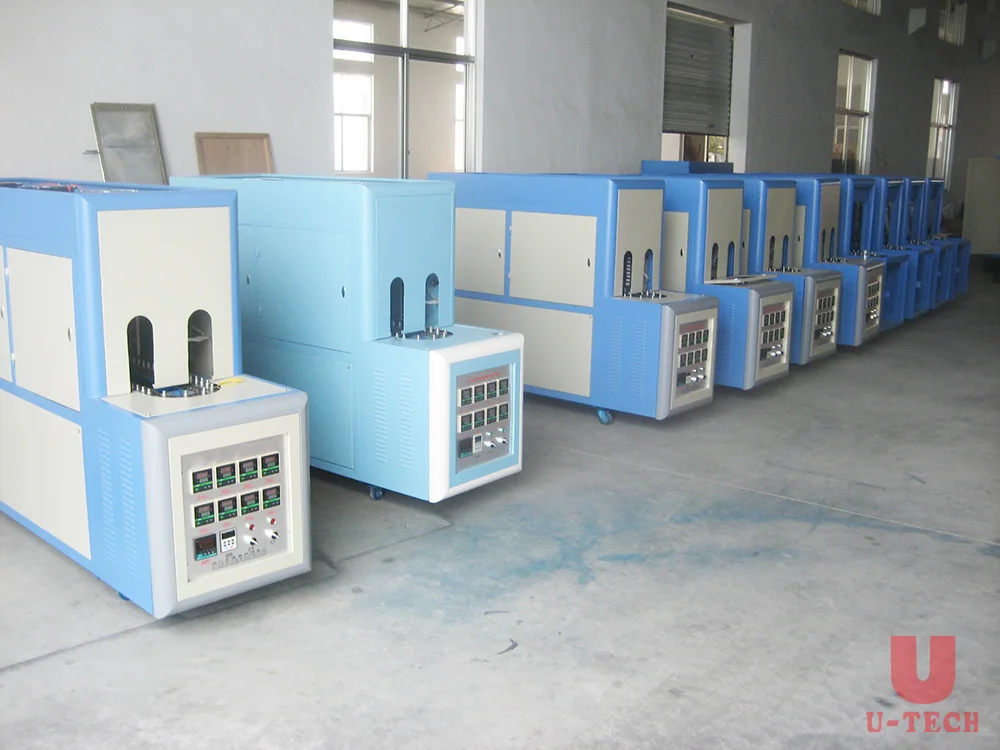

It is a semi auto machine that blows 5 gallon water bottles. The simplest explanation is a machine that can blow plastic particles or prepared preform into bottles through certain technological means. It has one main machine and one oven. It is easy to operate. Adopting high pressure clamping, automatic stretch blow molding machine makes self-adjustment in accordance with the different pressure needed during production, thus ensures the super clamping force. Its capacity is 80-100BPH.
Features1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide. 2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation. 3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle. 4. PLC control system,the operaton is easy. 5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.
Technical Parameter
Type
UT-120
output
According to bottle type
80-100PCS/H
Product species
Bottle diameter
150mm-300mm
bottle height
250mm-550mm
Bottle mouth diameter
15mm-100mm
Mould
cavity
1cavities
mould thickness
200~450mm
Effective area of mold
600*600mm
Main power
Power
380v 4Phase /220v 2Phase 50/60HZ
install power/actual power
26kw/11kw
High pressure air compressor
1.2m3/min 3.0MPa
Cold dry machine
2.0m3/min 3.0MPa 1set
Cooling water
Cooling water quantity
15L/min
Main machine size
Length width height/weight
2150*730*1700mm/950kg
Oven size
Length width height /weight
2450*680*1580mm/650kg

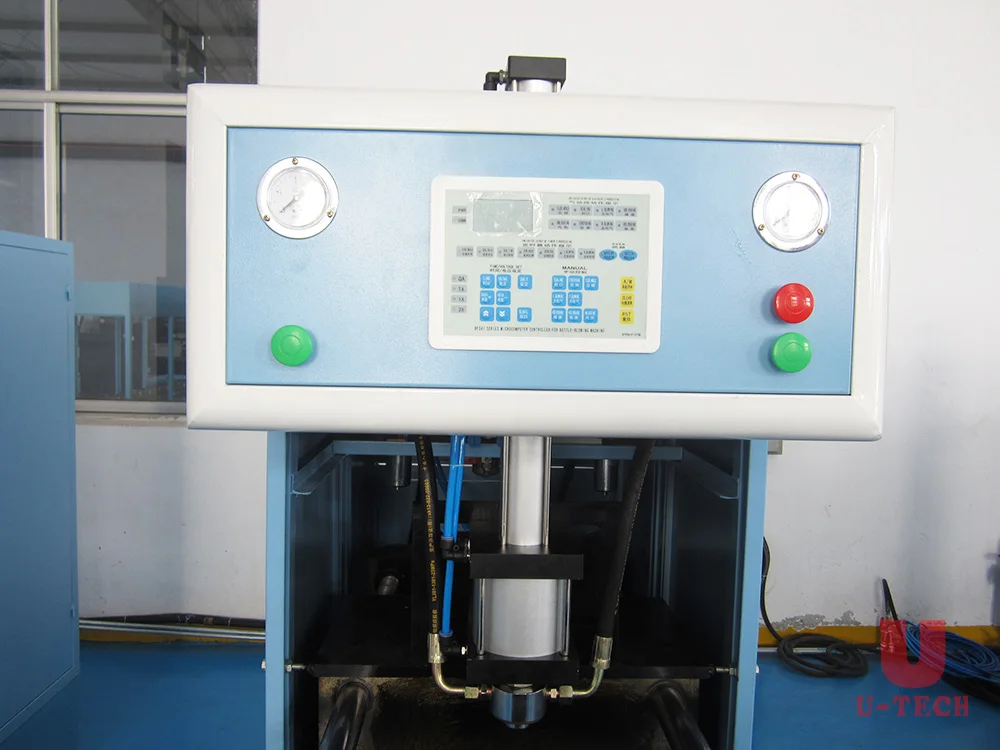

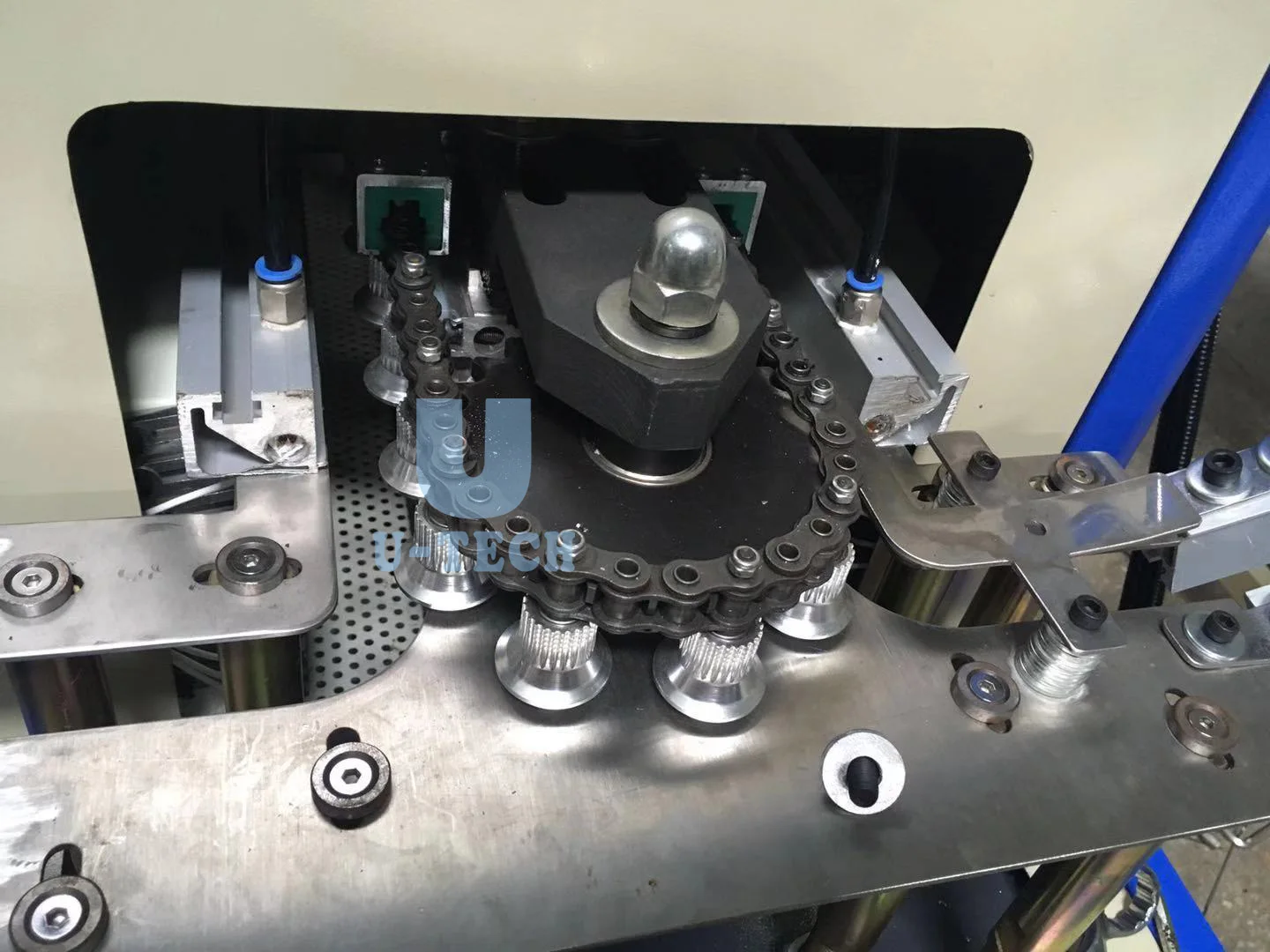

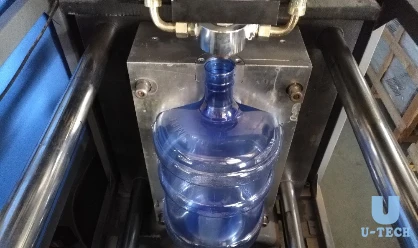

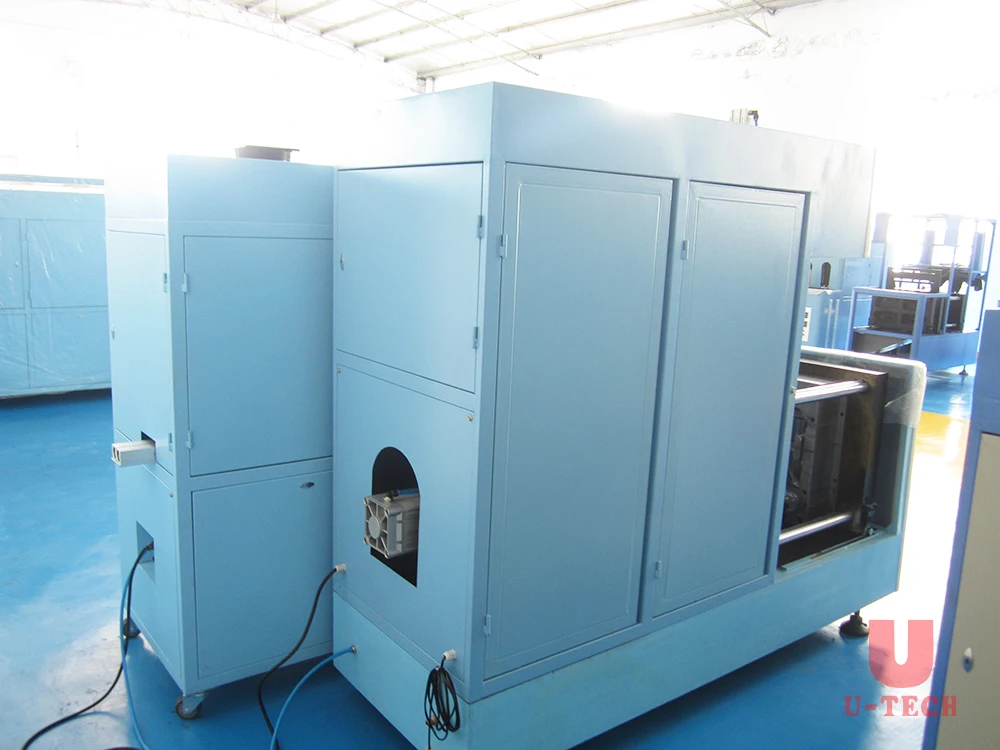

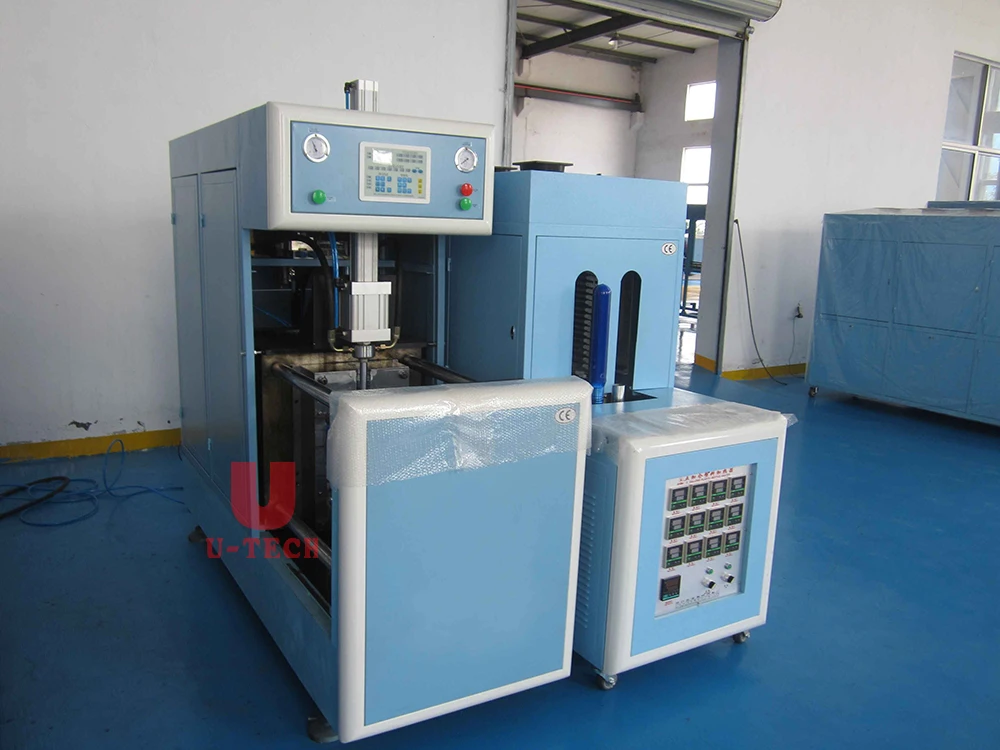

Machine details
Application

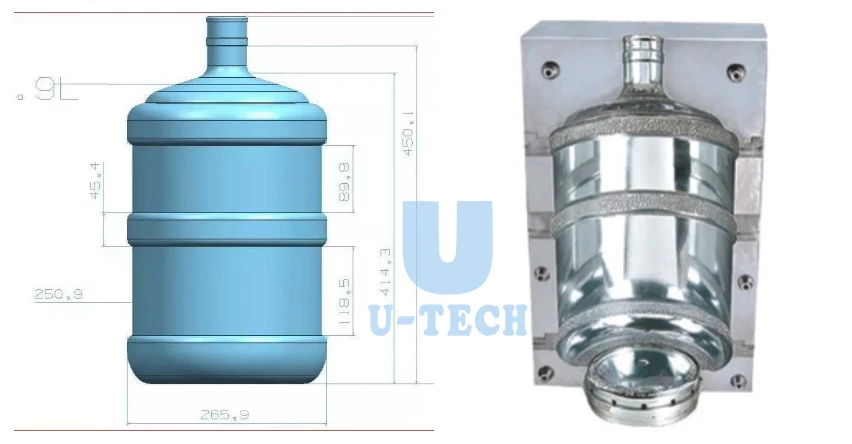

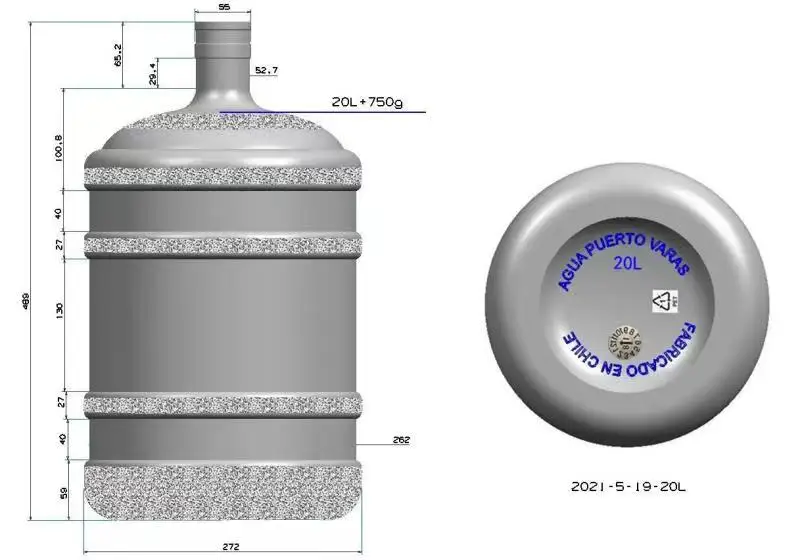

Designed bottles

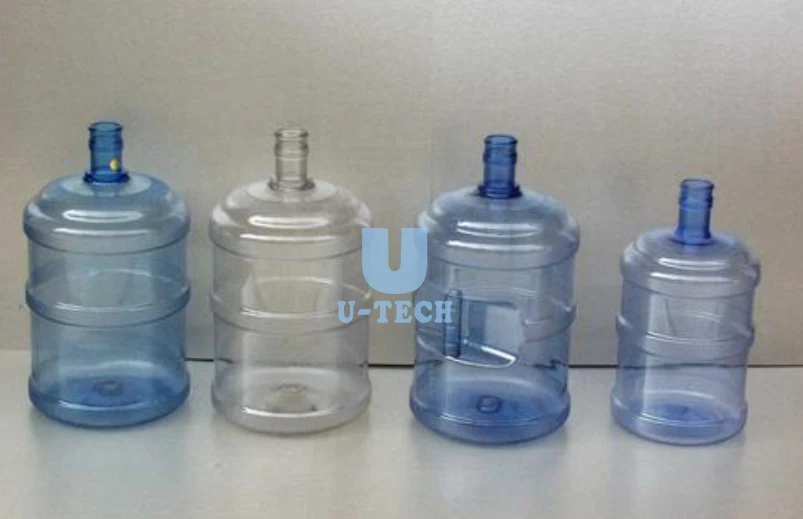

Finished bottles
Packing & Delivery

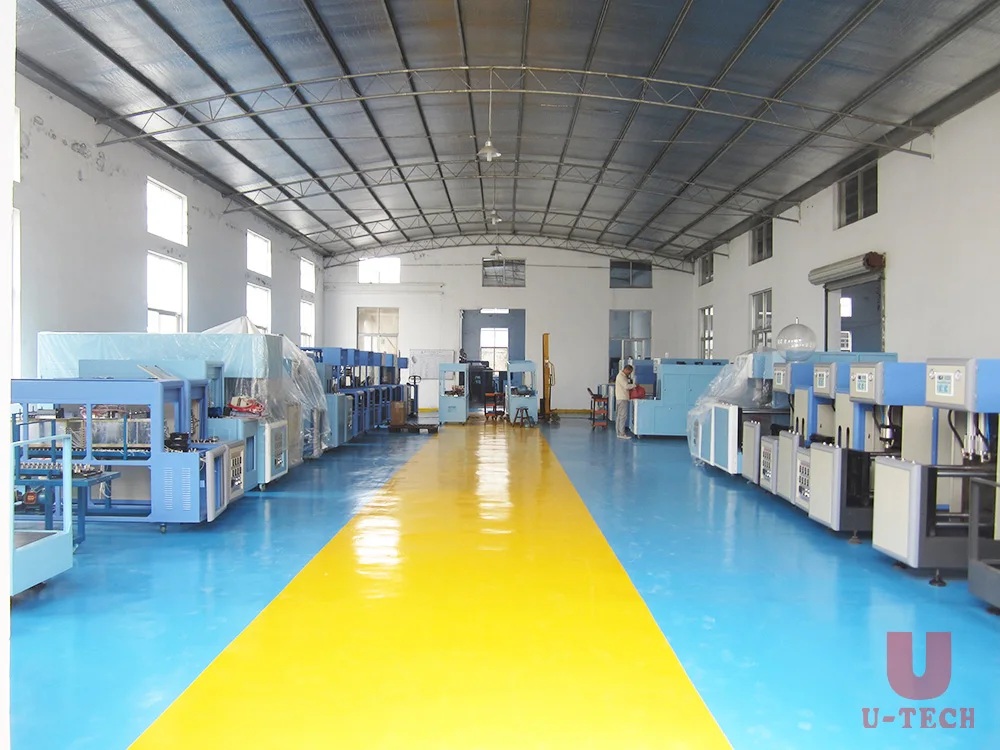

Company Profile
FAQ
Q1:Are you a trading company or a manufactory? A1:We are a manufactory, can give u best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines? A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts? A5:After we deal down all the things , we will offer you a spare parts list for your reference.
