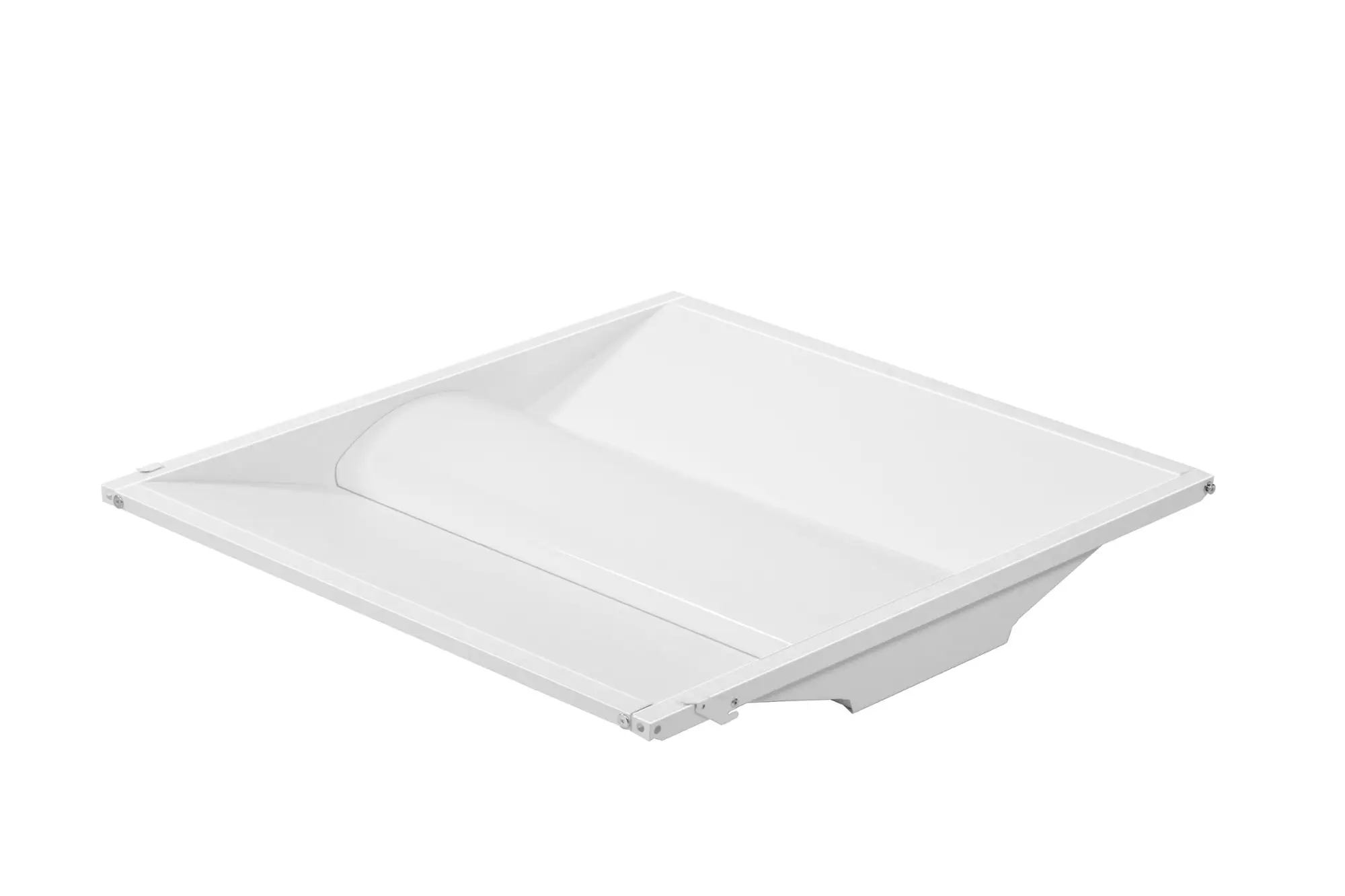

Hot selling multi-specification embedded LED concealed light 2x2 / 2x4ft 0-10v American dimmable led panel light
Specification of Recessed LED troffer retrofit light 2x2 / 2x4ft 0-10v dimming American led panel light 12w 20w 24w 28w 30 w 40w 50w
Tech Data |
| |
Model | ARK**R12DN130 | |
LED Type | Epistar SMD 2835 LEDS | |
LED Power | 12w 20w 24w 28w 30 w 40w 50w | |
LED Color | 3000K-6500K | |
Input Voltage | AC 100-277V | |
Frequency Range | 50Hz – 60Hz | |
Power Factor | >95% | |
Luminous Efficiency | 130LM/W | |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K | |
CW | 6000-7000K | |
CRI | WW | Ra>80 |
PW / CW | Ra>83 | |
Lumens Output | WW | 140-160lm/w |
PW | 140-160lm/w | |
CW | 140-160lm/w | |
Beam Angle | >120° | |
PC Housing | Frosted/clear | |
Working Temperature | -20°C ~ +40°C | |
Storage Temperature | -25°C ~ +65°C(25°Cbest) | |
Life span | 35000~50000hrs | |
Certification | UL DLC FCC | |
Net Weight | 3.7KG/ | |
Package | 156*21*21cm (25pcs/box) 17.0kgs |
Advantages of Recessed LED troffer retrofit light 2x2 / 2x4ft 0-10v dimming American led panel light 12w 20w 24w 28w 30 w 40w 50w:
1, 0-10V dimming
2, Easy to install
3, Wide rage of wattage availble
4,Highly energy efficiency, meet the requirement of ERP and DLC.
5,High-tech optical design.
7,UL DLC certification.
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express.
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange
to deliver the items.
1. Provide solutions and high quality products with reasonable price
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
4. Protection of your sale area, ideas of design and all your private information
5. Warranty: 5 years
Is the led tube heat disspation good?
Yes,it is very good
1,we use the high quality Epistar leds,good quality and high power efficiency,
that the heat are reduce more!
2,The PCB bored,we use the aluminum meterial ,it easy for heat disspation!
3,Inside with a D shape Aluminun for heat disspation.
Why chose us?
1,we are the factory with more than 11 years experience for led tube.
2,we get CE ROHS TUV VDE certificate for our led tube to support the business in Europe market.
How many years warranty do you have for LED tubes ?In case something
goes wrong and we need to use warranty, what is procedure for getting new lamps?
1,we offer 5 years warranty.
2,We have our warranty letter, in warranty period, in case of any our product is found to be defective
in materials or workmanship,we will send replacement or rearing the defect and return back to you!
required,please contact me!
