Complete Alluvial Gold Equipment Diamond Washing Machine Gold And Diamond Mining Machine
Hengchang mining machinery provide turnkey solution for mineral processing plant including research, design, manufacture, installation and commissioning, personnel training, after-sale service and management of processing plant. Be one of the best mining machinery supplier of China is the goal of Hengchang machinery, so we do our best in every step. Up to now, we have developed five major product lines; they are mining crushing machine, mining milling machine, mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.
Gold And Diamond Mining Machine Introduction:

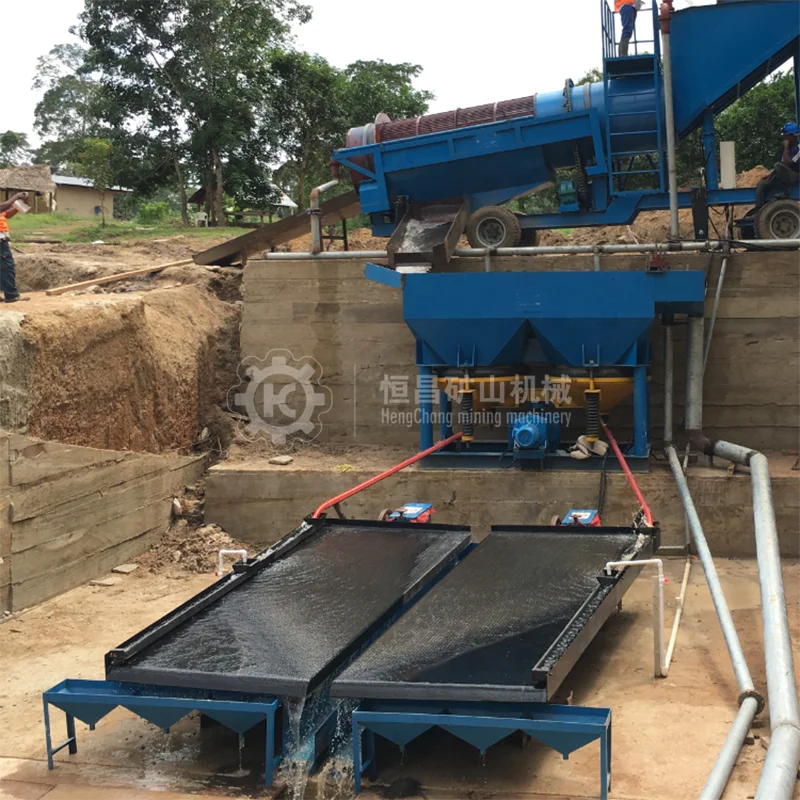

Gravity gold processing is the most traditional method of extracting gold in alluvial and rock gold mine used widely. It is more as a secondary process to recover coarse gold in the gold sluice box and the fine gold go the gold centrifugal concentrator and shaking table for concentrating.
Gravity gold processing is the most traditional method of extracting gold in alluvial and rock gold mine used widely. It is more as a secondary process to recover coarse gold in the gold sluice box and the fine gold go the gold centrifugal concentrator and shaking table for concentrating.
1. Washing and Screening: Use gold trommel to wash and screen the raw material into 0-2mm, 2mm+ particles.
2. Jig machine: Use jig machine to separate the 2mm+ gold.
3. Gravity concentration: Use gold shaking table to separate the gold concentrate from the powder(0-2mm).

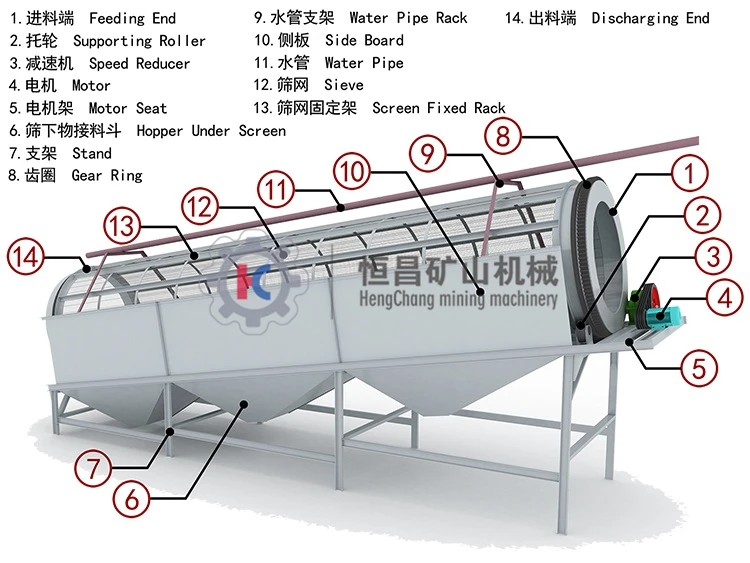

Gold Trommel Screen
Trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials in the mineral and solid-waste processing industries. Trommel screen is mainly used in gold processing, metallurgy, mine, coal, power station, water conservancy project, building industry, light industry, and chemical industry. It is efficient screening machine for the classification of bulk material such as coal, minerals, coke etc.
Jig Machine
Jig machine separators are devices used mainly in the mining industry for mineral processing, to separate particles within the ore body, based on their specific gravity. It is widely used to separator tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.
There are many applications where the jig separator of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.
There are many applications where the jig separator of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.

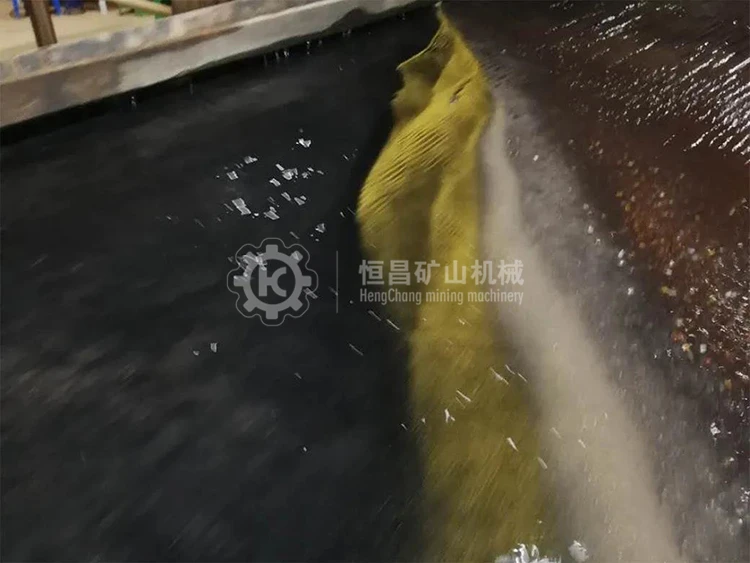

Gold Shaking Table
Gold haking table is one of the main equipment of gravity concentration, which is suitable for rough separation and concentration. It is widely used in separating gold, tungsten, tin, tantalum, niobium and other rare metals and precious metal ore. Can be used for roughing, concentration, scavenging different operations, separating coarse sand (2-0.5mm), fine sand (0.5-0.074mm), slime (-0.074mm) of different grain grade.
Name | Model | Capacity (t/h) | Motor power (kw) | Weight (kg) |
Gold trommel screen | GT1530 | 100-180 | 11 | 5100 |
Jig machine | JT2-2 | 4-8 | 3 | 1640 |
Gold shaking table | 6S-4450×1855×1546 | 0.6-2.5 | 1.1 | 700 |
