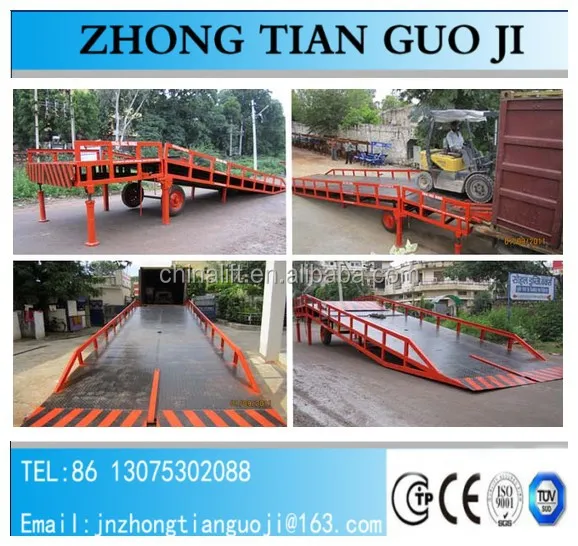

12t mobile hydraulic container forklift platform
1.lifting height:0.9-1.7 m
2.loading capacity: 12 tons

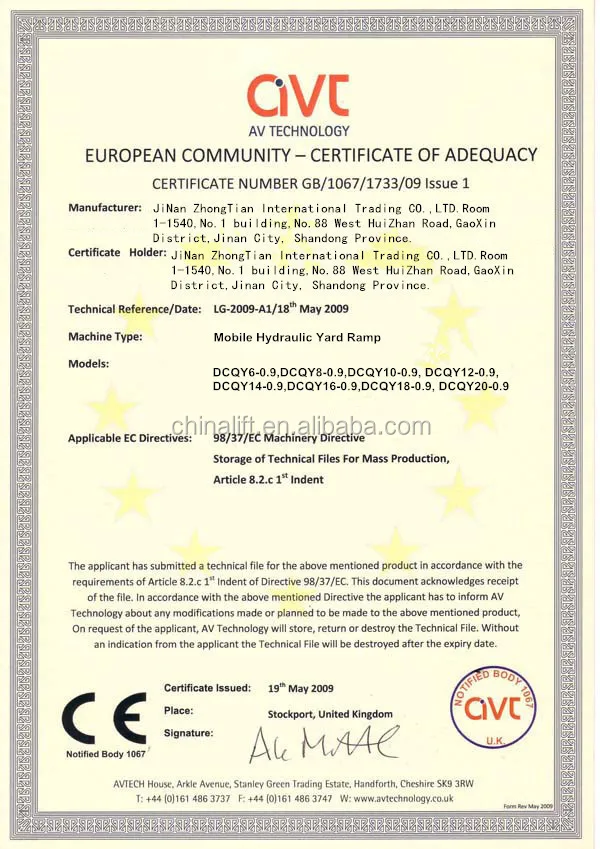

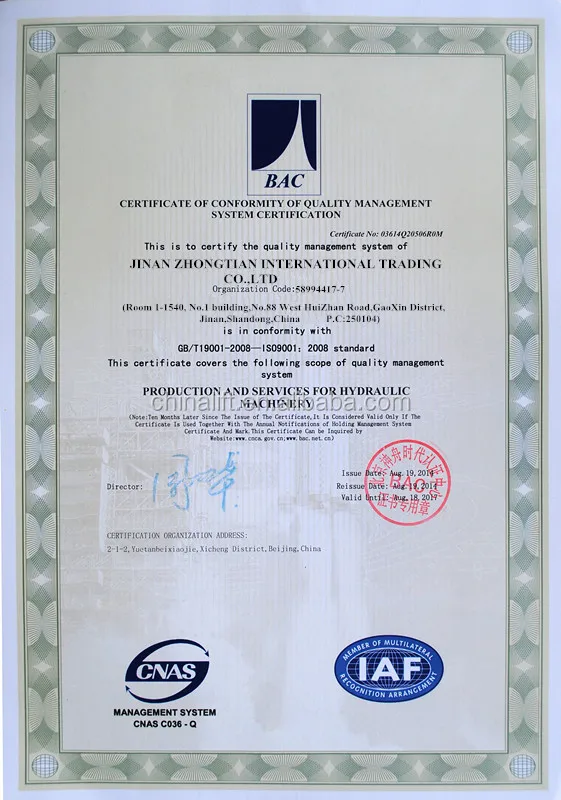

3.CE,ISO
1, hydraulic drive, easy to operate and reliable operation.
2, lip connected with the long axis of the entire platform, high strength, good reliability.
3, the use of imported seals to protect the hydraulic system has excellent sealing performance.
4, the overall use of imported modular hydraulic station, good sealing and long service life.
5, high-intensity "U" shaped beam designed to ensure their long-running high-load without deformation.
6, the use of non-slip tread plate, so that the platform has a good anti-slip properties.
7, both sides of the fortification apron rolling pin to prevent accidental injury toes stretching platform.
8 features to protect maintenance personnel to enter Ramps internal maintenance safety rod.
can be customized
Model | Lifting distance | Loading Capacity | Table Size | Weight |
ZTDCQY6 | 0.9-1.7m | 6000kg | 10500*2000mm | 2300kg |
ZTDCQY8 | 0.9-1.7m | 8000kg | 10500*2000mm | 2500kg |
ZTDCQY10 | 0.9-1.7m | 10000kg | 10500*2000mm | 2600kg |
ZTDCQY12 | 0.9-1.7m | 12000kg | 10500*2000mm | 2700kg |
ZTDCQY15 | 0.9-1.7m | 15000kg | 10500*2000mm | 2900kg |
ZTDCQY20 | 0.9-1.7m | 20000kg | 10500*2000mm | 3300kg |
1. All the machines will be full tested before shipment.
2. The total machine guarantee is 12 moths.
3. 24 Hours technical support, email, telephone or video online.
4. User-friendly english manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
1. Delivery time
Within 7- 15 working days after we receive the order.
2. Payment terms
T/T, L/C, Western Union, PayPal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
ZHONGTIAN lifts can be custom-made.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in interior and exterior building decorations, workshops, docks, stations, supermarkets, halls, etc.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social demands.
