Product Description

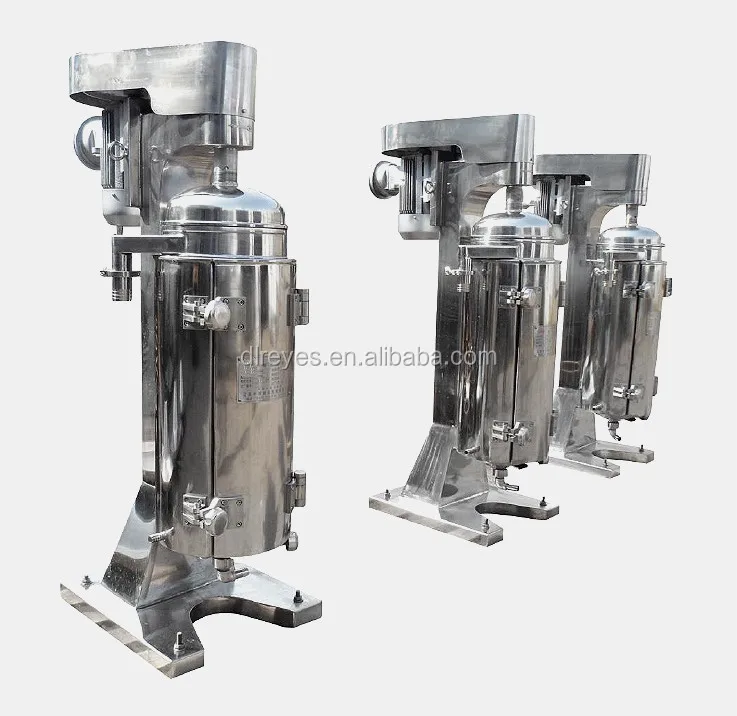

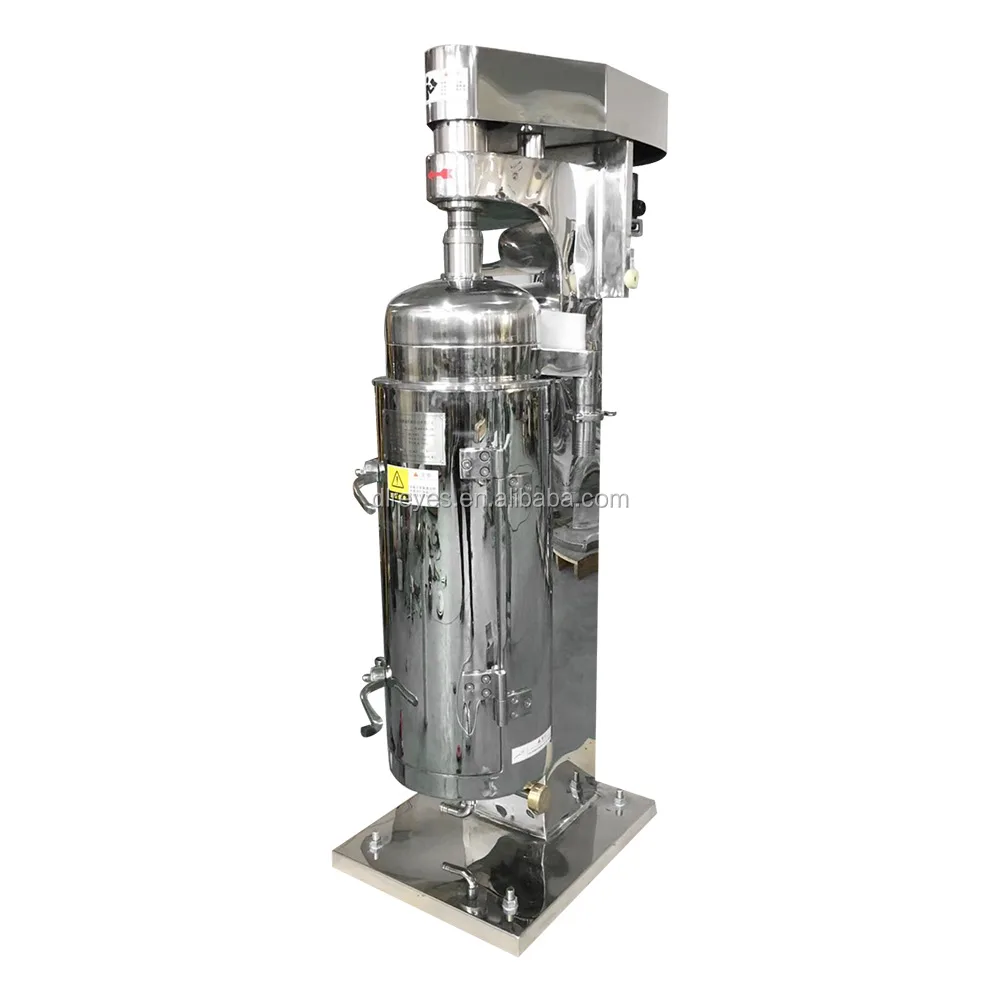

VCO virgin coconut oil centrifuge machine, tubular centrifuge
There are two types tubular centrifuge,GQ and GF .More information,please note the following description
GQ Application Scope:
GQ Tubular centrifuge separator is mainly used for separating all kinds of suspension which is difficult to be separated,especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs&plants extracts,various medicine liquor ,liquid medicine, wine clarify oral liquid, the extraction of paint, dye, as well as various proteins, alga,fruit gels, and purification of rubber solution, coal tar,graphite,saponin, milk,pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, spore and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap,etc.
GQ Tubular centrifuge separator is mainly used for separating all kinds of suspension which is difficult to be separated,especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs&plants extracts,various medicine liquor ,liquid medicine, wine clarify oral liquid, the extraction of paint, dye, as well as various proteins, alga,fruit gels, and purification of rubber solution, coal tar,graphite,saponin, milk,pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, spore and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap,etc.
Main Features:
The tubular centrifuge separator is the equipment that works with high separation factor and capacity, little space and easy operation, with low noises, it is extremely convenient to maintain.
GF Application Scope:
GF Tubular Centrifuge Separator is used for separating various kinds of liquids that are difficult to be separated, especially suitable for liquid-liquid separation and liquid-liquid-solid separation.
Main Features:
It is a high-speed centrifuge with strong separating capacity. The bowl of the centrifuge rotates around its axis and forms a strong centrifugal force, the centrifugal force separates the suspensions into liquids and solid.
It is a high-speed centrifuge with strong separating capacity. The bowl of the centrifuge rotates around its axis and forms a strong centrifugal force, the centrifugal force separates the suspensions into liquids and solid.
The suspension is fed through the bottom into the hollow cylindrical rotor which has two outlets at the top to allow the discharge of the separated liquids. The lighter liquid and the heavier liquid will flow out from the respective liquid outlets. At the same time the solids are deposited on the bowl's wall and the accumulated solids are cleaned out manually from the bowl when the centrifuge is shut down.
The parts contact with the material is made of stainless. The machine body can be stainless or iron casted with painting according to the material to be separated or the requirement of the customer.
The parts contact with the material is made of stainless. The machine body can be stainless or iron casted with painting according to the material to be separated or the requirement of the customer.
The capacity of the tubular centrifuge separators is from 10L/h to 3000L/h depending on the different type of the tubular centrifuges and the density of the mixture to be separated.
Working principle
The tubular centrifuge separator consists of machine body,driving part,bowl,liquid collecting tray and liquid inlet bearing seat etc. On top of the bowl is the flexible spindle and at the bottom is the damping floating bearing. The spindle is coupled with driven wheel by buffer on the coupling seat. The motor transmit power to the driven wheel through drive belt and tension wheel, thus for the blow to rotate around its own axis at high speed, to form a strong centrifugal force field. The material is injected inside from the liquid inlet at the bottom, and the centrifugal force compels the clarification liquid to flow upwards along the inner wall of bowl,and the clarification liquid flows out from the outlet. The solid deposit in the bowl,and it will be discharged by manual after the machine is shut down.

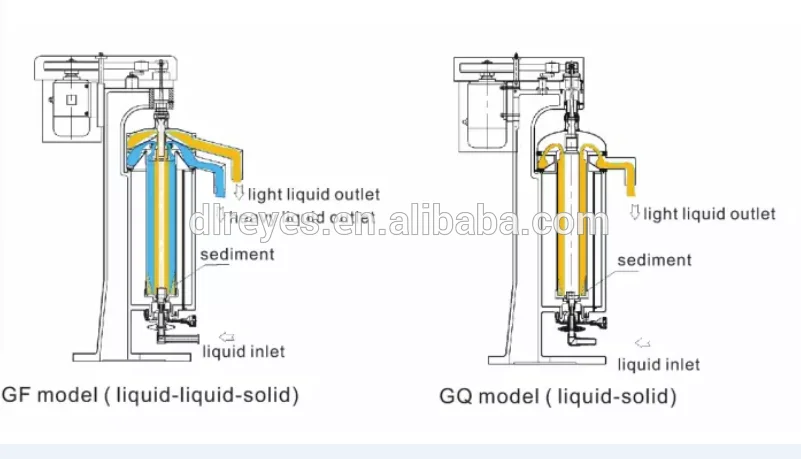

Schematic:
Technical parameter
Type | 75 | 105 | 125 | 150 |
Diameter (mm) | 75 | 105 | 125 | 142 |
Bowl Speed (r/min) | 19000 | 16300 | 15000 | 13400 |
Bowl Volume (L) | 2.2 | 6 | 8 | 10 |
Separating Factors (ω2.r/g) | 15700 | 15620 | 15750 | 15700 |
Though output Capacity (L/h) | 600 | 1200 | 1500 | 2500 |
Motor Power (kw) | 1.5 | 2.2 | 3.0 | 3.0 |
Weight (kg) | 300 | 570 | 610 | 665 |
Dimension(mm) L×W×H | 760×450×1120 | 840×500×1600 | 900×550×1600 | 1020×600×1600 |
The capacity of the tubular centrifuge separators is from 10L/h to 3000L/h depending on the different type of the tubular centrifuges and the density of the mixture to be separated
Packing & Delivery

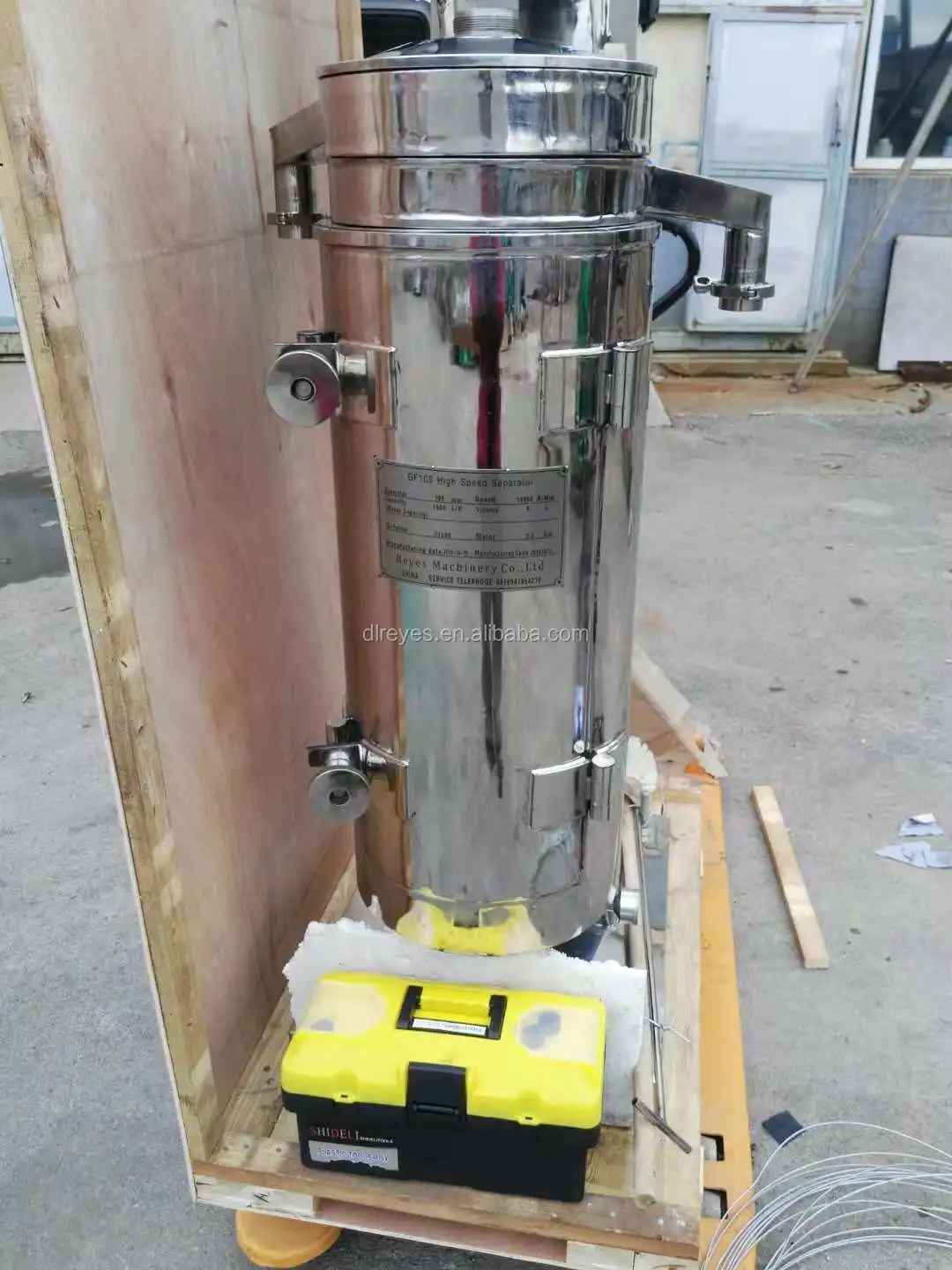

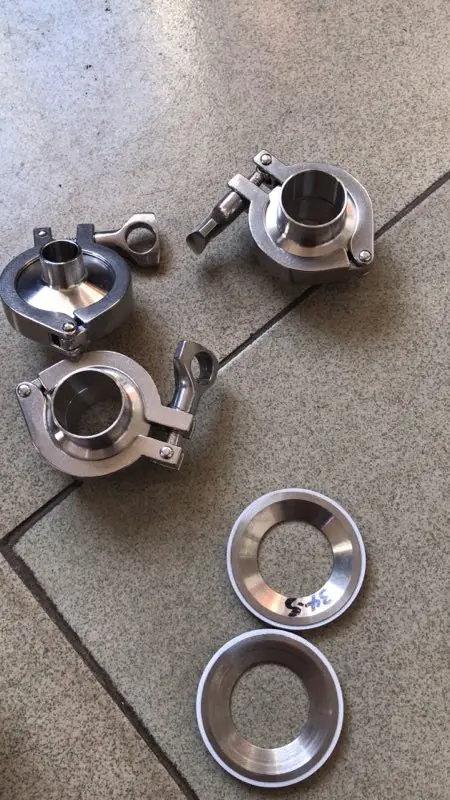

Quick fit connector GF75 tubular centrifuge GQ105 tubular centrifuge

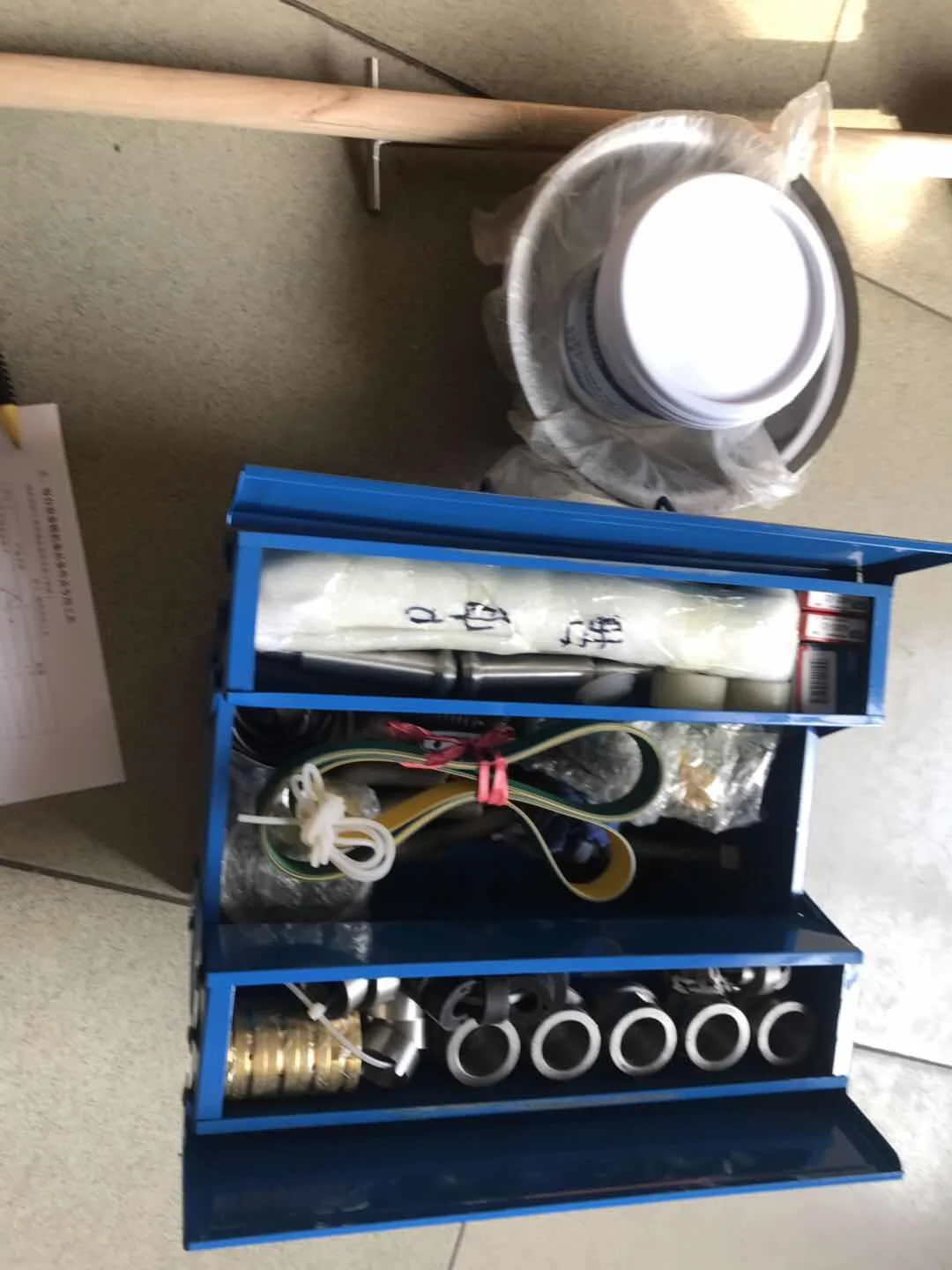

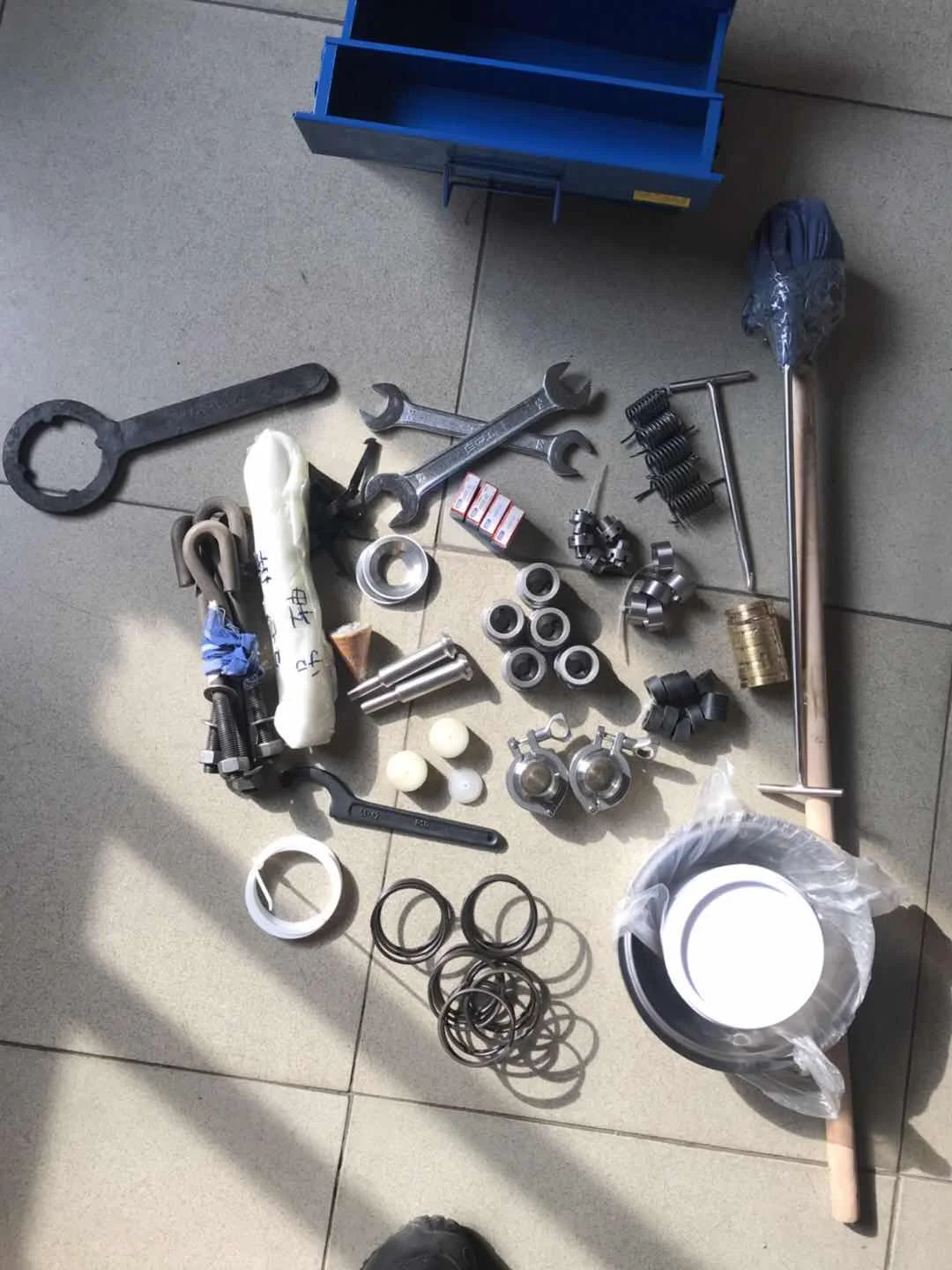

Spare parts Tool Drum
