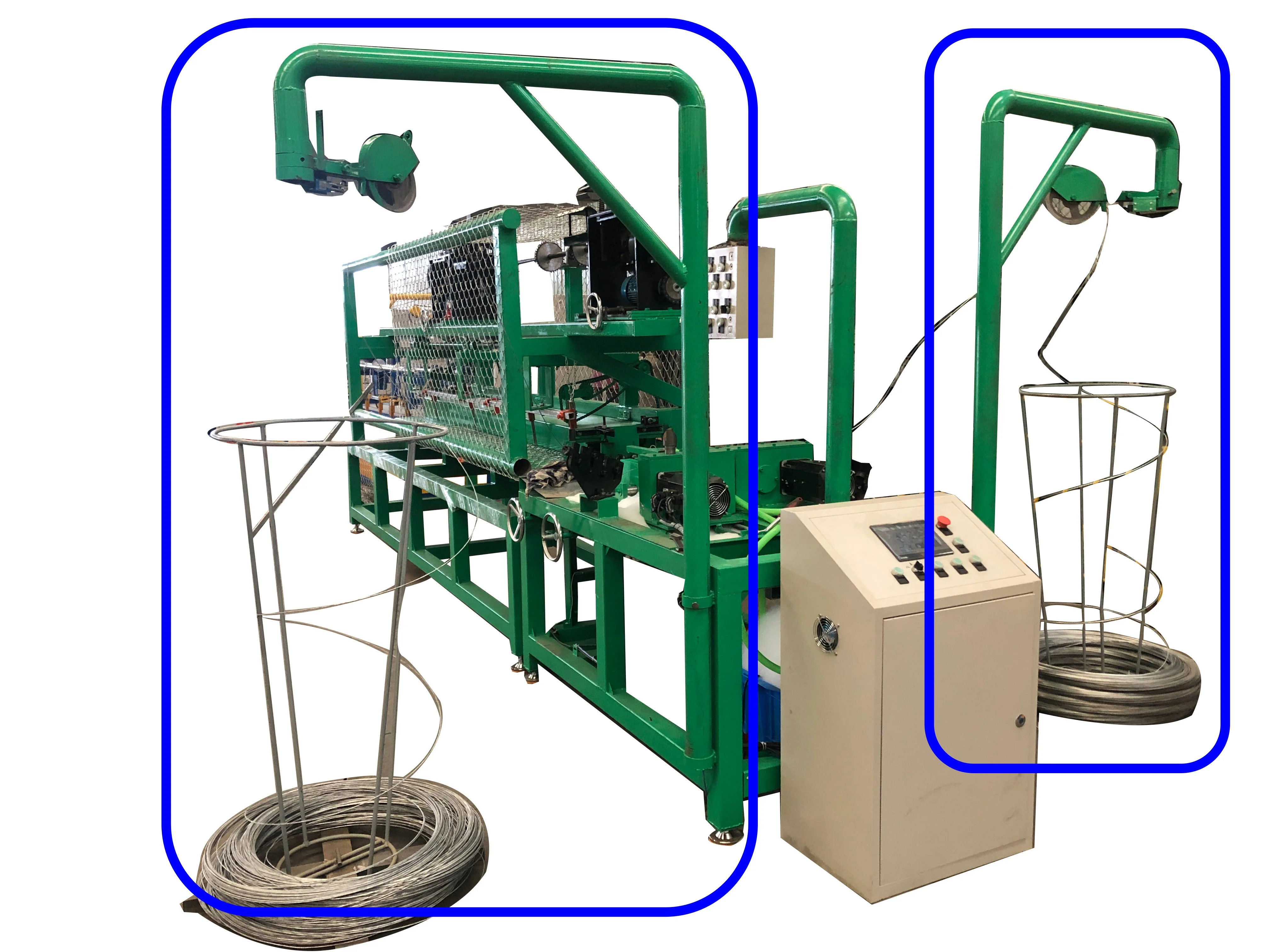

Double mold single wire fully automatic chain link fencing machine with compactor



Wire Pay-off stand

It can hold 230-250kg capacity

Simple structure;
Low cost;
Easy to use







Weave mesh Part

Width: 2-6 m
Wire diameter: 1.8mm-4.0mm
Mesh Size: 25mm-100mm

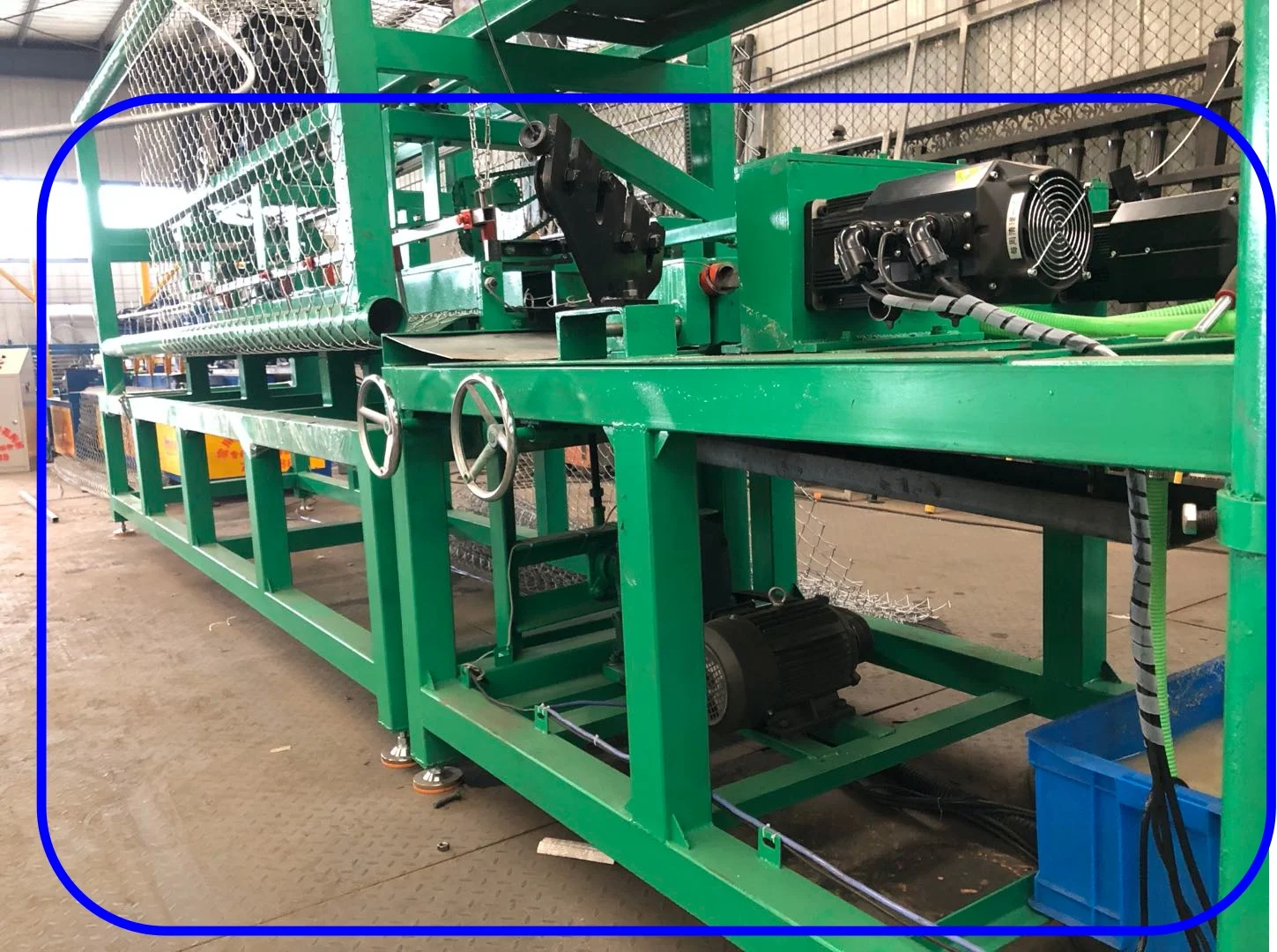

Weaving parts using 2 sets of  Serve motor and drive with gear box: Power: 3.5 kw
Cutting parts using heavy duty break motor: 1.1 kw
Turnover motor: 2.2 KW



Accurate control speed and accurate position will not be changed by the speed adjustment;
Stable -speed running condition make the chain link mesh smooth and uniform;
High-speed running and powerful torque condition to ensure the high production efficiency.

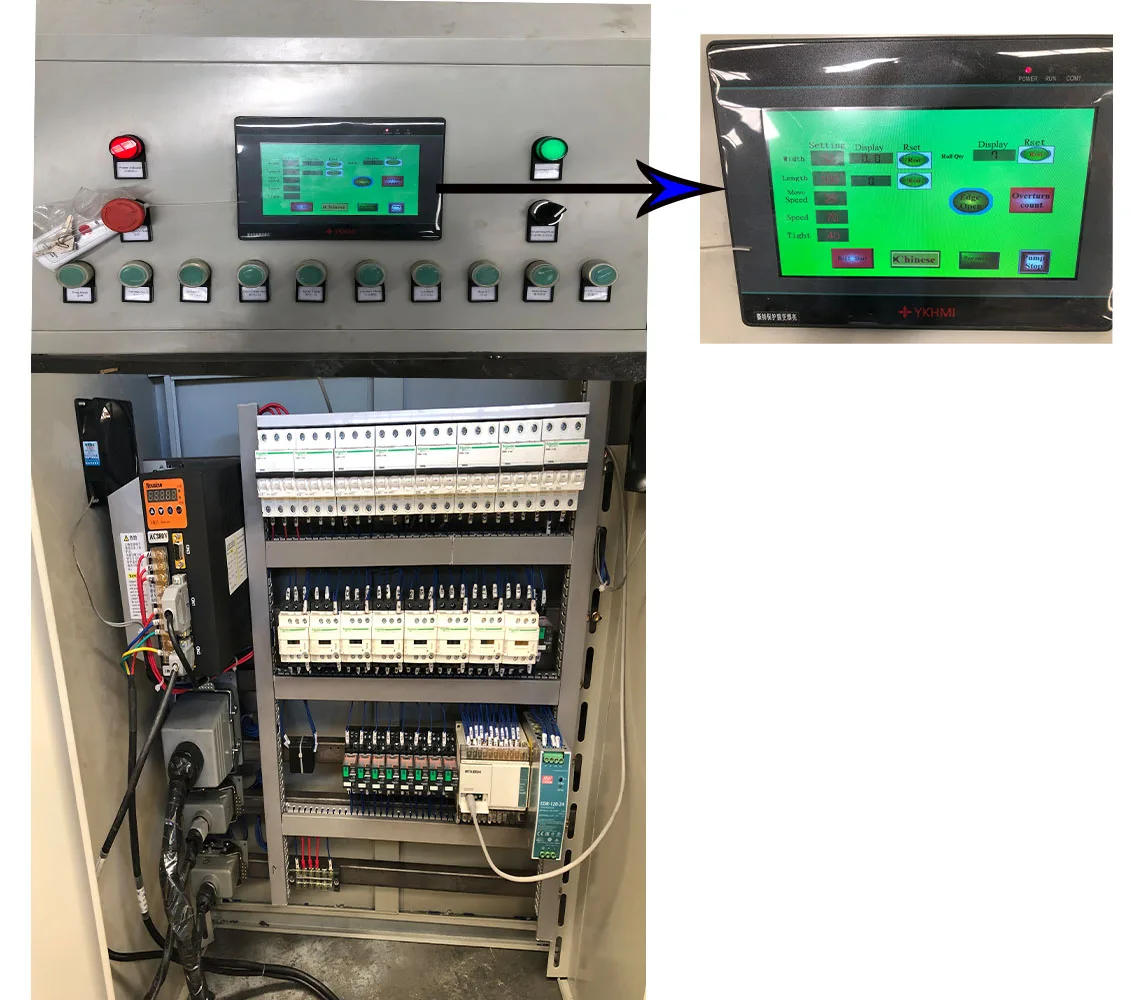

Electrol control box

Remote control
Siemens PLC
Schneider electrical elements



This machine implements a human-computer operation Interface;
You can adjust the work condition at the right moment;
It can show the work condition and production in the time exactly;
The PLC is easy to operate and easy to understand;
The PLC screen can show both English and Chinese at the same time;
All lines in the control box are marked with numbers, and make separate parts control block, you can easily recognize which wire control which place. So if machine has problem, then we can find the problem and solve the problem easily.

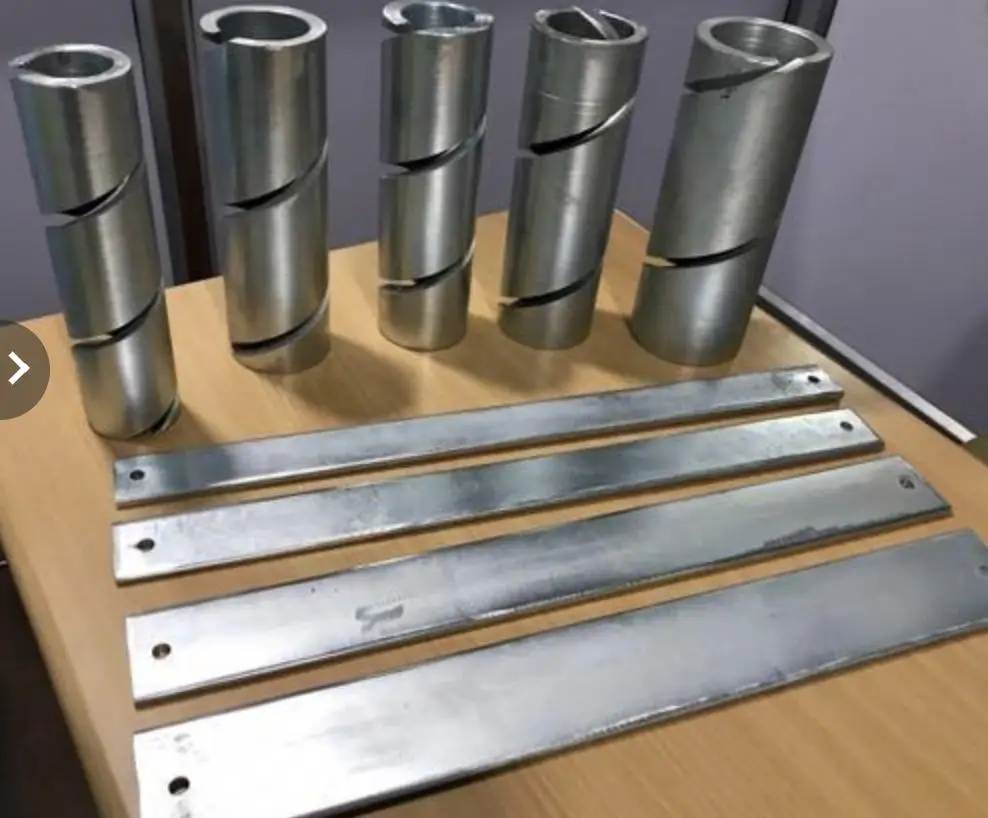

Mold

One set of fully auto machine attached with 3 sets of molds free.





Tool box

the tool box including:
Tool kit
Meters
Oil despenser
Spare parts: wheels and sensors





Spare parts

NO.1

Wheels and Bearings

1 set of machine including 4 pieces wheels free





NO.2

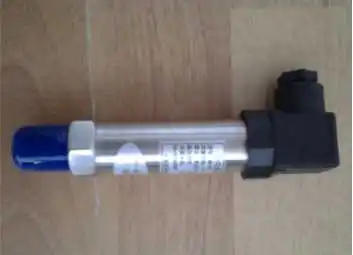

Sensors

One set of machine including 4 pieces free





Why you buy from us?
Below the detail can show you our machine quality, moreover, it is much more convenient to use compared with others, pls check below detail

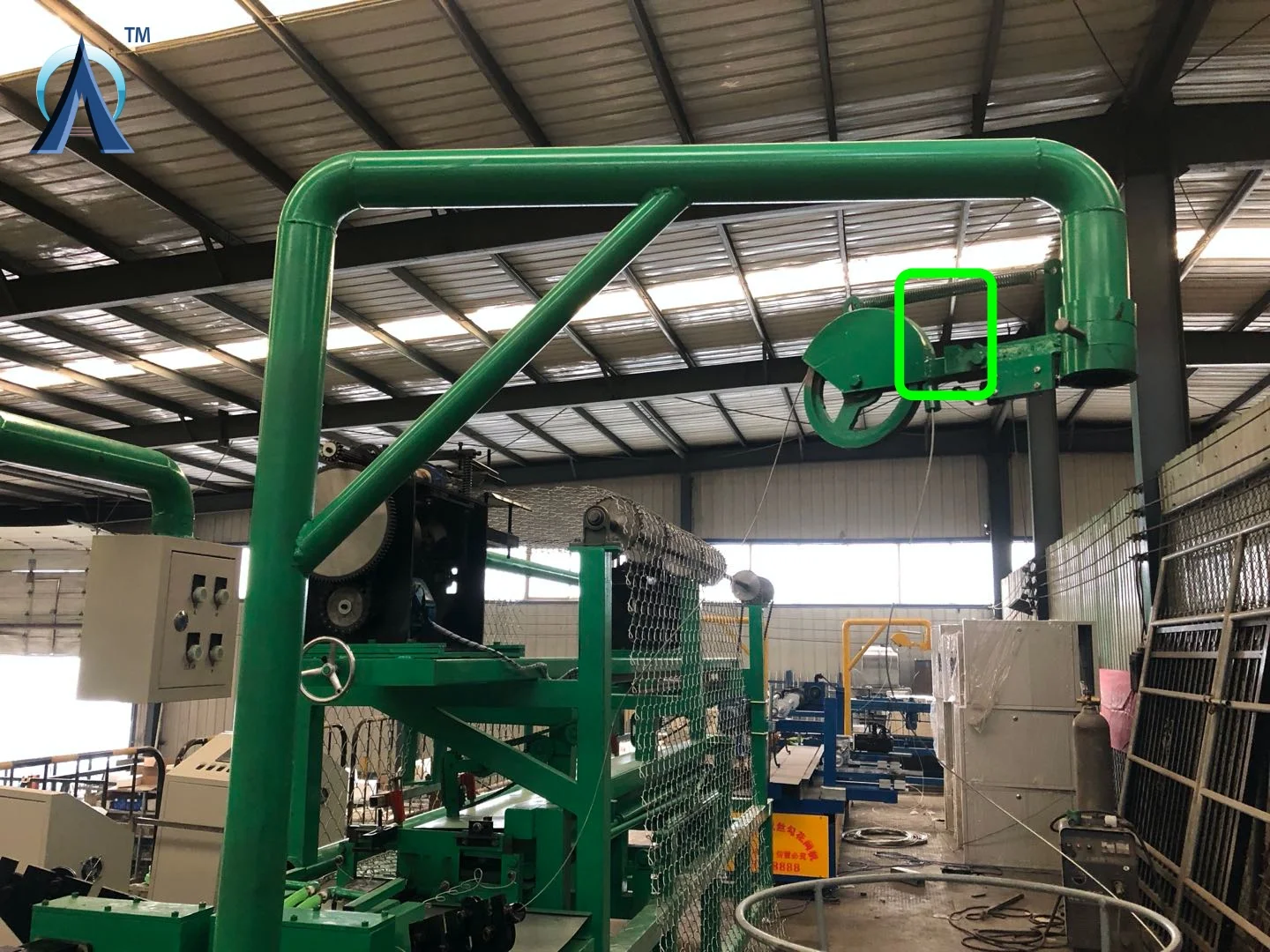

The feeder system has alarming system, so if the wire blocked, it will alarm

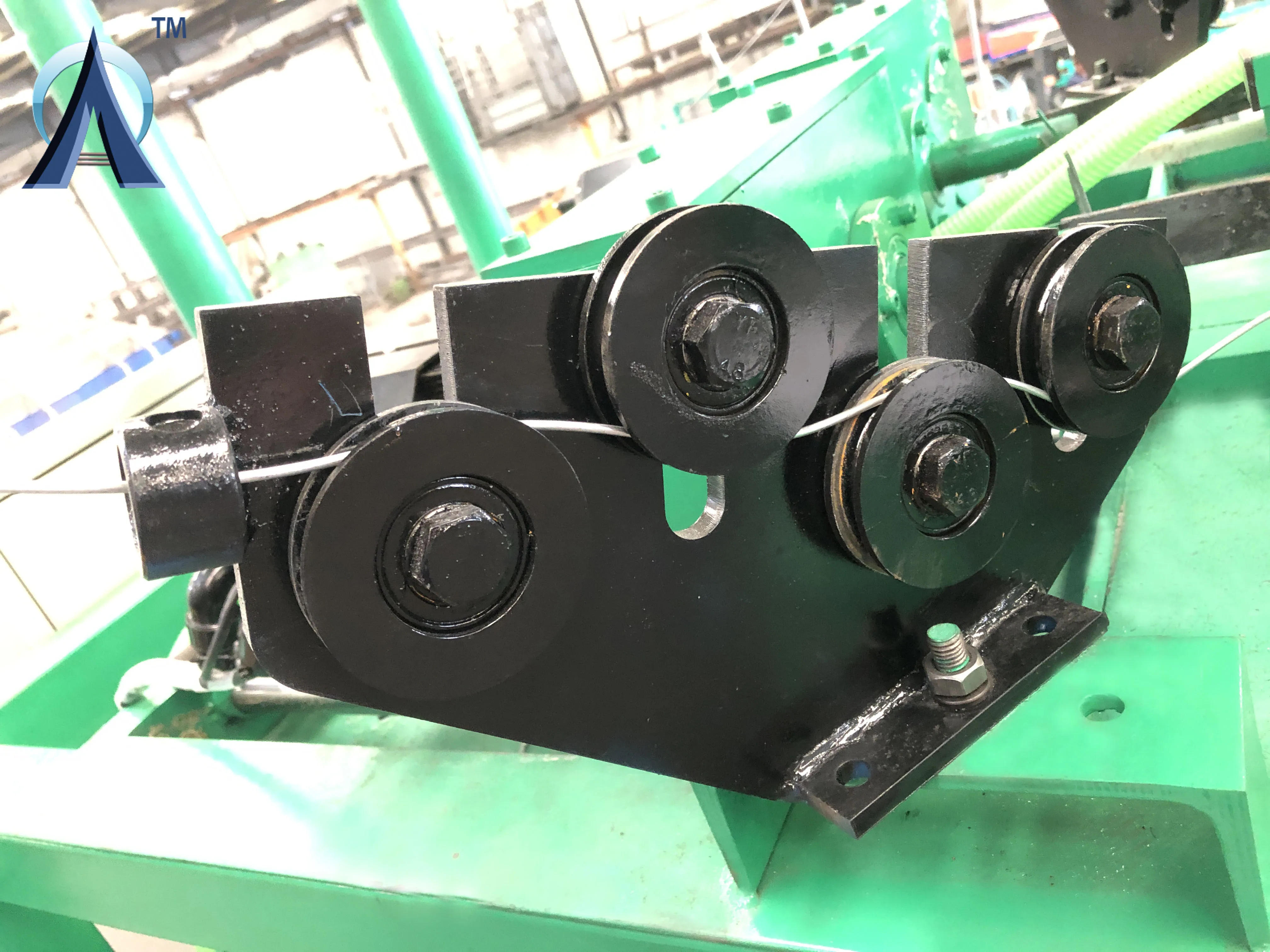

Triangle straigten wire device can much better suite hars wire or different strenth of wires from India, Bandlash, Pakistan, etc.

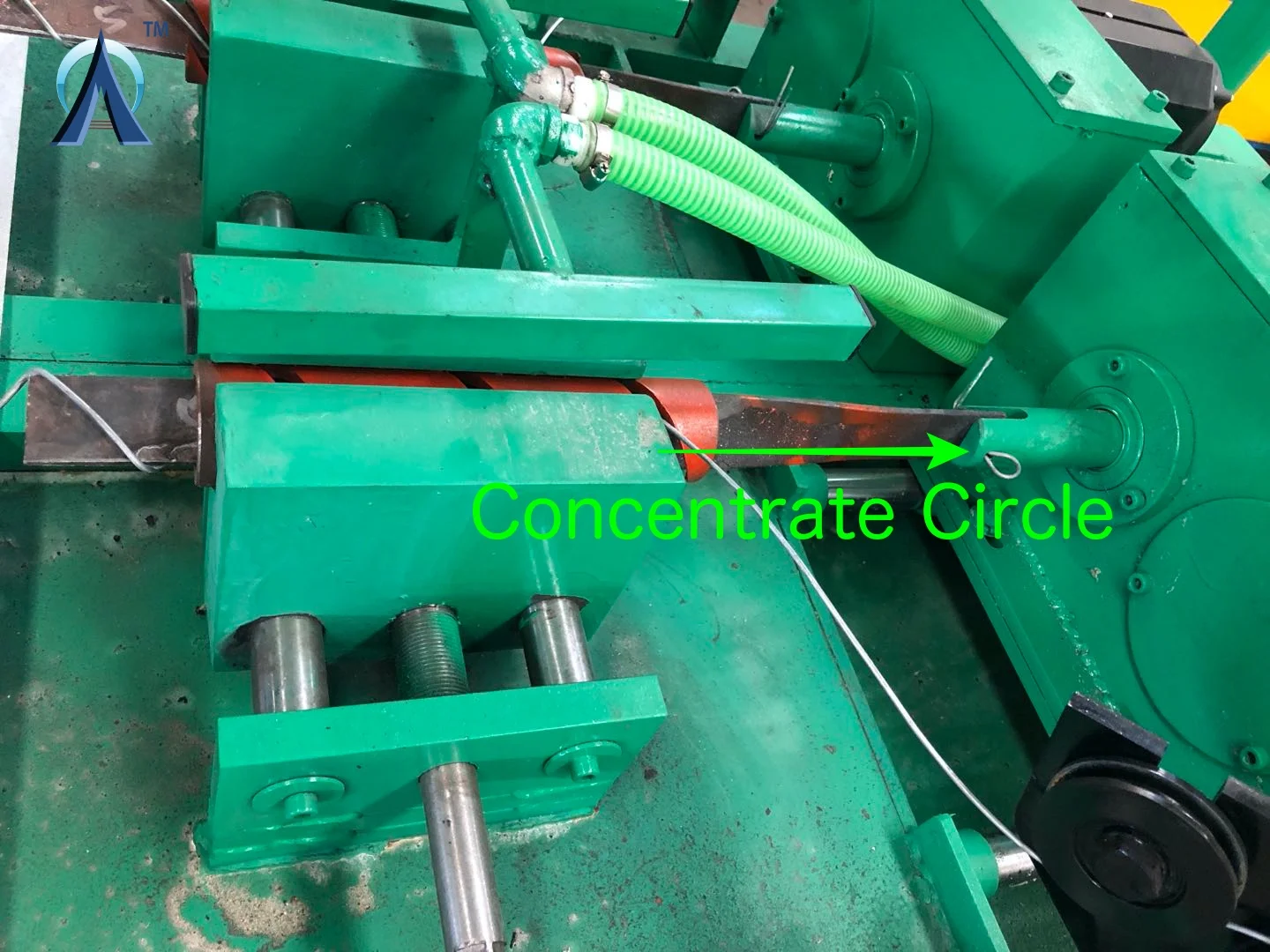

Not like others, we made it into concentric circles, then when you changing mold, no need to move the mold clamp again and again.

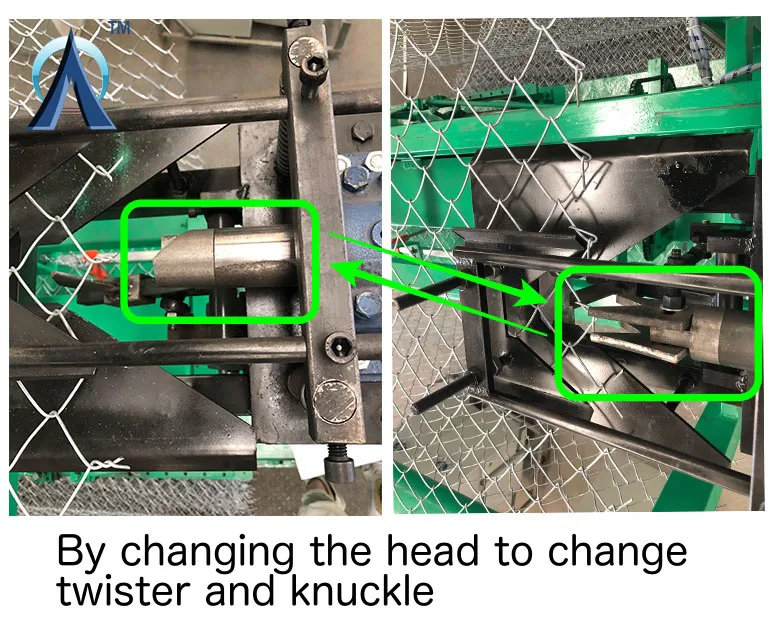

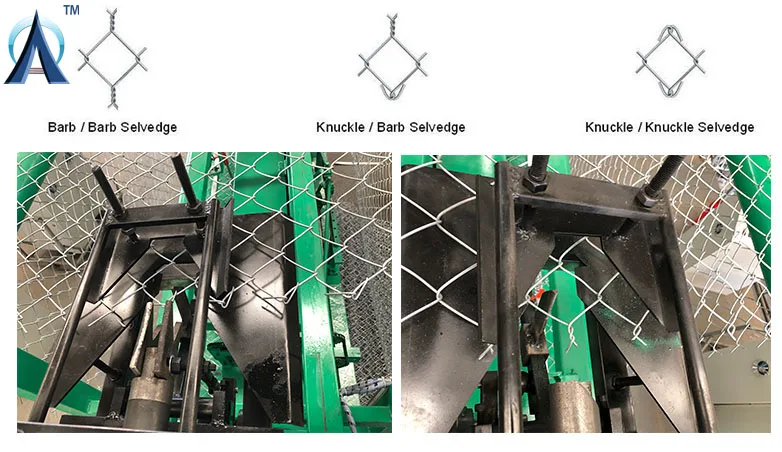

Our machine can work with both knuckle edge and twister edge







The cutting and twister head is made of Manganese steel, it can use at least 2 years.

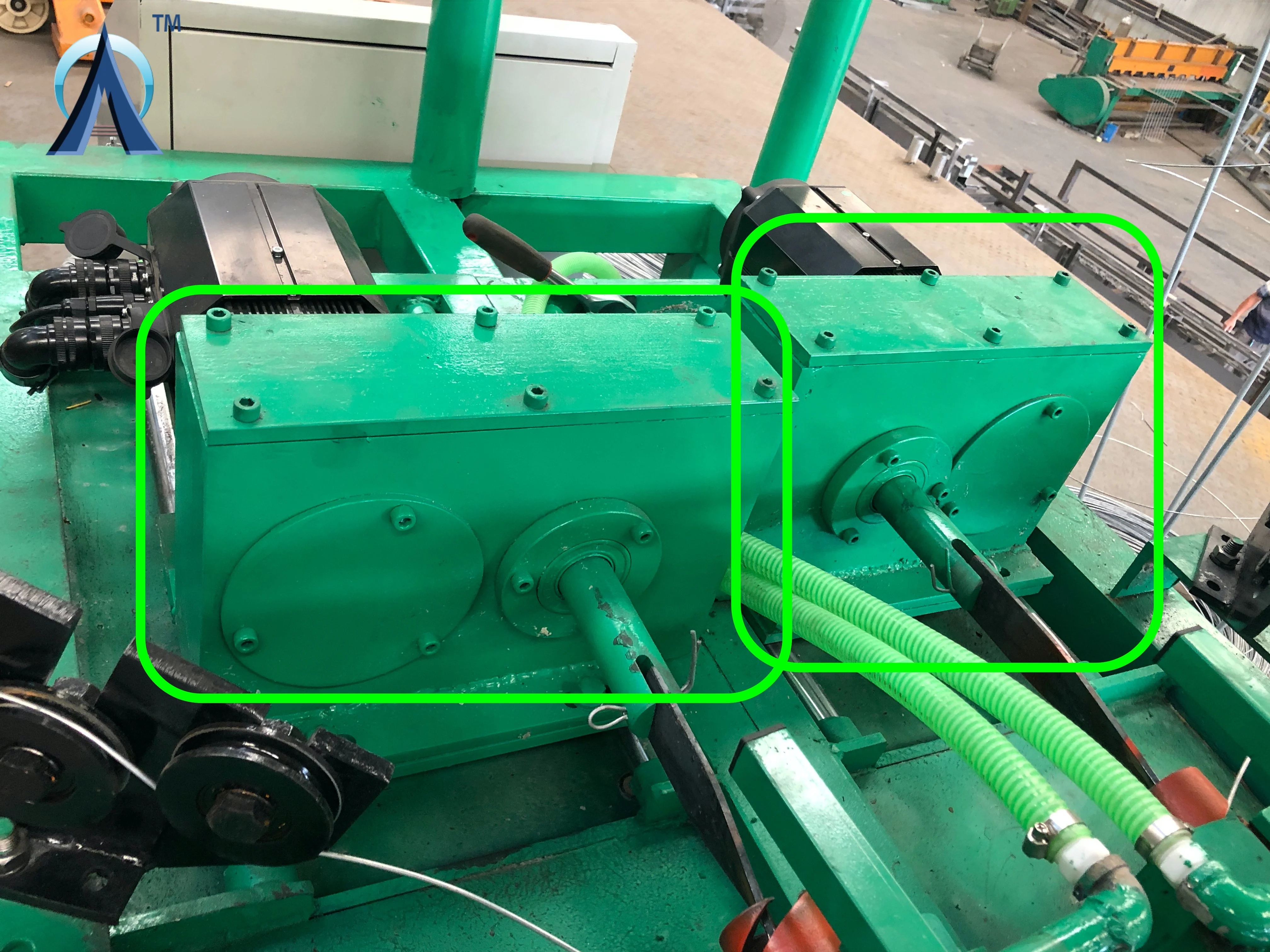

We use gear box rather than reducer to extend the machine life.

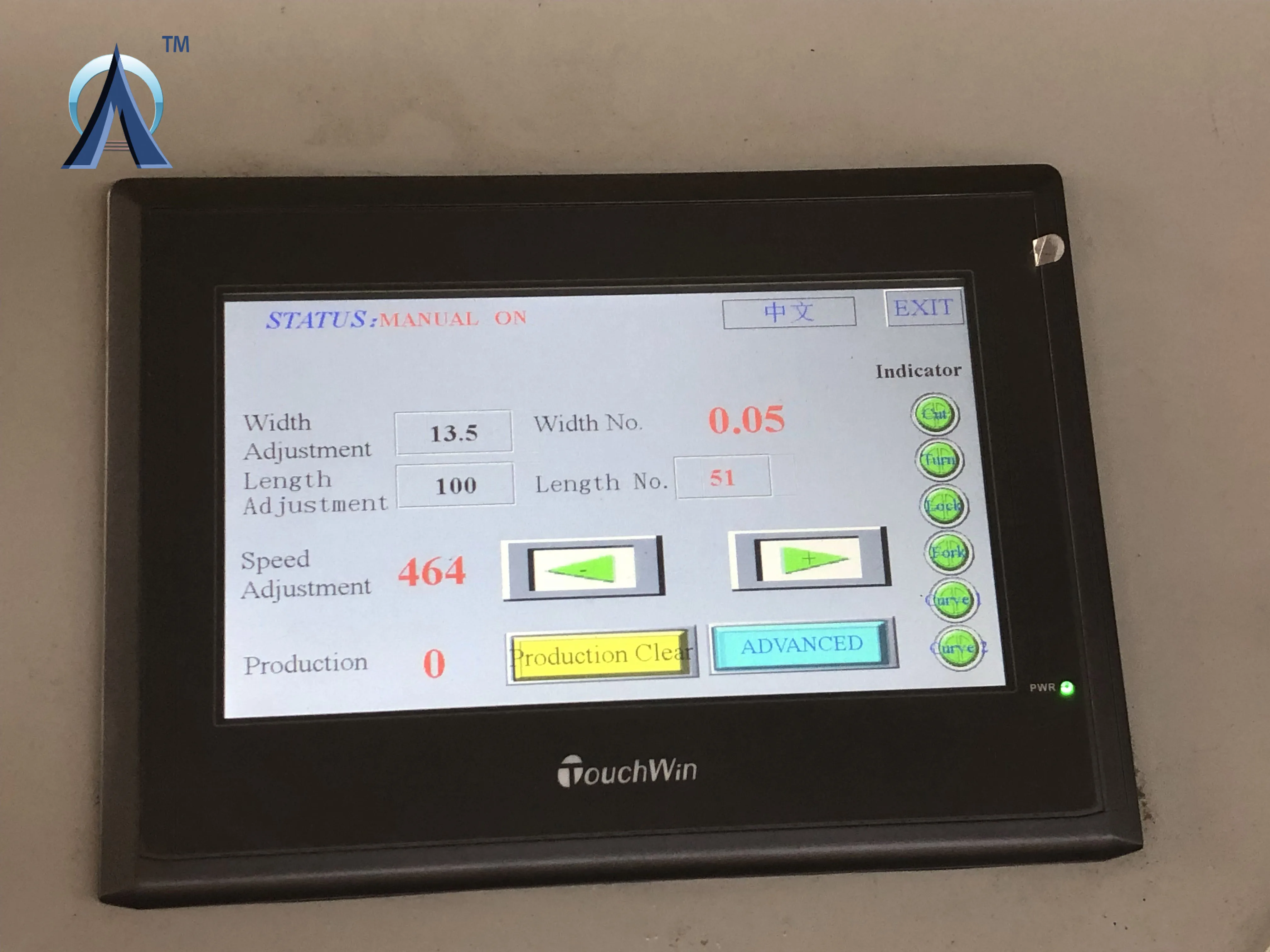

Touch screen control

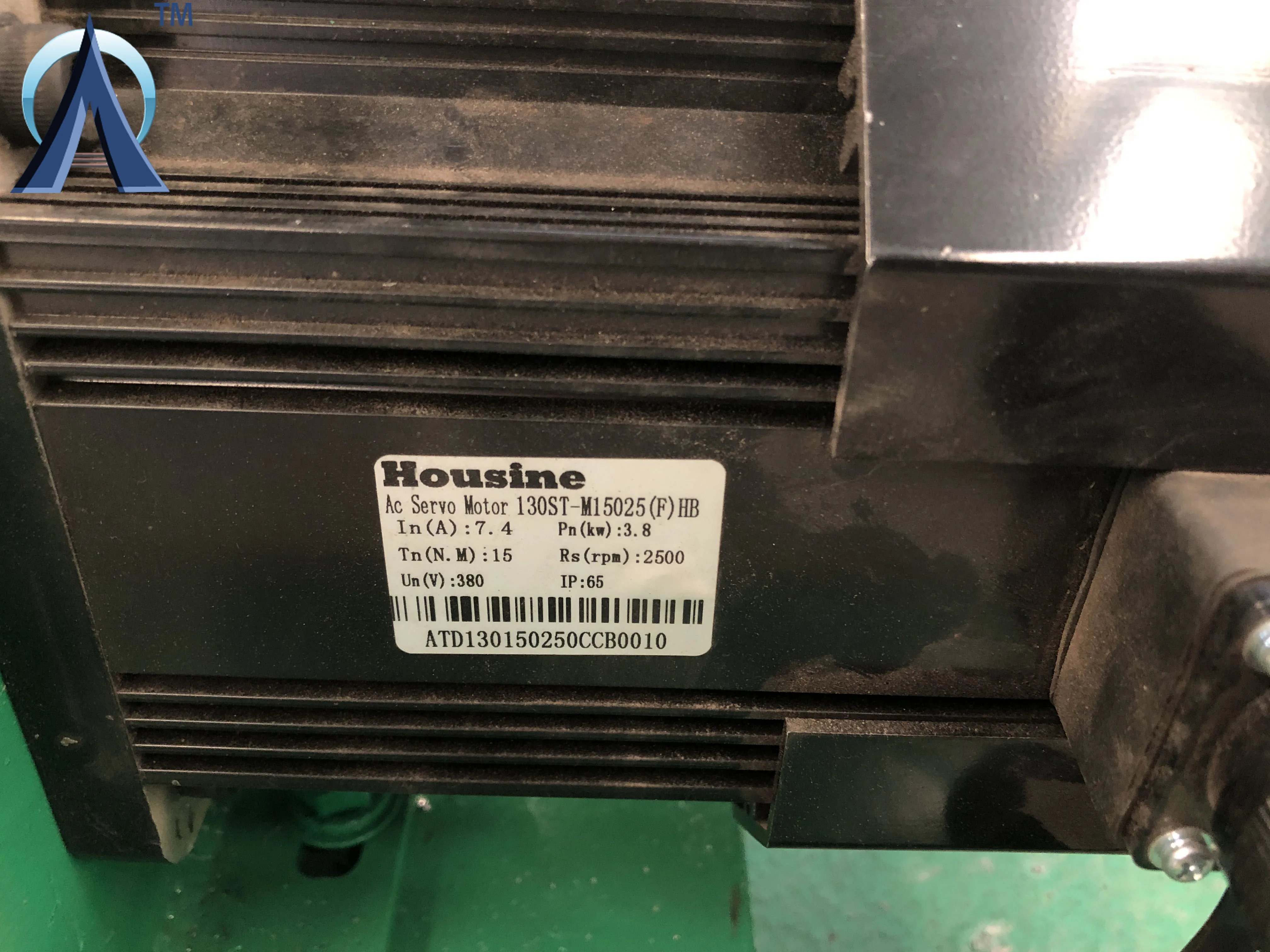

Usually we using Chinese famous brand Housine serve motor, but yours we will using world famous brand Siemens motor

Usually we using Japanise Mitsubishi PLC, but yours we will using Siemens brand as you required

For the electrical compenents, we using France Schneider Brand





How to run the machine: We have both video tutorial and word version to show you how to install and run the machine easily. (In fact, before loading the machine we already run the machine in our factory, so after you received the machine, just need to get electricity, design your width and mesh size, then it will run)

Power consumptions: this machine Instantaneous power is not high, around 7-degree electricity per hour.

Using instructions: Give all motors some lubricating oil around one week one time. (The oil container already put in the tool box.)

Machine size: It need to take around 18 feet length and 18 feet

Machine inspection before loading and test report terms and condition:
Every machine produced by our company has its own name number, we will run the machine before loading, and the QC will issue report according to machine running performance. If no problem, machine will be loading on time. (If you need the third party to check the machine, we also welcome and we will cooperate with the third party)
The report will be kept by 2 copies, one copy for our company save, the other copy provided to the after-sale services together with customer information.

Service: One-year warranty and whole life services. (Expect the spare parts and man-made Brocken)

If machine has problem, how we solve:
Our machine has alarming system, so if machine broken, first the alarm light will be shining to inform you that here is broken. Then you can check and find the problem easily.
If you did not find the problem, then you can get the machine wire to the WIFI port, then the touch screen will show you where broken.
Usually above 1 or 2 steps already help you solved your problem. Incase not solved, no worry, we have separate independent after-sale services, 7*8 hours you can connected to our engineer (rather than sales) successfully.
(Note: This is mechanical machine, not easy to have problem)
