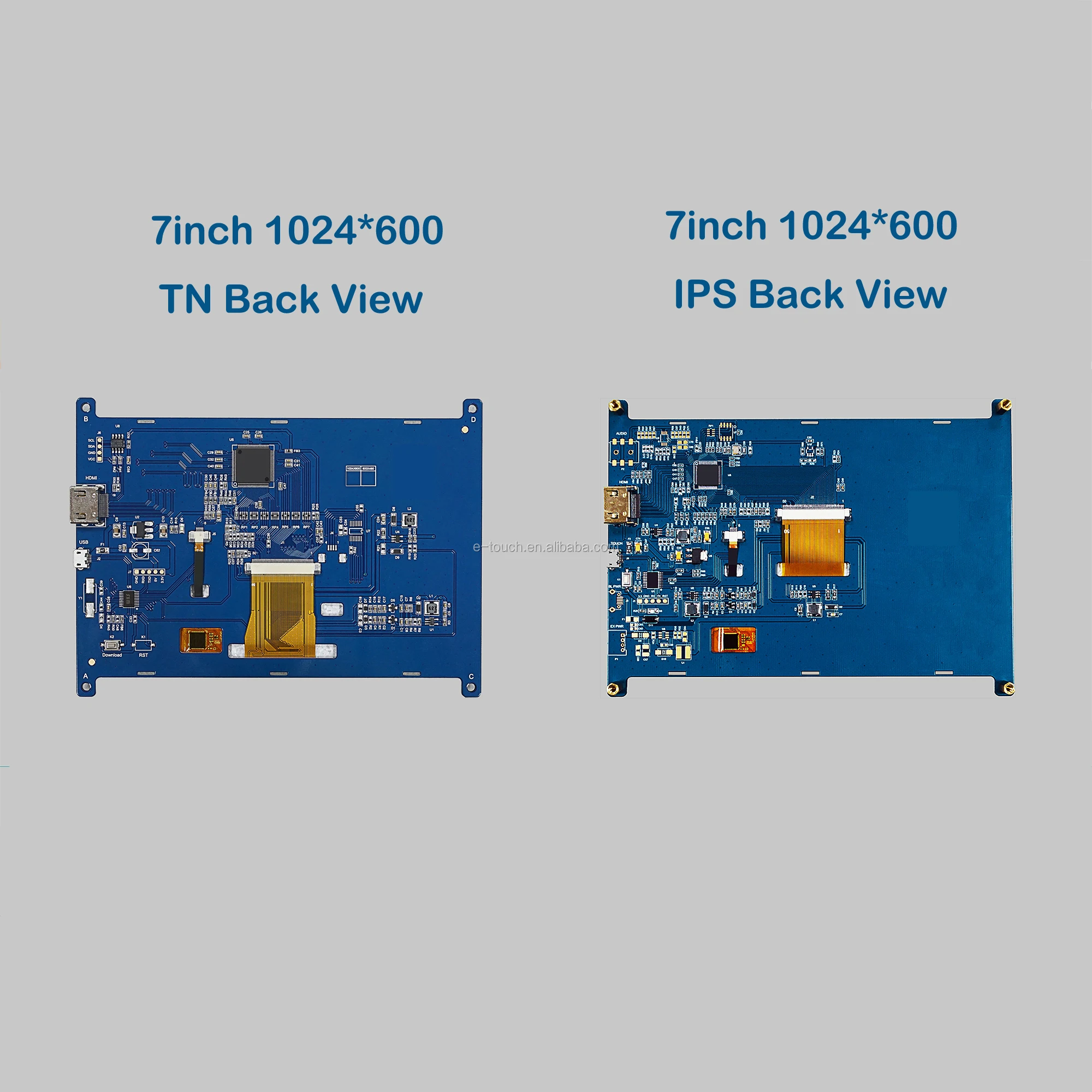

7 дюймов TN 1024x600 емкостный сенсорный экран ЖК-дисплей на основе тонкоплёночной технологии для Raspberry Pi
7 дюймов TN 1024x600 емкостный сенсорный экран ЖК-дисплей на основе тонкоплёночной технологии для Raspberry Pi
7 дюймов TN 1024x600 емкостный сенсорный экран ЖК-дисплей на основе тонкоплёночной технологии для Raspberry Pi
7 дюймов TN 1024x600 емкостный сенсорный экран ЖК-дисплей на основе тонкоплёночной технологии для Raspberry Pi
7 дюймов TN 1024x600 емкостный сенсорный экран ЖК-дисплей на основе тонкоплёночной технологии для Raspberry Pi
7 дюймов TN 1024x600 емкостный сенсорный экран ЖК-дисплей на основе тонкоплёночной технологии для Raspberry Pi
7 дюймов TN 1024x600 емкостный сенсорный экран ЖК-дисплей на основе тонкоплёночной технологии для Raspberry Pi

7 дюймов TN 1024x600 емкостный сенсорный экран ЖК-дисплей на основе тонкоплёночной технологии для Raspberry Pi


Поделиться:

Цена:48,90 $ - 56,80 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description

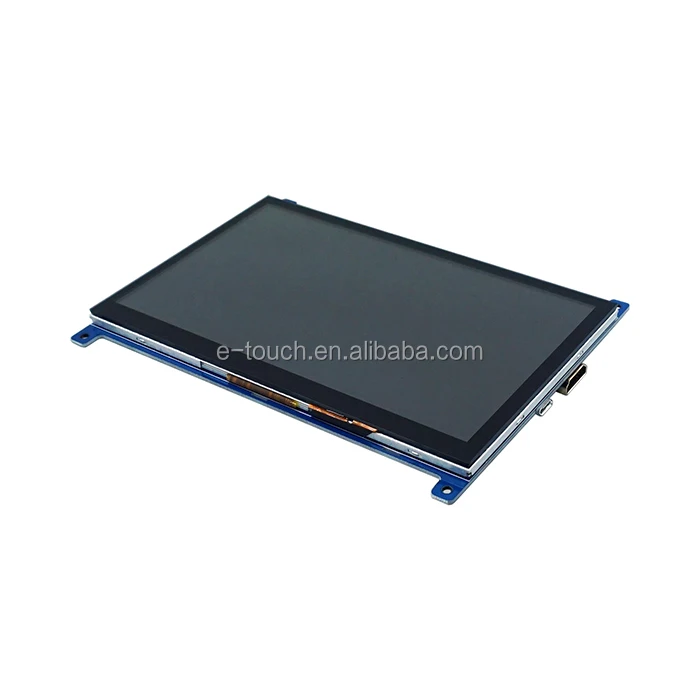

7 inch 1024x600 Capacitive touch screen tft LCD display for Raspberry Pi 4


General Information
Contents
Unit
LCD Display Size (Diagonal)
7
inch
Module Structure
LCD Display + CTP Touch + PCB
LCD Display Type
TFT/TRANSMISSIVE
LCD Display Mode
Normally White
Capacitive touch Panel Type
Glass Cover + Glass Sensor
Surface Hardness
6
H
Transparency
＞82%
Recommended Viewing Direction
12
o’clock
Gray inversion Direction
6
o’clock
Surface Luminance
200
cd/m2

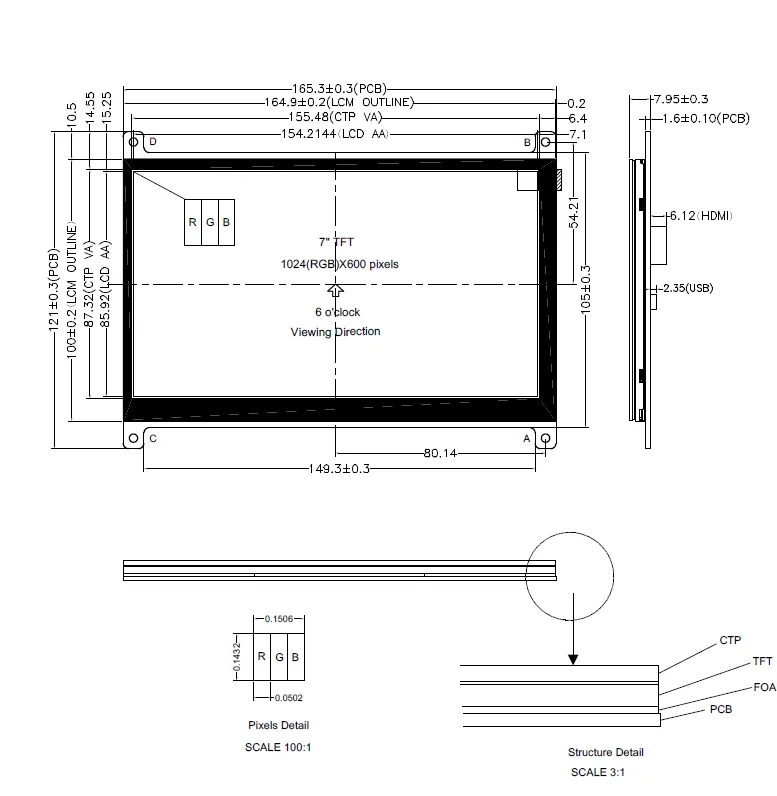

Module size (W×H×T)
165.30×121.00×7.75
mm
Active area (W×H)
154.2144×85.92
mm
Number of pixels (Resolution)
1024RGB×600
pixel
Pixel pitch (W×H)
0.1506×0.1412
mm
Color Pixel Arrangement
RGB Stripe

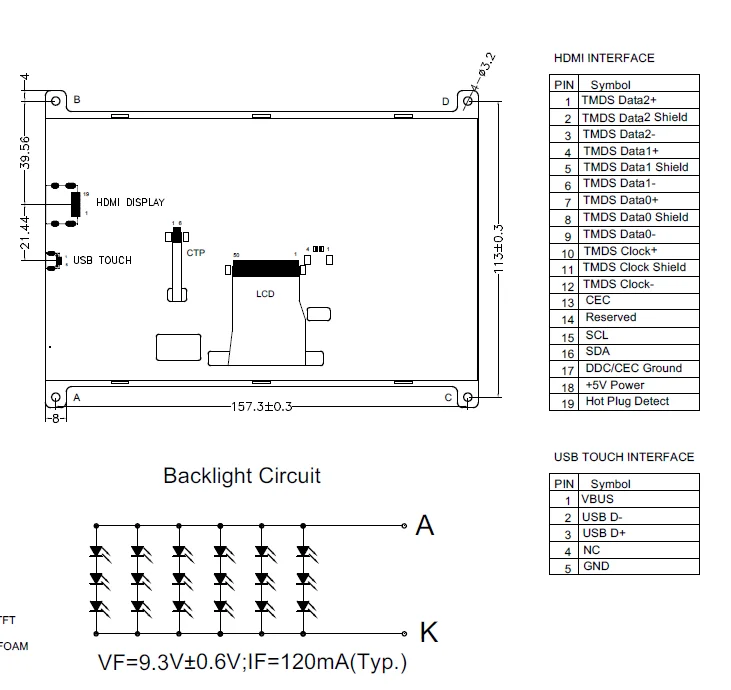

Module Interface Type
LCD Display HDMI interface
CTP I2C Touch USB interface
System Support
Win7/Win8/Win10(Plug and play)
Android/Linux (need to be configured first)
Power Supply
USB(5.0V)
V
Module Power consumption
500(Typ.)
Color Numbers
16.7M
mA
Backlight Type
White LED
Operating temperature
-20~+70
℃
Storage temperature
-30~+80
℃
Humidity
90%(Max 60℃)
RH




























7" standard display, 800 × 480 and 1024x600 Hardware resolution, Up to
1920x1080 software configuration resolution.

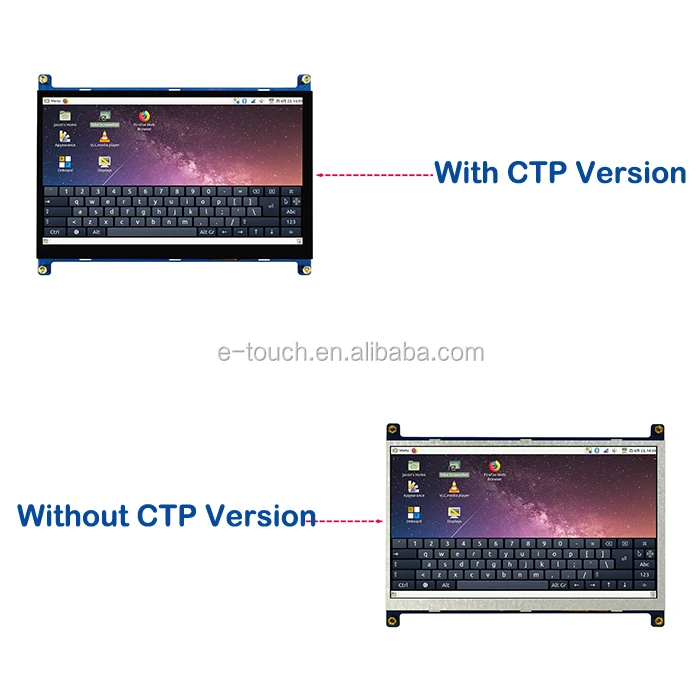

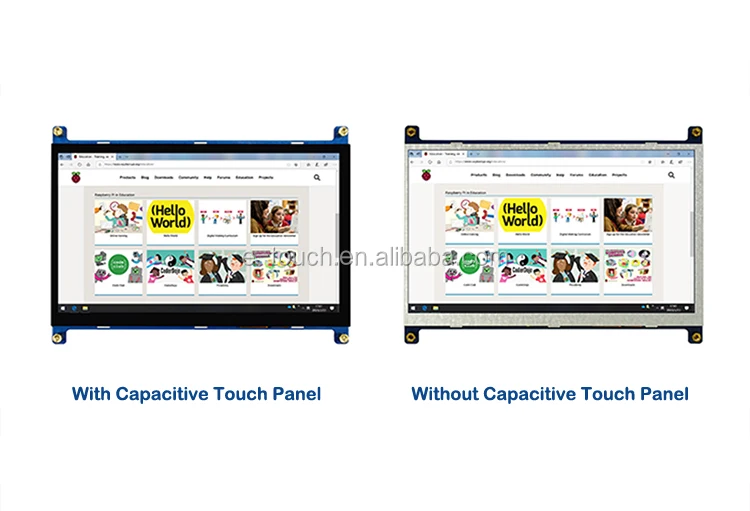

Capacitive touch screen, maximum support 5 point touch
Support backlight control alone, the backlight can be turned off to save power
Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC

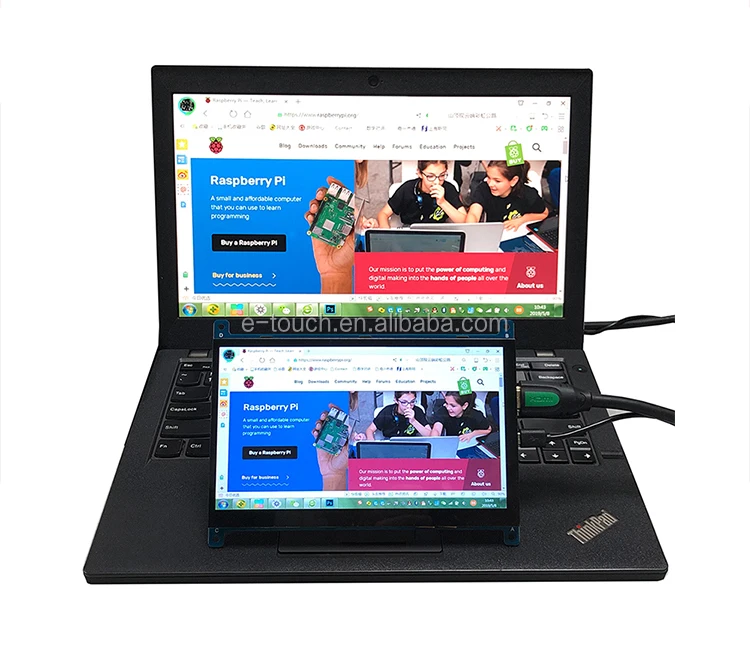

Can be used as general-purpose-use HDMI monitor, for example: connect with oc
a computer HDMI as the sub-display

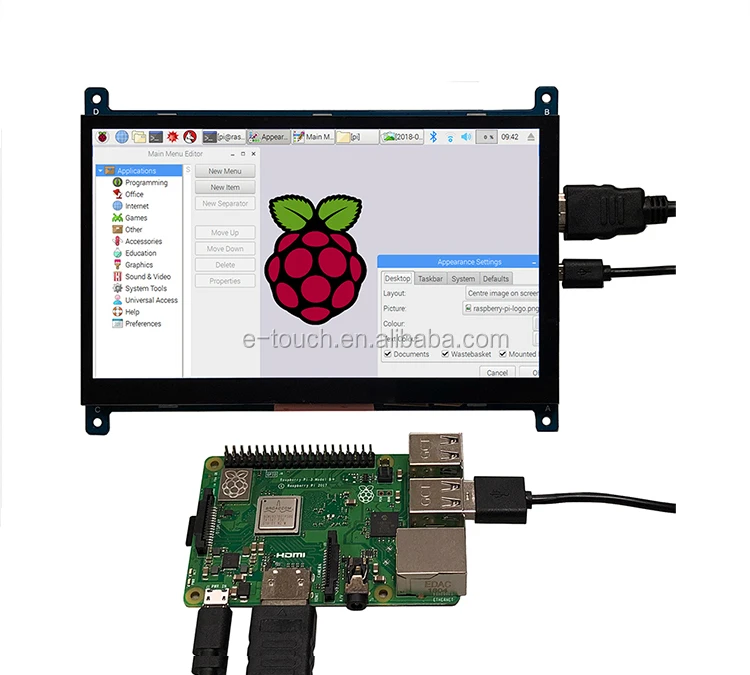

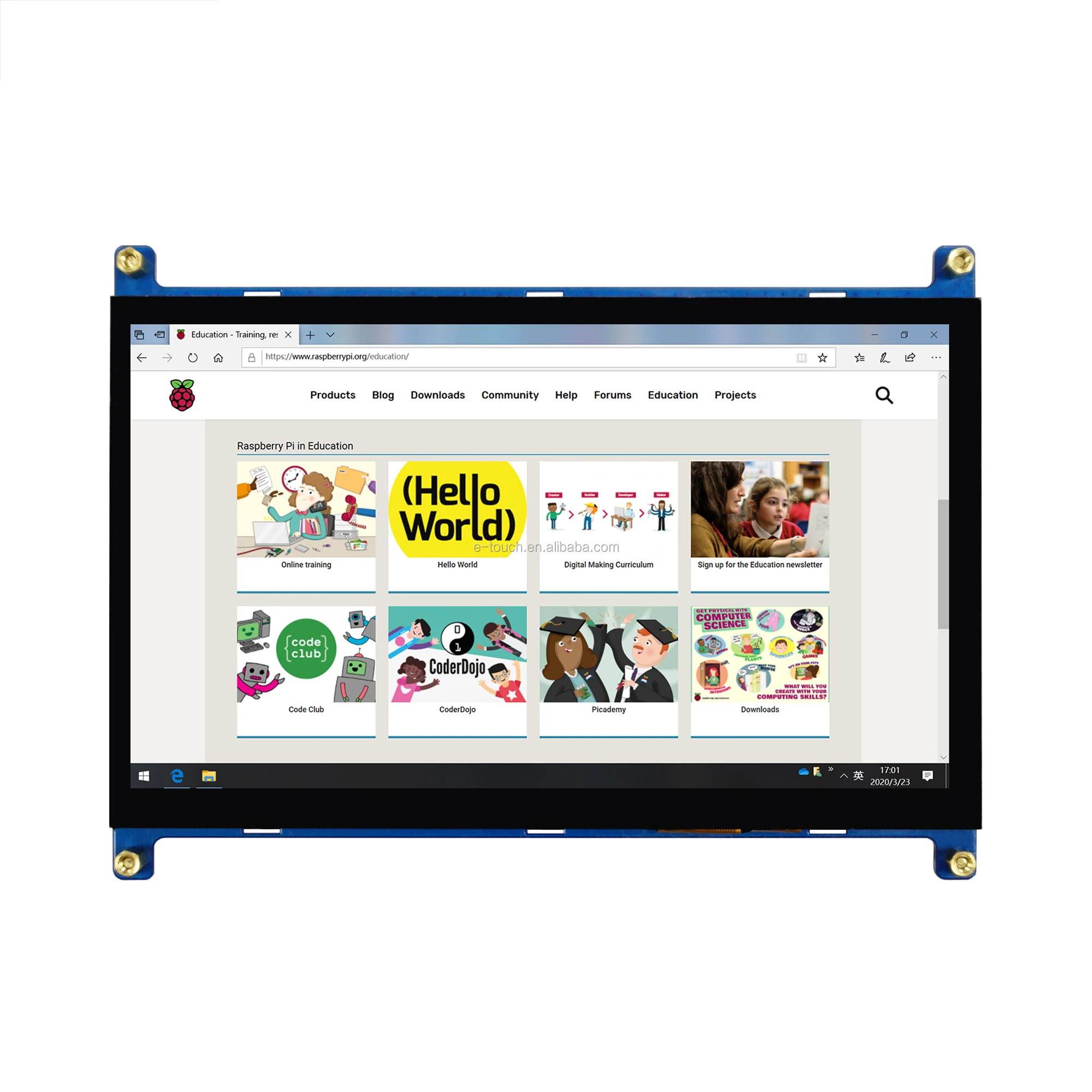

Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive

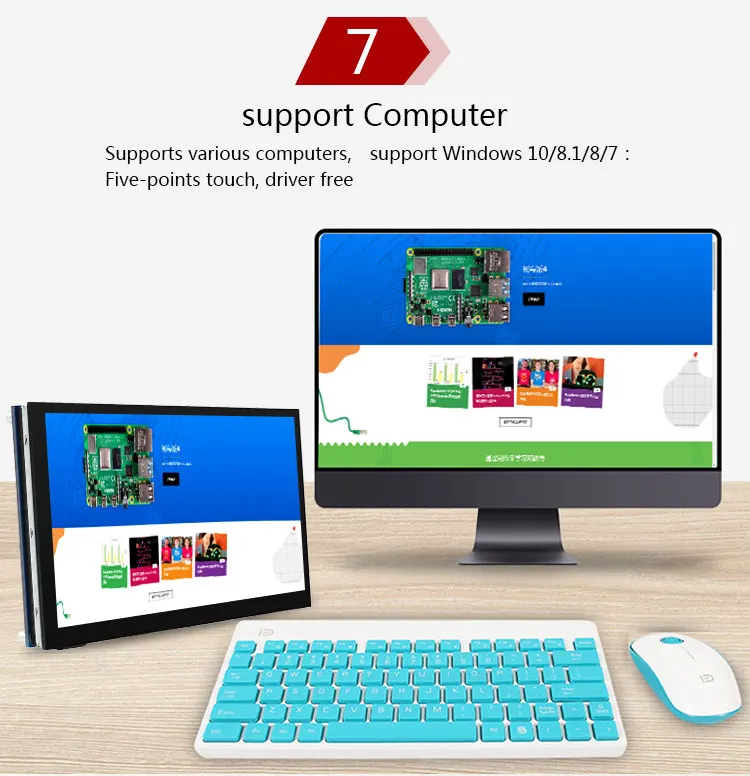

Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive


Product Parameters
Size: 7.0 (inch)
Resolution: 1024x600
Touch: five-point capacitive touch
Dimensions: 165.3 * 121*7.95 (mm)
Brightness: 200cd/m2
Power Dissipation: 0.5A*5V








Customer Feedback






We can according to your demand to customized your touch screen like customized cover glass's shape,silk-printing color

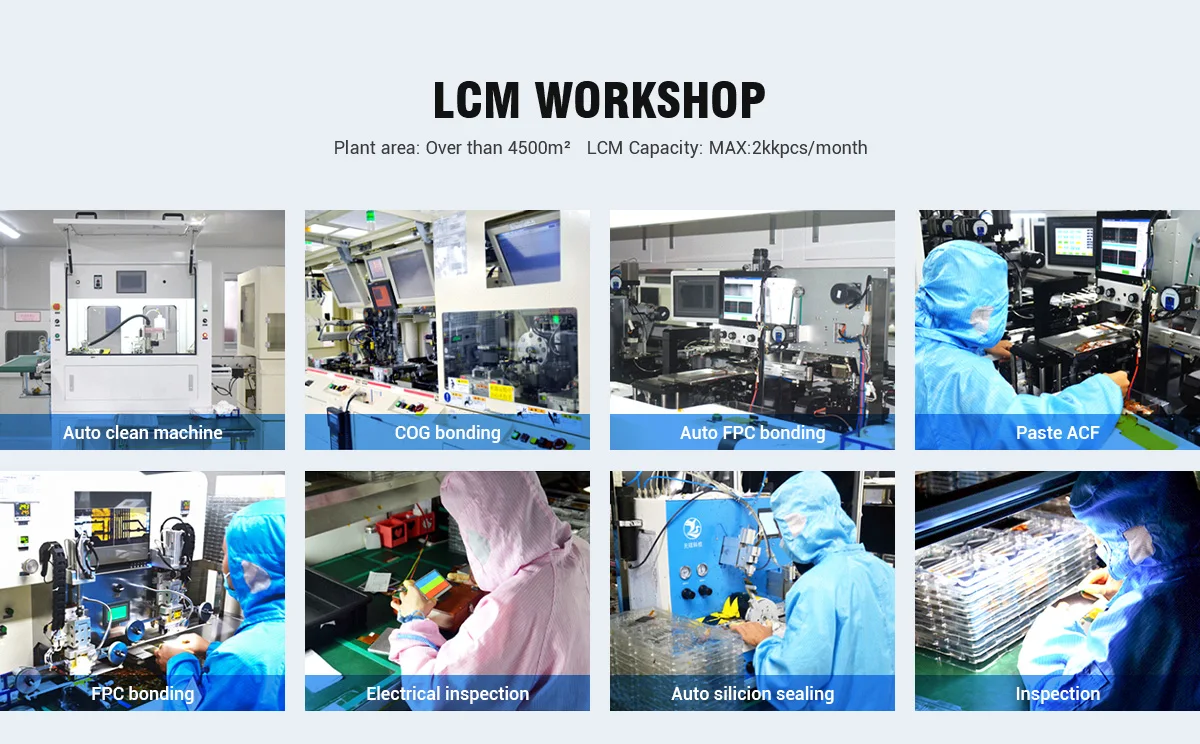

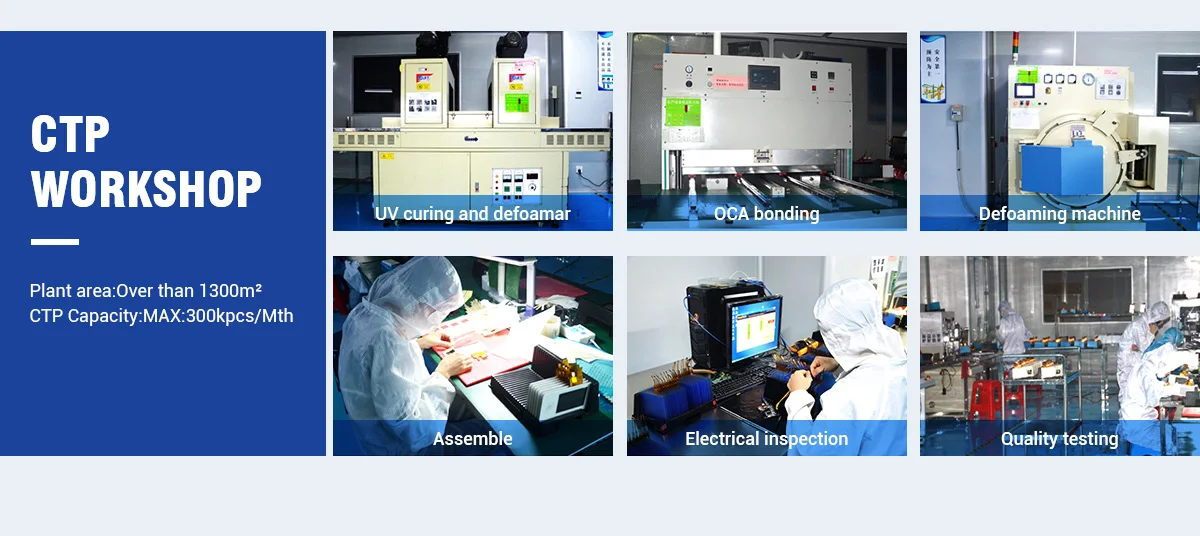

Our Company


Etouch Technology Co., Ltd (Etouch) was established in 2008, is a professional manufacturer on design, production and sales of capacitive and resistive touch screen , tft lcd display, hdmi display module for raspberry pi, membrane switch, PCB keypad, rubber keypad, FPC keypad, acrylic lens, overlays and other technology products . We mainly for industrial control, car navigation, household appliances, medical equipment , human-machine-Interface system, POS , bank system, gaming, etc . Our factory is near by the beautiful scenery of the Songshan Lake, and the existing plant area is more over 7000 square meters.

We have two factories, have office in Shenzhen and HK , because of the business growing, we are ready to build a new big factory in Yunnan province, it is about 17000 square meters for touch screens. ETouch make determined efforts to improve quality by developing new products and technologies , so that to win the domestic and foreign customer’s trust and praise.

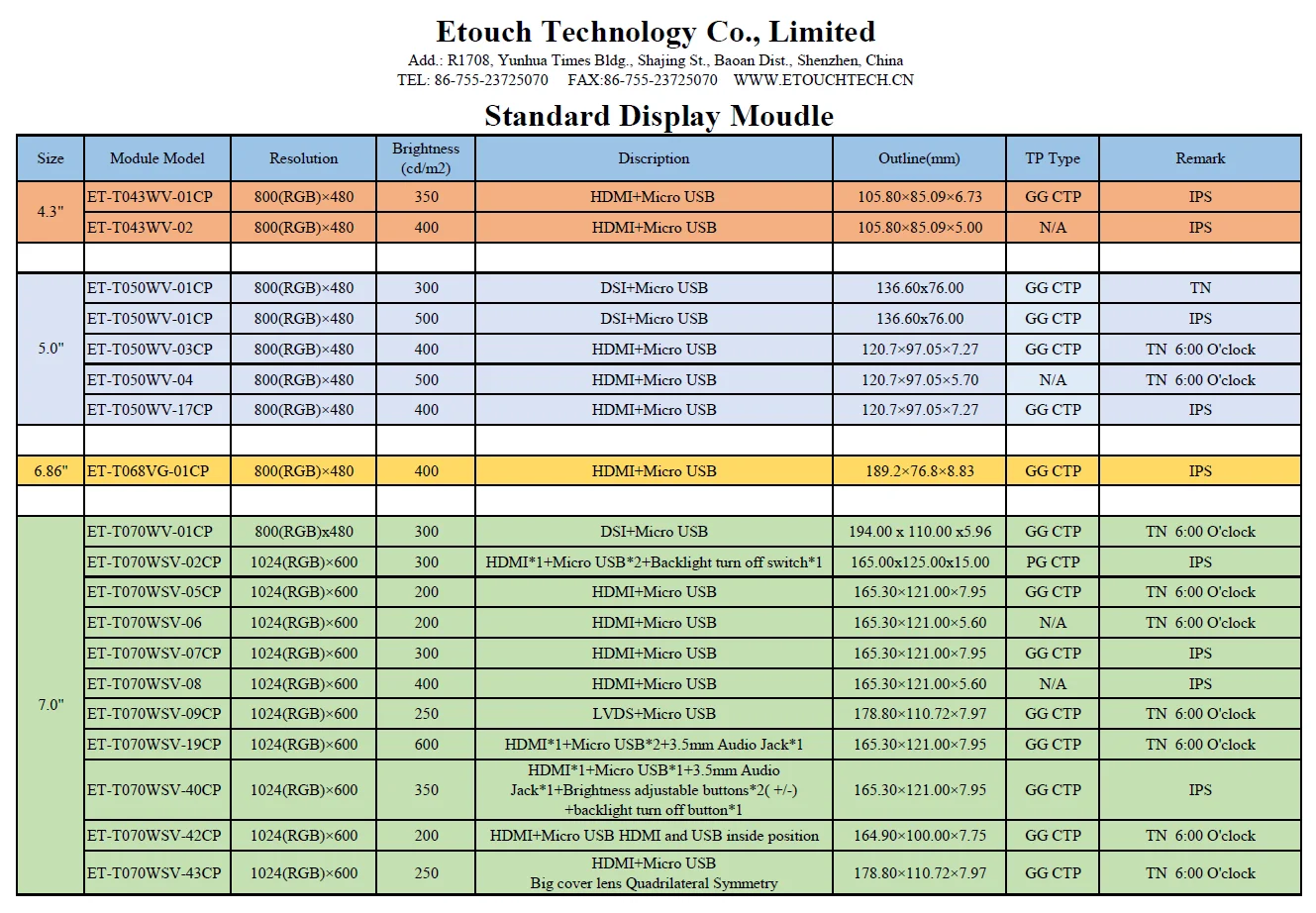

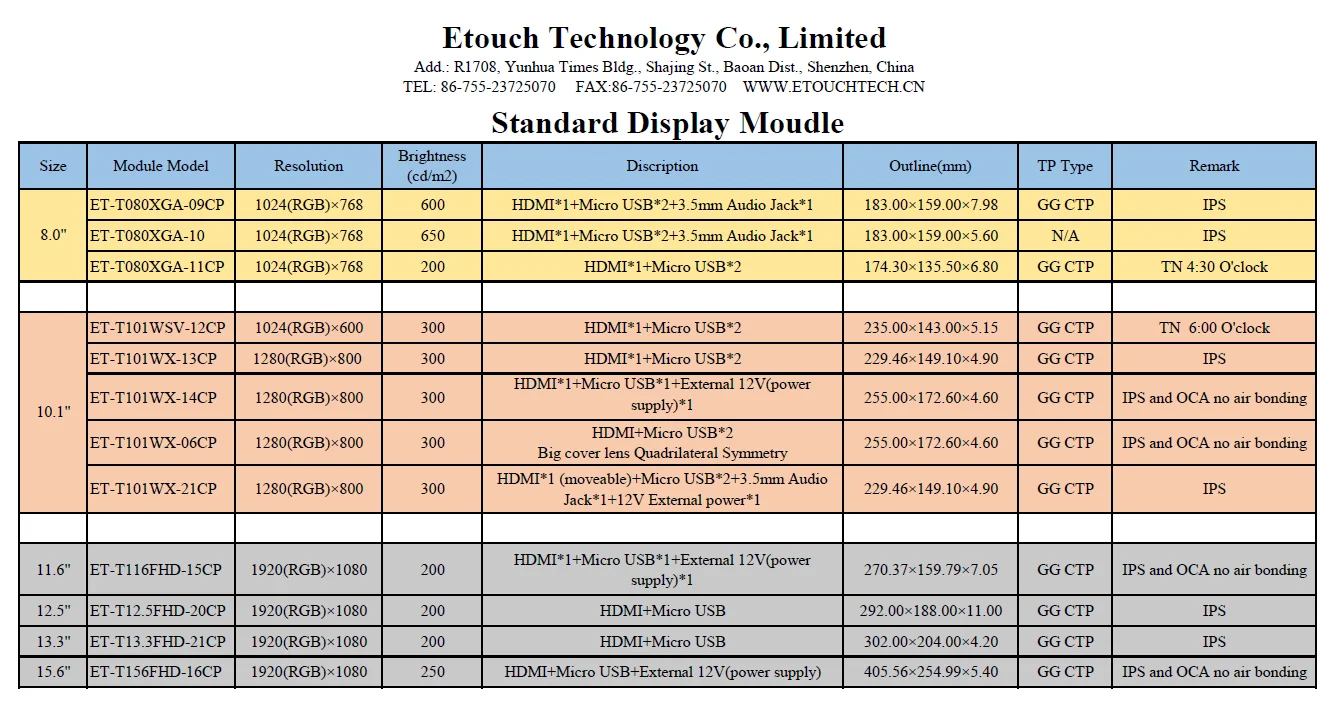

Main Products


LCD&LCM Display: Design, Manufacturing LCD&LCM (TN, STN, CSTN, TFT); OEM Service for COG, TAB & COB LCD Modules.

Electronic & Mechanical Design : MCU Software & Hardware Design and Manufacturing ; Mechanical Parts Design & Manufacturing , Molding, Plastic Injection; FPC/PCB Design & Manufacturing , Product Development

IC Stocking : Supply Brand Name IC; Specialized on Supply Obsolete, Hard to find, Shortage, Military, Industrial, Commercial IC; Connectors and Various Electronic Components.

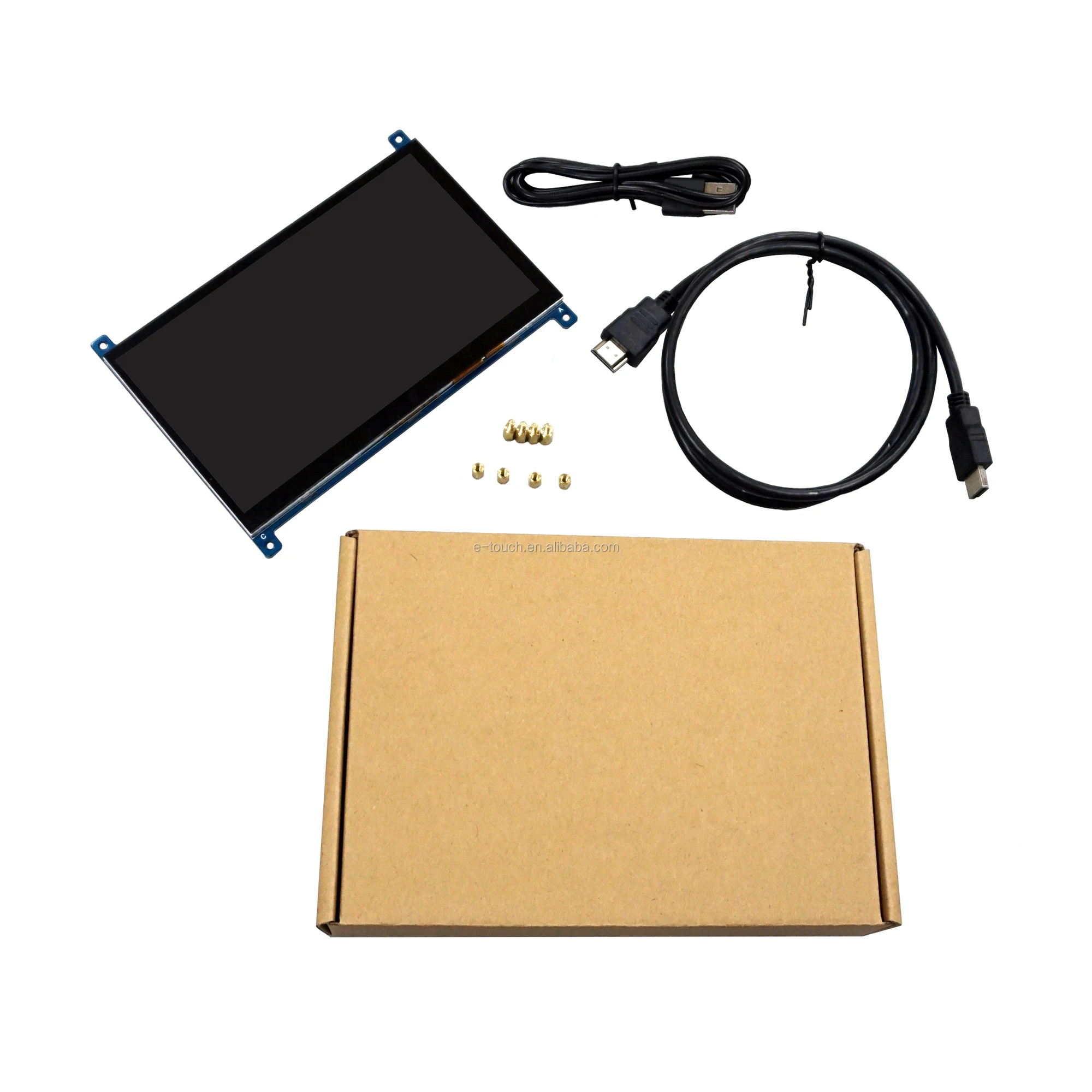

Packing & Delivery


All products 100% test before shipping , Any defect found during the warranty pls feel free to contact us , Any question opinion or suggestion do not hesitate to contact us for a most pleasant shopping experience. We are more than willing to help you out with any problem
