Серия 30-31 API 609-A ISO 5752 вафельная фторопластовая арматура для


Поделиться:

Цена:9,80 $ - 10,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

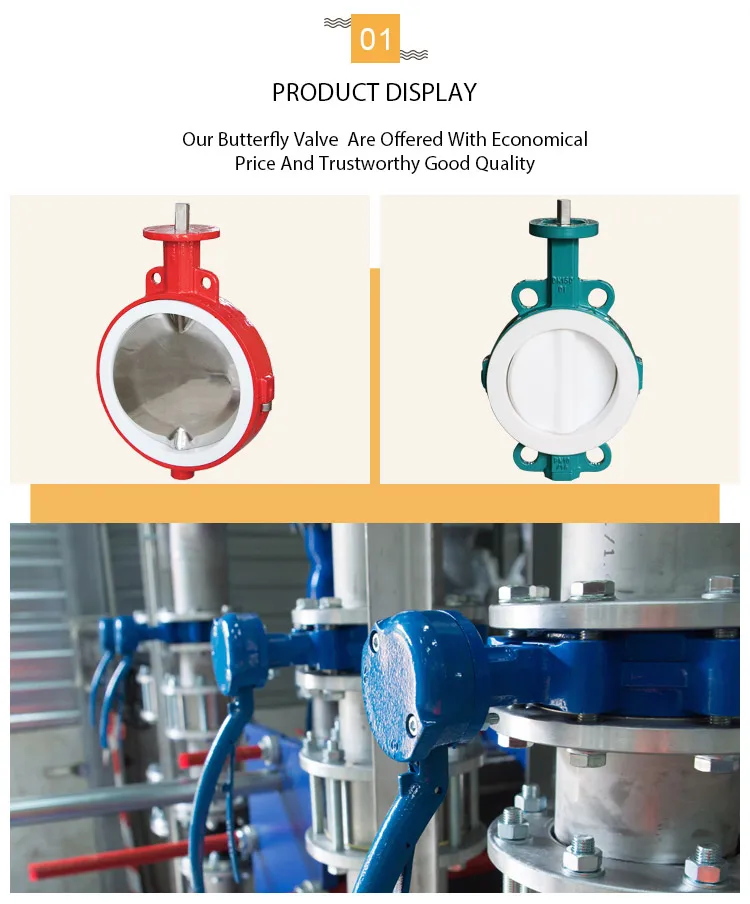

Series 30-31 API 609-A  ISO 5752  wafer type ptfe lined butterfly valves   for cement _01.jpg


flanged butterfly valve,gear type butterfly valve,groove ends butterfly valve,grooved butterfly valve,industrial butterfly valve,industrial valve price,lug butterfly valve,lug type butterfly valve,ptfe butterfly valve,ptfe flange butterfly valve,ptfe lug butterfly valve,ptfe wafer butterfly valve,u type butterfly valve,wafer butterfly valve.wafer type butterfly valve
,worm gear butterfly valve



Product Description


 Technical Parameters:


































Size



DN50-DN1200



Working pressure



10Bar



Shell



15Bar



Seal(Air)



11Bar



Operating Temperature



-20~+180



Operating Environment



Ballast and bilge system          Chemical processing


Desalination plants   Drilling rigs    Drinking water


Dry powder     Food and beverage     Gas plants


HAVC  Mining industry  Paper industry    Sand handling     Seawater    Sugar industry


Thermo technical water treatment   Waste water



Driving  method



Hand  Lever  Worm Gear  Electric  Pneumatic



 Executive Standard:


























Design Standard



EN 593 , MSS SP67  API 609  BS5155



Inspection & Test



API 598  ISO 5208  EN 12266



End Standard



ANSI B16.1 CL. 125LB & B16.5 CL. 150LB


AS 2129 Table D & EBS 10 Table D & E


DIN 2501 PN6, PN10 & PN16


EN 1092 PN6, PN10 & PN16


ISO 2531 PN6, PN10 & PN16


ISO 7005 PN6, PN10 & PN16


KS B 1511 / JIS B 2210 5K & 10K


MSS SP44 CL. 150LB  AWWA C207


SABS 1123 Table 1000/3 & Table 1600/3



Face to Face



ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202



Top Flange



ISO 5211





 Main Material:


























Name



Material



Body



Cast Iron  Ductile Iron  Carbon Steel  Stainless Steel  AL-Bronze



Disc



Ductile Iron  Carbon Steel Stainless Steel  AL-Bronze



Shaft



Stainless Steel  Monel K500



Seat



PTFE
















PACKING & SHIPPING

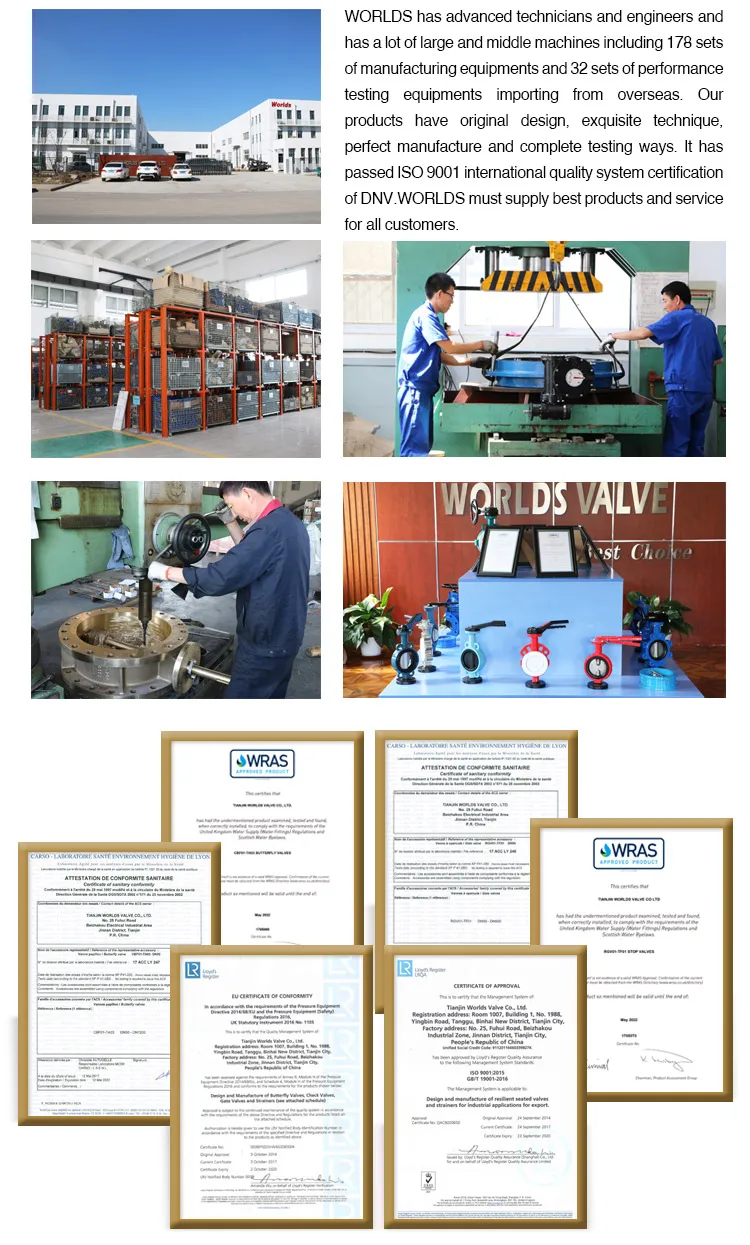

COMPANY PROFILE


 TIANJIN WORLDS VALVE CO., LTD.is located at TIAN JIN BIN HAI  where is only 3 kilometers away from


Tianjin Xingang Port,TIANJIN WORLDS VALVE  CO.,LTD. is a specialized manufacture enterprise that


focuses producing, installing, sale and service. The main products include Center Line Butterfly Valve,


Flanged Butterfly Valve, Metal Butterfly Valve, Check Valve, Gate Valve, Waterpower Control Valve,


Microresistance Slow Close Check Valve, Multi-function Pump Control Valve and their series products.


Moreover, we can produce control valve and pressure reducing valve that are different materials, pressures,


specifications, actuation ways. Our products include more than 50 serials and 1200 species, and the annual


production output is more than 8.000 metric tons. WORLDS valves have been selling well all over China and


exporting to Europe, America and other countries and areas, which are used widely in water supply and


drainage, electric power, petrol chemical industry, metallurgy and other trades. Our products are quite


creative, good quality, cheap price and excellent credit, so customers trust our products.

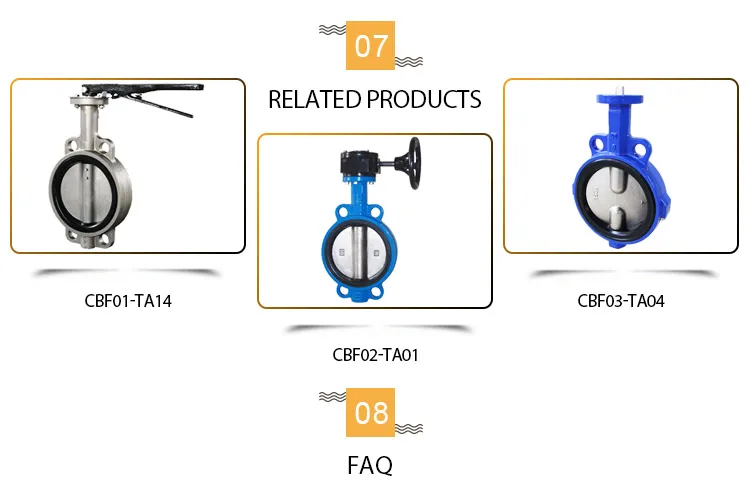

Related products







FAQ


1. Q: Are you a manufacturer or trading company ?


A: we are valve manufacturer and factory ,and not trading company.


2. Q: Do you have agent or representative abroad?


A: We dont have agent abroad,please contact us to purchase valves


from Tianjin Worlds Valve Co.,Ltd directly.


3. Q: What's your product range?


A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,


by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.


4. Q: Is there any stock in your factory? and how about your lead time?


A: We stock valves with normal sizes. The lead time depends on your quantity,


generally 30-40 days.


5. Q: Which countries do you export to ?


A: We export directly to vast majority of countries in the world.


6. Q: What certificates will you provide ?


A: We can provide CE-PED / ISO / WRAS - UK/ ACS-France CO.


7. Q : How do you control the quality of the product?


A: Adheres to strict quality control procedures that begin with product design and carry


through to the end of the production process using state-of-the-art quality control equipment.
