Products Description
Cargo Ship Small Boat Barge Lifting Crane for Sale

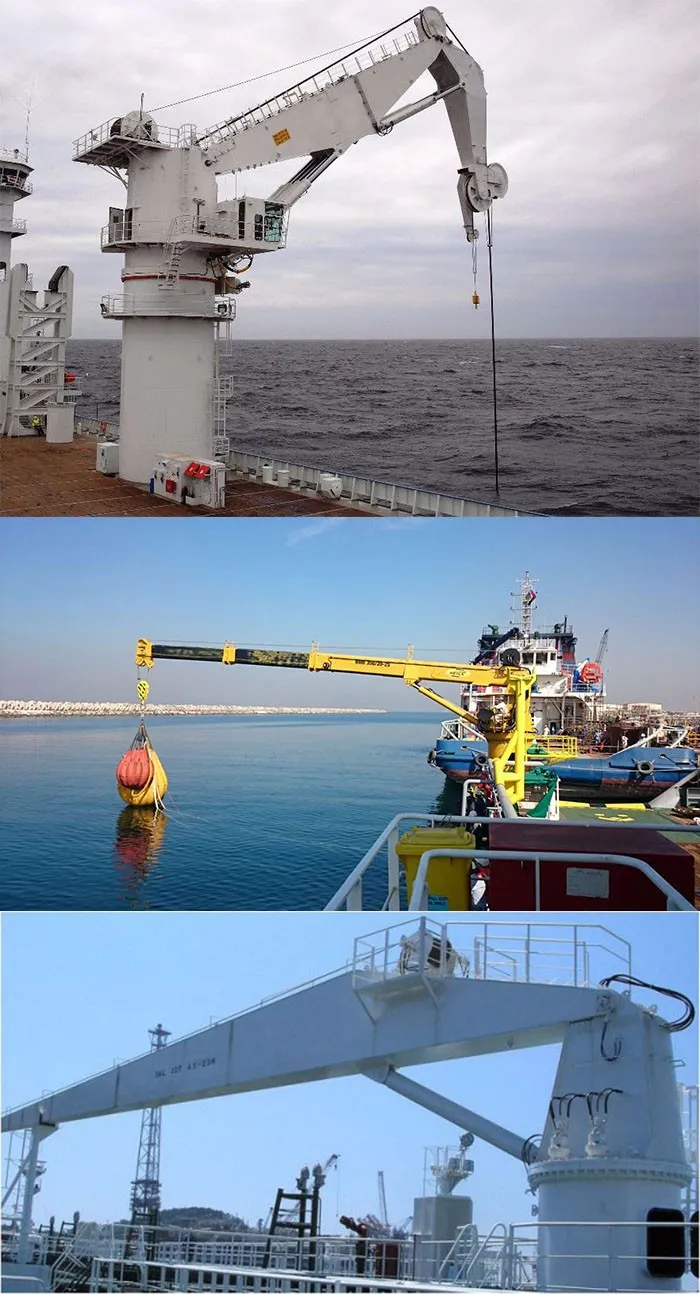

Marine Deck Crane
Knuckle boom crane is a kind of special purpose crane to carry out transportation operations in the maritime environment. They are mainly used for the transportation of goods between ships, the supply of sea, the delivery and recycling of object during underwater operations.
Knuckle boom crane is a kind of special purpose crane to carry out transportation operations in the maritime environment. They are mainly used for the transportation of goods between ships, the supply of sea, the delivery and recycling of object during underwater operations.
The hydraulic system of Weihua deck crane innovatively adopts a closed system instead of the open system, solving the problem of the lifting brake control, which is rare to see for deck cranes. After successfully applying the closed system of the deck crane, the hydraulic oil consumption has been reduced by more than half compared to the open system deck cranes, and the power consumption has also been greatly reduced. This is a major breakthrough in energy saving and environmental protection. This crane has obtain 6 national patents.
Weihua deck crane is designed for such condition and can be customized as per our clients' variable working requirements.
Marine Deck Features:
Features of Weihua Deck Crane:
1. Built-in machine, electric, hydraulic, integrated system.
2. Fully hydraulic drive.
3. Self-diagnosis wave compensation system.
4. Luffing load horizontal movement technology.

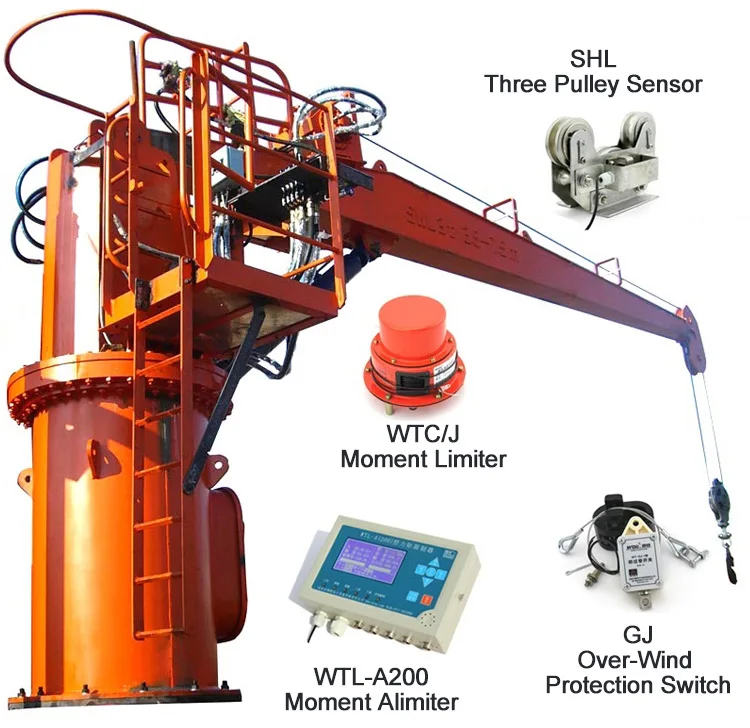

5. Eight safety devices including torque limiter, etc.
6. Visible safety monitoring system.
1. Built-in machine, electric, hydraulic, integrated system.
2. Fully hydraulic drive.
3. Self-diagnosis wave compensation system.
4. Luffing load horizontal movement technology.
5. Eight safety devices including torque limiter, etc.
6. Visible safety monitoring system.
Rated Capacity | t | 5 | 10 | 20 | 30 | 50 | 70 | ||||||
Beam length | mm | 2000~6000 | |||||||||||
Lifting height | mm | 2000~6000 | |||||||||||
Lifting speed | m/min | 8; 8/0.8 | |||||||||||
Travelling speed | m/min | 10; 20 | |||||||||||
Turning speed | r/min | 0.76 | 0.69 | 0.6 | 0.53 | 0.48 | 0.46 | ||||||
Turning degree | degree | 360° | |||||||||||
Duty Class | A3 | ||||||||||||
Power source | 380V, 50HZ, 3 phase (or other standard) | ||||||||||||
Working temperature | -20~42°C | ||||||||||||
Control model | Pendant push button control or remote control | ||||||||||||
Main Products
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane,grab bucket crane, jib crane,marine decke crane,electric hoist,electric winch,mobile platforms and other types of hydraulic crane technical requirements.
Company Profile
Weihua Group was founded in 1988. After 33 years of development, it has developed products such as lifting machinery, port machinery, mining machinery,electric hoists, electric winch, parking equipment, special robots and other products.The total assets are 7.076 billion yuan, the brand value is 7.19 billion yuan, there are more than 6,800 employees, and it covers an area of 3.65 million square meters.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.
Packing and shipping
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: Beam length C: lift height D: power source or other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
More details or drawings, better.
A: Lift capacity B: Beam length C: lift height D: power source or other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
