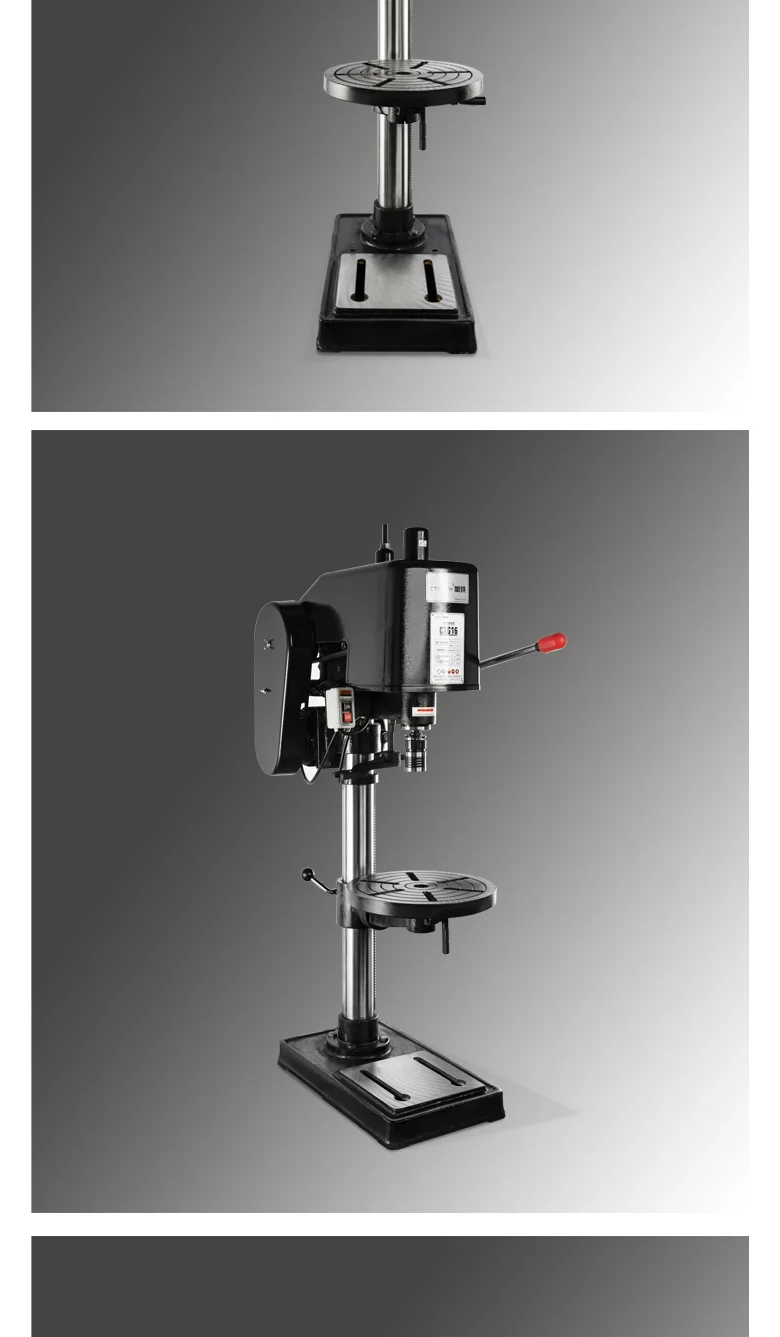

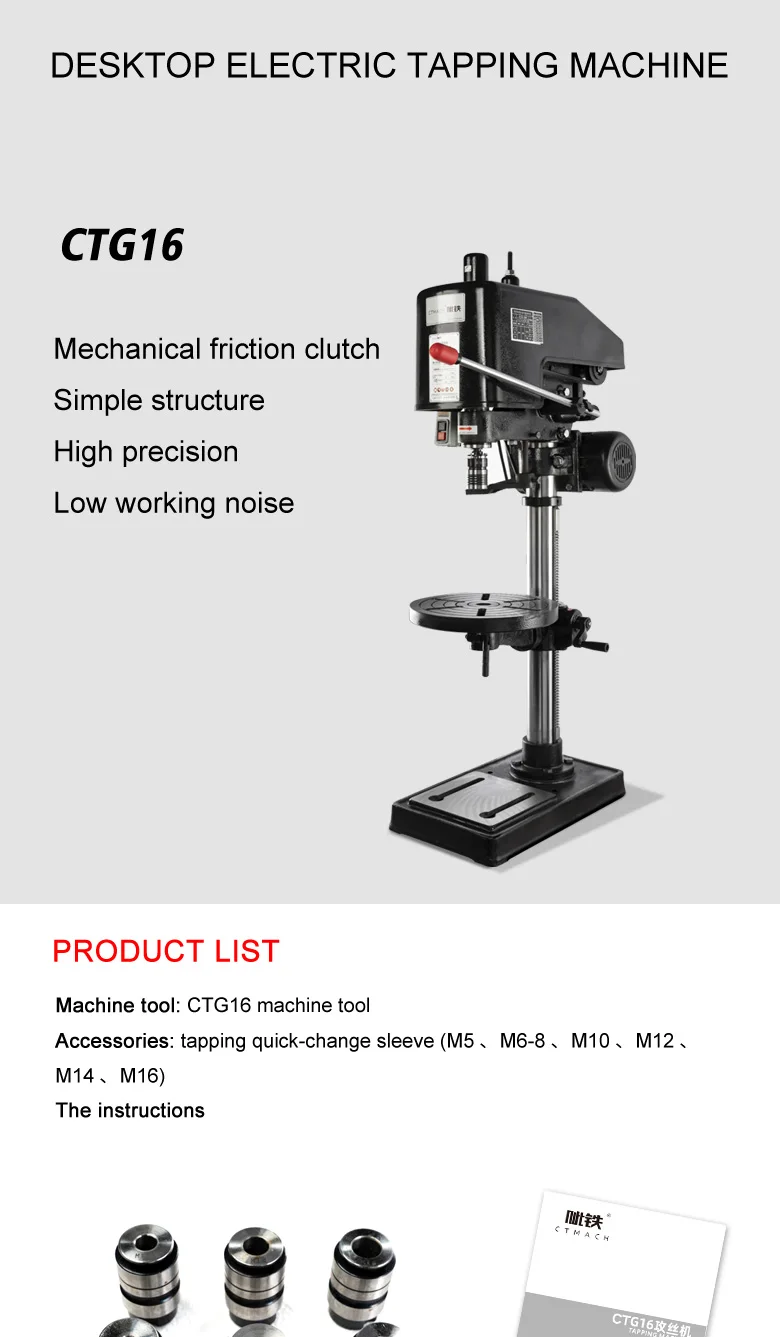

Мини-резьбонарезательная машина CTG16 по низкой цене из

Описание и отзывы

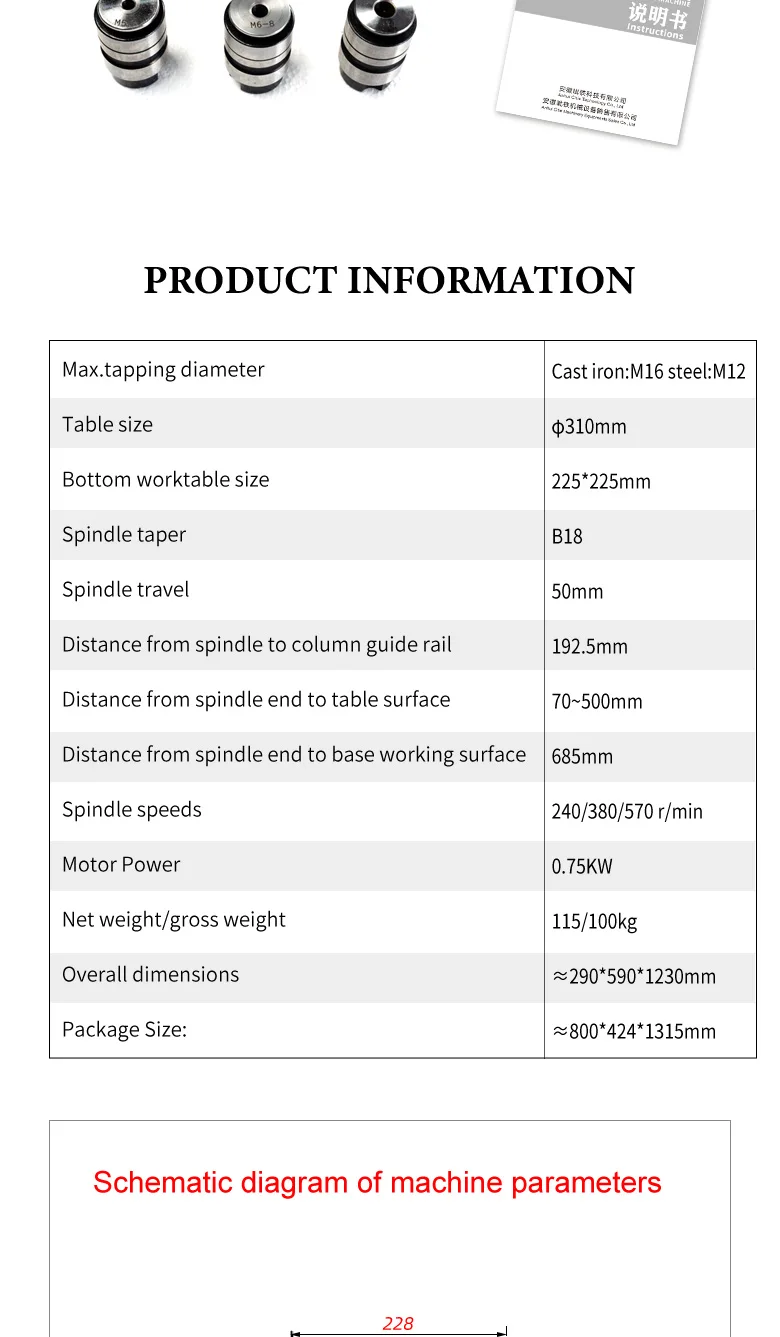

Характеристики

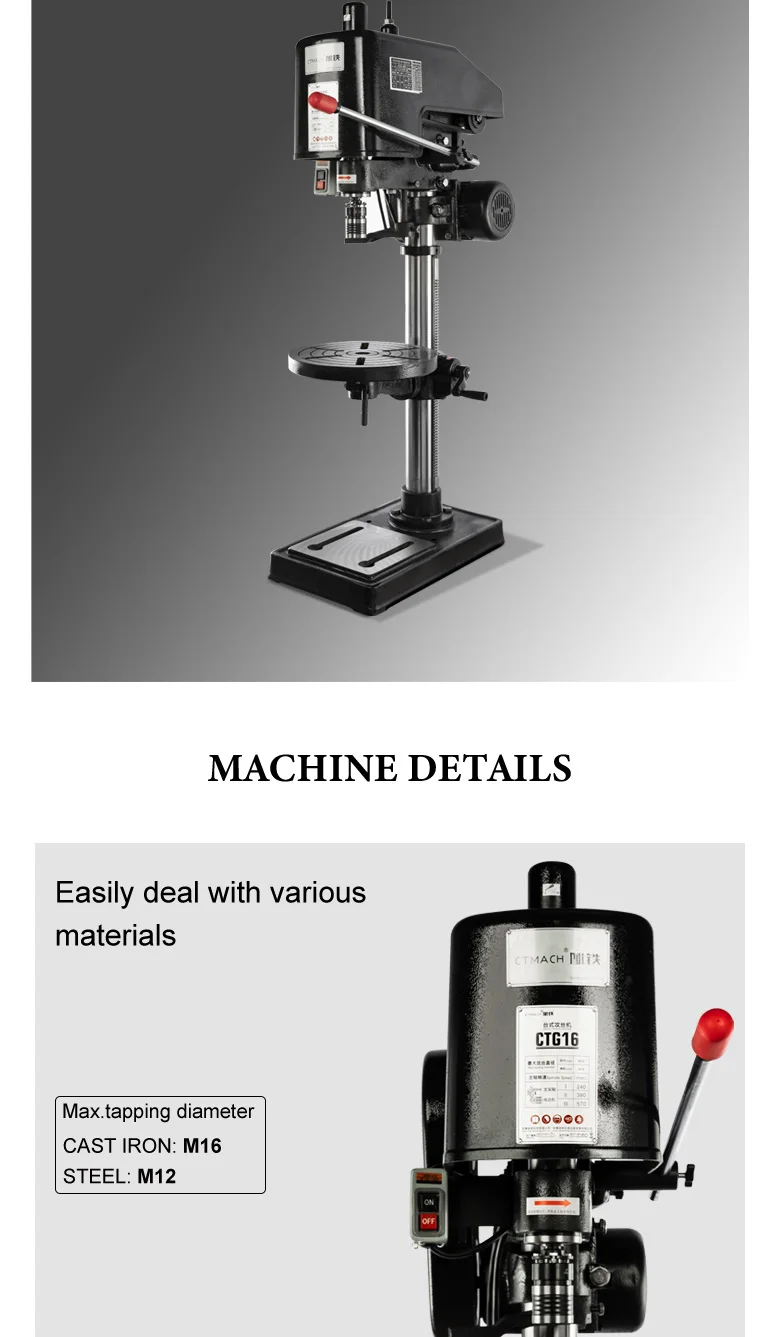

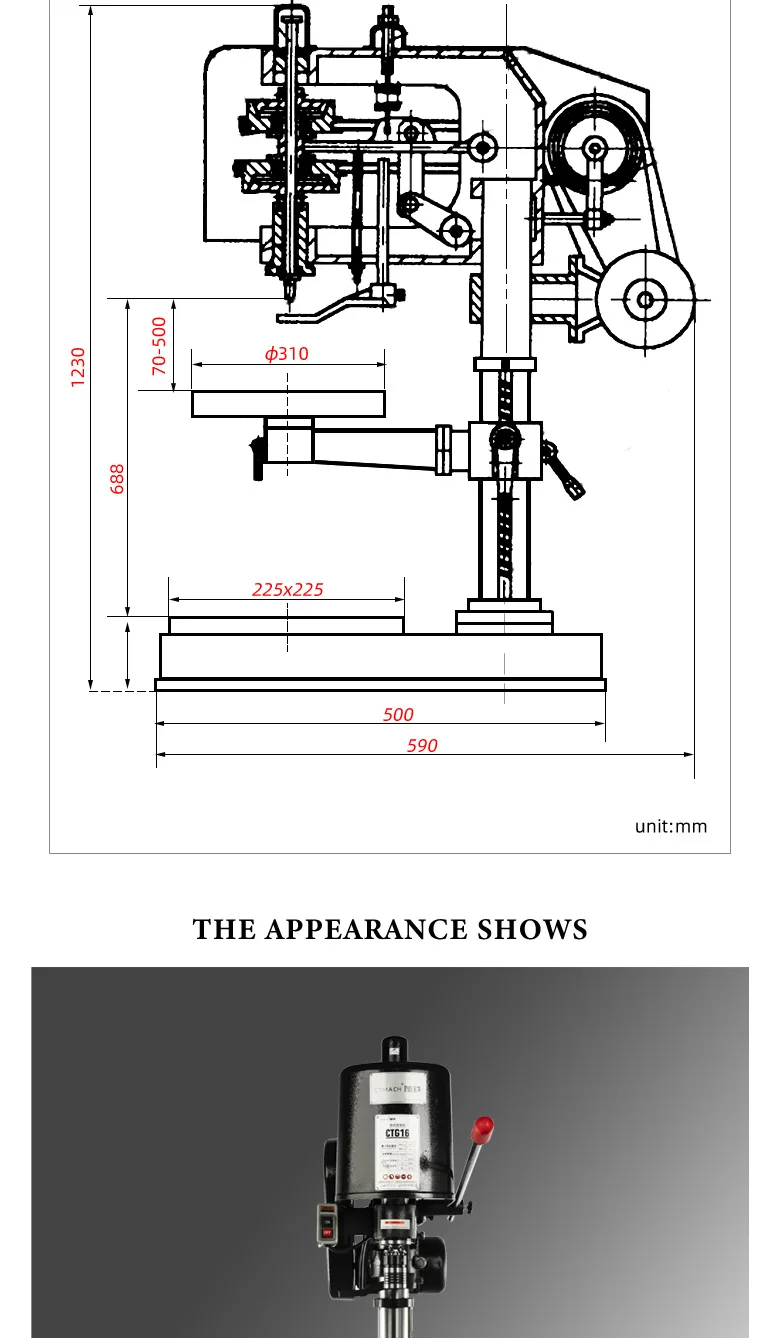

Maximum tapping diameter (cast/steel)	M16/M12
Column diameter	71mm
Maximum stroke of spindle	50mm
Taper of spindle end	B18

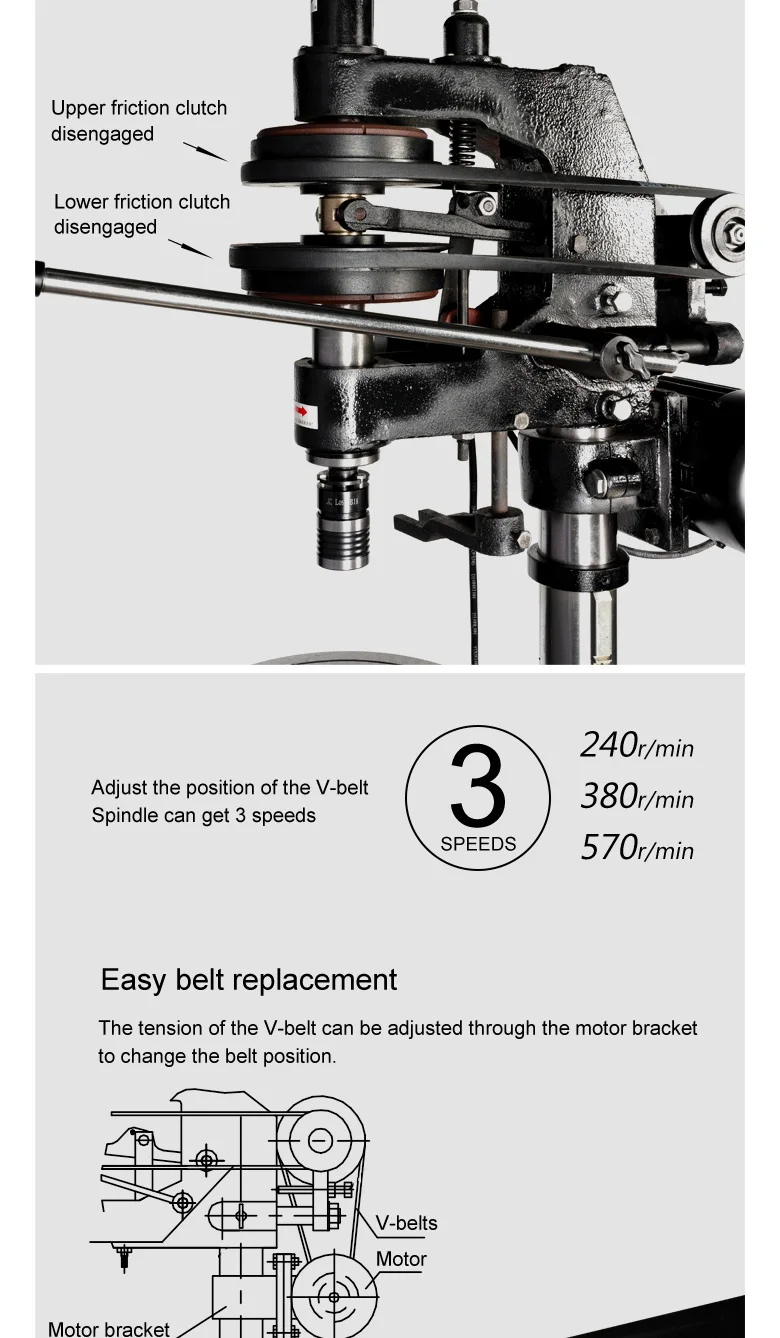

Spindle speed	240/380/570rpm

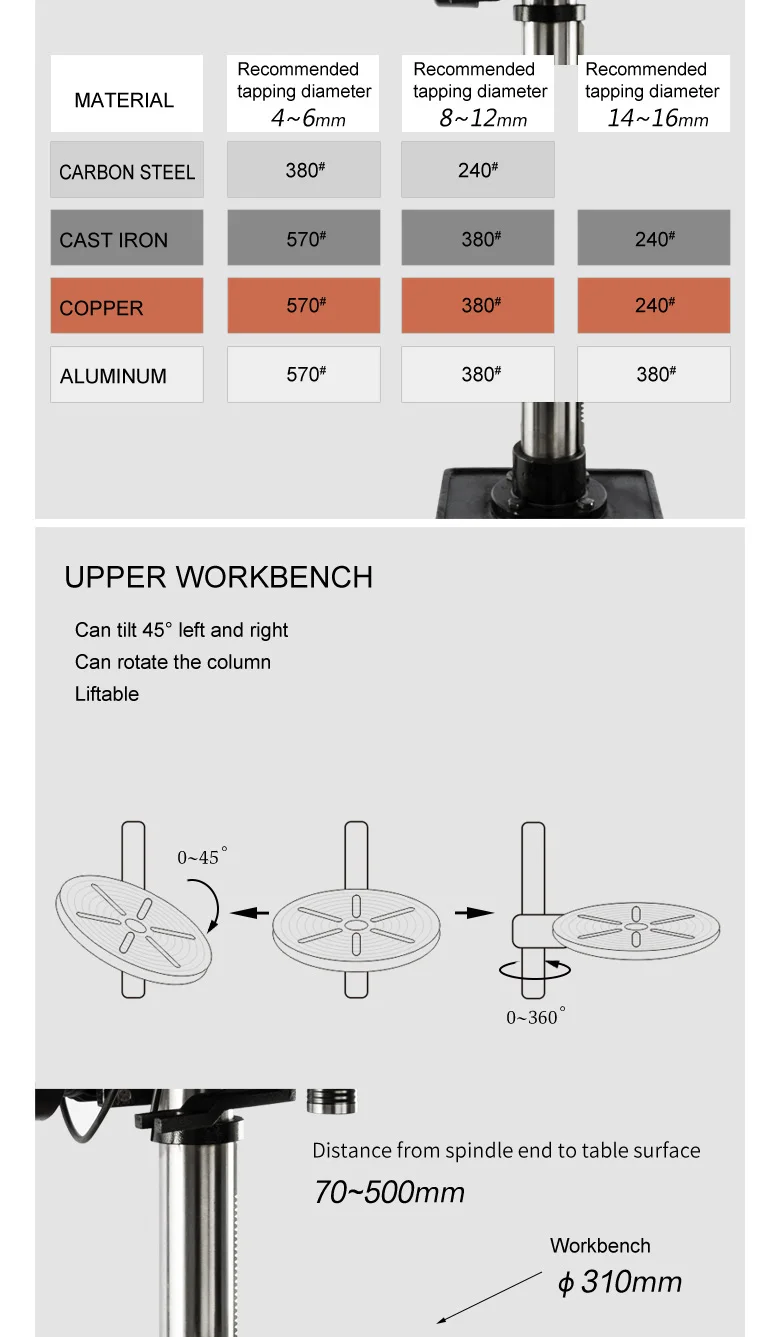

Workbench size	Φ310mm

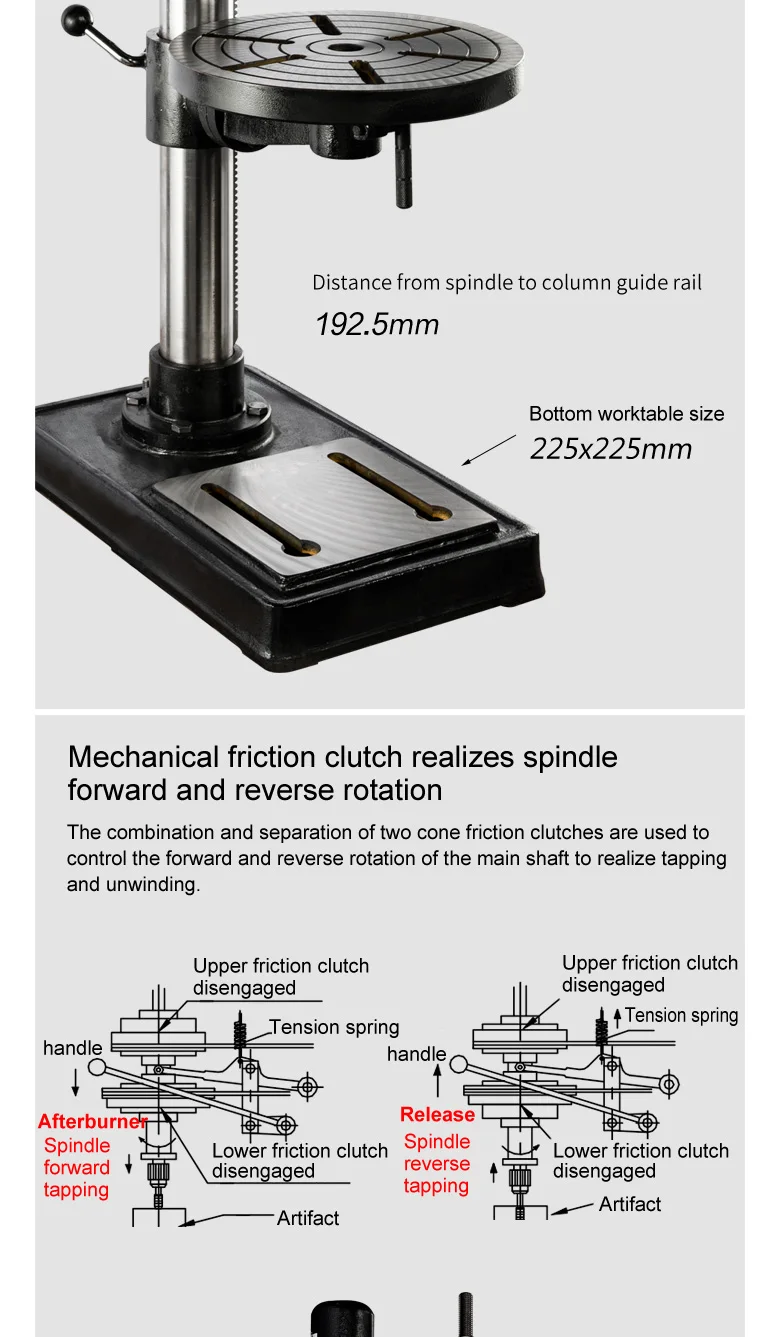

Base working surface size	225×225mm
Distance from spindle axis to column surface	192.5mm
Distance from the lower end of the spindle to the table surface	70-500mm
Distance from the bottom of the spindle to the bottom table	685mm

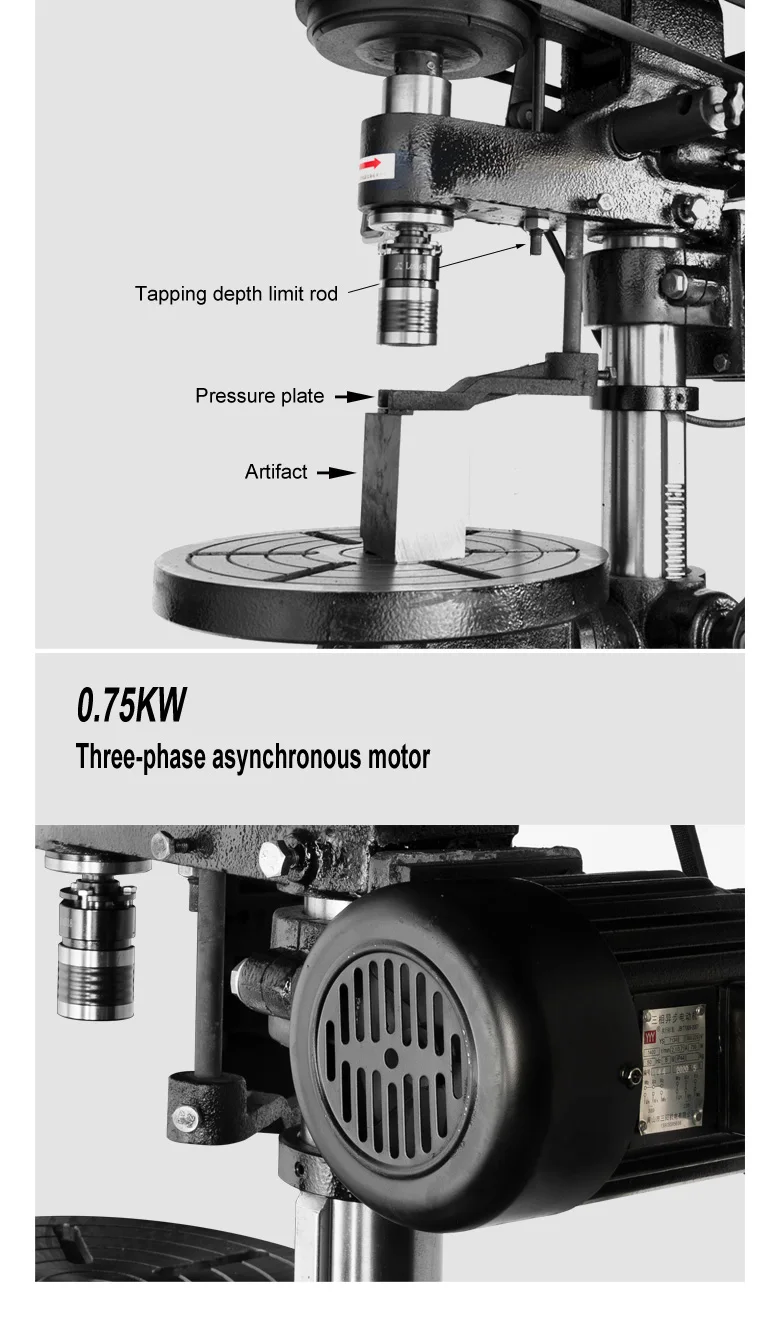

Motor	0.75kw
N.W./G.W.	100/115kg
Machine size	290×590×1230mm
Package Size	800×424×1315mm
