Products Description

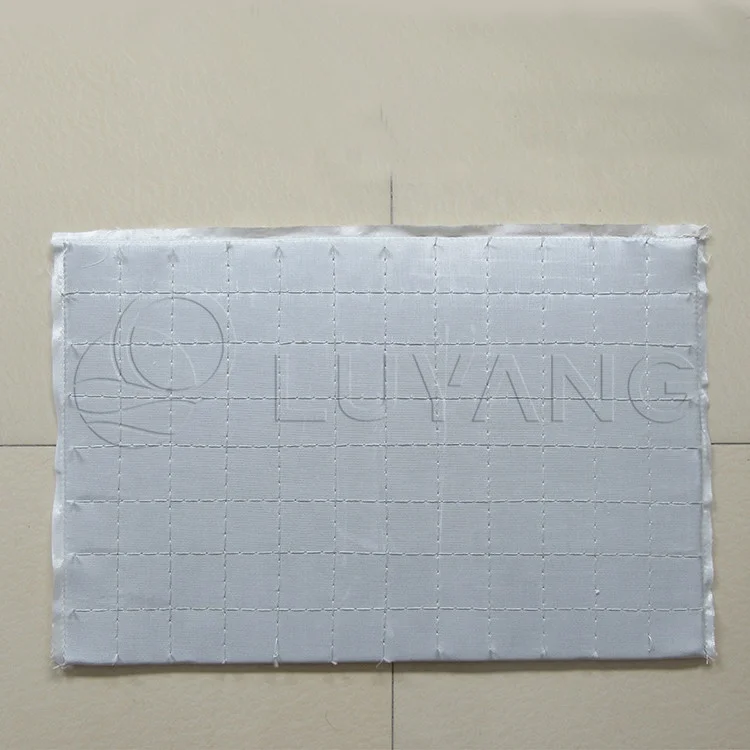

Luyang Microporous Insulation Panel is made from inorganic refractory nano powder with a porous structure based on chains of amorphous fumed silica agglomerates of particles from 7 to 12mm in size. It also contains special opacifiers for minimizing infrared radiation.
Microporous insulation panel have the following unparalled advantages compared with traditional insulation materials.
1),Extremely low thermal conductivity. it is only 1/4 to 1/3 of the conventional fiber insulation materials. heat loss could be
reduced significantly.
2),High service temperature: microporous insulation can be installed at temperatures up to 1100 °C for long-term use.
Applications:
Iron &steel ladles, cement kilns, glass furnaces, petro-chemical &power plants, elevator systems, refrigerators, air planes, heat tubes,etc....
Microporous insulation panel have the following unparalled advantages compared with traditional insulation materials.
1),Extremely low thermal conductivity. it is only 1/4 to 1/3 of the conventional fiber insulation materials. heat loss could be
reduced significantly.
2),High service temperature: microporous insulation can be installed at temperatures up to 1100 °C for long-term use.
Applications:
Iron &steel ladles, cement kilns, glass furnaces, petro-chemical &power plants, elevator systems, refrigerators, air planes, heat tubes,etc....
Typical Parameters
Description | MICROPOROUS 90S BOARD | |
Recommended Temperature of Use (℃ ) | 900 | |
Density (kg/m³) | 260/300 | |
Modules of Rupture (MPa) | - | |
Compressive Strength (MPa, 10% relative deformation) | - | |
Permanent Linear Shrinkage (%) | 900℃ x 24h ≤2.0 | |
Thermal Conductivity (W/m·K) | ||
100℃ | 0.022 | |
200℃ | 0.025 | |
300℃ | 0.027 | |
400℃ | 0.029 | |
500℃ | 0.033 | |
Covering Material | Glass Fiber Cloth | |
Standard Size (mm) | 600 x 400 x (5-10) | |
1000 x 500 x (5-10) | ||
Typical Applications
* Pipe insulation
* Fire protection
* Insulation for curved surfaces of high-temperature
* Furnace walls and equipment
* Fire protection
* Insulation for curved surfaces of high-temperature
* Furnace walls and equipment
* Observation of industrial furnace
* Industrial furnace burner, door
* Plug and launder of Aluminum Products Industry
* Lining refractory of high-temperature laboratory furnace
* Thermal insulation of domestic and industrial heating devices
* Non-ferrous metal melting tank padded, casting riser.
* Roller furnace insulation bricks.
* Industrial furnace burner, door
* Plug and launder of Aluminum Products Industry
* Lining refractory of high-temperature laboratory furnace
* Thermal insulation of domestic and industrial heating devices
* Non-ferrous metal melting tank padded, casting riser.
* Roller furnace insulation bricks.
Main Features
* Can be made into various of complex shapes, high dimension accuracy.
* Contact with flame directly,no odor and volatile gases at high temperatures
* High mechanical strength, resistance to gas flow.
* Low shrinkage,low thermal conductivity.
* Excellent strength in high temperature and thermal stability.
* Contact with flame directly,no odor and volatile gases at high temperatures
* High mechanical strength, resistance to gas flow.
* Low shrinkage,low thermal conductivity.
* Excellent strength in high temperature and thermal stability.
Packing & Delivery
Our service
Pre-Sales Service
* We supply OEM for trading company.
* We can delivery product in 2-7 days.
* We can provide free samples.
* We can delivery product in 2-7 days.
* We can provide free samples.
* We supply designing plan.
After-Sales Service
* Training how to install the products.
* Engineers available to do service overseas.
* Engineers available to do service overseas.
Company Profile
Luyang has an annual output of 300,000 tons of various ceramic fiber products and 100,000 tons of rock wool products. Luyang has five production bases in Shandong, Inner Mongolia, Xinjiang, Guiyang and Suzhou. Luyang has maintained a leading position in scale, technology, variety and efficiency in domestic industries for many years and ascends among the world's ceramic fiber industry forefront. Luyang products are in great demand nationwide and sold in more than sixty countries and regions, such as USA, EU, Japan, Vietnam. Luyang products are applied widely in the field of petrochemical refractory insulation, long-distance pipe network insulation, building fire insulation, shipping fire prevention, household appliances fire insulation, high-temperature insulation etc.
1. Strict QC & Fast delivery.2. Free samples are available by freight collect.
3. High quality goods, Perfect Pre-sales, and good designing service.
4. Welcome to visit our factory at anytime on site or online .
5. We will update you the production process after placing order by photos or online.
6. We have special after-sales team to solve your problem during using our products.
3. High quality goods, Perfect Pre-sales, and good designing service.
4. Welcome to visit our factory at anytime on site or online .
5. We will update you the production process after placing order by photos or online.
6. We have special after-sales team to solve your problem during using our products.
FAQ
1.You are a manufacture or a trading company ?
We are a manufacturer founded in 1984, located in Shandong China, with 8 branches. We not only provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products, Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
6.What's the lead time?
Generally it is 7-15 days, or shorter, if the goods are in stock.Or it is 15-30 days, it is according to quantity.
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products, Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
6.What's the lead time?
Generally it is 7-15 days, or shorter, if the goods are in stock.Or it is 15-30 days, it is according to quantity.
