BEI JING DAELIM have 20 years of experience in international transformer projects and have helped many customers around the world complete transformer projects. For example, Canada, Mexico, Panama, Ecuador, Guatemala, Honduras, Chile, alvador,Venezuela, Australia,New Zealand, Spain, Belgium, Algeria, South Africa, Ethiopia, Myanmar, Kazakhstan, etc.DAELIM transformer have at least two-year warranty, moreover Daelim has installation teams abroad, so if you have transformer needs, please contact us.


Beijing DAELIM PAD mounted transformer in Honduras.
Beijing DAELIM PAD mounted transformer in Canada.


Beijing DAELIM PAD mounted transformer in Chile.
Beijing DAELIM PAD mounted transformer in Salvador.


Product Description

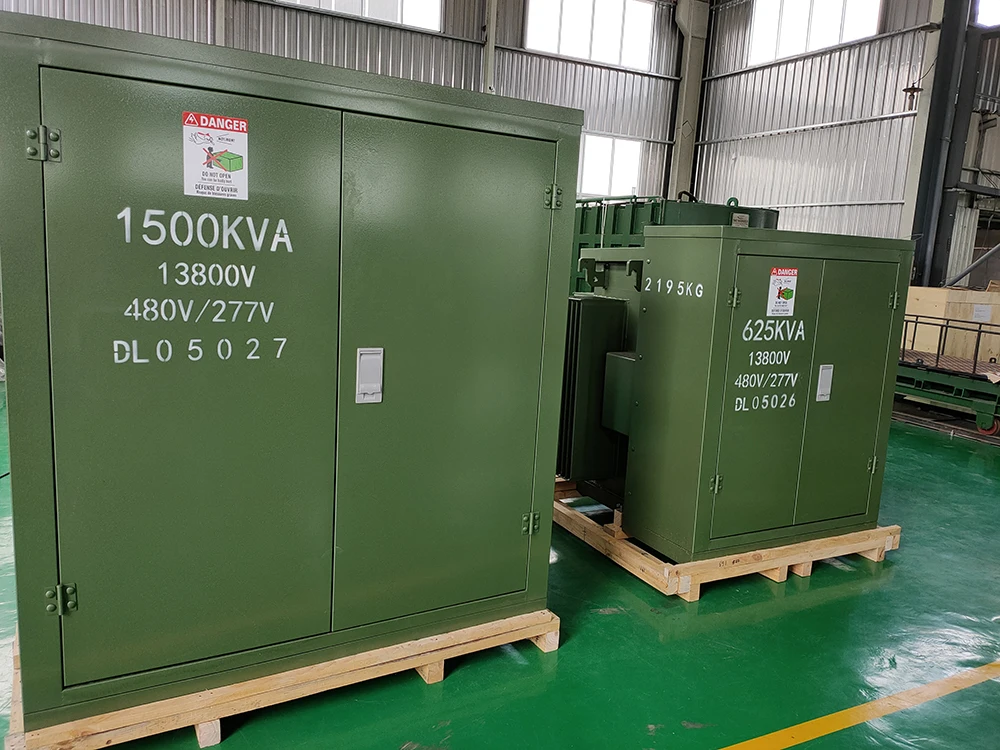

Pad mounted transforemers
Pad-mounted transformers are made in power ratings from around 75 to around 5000 kVA and often include built-in fuses and
switches. Primary power cables are connected with elbow connectors, which can be operated when energized using a hot stick and allows for flexibility in repair and maintenance.
Our pad mounted transformer is designde and tested in accordance with industry standards including CSA,ANSI C.57,DOE,and IEEE as applicable.


Technical Specification


 Pad Mounted Transformer

Rated Power (KVA)

High Voltage (KV)

Low Voltage (V)
Loss (W)
No-load Loss (W)
On-load Loss (W)
75KVA



34.5KV/
19.92KV/
13.8KV/
79.57KV/
13.2KV/
7.62KV/
12.47KV/
7.2KV
 or others





240V
480V
480Y/
277V
600Y/
347V
180
1250
112.5KVA
200
1500
150KVA
280
2200
225KVA
400
3050
300KVA
480
3650
500KVA
680
5100
750KVA
980
7500
1000KVA
1150
10300
1500KVA
1640
14500
2000KVA
2160
20645
2500KVA
2680
27786
3000KVA
3300
30300
3750KVA
4125
37875
1200KVA
1320
12120

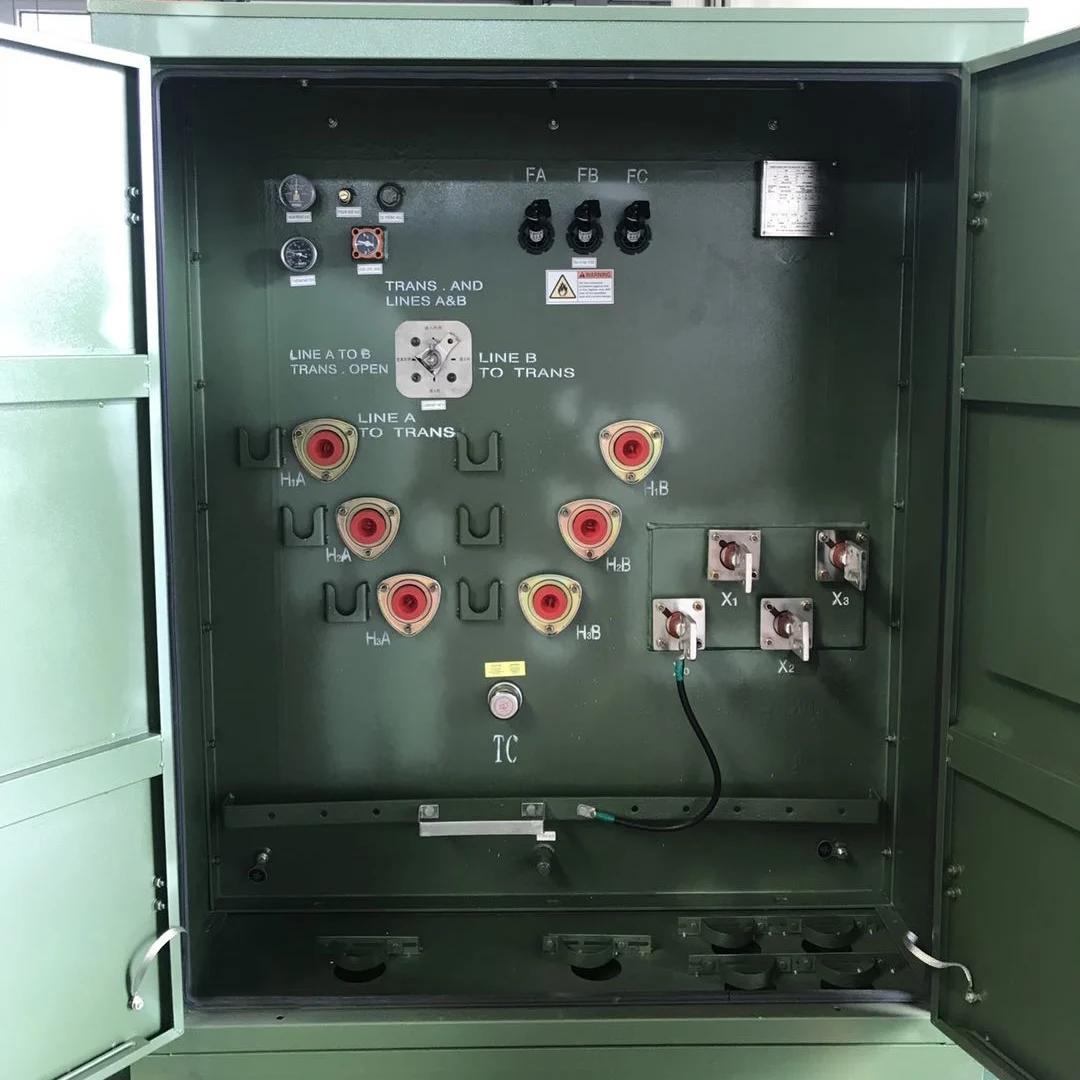

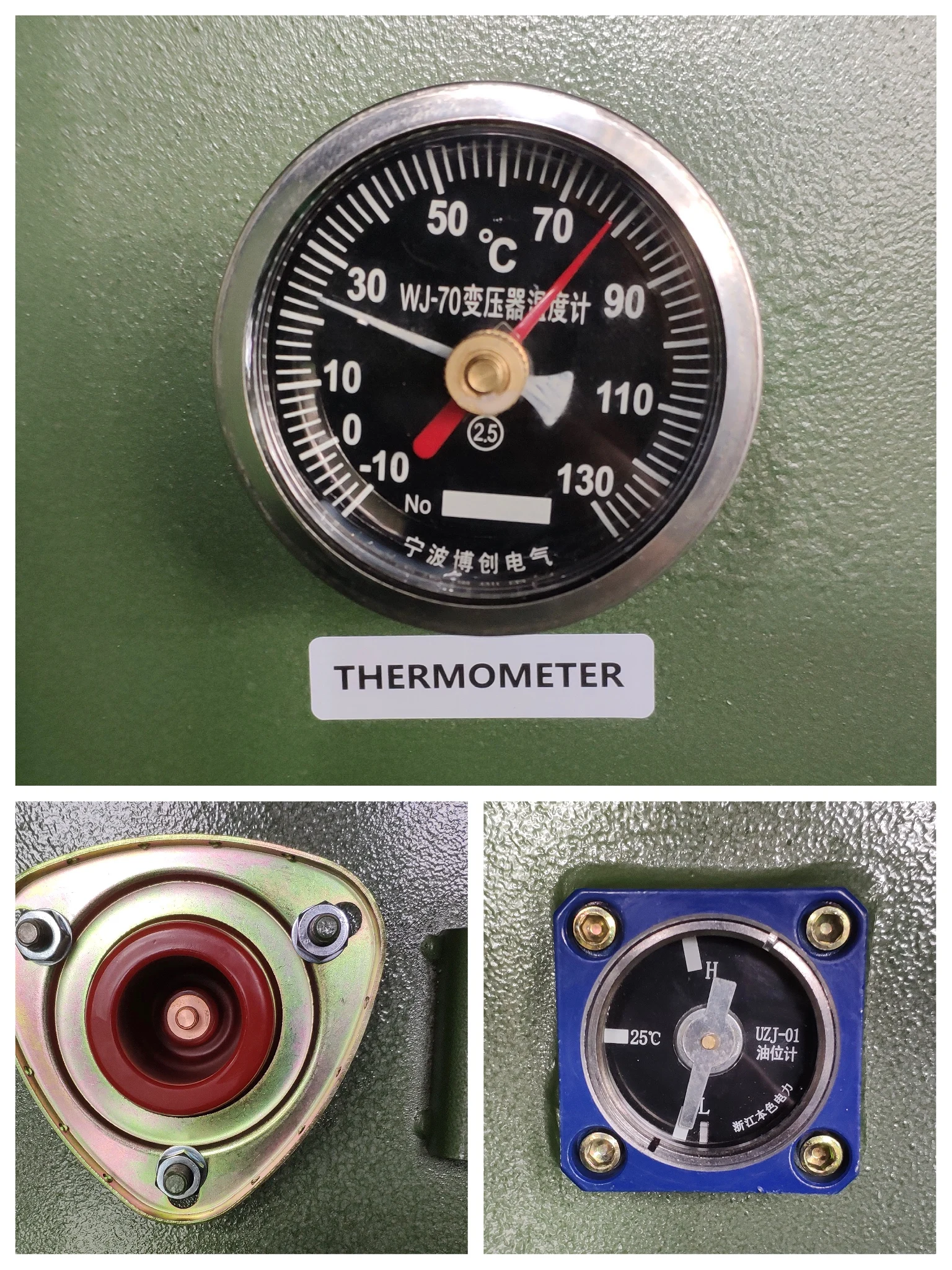

Product Details




− Mild steel, optional stainless steel tank
− Three-point latching door for security
− Removable sill for easy installation
−Stainless steel cabinet hinges and mounting studs
Bolted-on cabinet with removable sill having the following depths:
19"dedp for 300kva through 750 kva
22"deep for 1000kva through 1500 kva
24"deep for 2000kva through 3750kva
30"deep for 5000kva through 7500kva
− Live front construction & dead front construction
− Steel HV/LV compartment barrier
− Oil drain plug for 500 kVA and below
− 1” drain valve with sampler for 750 kVA and above

− Five-legged core/coil assembly.
− Removable LV neutral ground strap; as required
− Nameplate per ANSI requirement
−Self-actuating pressure relief valve
− Lifting lugs (4)Three-point latching door for security
− Removable sill for easy installation
−Stainless steel cabinet hinges and mounting studs
− Live front construction & dead front construction
− Steel HV/LV compartment barrier
− Oil drain plug for 500 kVA and below
− 1” drain valve with sampler for 750 kVA and above
− Oil fill plug
− Five-legged core/coil assembly.
− Removable LV neutral ground strap; as required
− Nameplate per ANSI requirement




Through years of international engineering experience, our factory is capable of producing transformers meeting various international standards, such as IEC, IEEE, ANSI, CSA.


Packing & Delivery




Packaging: Wooden case or according to client's requirements
The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.
Shipping: Land transportation/Ocean transportation
Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option
for our clients.
10 years of business experience makes us pack well and deliver fast, satisfying our customers all over the world!


Our Service


Over Service
1. We provide customized service and we can produce transformers according to several international standards, such as: ANSI/IEEE,
IEC, etc.
2. We provide technical solutions and price solutions for our customers for free.
3. We provide local installation service for many countries, in which we have professional installation team in cooperation.


Daelim Story

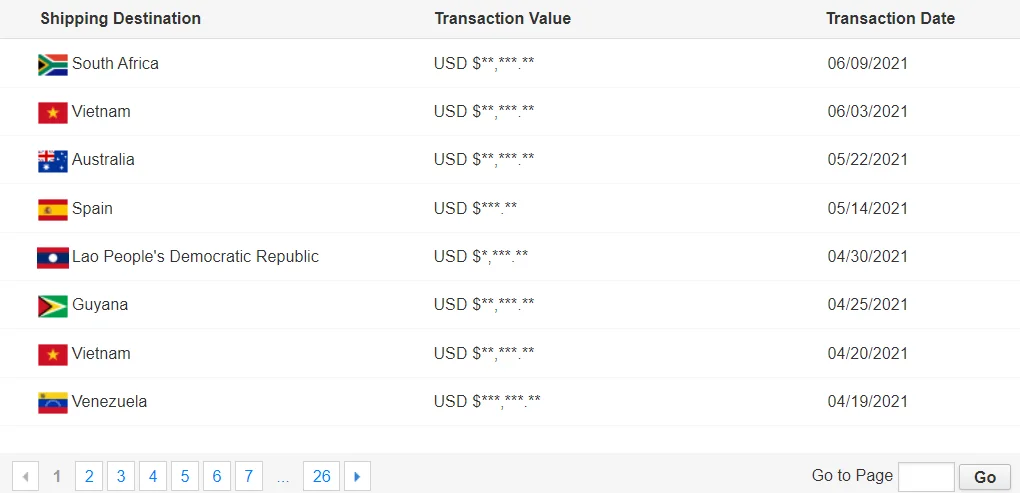

Sales record
Our products got a high reputation and selling well around Canada, Mexico, Honduras, Ecuador, Guyana, Panama, Spain, Australia, and Africa.
