Прямая продажа с завода гибридный контроллер заряда 24 В/48 в mppt wind и
- Категории: Контроллеры солнечных зарядных устройств >>>
- Поставщик: Wuxi,Rexco,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
TIPS:
1. Hybrid Controller default solar panel power input is the same to the specification showing.If customers want to enlarge solar panel power input, pls contact sales to change the price.
1. Hybrid Controller default solar panel power input is the same to the specification showing.If customers want to enlarge solar panel power input, pls contact sales to change the price.
2. If you want to add RS232/RS485/RJ45/GPRS /Bluetooth function, Pls contact sales.
Thank you for your cooperation !
Thank you for your cooperation !

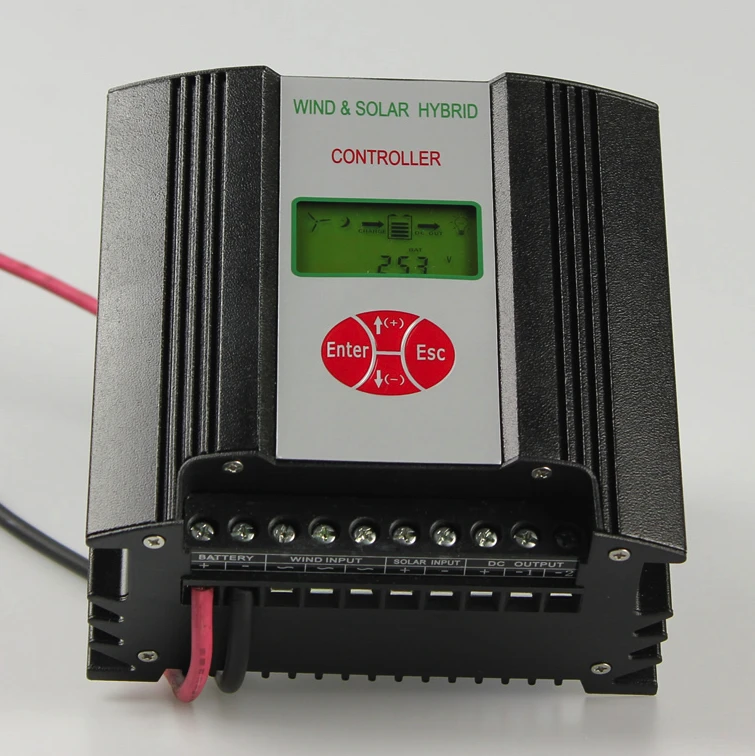

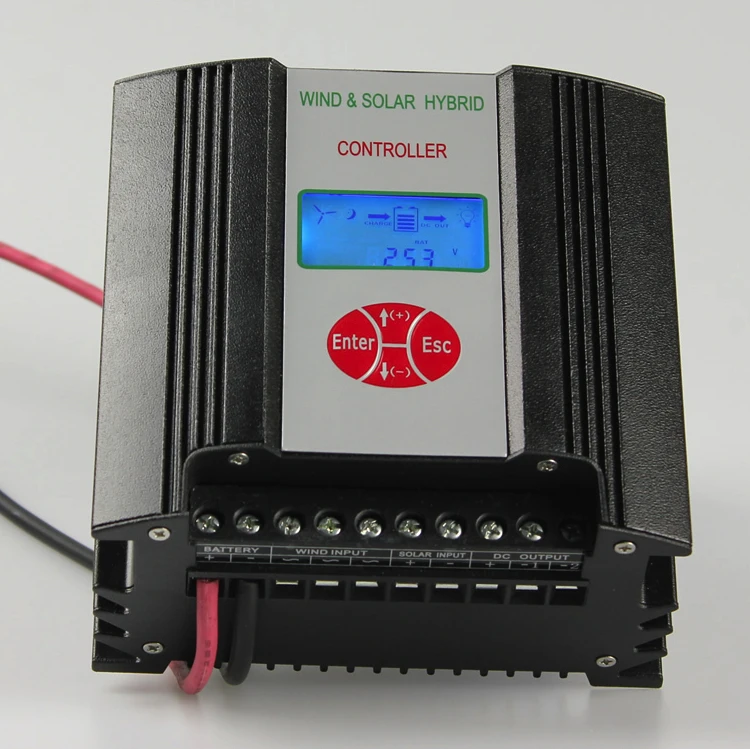

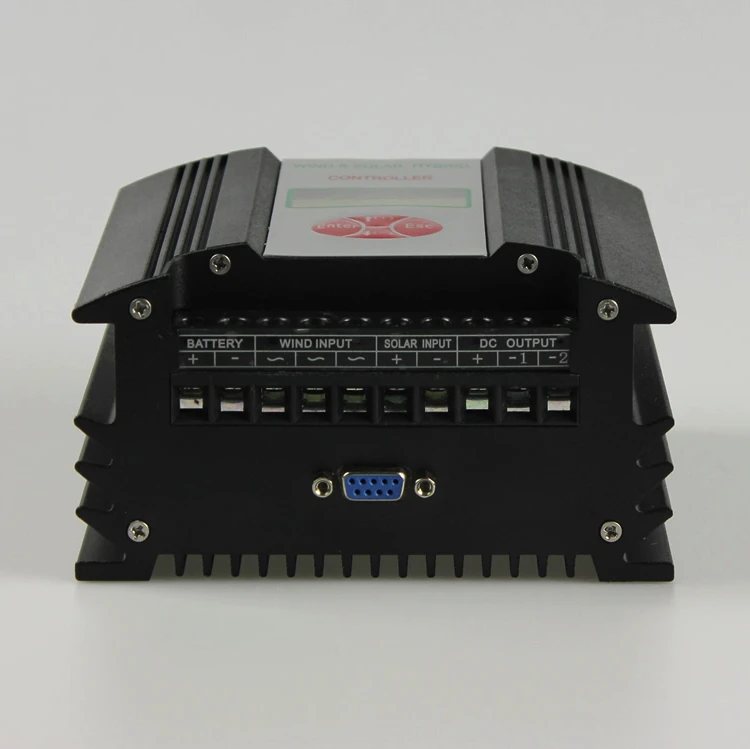

Detailed Images
Product Description
100w to 600w 12V 24V wind turbine charge controller for battery with DC output Applications:

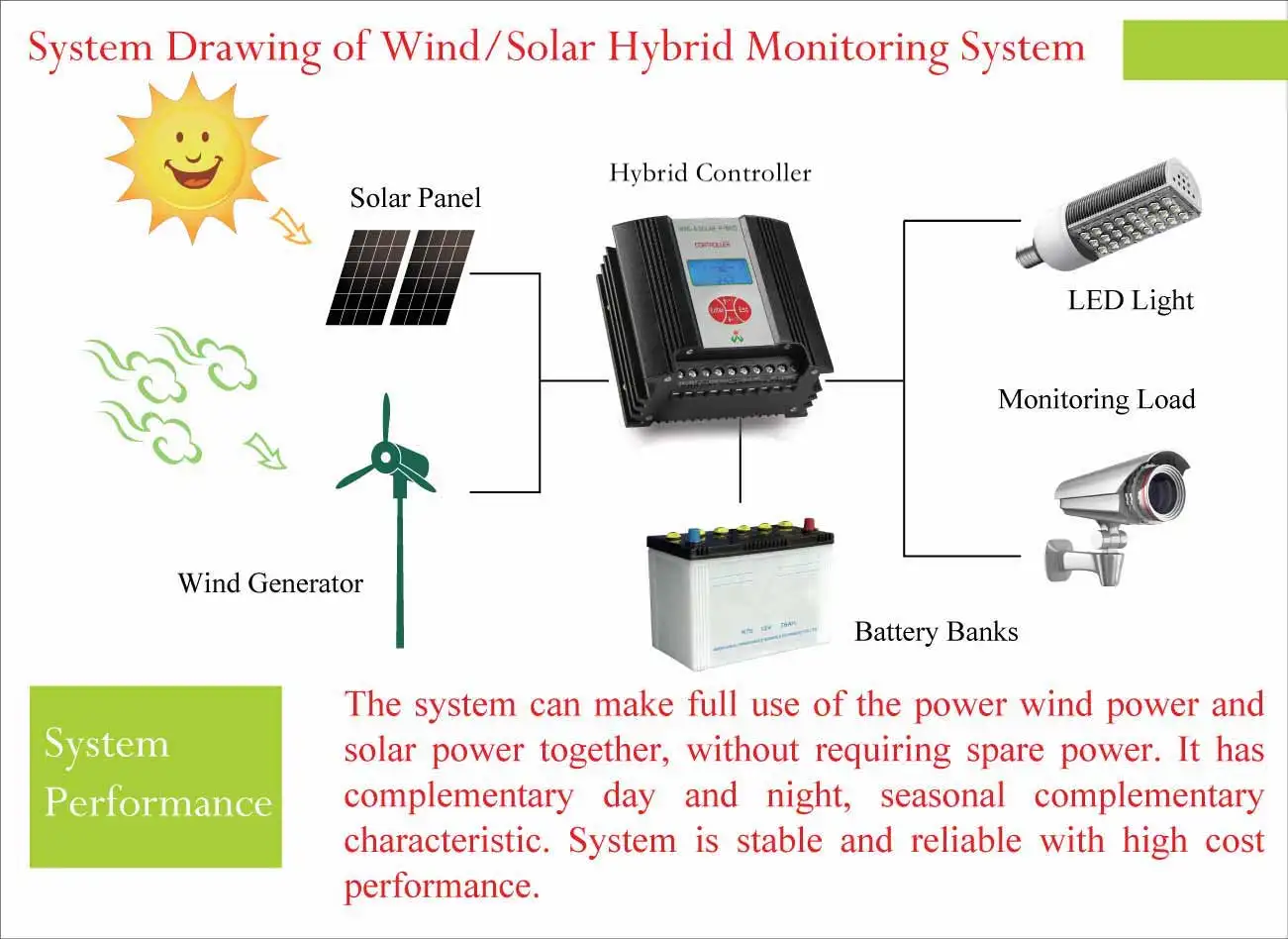

* Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.
* Regional research projects, government demonstration projects, landscape lighting projects for those places with insufficient power or power shortages.
Features：
* Wind&Solar complementary controller in high quality.
* LCD Display. Easy setup.
* RS232/RS485/RJ45/GPRS /Bluetooth Optional (For those with GPRS/Bluetooth/RJ45 can also be monitored through App.)
* Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.
* Regional research projects, government demonstration projects, landscape lighting projects for those places with insufficient power or power shortages.
Features：
* Wind&Solar complementary controller in high quality.
* LCD Display. Easy setup.
* RS232/RS485/RJ45/GPRS /Bluetooth Optional (For those with GPRS/Bluetooth/RJ45 can also be monitored through App.)
Technical Parameters | ||||
Model | WWS06-24 | WWS06-48 | ||
Wind Turbine Input | ||||
Rated input power | 600W | 600W | ||
Rated input voltage | 28Vdc | 48Vdc | ||
Input voltage range | 0~32Vdc | 0~64Vdc | ||
Rated input current | 25Adc | 13Adc | ||
Brake by hand | Press button “Enter” “Esc” at the same time to unload completely. Then recover by hand. | |||
Brake by over current | 25A. | 13A | ||
Brake by overvoltage | Refer to “output overvoltage” control | |||
Brake by over wind speed（optional） | 14m/s（0-30m/s settable） | |||
Brake by over rotational Speed（optional） | 500r/min（factory default,0~1000r/min settable） | |||
PV Input Parameters | ||||
Rated input power | 300W | 300W | ||
Max. open circuit voltage | 48V | 96V | ||
Rated input current | 13A | 7A | ||
Reversed connection protection | YES | YES | ||
Charge Parameters | ||||
Rated battery voltage | 24V | 48V | ||
Temperature compensation function(optional) | -3mV/℃/2V | -3mV/℃/2V | ||
Output Parameters | ||||
Rated output voltage | 24V | 48V | ||
Start unload voltage | 27V | 58V | ||
Complete unload voltage | 29V | 52.8V | ||
Max. Output current | 25A | 13A | ||
DC load output | ||||
Output loops | 2 loops | |||
Output control mode | Both 2 loops could be set in 7 modes, such as light control on&off, light control on and time control off. | |||
Output voltage range | 21.6V~32V | |||
Undervoltage recovery point | Refer to "rated battery voltage" | |||
Rated output current | 10A/each loop | |||
Overload protection | 120% rated DC output -1min,150% rated DC output -10s | |||
Short circuit protection | 200% rated DC output, instant protection | |||
General Parameters | ||||
Rectifier mode | Uncontrolled rectifier | Uncontrolled rectifier | ||
Display mode | LCD | LCD | ||
Display information | Battery voltage, wind turbine voltage/current/ power, PV power/voltage/current, light control-on voltage, light control-off voltage, time control duration, load current and so on. | |||

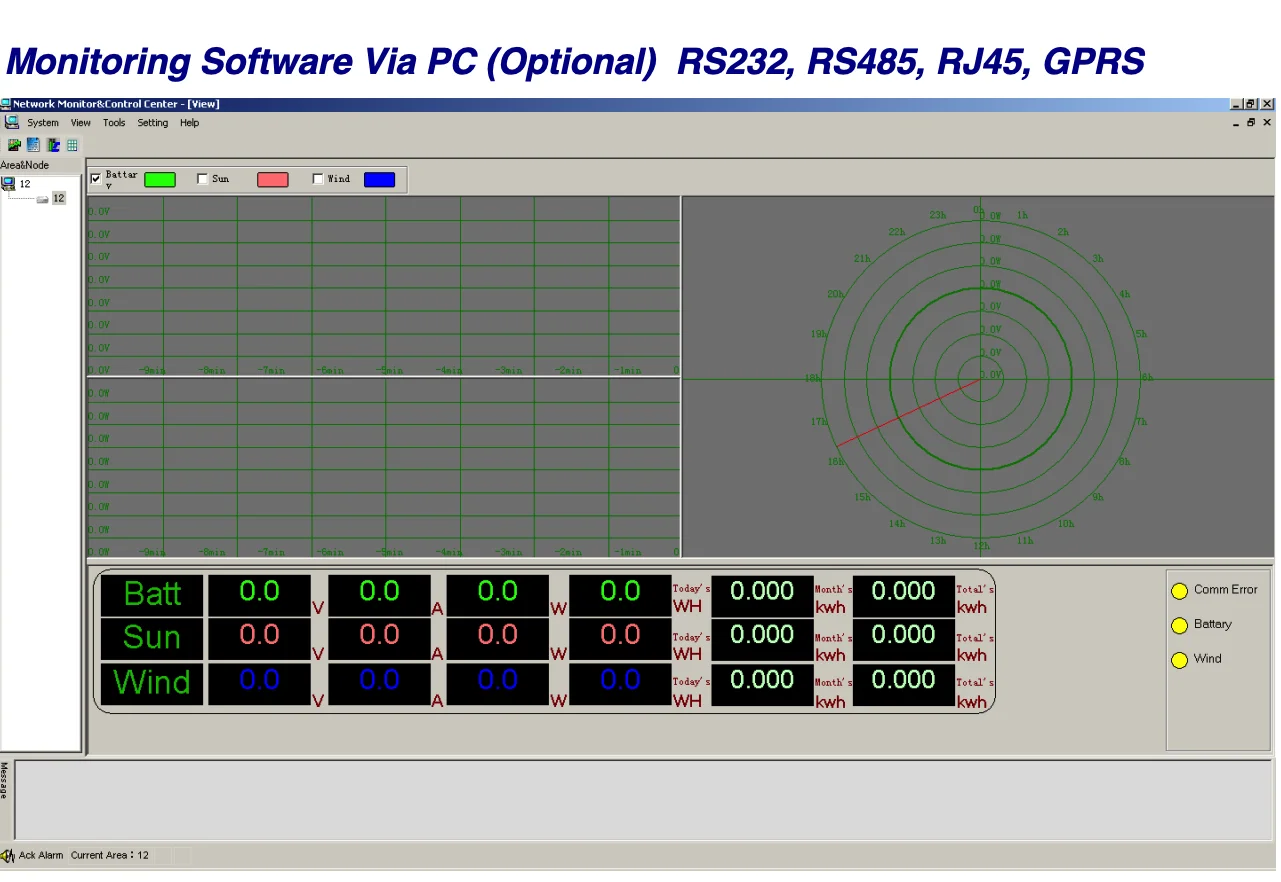

Monitoring mode(optional) | RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee | |||
Monitoring Contents | Real-time display: Battery voltage, wind turbine voltage/current/ power, PV power/voltage/current, wind power generation capacity, solar power generation capacity, Battery status, wind turbine status, day and night, DC overload, DC load short circuit, and so on. | |||
Parameter setting: Output overvoltage point, wind turbine over current point, wind turbine start voltage, DC load overvoltage/undervoltage /undervoltage recovery point, output mode choice for two loops, light control on voltage, light control off voltage, and wind turbine brake settings. | ||||
Lightning protection | YES | YES | ||
Conversion efficiency | ≥95% | ≥95% | ||
Static loss | ＜0.5W | ＜0.5W | ||
Environment temperature | -20℃～+40℃ | -20℃～+40℃ | ||
Humidity | 5%~95%,No condensing | 5%~95%,No condensing | ||
Noise | ≤65dB | ≤65dB | ||
Cooling mode | Natural cooling | Natural cooling | ||
Installation mode | Wall-mounted | Wall-mounted | ||
Cover protection class | IP52 | IP52 | ||
Product dimension(W*H*D) | 150×143×83mm | 150×205×82mm | ||
Product net weight | 1.8kg | 2.8kg | ||
