Product Description

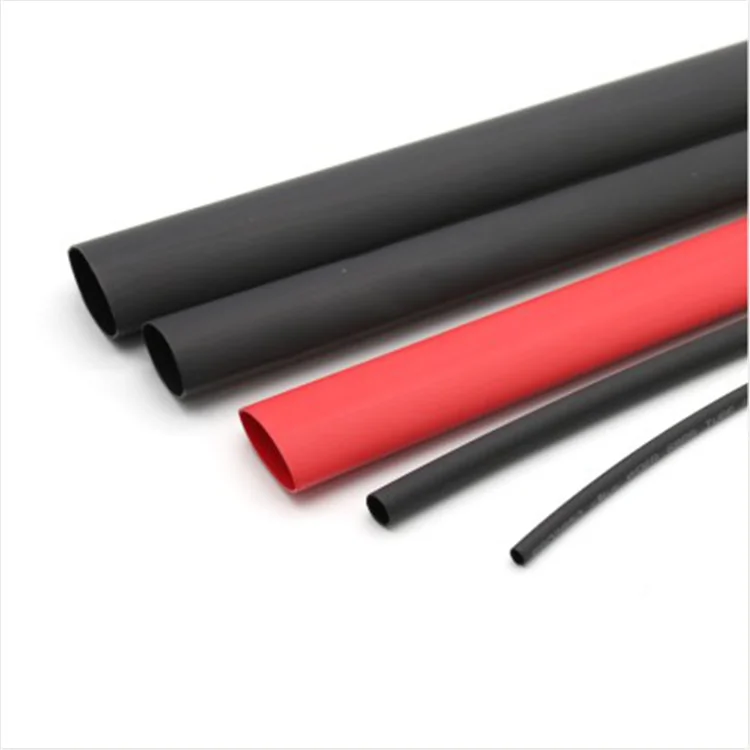

Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing
Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.
Features
4:1 shrink ratio
Low longitudinal shrinkage
Superior sealing against water, moisture or other contaminants
Ideal for connector sealing covering large diameter differences
Inner adhesive bonds to plastics, steel and polyethylene
Flame retardant( out jacket only)
Continuous operating temperature:-45℃-125℃
Shrink Temperature:125℃
Technical Data
Property | Test method | Standard Performance | Typical Performance |
Tensile strength(MPa) | ASTM D 2671 | ≥10.4 | 11.5 |
Elongation(%) | ASTM D 2671 | ≥200 | 450 |
Tensile strength after aging(MPa) | UL224 158℃*168hr | ≥7.3 | 8.5 |
Elongation after aging (%) | UL224 158℃*168hr | ≥100 | 350 |
Flammability | ASTM D 2671 B | Self-extinguish within 30s | Self-extinguish within 30s |
Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 17.5 |
Volume resistivity(Ω.cm) | IEC 60093 | ≥1*1014 | 2.5*1014 |
Adhesive
Property | Test method | Standard Performance |
Water Absorption | ASTM D 570 | <0.2% |
Softening Point(℃) | ASTM E8 | 95 |
Strength of pearing (PE) | ASTMD 1000 | 120N/25mm |
Strength of pearing (AL) | ASTMD 1000 | 80N/25mm |

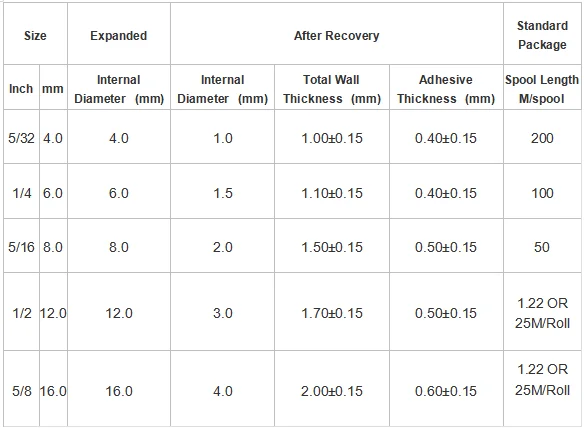

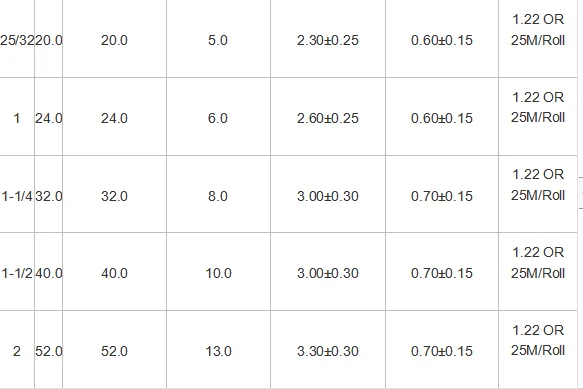

Specification Table
Company Information
Packaging & Shipping
