Superlink Trailer Side Tipper Links 34 Ton Trailer Superlink Dump Trailer For Transporting Coal And Chrome
Products Description
The side tipper use hydraulic pumps，hydraulic motors and a dump-bucket to one side. The remaining side gives you the option of opening and locking it during your job operations.
The design is meant to allow side dumping and there is a reason for that. You may be forced to do side dumping in areas where there isn’t sufficient space.
In such a situation, lateral offloading can be done using this side tipper. It helps in saving space. Thick steel plates are also put in place to prevent damages that may occur on the trailer with weak plates.
Unlike with the rear tipper, the side tipper is suitable for cargo with a small rest angle. However, the side tipper can load more than the rear tipper.
Trailer Model | LUYI Tipper Semi Trailer |
Overall Dimension | 7500-9900*2500*2900-3800mm |
Inner Dimension | 6600-9000*2400*1300-2200mm |
Box Volume | 28-48m3 |
Thickness of plate | Bottom: 6mm, Side: 4mm/6mm |
Lifting Type | Front side lifting |
Lifting System | LUYI Oil lifting Cylinder |
Tare Weight | 7.85T—11T |
Loading Weight | 40-80T |
Axle | 3/4/5 axles, FUWA/BPW/YAHUA/HYUAN brand axle |
Wheelbase(mm) | 6700+1310+1310 or other |
Suspension system | Mechanical or air supension (American or German) |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
Frame | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm; Material is Q345 Carbon Steel. 16mm-25mm channel steel |
Platform plate | Steel Sheet 3mm thickness |
Tire Type | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20 |
Traction Pin | JOST 2" or 3.5" traction pin |
Spare Wheel Bracket | 1 sets(Patent type) |
Tool Box | 1 sets(waterproof type) |
Landing Leg | JOST, FUWA or YAHUA brand 28T |
Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks |
Brake air chamber | Six double chamber |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector,side lamp etc. | |
One set 6-core standard Cable. | |
Painting | Sandblasting, rust prevention, two primer, two finish |

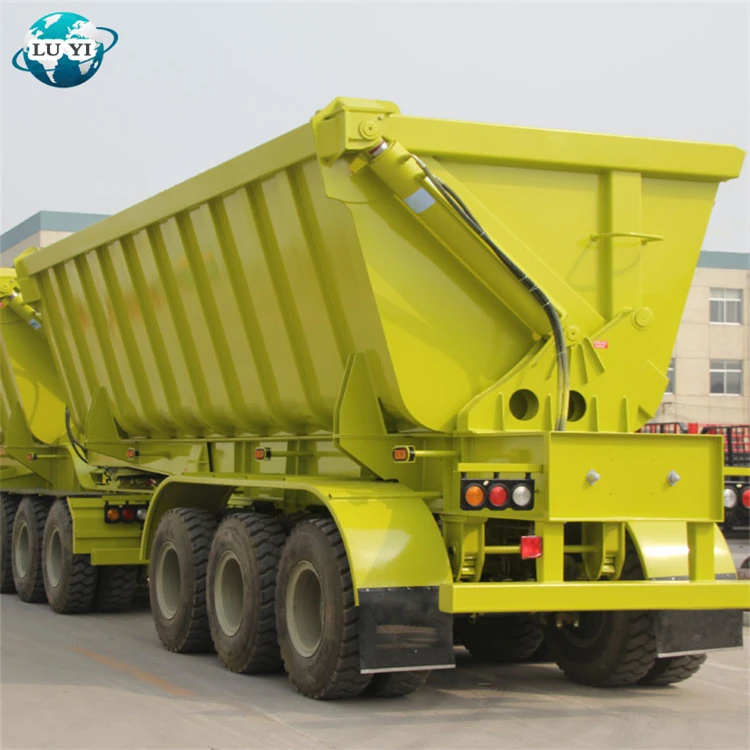

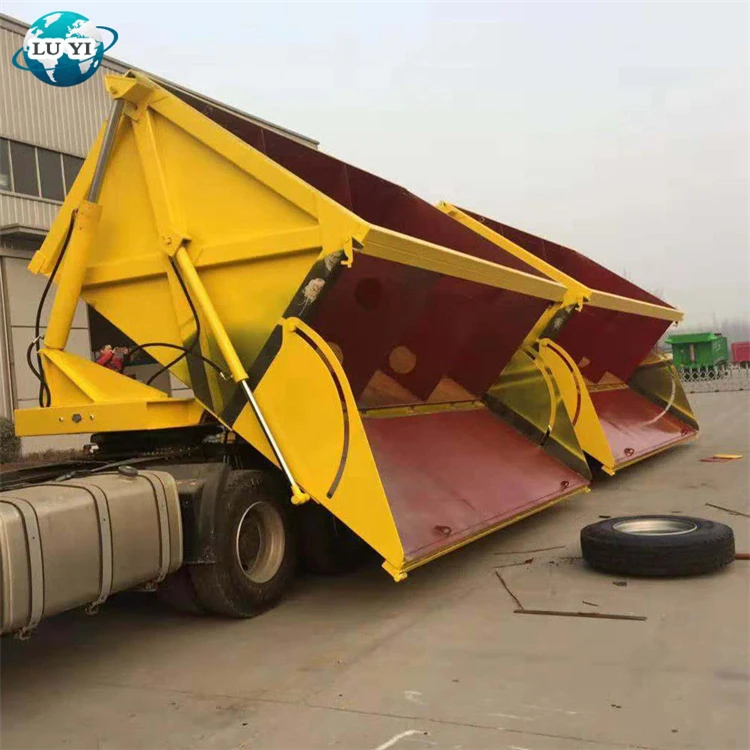

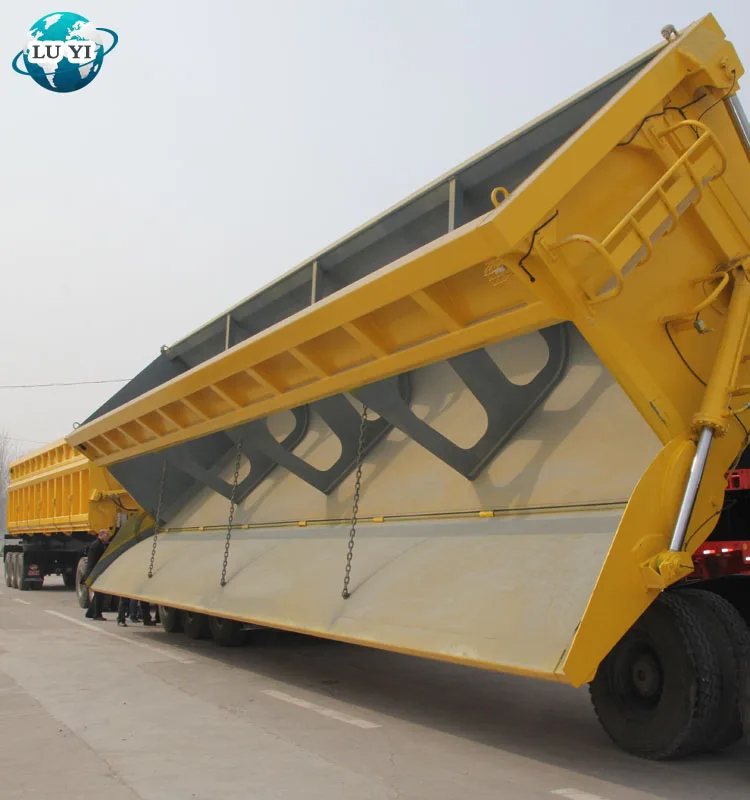

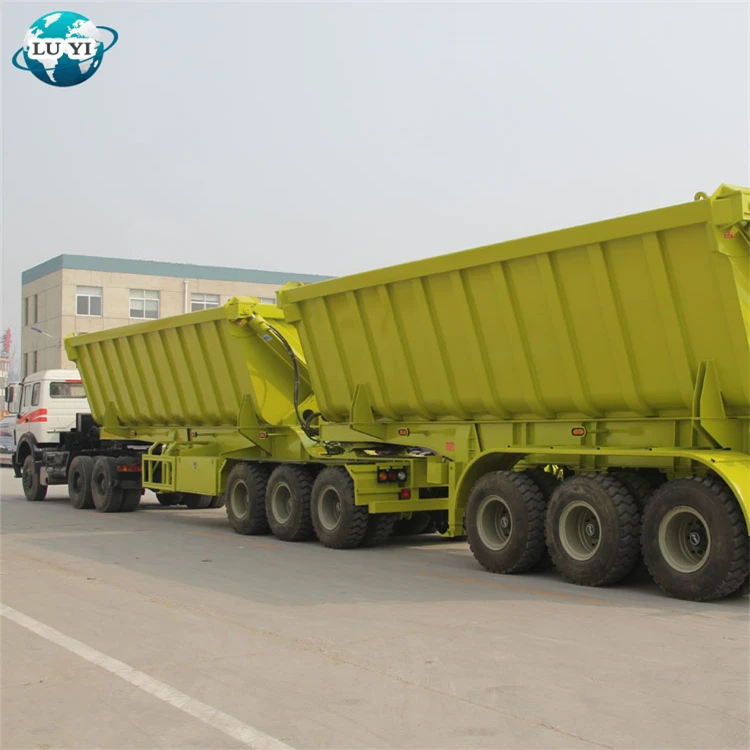

Product Display

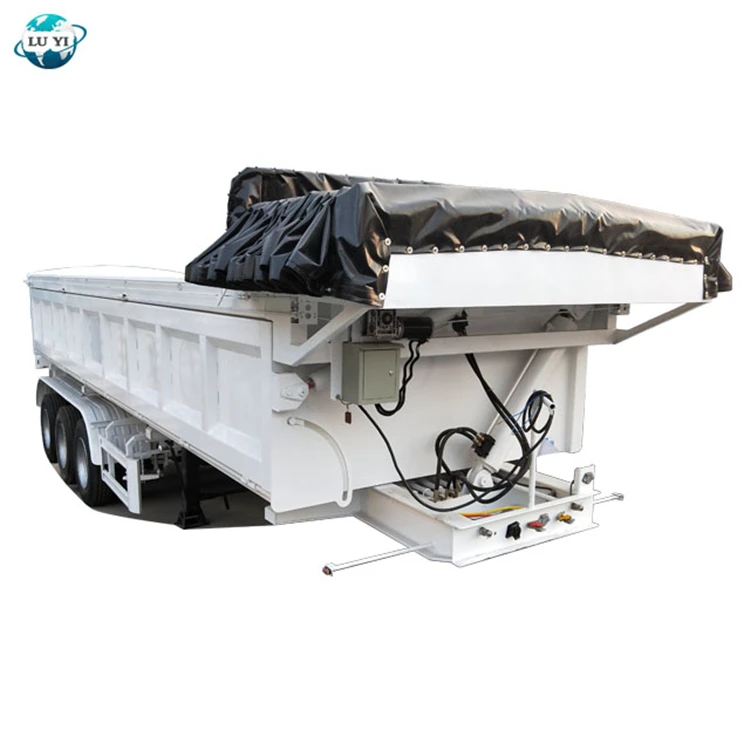

Other Types
LUYI tipper trailers are applicable in the construction, agriculture and recycling industries among many other areas. They come in different shapes and types. Therefore, you will have variety based on your specific needs and requirements
Company Profile
Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine, tank automatic welding turning machine, whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
Customer Photos
Including Germany, Australia, Africa, southeast Asia, the Middle East, South Africa, South America, etc., and has established 78 service points in 50 major market countries
Why Choose Us
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports
4.The good faith management is our philosophy, and welcome visits our company at any time
5.According to your order, we provide suitable trailer.
6.We also provide rational packing and shipping program , let shipment save money and security.
Just trust us, you will get a satisfactory answer.
