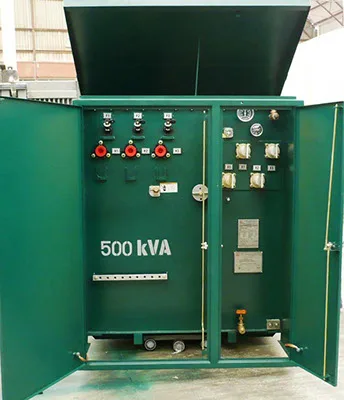

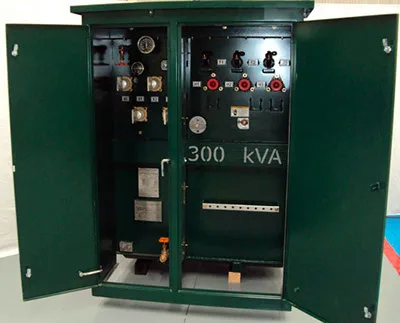

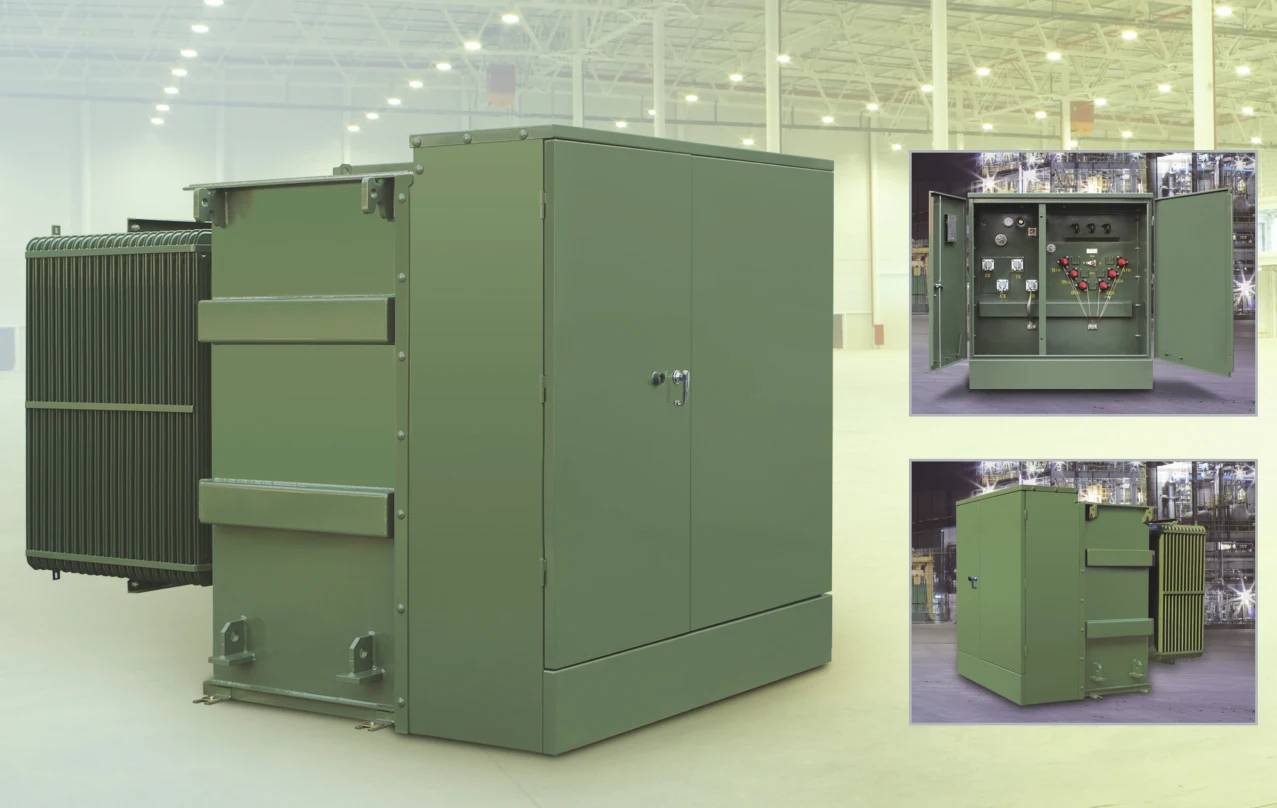

Padmount Transformers
DAELIM BELEFIC delivers the most reliable inventory of oil–filled padmount transformers for your utility, university, hospital, industrial or commercial energy needs. Featuring new, in-stock and build to order options, our padmount transformers provide dependable and cost-effective power output for almost every application.

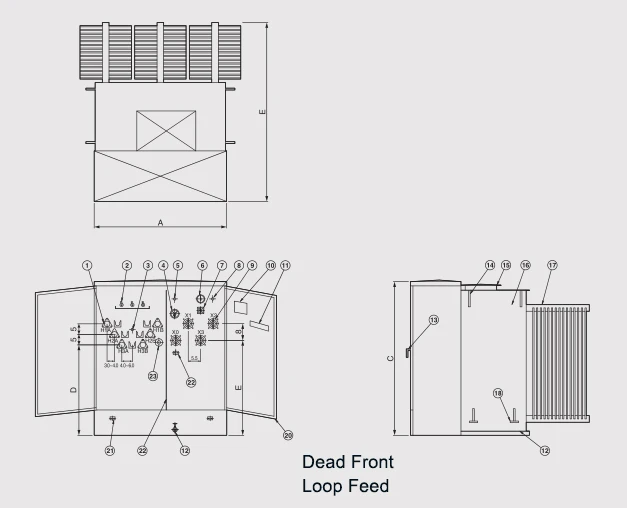

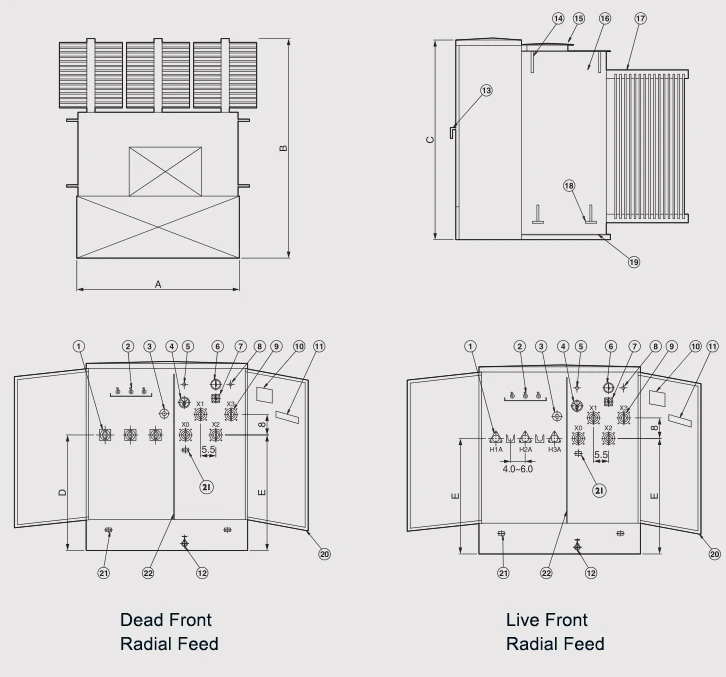

Our padmount transformers can be switched to either Live Front or Dead Front primary connections as needed. Clients can also choose between Radial Feed or Loop Feed primary configurations.
Our padmount transformers are oil-filled. Mineral oil is the standard for many clients and good for most applications. We can also use natural ester fluid, which is often derived from vegetable oils and biodegradable — making it an excellent option for those wanting to reduce their
environmental impact.
Products Details

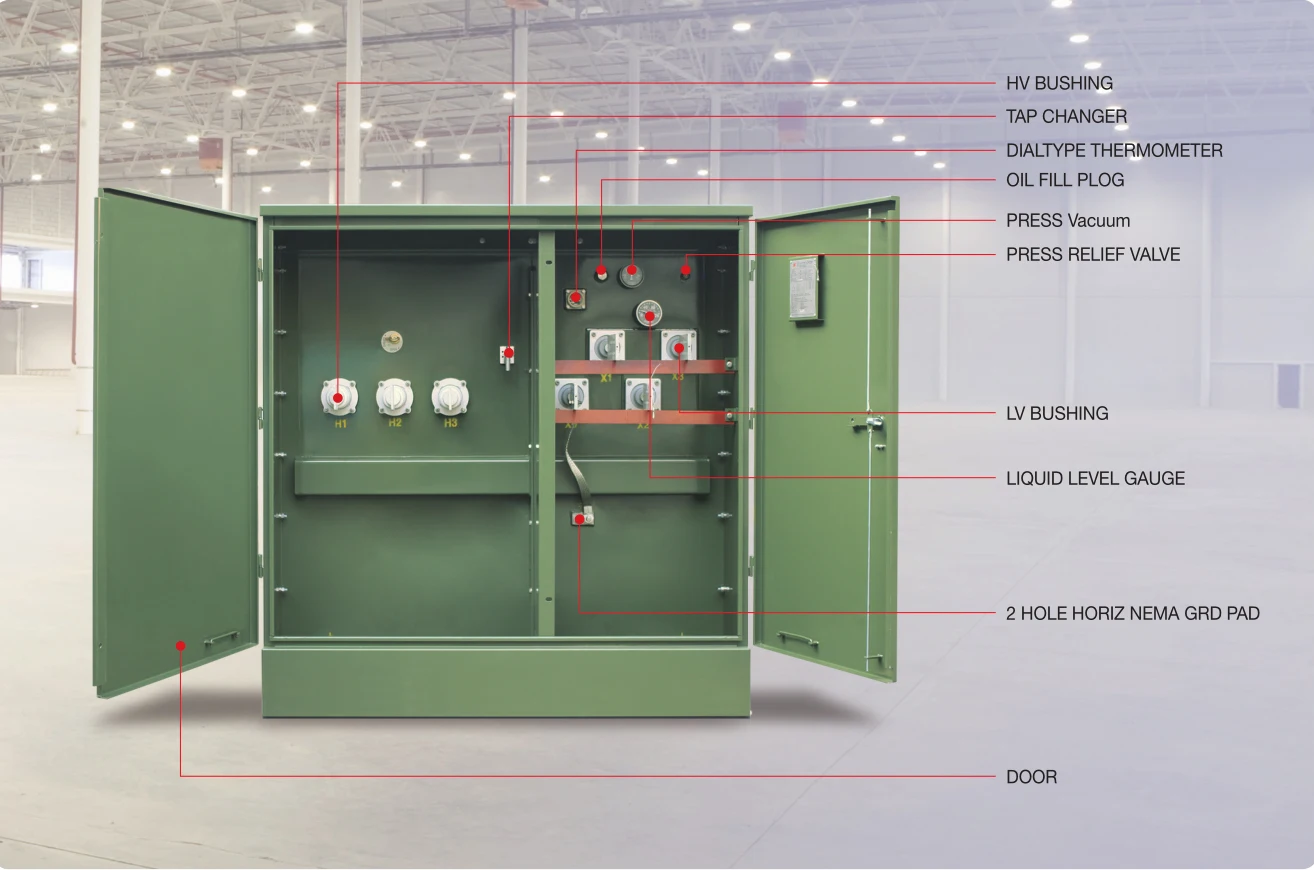

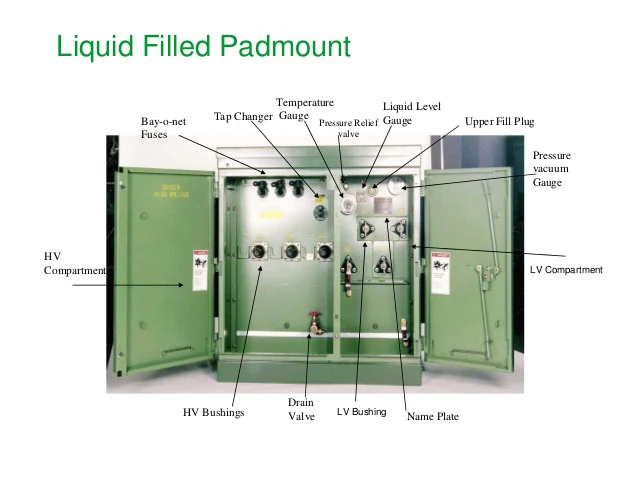

Padmount Transformer features

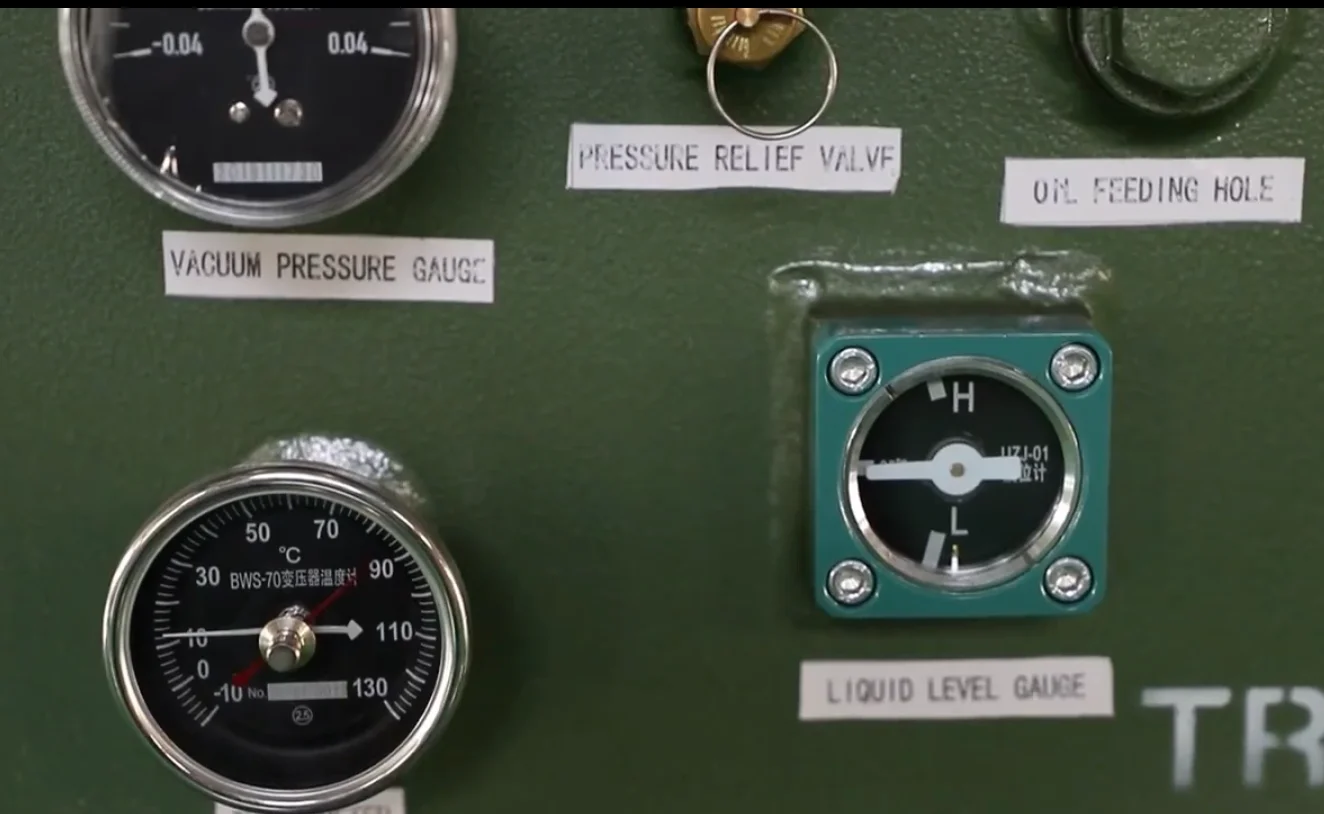

Temperature and liquid level gauges.
A pressure vacuum gauge with Schrader valve.
A pressure relief device and/or pressure relief valve.
A two-position on/off loadbreak switch.

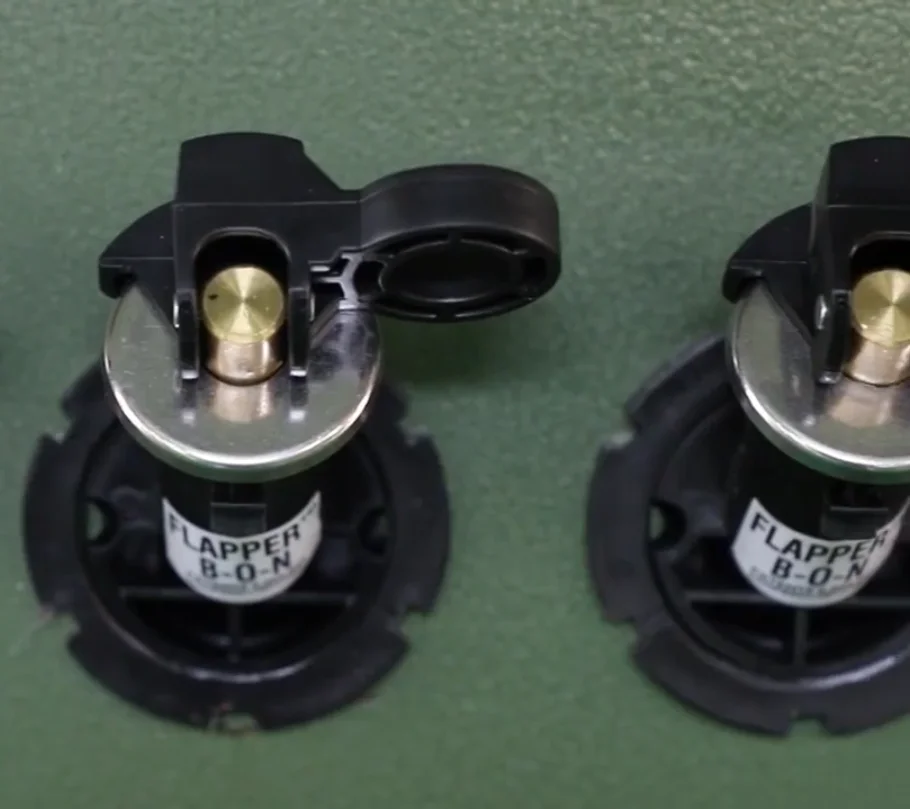

Bayonet current sensing fuses.
Distribution class arresters.
An external drain valve and sampler that allow easy access for DGA tests.Our new, in-stock units can be either aluminum or copper windings depending on what is available at the time.
A pressure vacuum gauge with Schrader valve.
A pressure relief device and/or pressure relief valve.
A two-position on/off loadbreak switch.
Bayonet current sensing fuses.
Distribution class arresters.
An external drain valve and sampler that allow easy access for DGA tests.Our new, in-stock units can be either aluminum or copper windings depending on what is available at the time.

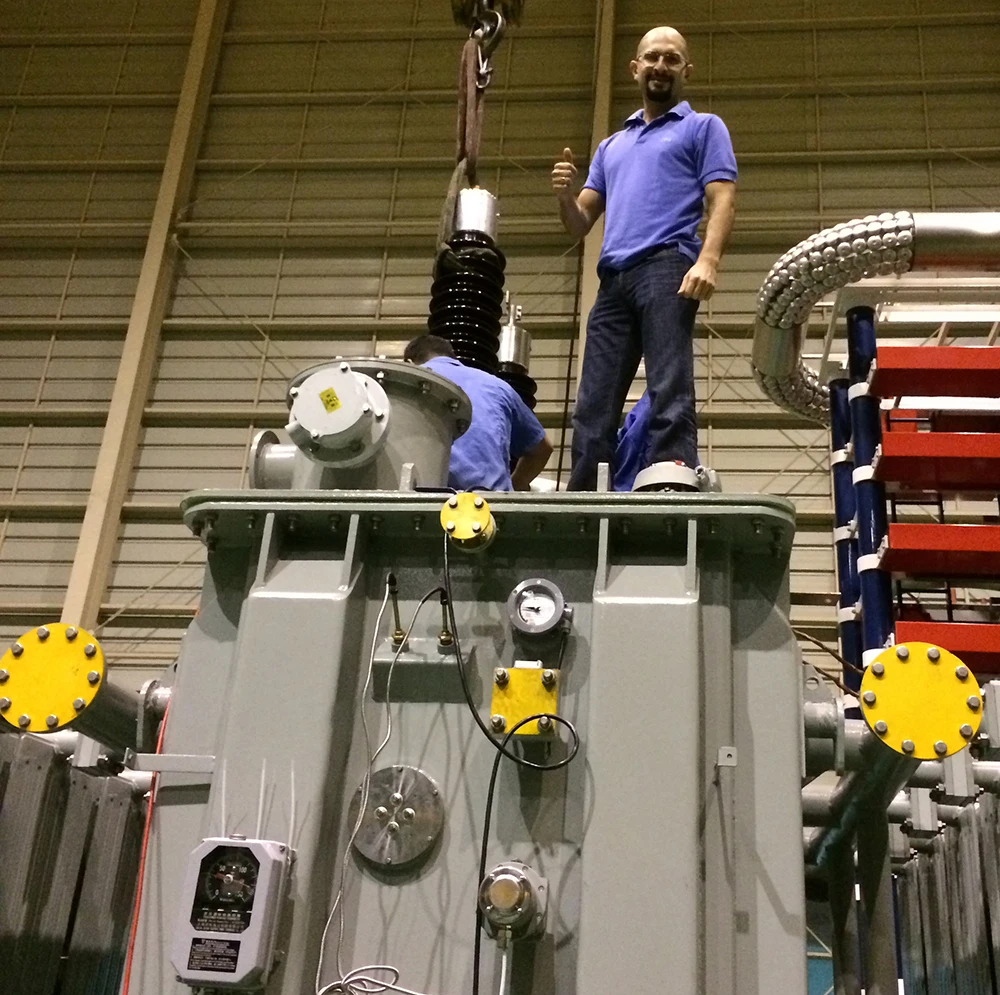

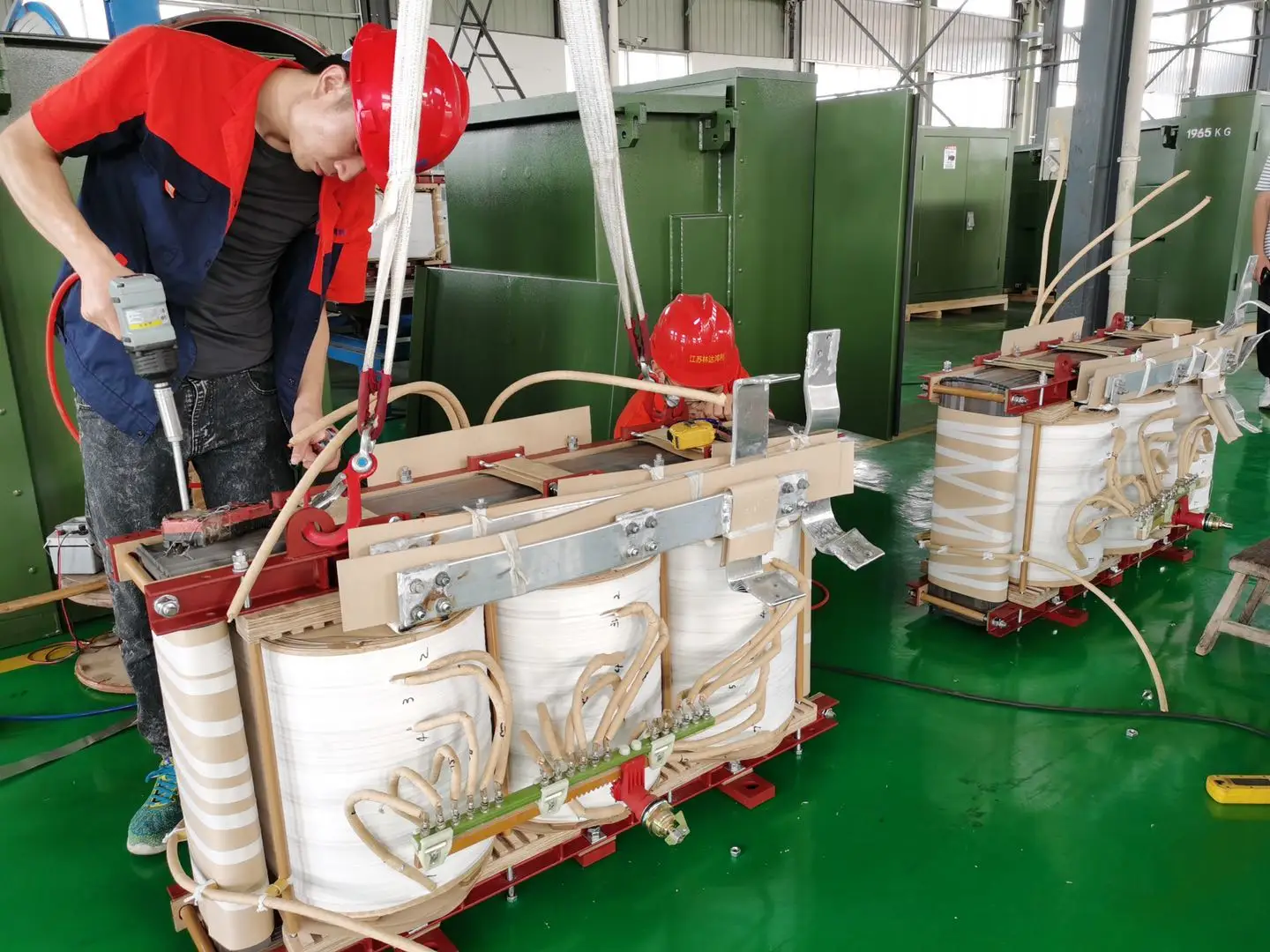

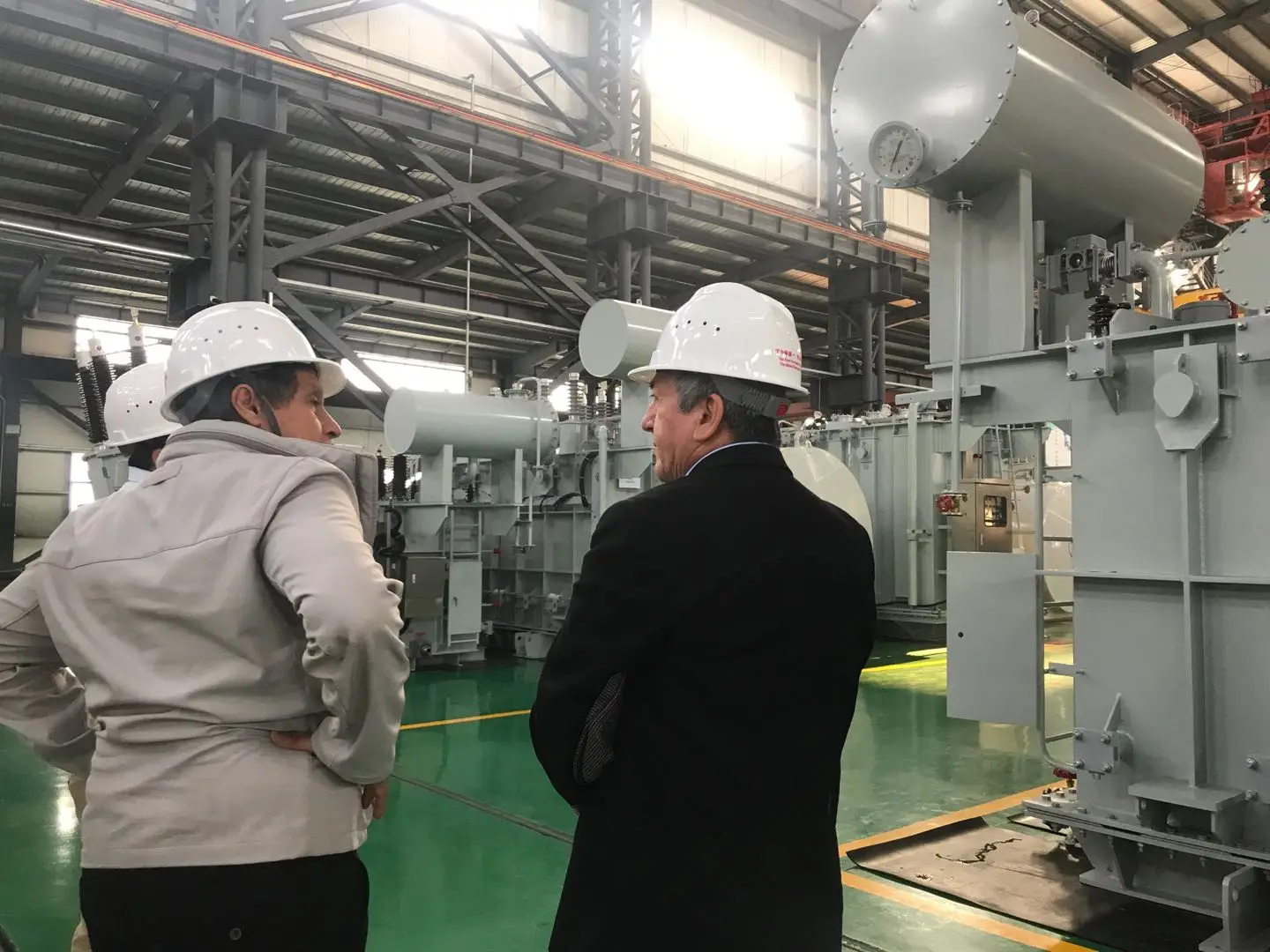

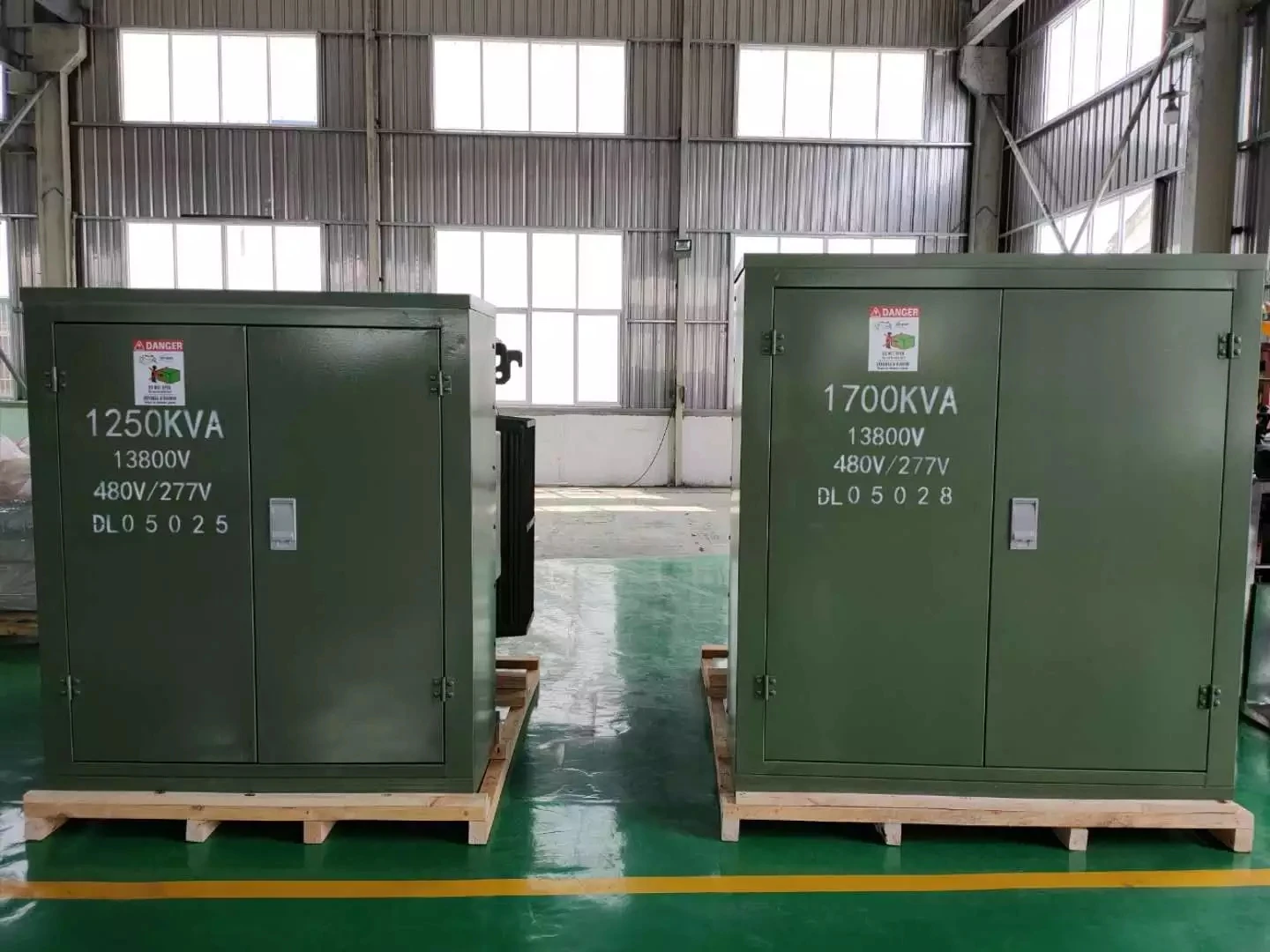

Our factory
All our transformers are made by hand in the CHINA
Padmount Transformer Sizes .
We stock medium-voltage transformers in several different sizes. Our in-stock padmount transformers’ kVA ratings range from 75 to 3,000 kVA, with 4160, 12470, 13200 and 13800 volt primary voltages available. If you’re not sure what transformer size you need, we can work with you to calculate the rating that will work best.
We stock medium-voltage transformers in several different sizes. Our in-stock padmount transformers’ kVA ratings range from 75 to 3,000 kVA, with 4160, 12470, 13200 and 13800 volt primary voltages available. If you’re not sure what transformer size you need, we can work with you to calculate the rating that will work best.
Rated Power (KVA) | Loss (W) | Dimension(mm) | Weight(kg) | |||||||||
No-load Loss (W) | On-load Loss (W) | W | D | H | ||||||||
75KVA | 180 | 1250 | 1390 | 910 | 1430 | 645 | ||||||
150KVA | 280 | 2200 | 1510 | 980 | 1530 | 989 | ||||||
300KVA | 480 | 3650 | 1660 | 1080 | 1680 | 1415 | ||||||
500KVA | 680 | 5100 | 1810 | 1160 | 1790 | 1905 | ||||||
750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | ||||||
1000KVA | 1150 | 10300 | 1651 | 1549 | 1854 | 3235 | ||||||
1500KVA | 1640 | 14500 | 2210 | 1470 | 2150 | 5835 | ||||||
2000KVA | 2160 | 20645 | 2380 | 1600 | 2220 | 6430 | ||||||
2500KVA | 2680 | 27786 | 3070 | 1650 | 2330 | 8865 | ||||||
3000KVA | 3300 | 30300 | 3260 | 1850 | 2460 | 11300 | ||||||
3750KVA | 4125 | 37875 | 4080 | 2060 | 2680 | 14400 | ||||||
Our transformers offer a cost-efficient solution for your energy needs. DAELIM’s inventory of new transformers exceeds all national energy efficiency standards — including CSA, ANSI and IEEE — plus the recommended ENERGY STAR and Department of Energy (DOE) ratings, so you can deliver more power at a lower cost.
DAELIM uses the highest quality materials and engineering expertise to provide the right unit for your energy needs. If you need a transformer with unique specifications or features, we can work with you to modify a stock unit or fabricate a new system to order.
Application&Project Cases
Padmount Transformer Applications
Modern facilities, from schools to factories, need to supply power to a growing variety of technology — including cloud-ready
sensors and smart equipment. At DAELIM, we have experience in developing and fabricating transformers to meet these facilities’needs.
sensors and smart equipment. At DAELIM, we have experience in developing and fabricating transformers to meet these facilities’needs.
We’ve worked with clients to provide ready-made, custom energy solutions for:
Manufacturing plants. Hospitals or medical centers. Universities and colleges. Correctional facilities, both public and private.
Shopping centers. Contractors. Electrical supply houses. Utilities. We know how much power these types of facilities will need,
and we’ll work with you so you can make the most informed purchase possible.
Shopping centers. Contractors. Electrical supply houses. Utilities. We know how much power these types of facilities will need,
and we’ll work with you so you can make the most informed purchase possible.
Padmount transformer sizes typically run from around 30 kVA through 5,000 kVA. Each unit will also typically include equipment like thermometers, liquid level gauges and pressure vacuum gauges. Some may also include options such as on/off loadbreak switches, bayonet fuses with or without partial range, current limiting fuses and surge or lightning arresters. Primary connections can be either live-front or dead-front, depending on customer preference.

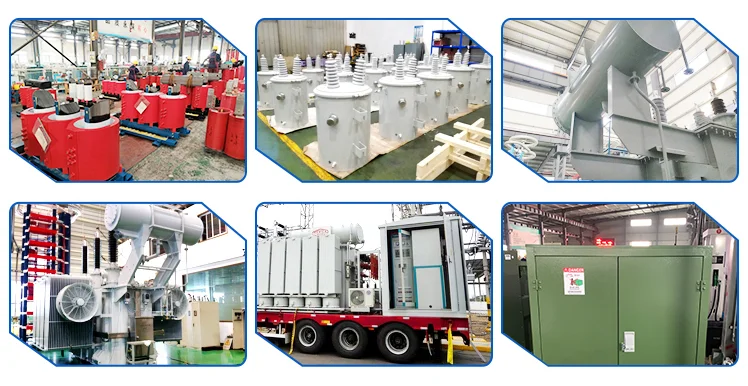

International Project Cases
DAELIM's Padmount transformers have been used in Canada, El Salvador, Panama, Honduras, Venezuela, Kazakhstan,etc.
Customer Photos
Through years of international engineering experience, our factory is capable of producing transformers meeting various international standards, such as IEC, IEEE, ANSI, CSA.
Design production capacity
BEI JING DAELIM have 20 years of experience in international power projects and have helped many customers around the world complete power projects.If you need a padmount transformer for your industrial or commercial energy needs, DAELIM has you covered. Each of our key team members has more than 10 years of experience in the industry and are familiar with lots of international transformer standards, such as IEC, IEEE / ANSI,CSA, etc.and they’ll bring that expertise when working with you to fill your order.
DAELIM is also one of the best options for customers who need a transformer fast. DAELIM transformer have at least a two year warranty,so you can buy with confidence.
