Новый H3C SMB-S5024PV3-EI-PWR/hpwr 24 порт полный гигабитный Poe питания слой 2 конвергенции

Описание и отзывы

Характеристики

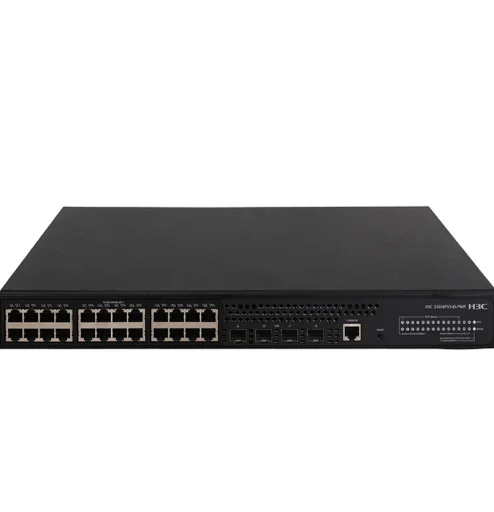

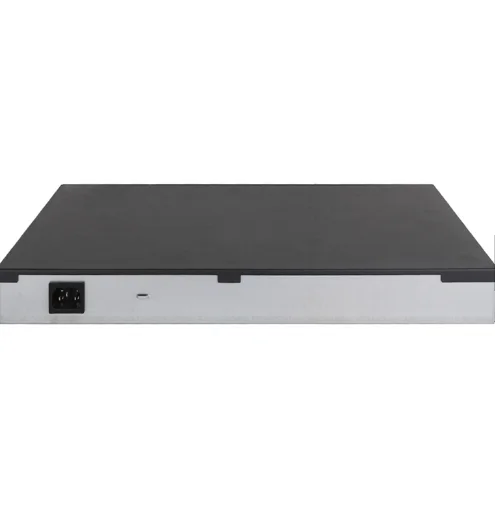

 The new H3C S5024PV3-EI-PWR/

HPWR24 port full Gigabit Poe power supply layer 2 convergence switch



H3C S5000V3-EI is the latest development of Gigabit speed managed Ethernet switch that is especially for SMB (Small Business) market. Besides high performance access, it also offers abundant security access policy control and enhanced network manageability and maintenance. This makes it ideal for network construction on industries such as government, small to midsize enterprise, school and hotel.

Multi-type port access

• Ethernet fiber port and copper port capability offers customers flexibility
• Offers 16-port, 24-port, 48-port access and all ports support line-rate forward
• Easy to install and use

IRF2 (Intelligent Resilient Framework 2)

H3C S5000V3 series switch supports IRF2 technology that connects multiple physical devices (up to 9) to a logical device, that is to say, users can manage and use these devices as a single device. IRF can bring the following benefits to the user:

• Simplify the management: Any one of the ports can be connected to any of the devices to login to a unified logical device, and to manage the whole system and all the members of the system through the configuration of a single device, without the physical connection to each member of the device.
• High scalability: With IRF2, plug-n-play device aggregation can be achieved by adding one or more switches into the IRF2 stack and enabling IRF2 stacking on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce network expansion cost.
• High reliability: IRF2 patented 1:N standby technology allows each slave device in the IRF2 stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliability, avoids unplanned business downtime and serves to improve overall performance. When the master device fails, traffic remains uninterrupted.
• Load balancing: IRF2 supports cross-device link aggregation, upstream and downstream can be connected to more than one physical link, which creates another layer of network redundancy and boosts the network resource utilization.
• Availability: H3C Implements IRF2 through standard Gigabit Ethernet (1GE) ports or 10 Gigabit Ethernet (10GE) ports which allocates bandwidth for business and application access and reasonably splits local traffic and upstream traffic.



Features	S5024PV3-EI-PWR	S5024PV3-EI-HPWR	S5048PV3-EI-PWR	S5024FV3-EI
Switching capacity	192Gbps		240Gbps	240Gbps
Packet forwarding rate	42Mpps		78Mpps	78Mpps
Management port	1 console port
10/100/1000 Base-T port	24		48	2
SFP port	4		4	26
Copper port features	Half-duplex, full-duplex, auto-negotiation MDI/MDI-X
Ethernet functions	LLDP Static MAC configuration MAC address learning limit (up to 16K) Port mirror and flow mirror Link aggregation (up to 8 ports per group) Port isolation STP/RSTP/MSTP IEEE 802.3ad(Dynamic link aggregation), static port aggregation
IP routing	Static routing, RIP
DHCP	DHCP Relay DHCP Client DHCP Snooping DHCP Snooping Option82
Broadcast	IGMP V1/V2/V3 Snooping
QoS	Diff-Serv QoS WRR/HQ-WRR 802.1p, DSCP priority mapping Directional port speed limit
ACL	ACL on layer 2, layer 3 and layer 4 ACL on IPv4, IPv6 VLAN ACL
