Переработанные/перешлифованные синие барабанные обрезки HDPE
US $190.00-$200.00
Бесплатный образец пластиковая Смола HDPE PE100 натуральные переработанные полиэтиленовые гранулы высокой
- Категории: HDPE >>>
- Поставщик: Inner,Mongolia,Rational,Industry,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description

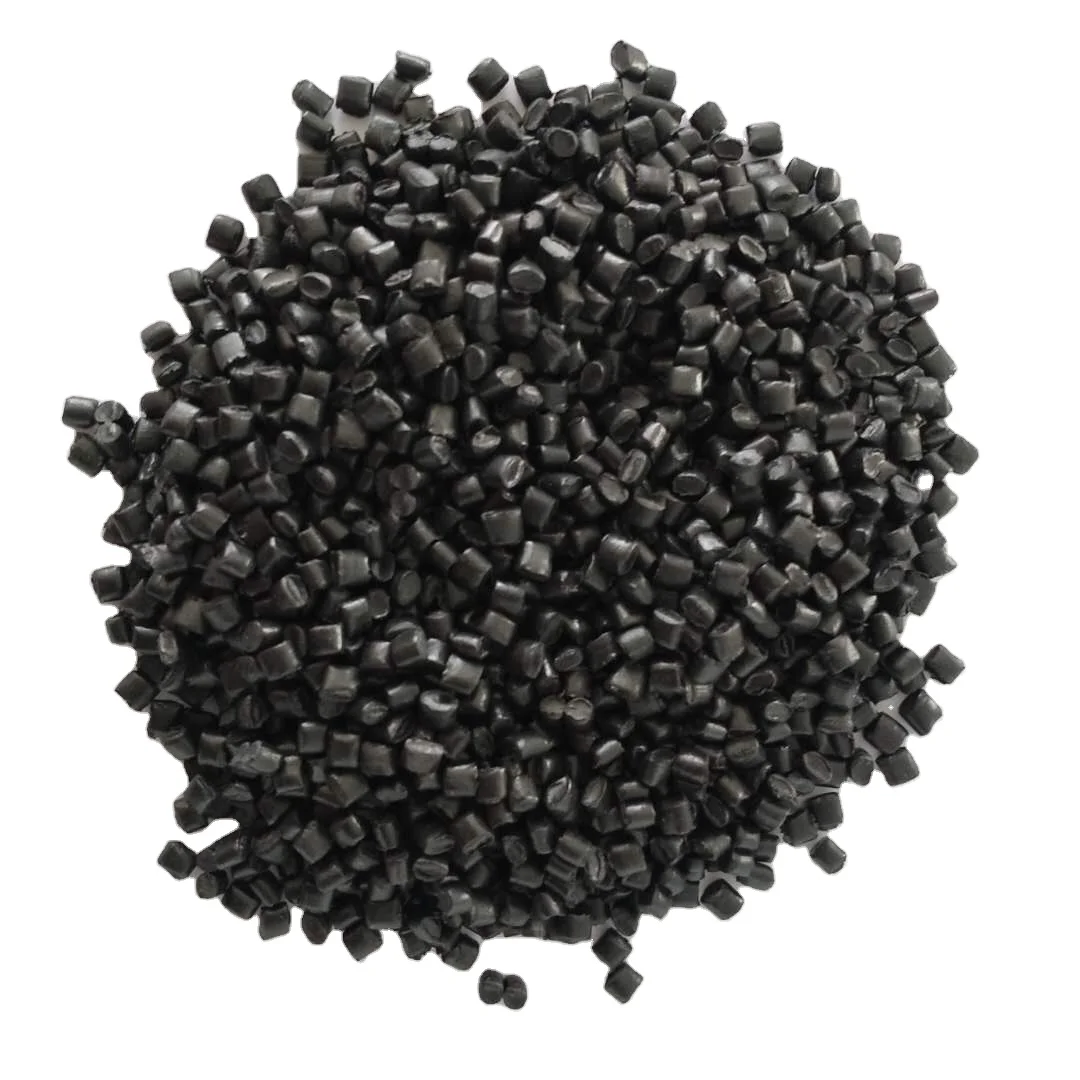

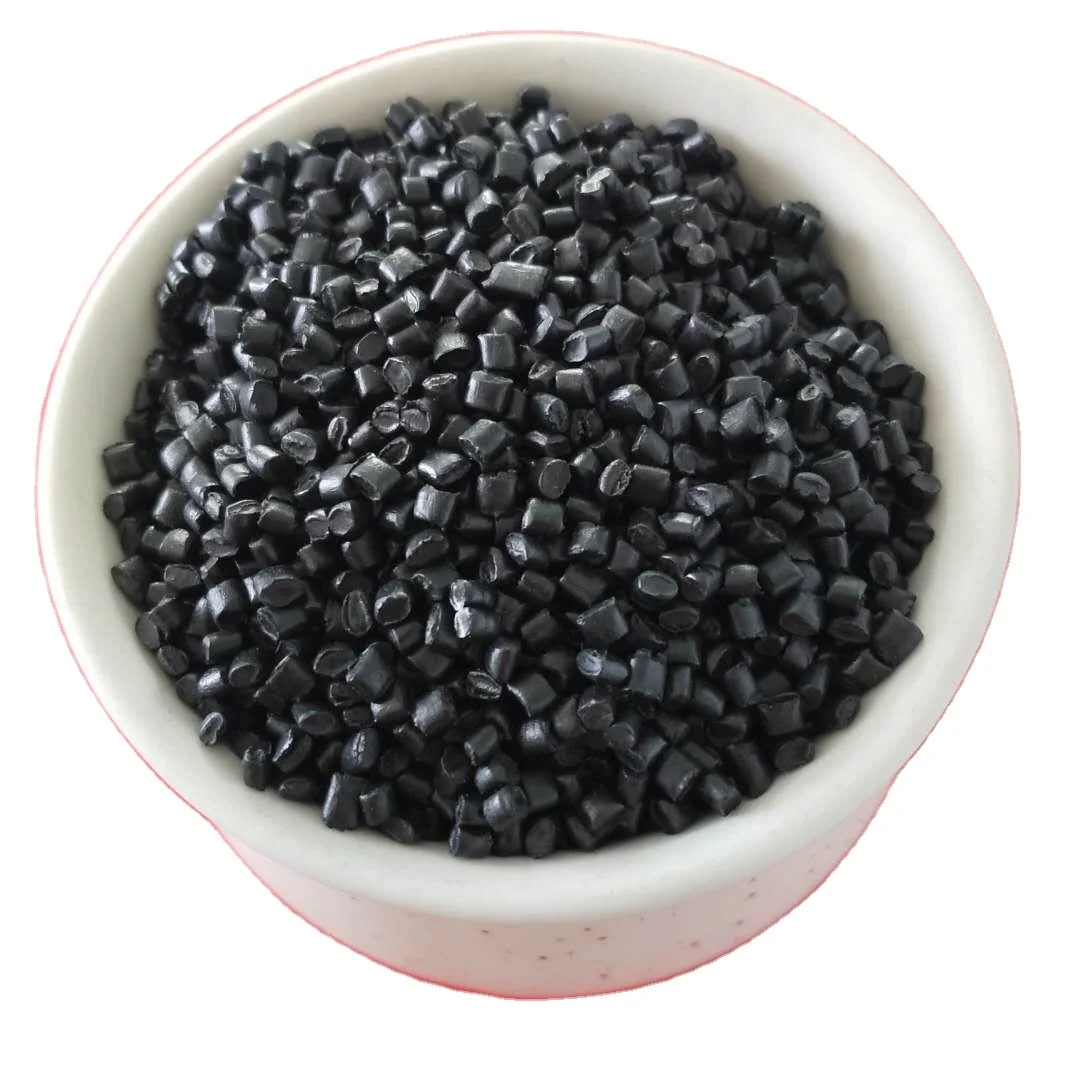

Free Sample Plastic Resin HDPE PE100 Virgin Recycled High Density Polyethylene HDPE Granules
Performance Index of HDPE Special Material | |||
Test Item | Test Result | technical index | Test standard |
Density, g/cm3 | 0.96 | 0.940~0.960 | GB/T4472-2011 |
Melt flow rate(190°C/2.16KG),g/10min | 0.46 | ≥0.15 | |
Carbon black content, wt.% | 2.22 | ≥2.0 | GB/T13021-1991 |
Moisture content,wt.% | 0.09 | ≤0.1 | GB/T23257-2017 |
Oxidation induction time(OIT),min (220℃,20℃/min) | 32.3 | ≥30 | GB/T23257-2017 |
Heat aging resistance/The rate of change of MFR after aging,%(100℃±2℃,4800h) | 34 | ≤35 | GB/T3682-2000 |
Performance Index of Pressed Sheet made from HDPE Special Material | |||
Tensile yield strength, MPa (23℃±2℃, 50mm/min) | 15.6 | ≥15 | GB/T 1040.2-2016 |
Tensile strength (23℃±2℃, 50mm/min) | 22.1 | ≥22 | GB/T 1040.2-2016 |
Fracture nominal strain,%(23℃±2℃, 50mm/min) | 691 | ≥600 | IGB/T 1040.2-2016 |
Vicat softening temperature ------------VST/A50(9.8N) | 111.9 | ≥110 | GB/T 1633-2000 |
Brittleness temperature °C | <-65 | ≤-65 | GB/T 5470-2008 |
Electric strength MV/m | 57.1 | ≥25 | GB/T 1408.1-2016 |
Volume resistivity Ω.m | 5.23×1015 | ≥1×1013 | GB/T 1410-2006 |
Environmental stress cracking resistance(ESCR),h (F50, 50°C) | 1008, no crack | ≥1000 | GB/T 1842-2008 |
Indentation hardness, mm(1.8mm in diameter, weight 2.5kg, pressure 10mpa, 23℃±2C, 24h) | 0.034 | ≤0.2 | GB/T23257-2017 |
Indentation hardness, mm(1.8mm in diameter, weight 2.5kg, pressure 10mpa, 60℃±2C, 24h) | 0.169 | ≤0.3 | GB/T23257-2017 |
Chemical corrosion resistance /10%HCL/ tensile strength retention rate, %(23℃±2℃, 7d) | 90.5 | ≥85 | GB/T23257-2017 |
Chemical corrosion resistance /10%HCL/ Breaking elongation retention rate, %(23℃±2℃, 7d) | 95.2 | GB/T23257-2017 | |
Chemical corrosion resistance /10%NaOH/ tensile strength retention rate, %(23℃±2℃, 7d) | 90.9 | ≥85 | GB/T23257-2017 |
Chemical corrosion resistance /10%NaOH/ elongation at break retention rate, %(23℃±2℃, 7d) | 95.2 | ≥85 | GB/T23257-2017 |
Chemical corrosion resistance /10%NaCL// Elongation at break retention rate, %(23℃±2℃, 7d) | 92.8 | ≥85 | GB/T23257-2017 |
Chemical corrosion resistance /10%NaCL// Elongation at break retention rate, %(23℃±2℃, 7d) | 96.7 | ≥85 | GB/T23257-2017 |
UV aging/tensile strength retention rate, %, (0.89 W/m2/m@340 nm, 60℃3℃, 8h drying /50±3℃, 4h condensation cycle,336h) | 84.6 | ≥80 | GB/T23257-2017 |
UV resistant Aging/breaking nominal strain retention rate, %(0.89 W/m2/m@340 nm, 60℃ soil 3℃, 8h drying /50 ±3℃,4h condensation cycle,336h) | 95.6 | GB/T23257-2017 | |
Applications:
Extruded product: Pipe,tube mainly used in gas transportation, public water and chemicals transport, such as building materials, gas pipe, hot water drain pipe etc: sheet material is mainly used in the seat, suitcase, handling containers.etc.
More Products
FAQ
Can you provide samples?
We can provide you with free samples, but you must have to bear the freight.
How about your price?
Although our products are brand-name products, our prices are very favorable and competitive. Customers from all over the world are willing to purchase our products because of our competitive price.
How long is your delivery time?
Generally it is 10 days if the goods are in stock. Or it is 30 days if the goods are not in stock, it is according to quantity.
What is your terms of payment?
We accept LC and TT both. If the total price is below $3000, you must pay in full. If it's over $3000, you must pay 30% in advance, and the balance before shipment.
Похожие товары
Новинки - Розница
