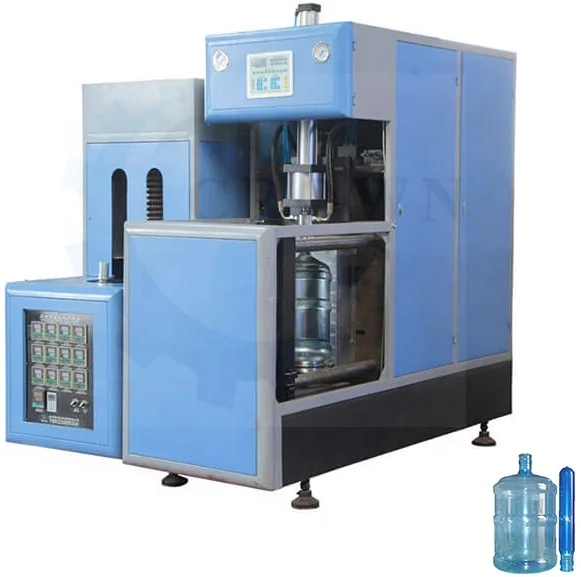

Semi-automatice bottle blowing machine
Product Description
GY-8Y semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
The Blowing Machine Main Features:
1. PLC control stable production. Touch screem for operation the machine, easy for operation.
2. One worker is enough, easy for operation, without special trainning.
3. Low cost, the least investment, energy saving.
2. One worker is enough, easy for operation, without special trainning.
3. Low cost, the least investment, energy saving.
4. Thers is almost no maintain cost.
Model | GD-880 | GD-880-II | GD-3L |
Bottle material | PET | PET | PET |
Bottle volume(L) | 0.1-2 | 0.1-1.5 | 2-5 |
Capacity(pca/h) | 800-1000 | 1400-1800 | 300-650 |
Height(mm) | ≤300 | ≤280 | ≤350 |
Perform inner diameter | ≥∮12 | ≥∮12 | ≥∮16 |
Max.Mold diameter(mm) | 350*380 | 350*380 | 400*460 |
Max.Mold thickness(mm) | 210 | 210 | 260 |
Clamping force(kn) | 45 | 45 | 65 |
Mold opening storke(mm) | 160 | 160 | 220 |
Main machine(mm) | 1600*620*1610 | 1600*600*1610 | 1750*670*1860 |
Main machine weight(kg) | 500 | 500 | 600 |
Heater (mm) | 1870*630*1450 | 1870*630*1450 | 1870*630*1450 |
Heater weight(kg) | 250 | 250 | 250 |
Power(kw) | 17.5 | 24.8 | 17.5 |
Detailed Images
Related Products
Company Introduction
After Sales Service
Packing&Shipping
FAQ
