Гидравлическая дробилка для экскаватора с поворотом на 360
- Категории: >>>
- Поставщик: Yantai,Jiwei,Construction,Machinery,Equipment,Co.,LTD
Поделиться:
Описание и отзывы
Характеристики
Product Description

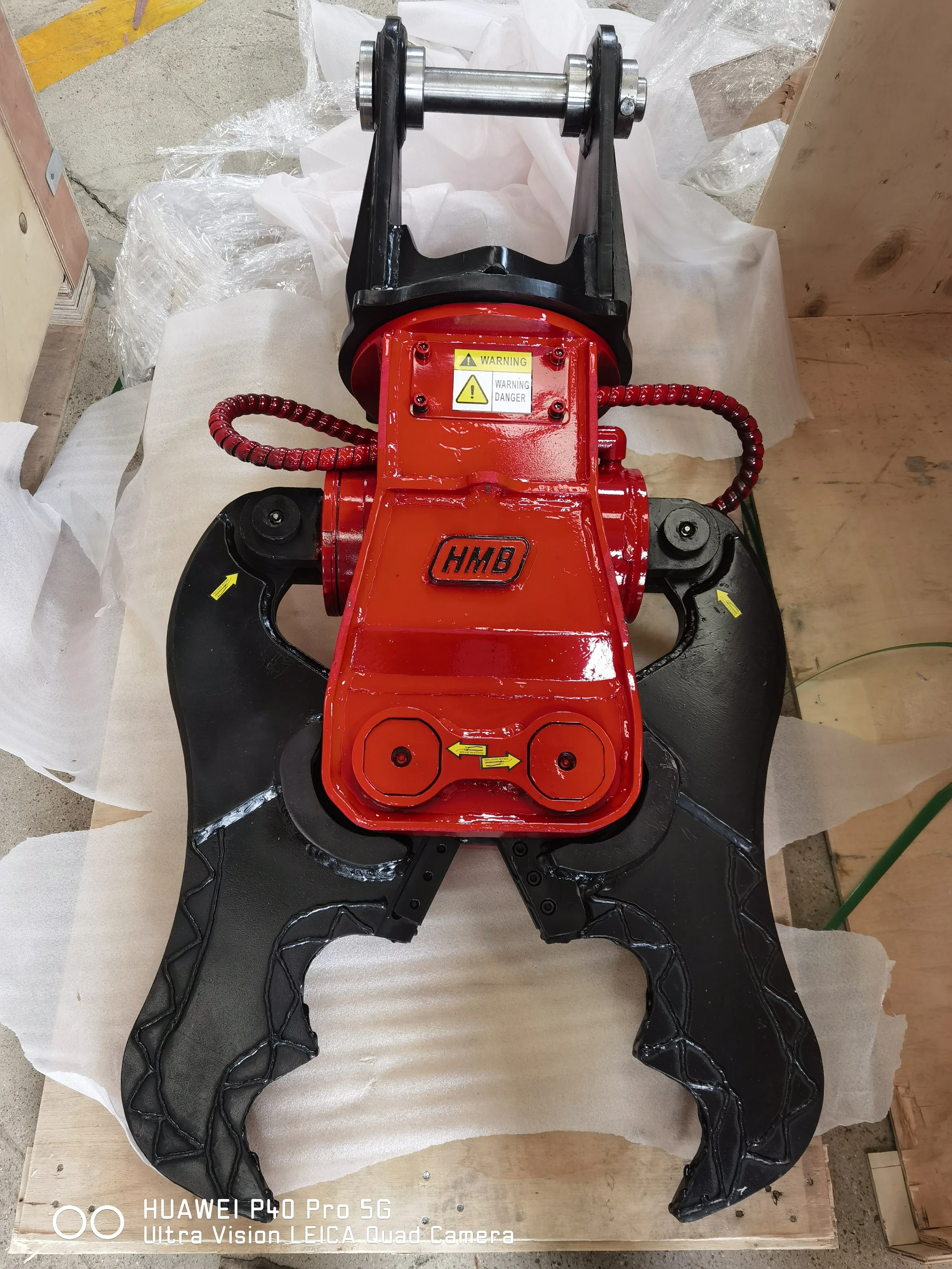

Scrap Steel
1. The adoption of special slewing support provides stable performance.
2. The shear uses imported HARDOX400 steel materail, with double-layer wear-resisting protection, high stregth and long service life.
3.The strcuture is optimized by design and has large shear

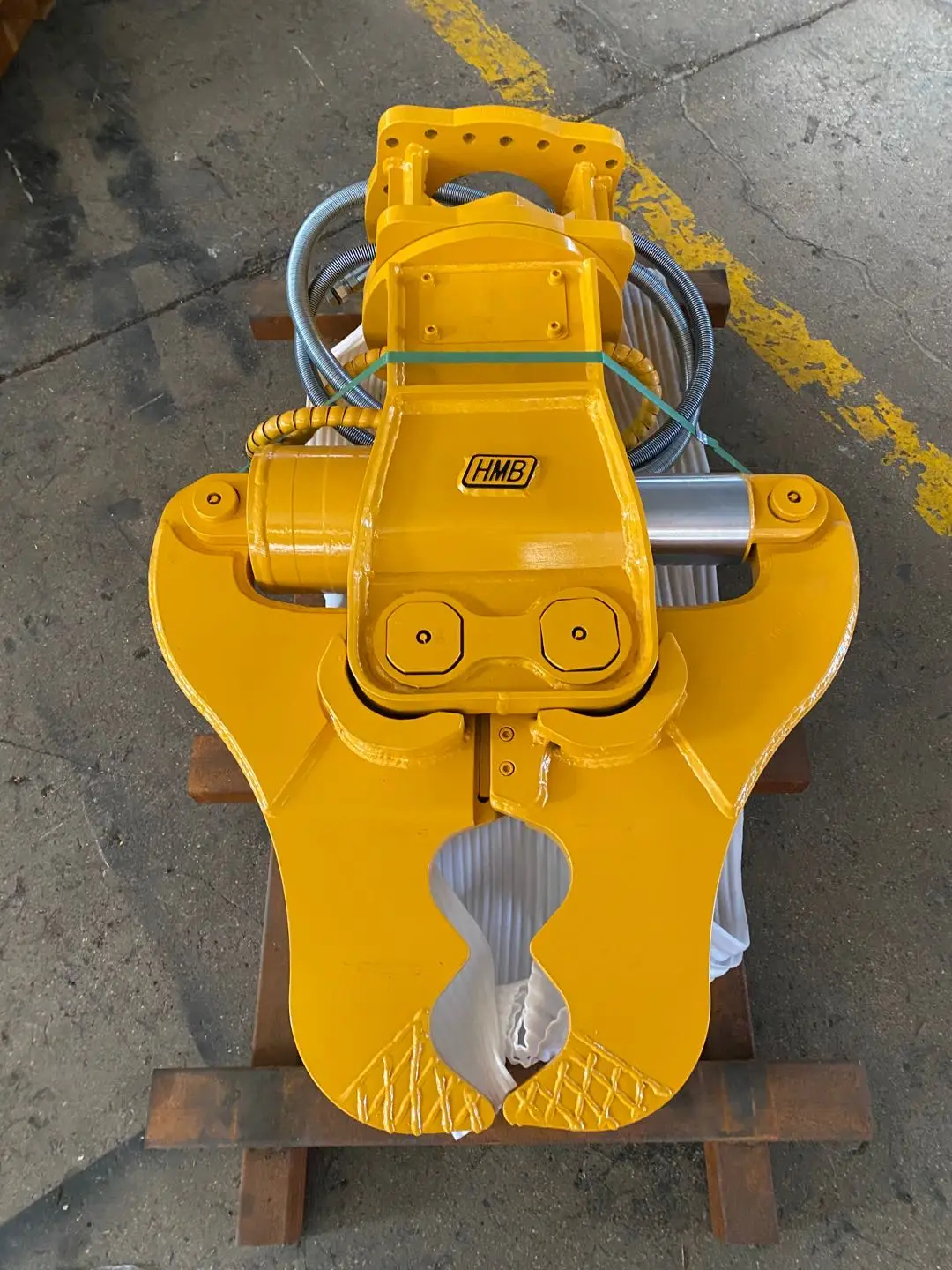

Concerete
1.The adoption of special revolving support provides stable performance.
2.The shear uses imported HARDOX400 steel material, with double-layer wear-resisting protection, high strngth and long service life.
3.It is suitable for the concrete construction that will be crushed
Specification
Scrap Steel | ||||||||||||
Model | Unit | HMB04G | HMB06G | HMB08G | HMB10G | HMB14G | ||||||
Dead-weight | kg | 620 | 1413 | 2200 | 2977 | 4052 | ||||||
Maximum Opening | mm | 335.5 | 540 | 500 | 660 | 801 | ||||||
Height | mm | 1524 | 2050 | 2380 | 2600 | 2700 | ||||||
Width | mm | 864 | 1175 | 1370 | 1600 | 1700 | ||||||
The Active Length Of Blade | mm | 286 | 348 | 486 | 578 | 736 | ||||||
Rotation Mode | 360° | 360° | 360° | |||||||||
Pressure | Bar | 235 | 300 | 320 | 320 | 320 | ||||||
Root Crushing Force | Ton | 81*2 | 138*2 | 171*2 | 330*2 | 387*2 | ||||||
Middle Crushing Force | Ton | 50*2 | 80*2 | 102*2 | 189*2 | 218*2 | ||||||
Fore-edn Crushing Force | Ton | 32*2 | 53*2 | 75*2 | 127*2 | 147*2 | ||||||
Suitable Excavator | Ton | 5-8 | 15-18 | 20-25 | 28-35 | 38-50 | ||||||
Concrete | |||||||||||
Model | Unit | HMB04H | HMB06H | HMB08H | HMB10H | HMB14H | |||||
Dead-weight | kg | 620 | 1345 | 2164 | 3060 | 4052 | |||||
Maximum Opening | mm | 540 | 650 | 950 | 1100 | 1200 | |||||
Height | mm | 1419 | 1888 | 2374 | 2480 | 2700 | |||||
Width | mm | 884 | 1175 | 1360 | 1540 | 1700 | |||||
The Active Length Of Blade | mm | ||||||||||
Rotation Mode | 360° | ||||||||||
Pressure | bar | 235 | 300 | 320 | 320 | 320 | |||||
Root Crushing Force | Ton | 81*2 | 120*2 | 168*2 | 288*2 | 375*2 | |||||
Middle Crushing Force | Ton | 44.5*2 | 66*2 | 78*2 | 125*2 | 174*2 | |||||
Fore-edn Crushing Force | Ton | 25*2 | 40*2 | 56*2 | 90*2 | 118*2 | |||||
TonSuitable Excavator | Ton | 5-8 | 15-18 | 20-25 | 28-35 | 38-50 | |||||
Why Choose HMB
Customer comments
Other products for Your Reference
If you want to know about other products, you can click on the picture above.
Company Introduction
Located in Yantai, Shandong province, established in 2009, Yantai Jiwei Construction Machinery Equipment Co.,Ltd registered HMB Brand in 2011. We started to develop oversea market in 2013.With 12 years experience, specialized in manufacturing Hydraulic Breakers, Quick Couplers, Excavator Palte Compactors, Earth Augers and Spare Parts. Our own brand "HMB" hydraulic breakers have full series and are compatible to all brands' excavators.
Exhibition Show
FQA
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
