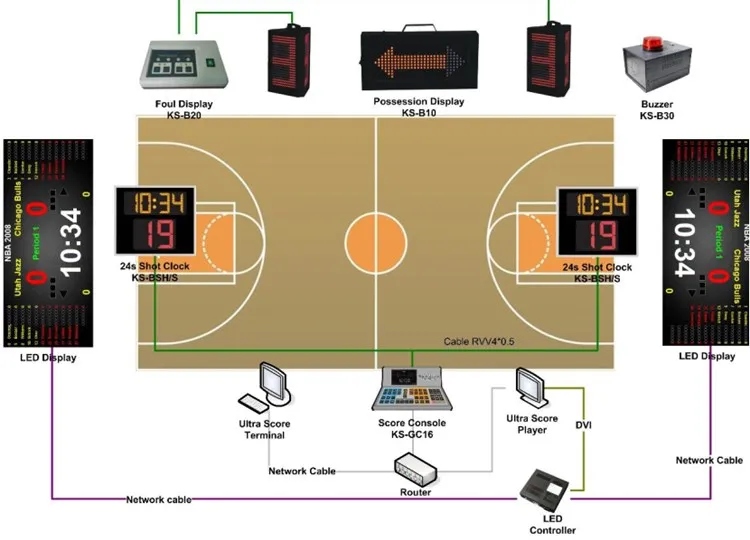

led digital display stadium basketball board led display indoor p3 Timing and Scoring System
1.Unique cabinet design,equipped with the Soft top to protect Player collision
2.back sides of the cabinet ,with the support to adjust the angle
3.cabinet size is 960*960mm ,Magnesium alloy material ,easy to install and move
4.Any size could be customized ,Dedicated to stadium
Specifictaions
indoor P3 LED Display module size is 192*192mm | |
Model number | P3 |
Pixel pitch | 3mm |
Module resolution | 64*64 dots |
Module size | 192mm*192mm |
led lamp | kinglight |
IC | MBI5124 |
Pixel density | 111111dots/sqm |
LED Encapsulation | SMD2121 |
Module weight | 0.24kg |
Average consumption | 400w/sqm |
Max power consumption | 800w/sqm |
Best view distance | 4m~200m |
Best view angle | 140 |
Brightness | ≥800cd/sqm |
Scanning | 1/16scan |
Refresh rate | 1920HZ |
Grey scale | 16384 |
Working voltage | 220VAC/50Hz±10% |
Life span | 100000hours |
Working temperature | -20℃ to +60℃ |
Certification | CCC/CE/RoHS |

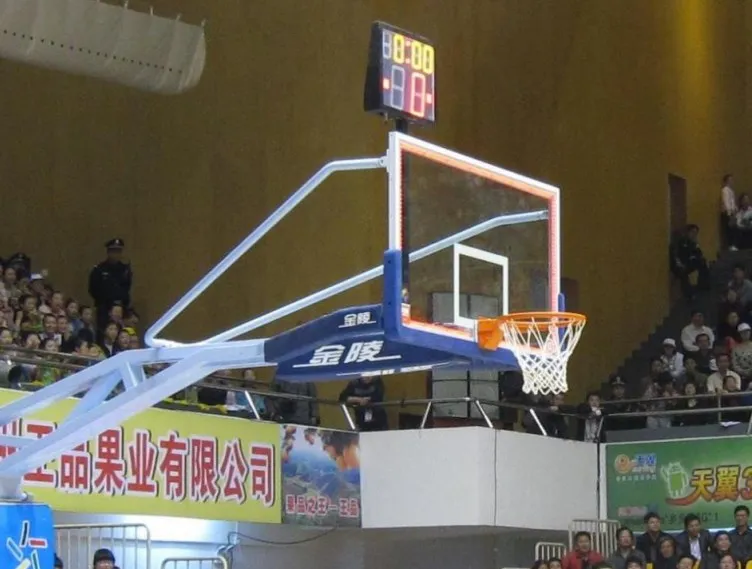

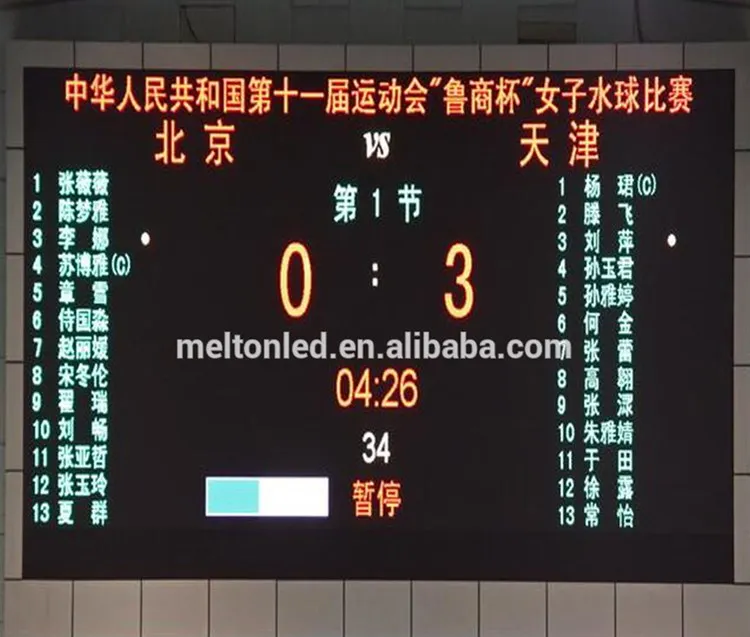

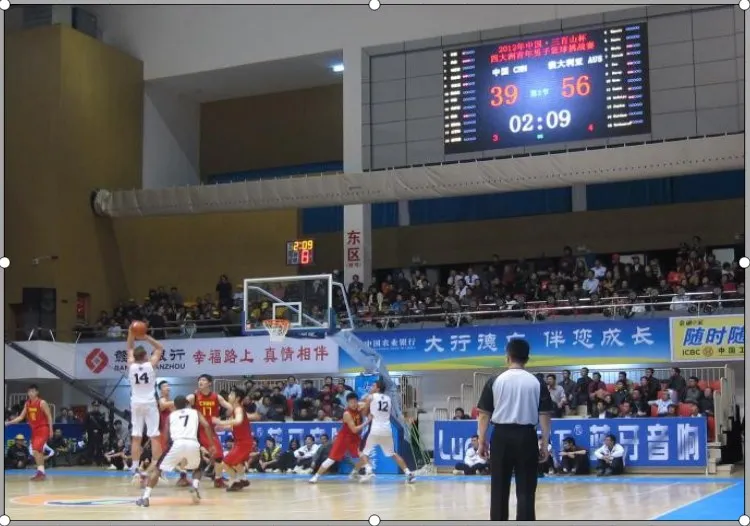

Appications :

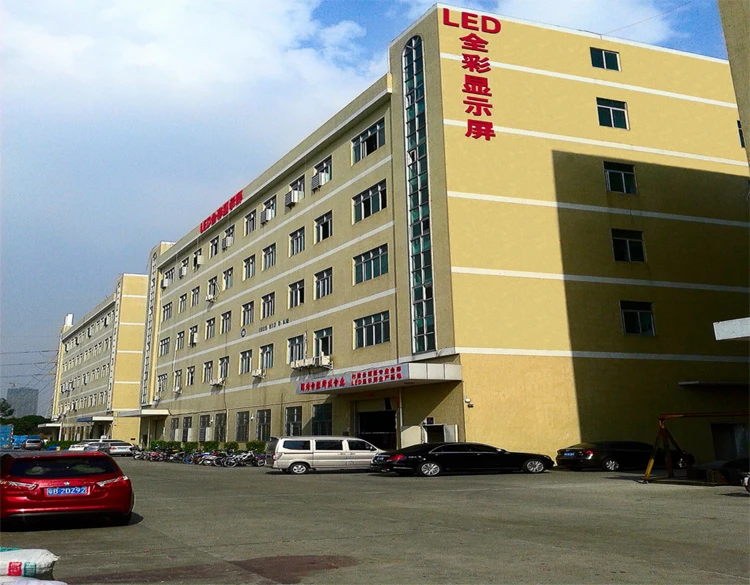

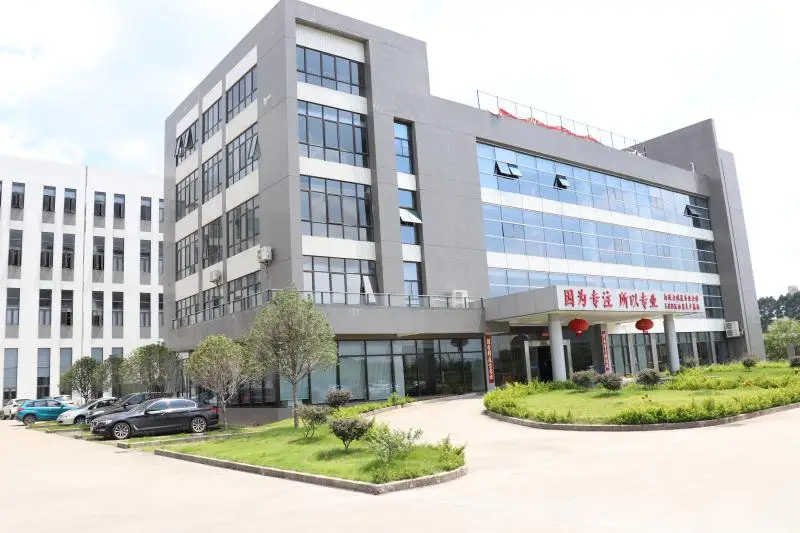

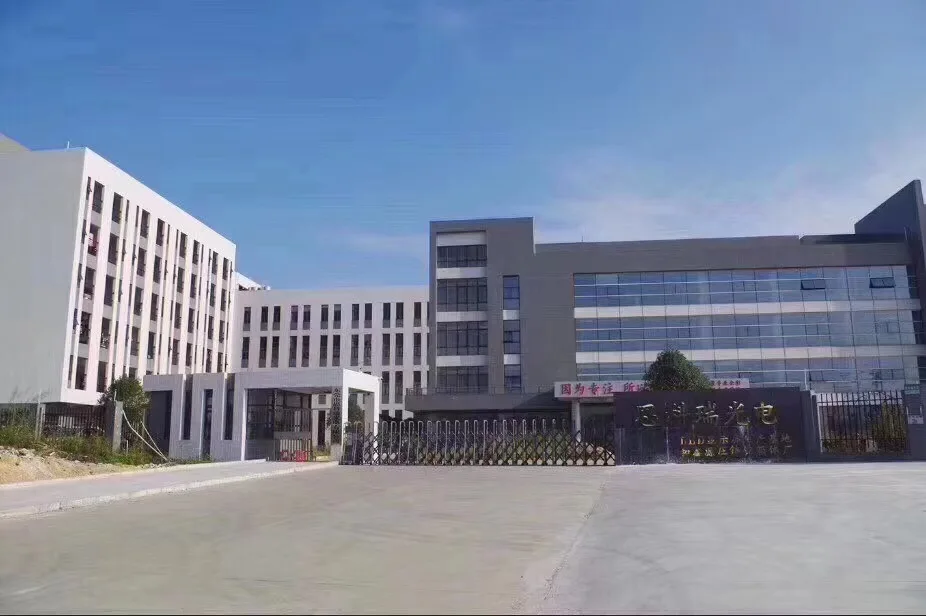

Shenzhen Scree optoelectronics Co.. Ltd, is a large-scale comprehensive high-tech enterprise,which is dedicated to the R & D, production, sales, assembly and engineering installation,with two major production bases,one is in shenzhen ,one is in dongguan ,Total plant area is over 40000 m^2,
we have been focusing on the LED display field, founded in 2009 . Our products include LED outdoor full-color display screen, LED indoor full-color display screen, LED rental screen, LED car top screen, LED transparent screen, LED curtain screen, LED floor screen and other LED display products and used for leasing products, billboards, highway signs, shaped screen, stadium screen and other
The company's products have passed ISO9001:2008 quality management system
certification. CE. CCC. UL and other quality certification and related ROHS certification,
Products are sold to North America, Europe, the Middle East, Southeast Asia, Africa, Australia and other overseas markets, has been recognized and praised by customers around the world.
Q1:what does the pixel ptch mean ,and how to choose pixel pitch ?
A: it menas the best distance people view this led display ,the pixel pitch smaller ,the distance you view ,it looks clear ,
Q2:how led display is installed ?
A:client need to do steel structures accoring the the cabinet size ,usually we could provide the Steel structure drawings,after clinet placed the order
Q3.any size could do ?
A;yes ,but because the modules size is fixed ,so just exist a little difference between your size
Q4:software of led dsiplay is the same ?
A:it depends on the system you choose ,different system using the diffirent software .
