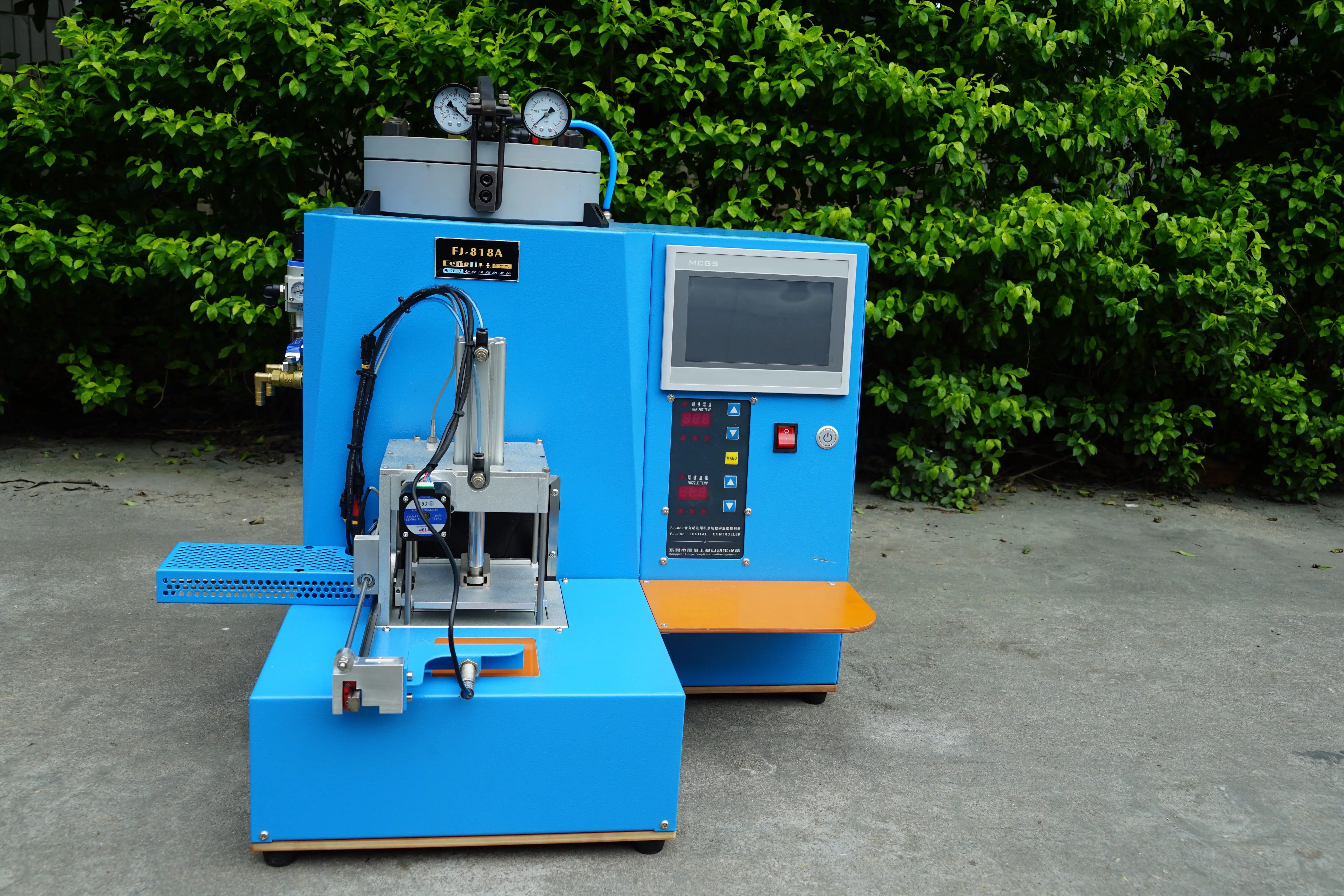

Factory Price Jewelry Wax Injection Machine Melting Wax Injector For Jewelry
Advantages: Low price, high popularity, mass production of wax parts, wax injection pressure can be adjusted at will. Temperature control is accurate, error is very small. Wax injection effect is perfect, no bubbles, no hairy edges, wax uniform.
Function: Used for melting the wax, necessary machine in jewelry making process.
Application: suitable for different kinds of metals, such as gold, platinum, copper, Aluminum etc.
Specification
Parameters of 9KG Wax Injecting Machine Wax Injection Machine Wax Injector
Product Name | 9KG Wax Injecting Machine Wax Injection Machine Wax Injector |
Keywords | Wax Injecting Machine, Wax Injection Machine, Wax Injector |
Dimension Size L*W*H | L700*W640*H660 mm |
Packing Size | L760*W700*H860 mm |
N.W | 53 KG |
G.W | 80 KG |
Voltage | AC220V 50/60HZ |
Air Pressure | 0.45-0.65 Mpa |
Vacuum | ±0.06~0.07 |
Mould Size L*W*H | 116*116*96 mm |
Wax Capacity | 9 KG |
Temp Accuracy | ±0.2 ℃ |
Temperature Range | 40℃~90 ℃ |
Vacuum Time Range | 0.5-8 S |
Mould Pressure Range | 0.5kg - 2.5kg |
Wax Pressure Range | 0.3kg- 2.5kg |
Wax Precision | 1‰ |
Wax Time | ≦10 S |

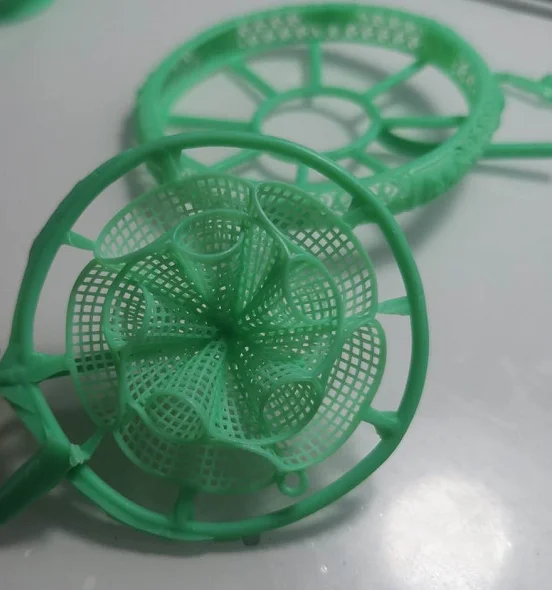

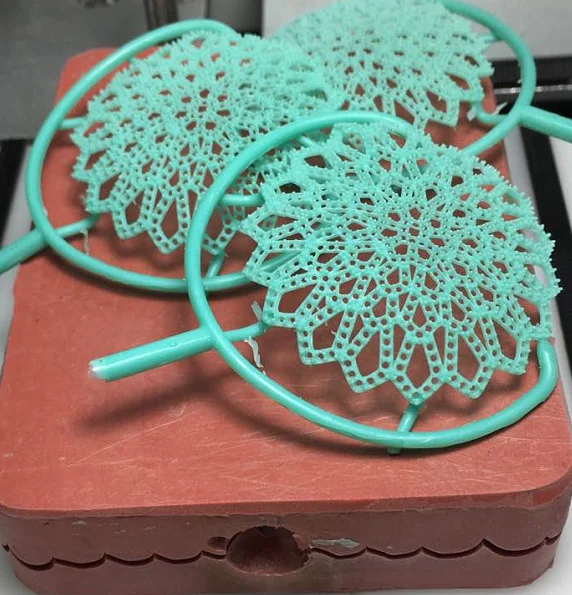

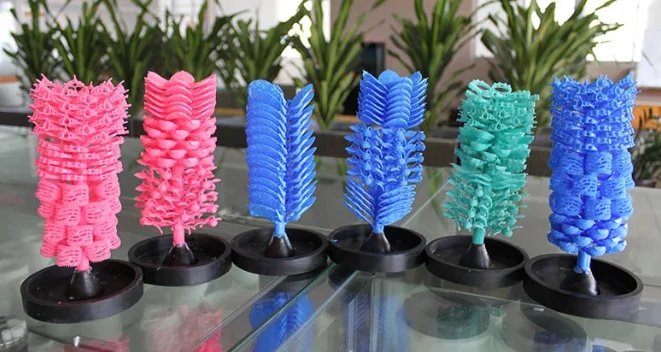

Wax injection effect as below:
The vacuum pump and air compressor need work with wax injection machine.
Vacuum Pump
Air compressor
