Дорогой китайский сверхмощный портативный станок плазменной и пламенной резки с ЧПУ прочным

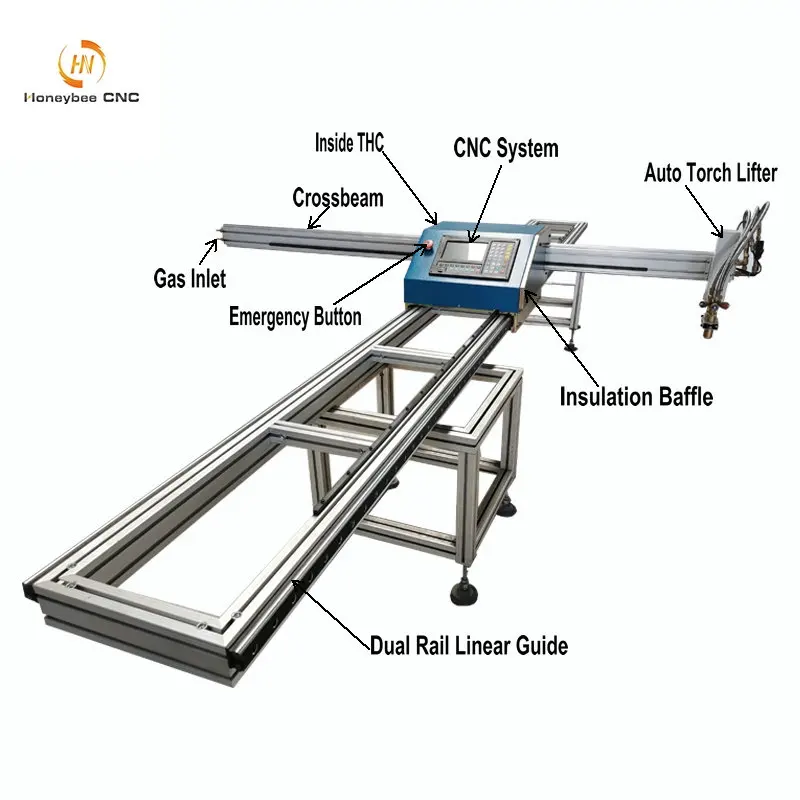

1. Bigger cutting area, it max can cut 2000mm wide

2.More stronger crossbeam, its width is 150mm, more stable.

3.Can Equip 200A plasam torch, if equip Hypertherm Maxpro200, can max pierce 32mm mild steel, can cut

thicker steel

4.Use Hybird servo motor, more powerful and higher running speed.

5.Use steel wheel instead of plastic ones, more durable.

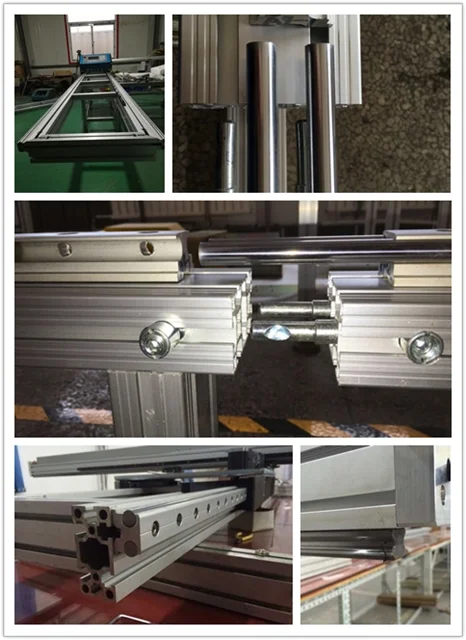

7.Dual rail linear guide(not Aluminum profile), higher precision, more solid and durable.

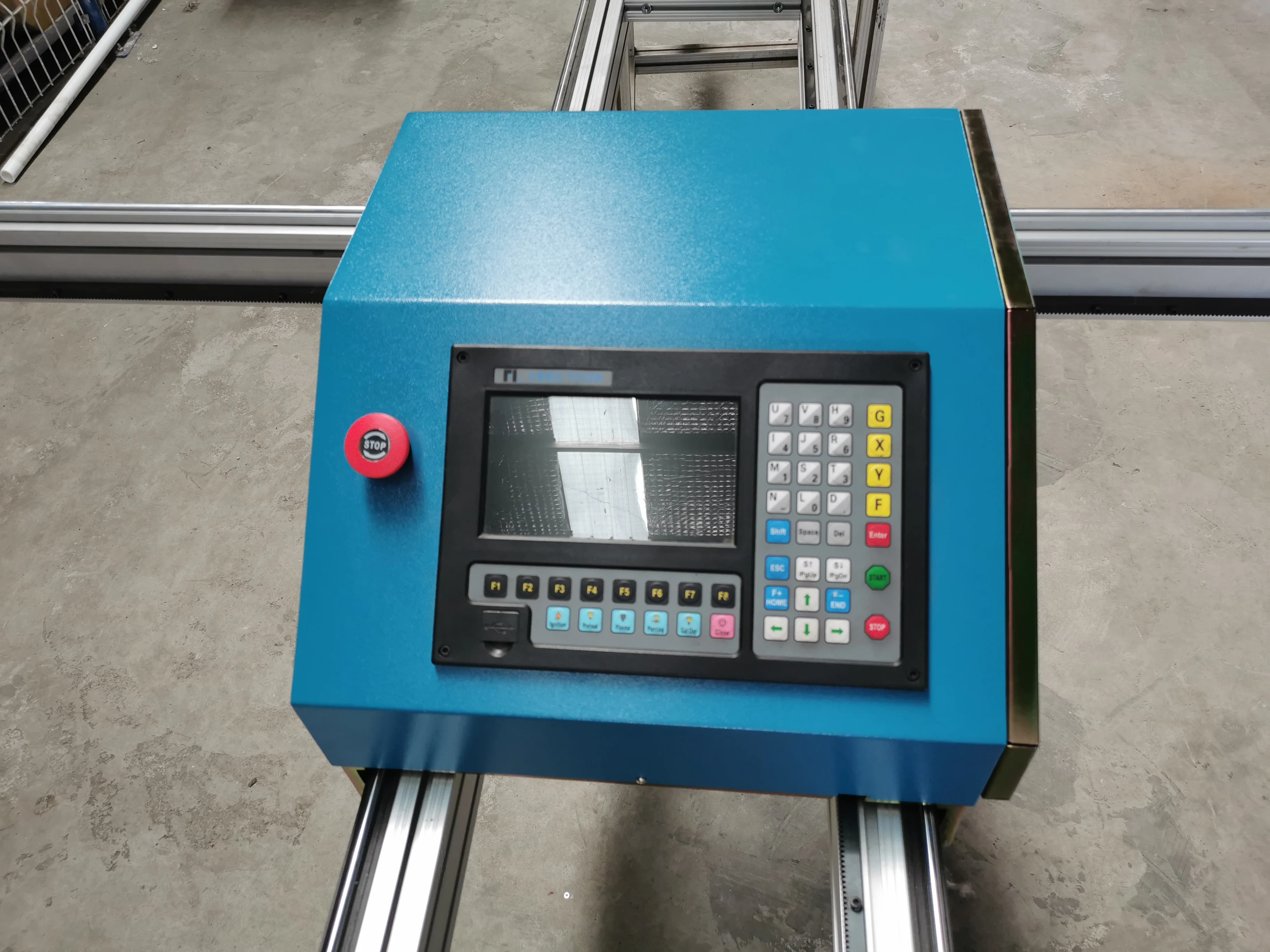

control system  :Fangling

1) 7'’ colorful LCD display;

2) Film-cover operation key;

3) USB port supports program transfer;

4) 32M Memory for users' program;

5) Built-in Library of commonly used figures;

6) Break-point & power-cut restoration;

7) Return to reference point;

8) Mirror image;

9) Two-axes straight line and arc interpolation;

10) Pause, forward, backward, and speed regulation while machine working.

 Fastcam                                              Big size track

 plasma power source

Any main brands below 200A, suggest Hypertherm, Victor, Kjellberg, Esab, Huayuan.

1. Longitudinal rails frame;

2. Cross beam

3. Main machine/central unit;

4. Electric power cable;

5. Electromagnetic valve cable;

6. M8 Screws;

7. Longitudinal rail holder;

8. Allen Key;

9. FastCAM Programming software and dongle(professional edition for Portable CNC);

10. Packing list;

11. Operation manual;

12. Quality Certificate;

13. Plasma source interface; (option)

14. Arc voltage auto torch height control for plasma cutting. (option)

15. Plasma power source. (option)

1. Are you manufacture or trading company?

We are manufacture for more than 15 years.Our Honeybee brand CNC cutting products include Portable Flame/Plasma CNC Cutting Machines,

Gantry CNC Flame/Plasma Cutting Machines,Pipe cutting machines, Bench Type CNC Flame/Plasma Cutting Machines,

Multi-head Straight-line Flame Cutting Machines, Bevel cutting machines,Fiber laser and YAG Laser cutting machines,Automatic Welding equipment and so on.

2. How long is  the delivery time?

After receiving deposit,it’s about 7 days for factory production,and 10-25 days for shipment,so it will take altogether 30 days.

3. Waht are the payment terms?

Customers do full payment before shipment,T/T.

4. Can you guarantee the quality of your products?

Since the establishment of our company,we have been engaged in the development of cnc metal cutting machine,and have a strict quality inspection systerm for the metal cutting machinery industry.
