Product Description
Application and Scope
Automatic Upper Arm
Blood Pressure Monitor is intended to be used for measuring, displaying, reviewing and storing of ECG and blood pressure variation in home or healthcare facilities environment.
ECG and Blood pressure variation is intended for use with adult.
The data and results provided by this device are for pre-check screening purpose only and cannot be directly used for diagnostic or treatment.
Blood Pressure Monitor is intended to be used for measuring, displaying, reviewing and storing of ECG and blood pressure variation in home or healthcare facilities environment.
ECG and Blood pressure variation is intended for use with adult.
The data and results provided by this device are for pre-check screening purpose only and cannot be directly used for diagnostic or treatment.

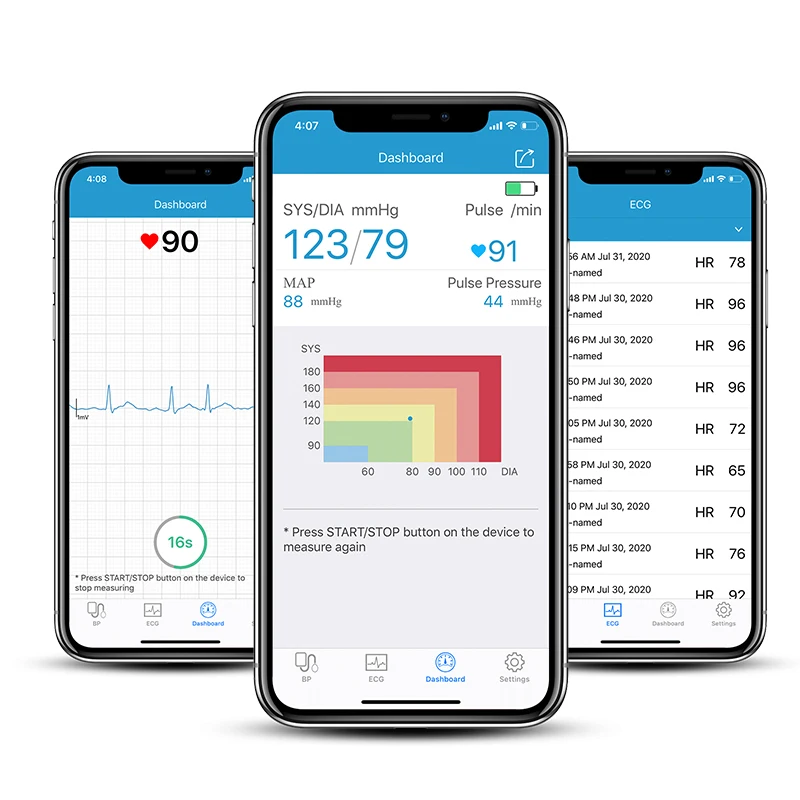

Connet to APP
Monitor has built-in Bluetooth wireless connectivity, which enables exporting measured records to mobile phones and pads running iOS or Android platform.
Press the function button and Start/Stop button at the same time to connet to APP.
Features
●Blood pressure, ECG monitor can be measured;
●A wearable device, and convenient to measure;
●Small in size, light in weight, easy to carry and operate;
●It's intended to use in homes;
●The measurement result can be set to the host device via wireless communication.
● The measured data can be displayed, stored and manged by APP software installed on the host device, such as smart phone, tablet, and computer, which can be Android and IOS system.
●A wearable device, and convenient to measure;
●Small in size, light in weight, easy to carry and operate;
●It's intended to use in homes;
●The measurement result can be set to the host device via wireless communication.
● The measured data can be displayed, stored and manged by APP software installed on the host device, such as smart phone, tablet, and computer, which can be Android and IOS system.

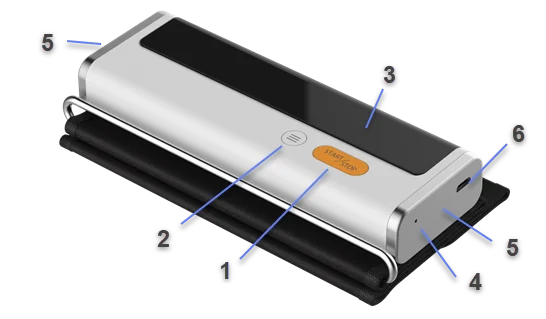

About the Product
1. Start/Stop button
●Power On/Off
●Press to Start/Stop blood pressure measurement.
2. Function button
●Press to Start ECG measurement.
● Press and hold 2 seconds to review historical data.
3. Display screen
4. LED indicator
●Blue light is on: the battery is charging.
●Blue light is off: the battery is full charged.
5. ECG electrode
Press and hold them during the ECG measurement.
6. Cable connector
Connect with the charging cable.
●Power On/Off
●Press to Start/Stop blood pressure measurement.
2. Function button
●Press to Start ECG measurement.
● Press and hold 2 seconds to review historical data.
3. Display screen
4. LED indicator
●Blue light is on: the battery is charging.
●Blue light is off: the battery is full charged.
5. ECG electrode
Press and hold them during the ECG measurement.
6. Cable connector
Connect with the charging cable.
Details Images

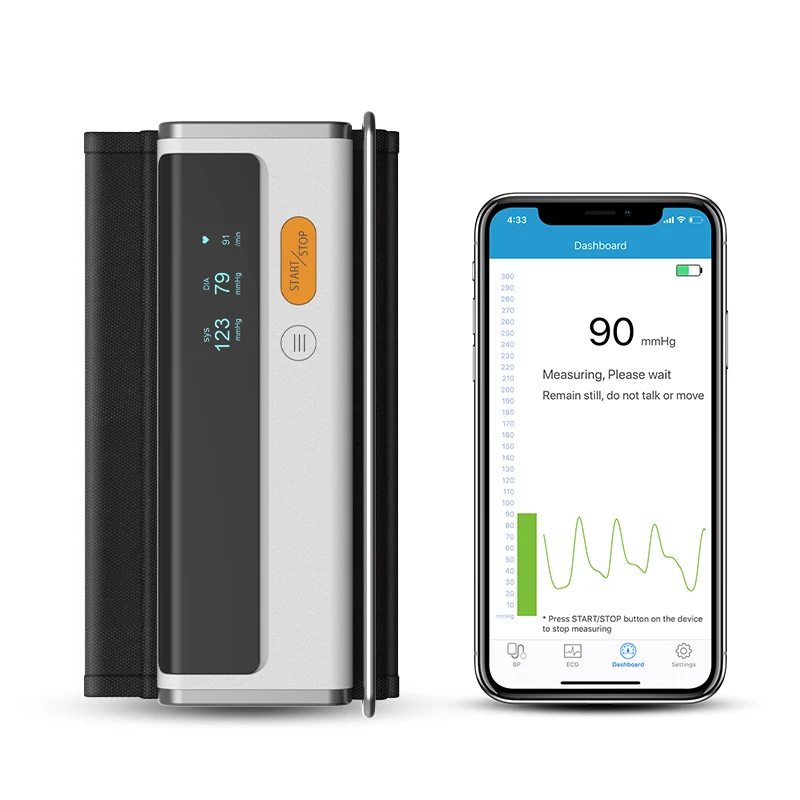

Measuring Blood Pressure
1. Power on the blood pressure monitor.
2. Press Start/Stop button to start blood pressure
measurement.
3. The monitor will automatically deflate the cuff slowly during measurement, a typical measurement takes about 30s.
4. The readings will be displayed when the measurement finished.
You can press Start/Stop button again to stop the blood pressure measurement.
Note: During measurement, you should keep still and do not squeeze the cuff.
2. Press Start/Stop button to start blood pressure
measurement.
3. The monitor will automatically deflate the cuff slowly during measurement, a typical measurement takes about 30s.
4. The readings will be displayed when the measurement finished.
You can press Start/Stop button again to stop the blood pressure measurement.
Note: During measurement, you should keep still and do not squeeze the cuff.

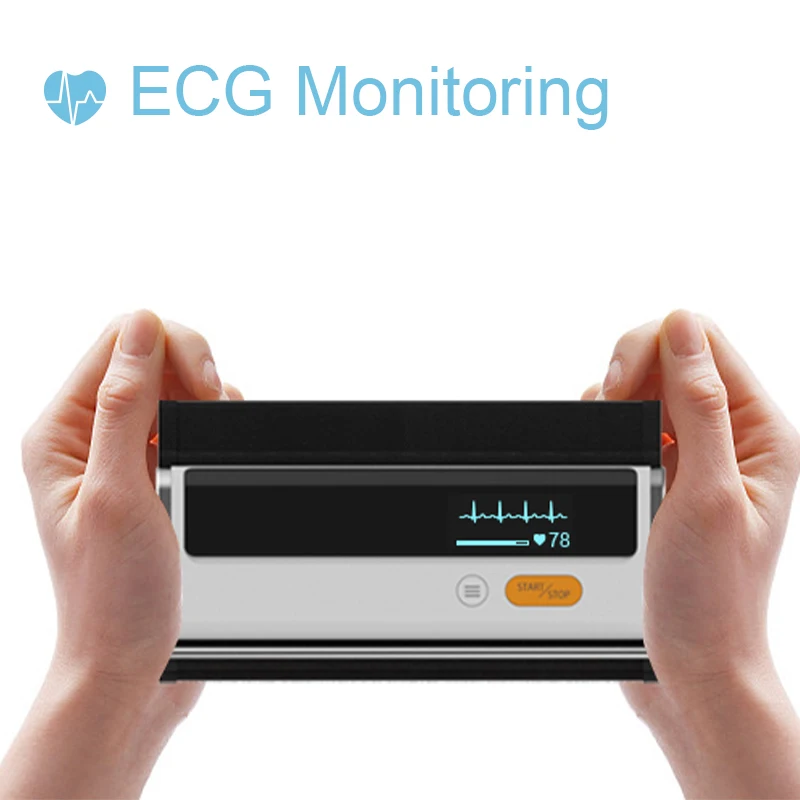

Recording ECG
There are four methods for recording ECG by cable free measurement.
To start an ECG Recording:
To start an ECG Recording:
1. Put your right palm on the right side electrodes of the Monitor.
2. Put the left side electrodes to the body position that you desired to measure.
3. Once the body parts are placed on the electrodes, press Function button to start the EKG recording.
4. Wait for 30 seconds, the result readings will be displayed. To start recording ECG again, press Start/Stop button to return Home screen, then press Function button.
A.Right hand to left Leg B.Hand to hand
C.Right hand to abdomen D.Right hand to chest
Technical Specifications
Classifications | ||||||||
EC Directive | MDD, 93/42/EEC | |||||||
RED, 2014/53/EU | ||||||||
ROHS 2.0, 2011/65/EU | ||||||||
Degree protection against electrical shock | Type BF | |||||||
Environmental | ||||||||
Item | Operating | Storage | ||||||
Temperature | 5 to 40°C | -25 to 70°C | ||||||
Relative humidity (non-condensing) | 10% to 95% | 10% to 95% | ||||||
Barometric | 700 to 1060 hPa | 700 to 1060 hPa | ||||||
Degree of dust & water resistance | IP22 | |||||||
Drop test | 1.0 m | |||||||
Physical | ||||||||
Size (main unit) | 135mm(long)×45mm(W)×20mm(H) | |||||||
Weight (main unit) | 240 g | |||||||
Cuff size | Adult cuff: 22-42cm Small adult cuff (optional): 17-22cm Adult cuff(optional): 22-32cm | |||||||
Wireless connectivity | Built-in Bluetooth 4.0 BLE | |||||||
Power Supply | ||||||||
Charge input | Micro USB, DC5V | |||||||
Battery type | Rechargeable lithium-polymer battery | |||||||
Battery run time | 500 measurements | |||||||
Charge time | 2 hours | |||||||
Blood Pressure Measurement | ||||||||
Technology | Oscillometric Method | |||||||
Pressure measurement range | 0 – 300mmHg | |||||||
Pressure measurement accuracy | ±3mmHg | |||||||
Pulse rate range | 40 to 200 /min | |||||||
Pulse rate accuracy | ±2 /min | |||||||
Clinical accuracy | Meet IEC80601-2-30 | |||||||
ECG Recording | ||||||||
Lead type | Integrated ECG electrodes | |||||||
Lead set | Lead I, lead II, Chest Lead | |||||||
ECG length | 30s | |||||||
Heart rate range | 30 - 250/min | |||||||
Heart rate accuracy | ±2 /min or ±2%, whichever is greater | |||||||
Storage | ||||||||
Blood pressure records | 50 | |||||||
ECG records | 10 | |||||||
Bluetooth RF | ||||||||
Frequency range | 2.402 – 2.480 GHz | |||||||
Max RF power | -10 dBm | |||||||
