Микро Переключатель

Описание и отзывы

Характеристики

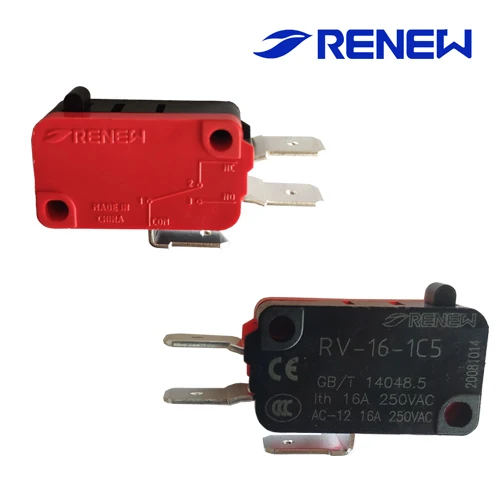

P/N: Micro Switch Microswitch

C2, B,E terminals can choose.











Rated data and performance

Item                     Type		RV-21, RV-16, RV-11	RV-3
Allowable operating speed		0.1mm~1m/sec(pin plunge type)
Allowable operating frequency		Mechanical 600times/min Electrical  30times/min
Insulation resistance		Above 100 mΩ (use the DC500V insulation resistance test)
Contact resistance (initial value )		Max 15mΩ	Max 30mΩ
Dielectric strength	Between the non-connect terminal	AC 1000V 50/60HZ 1min
	Between non voltage metal parts and each terminal	AC 2000V 50/60HZ 1min
	Between the grounding and the each terminal
Vibration resistance	Malfunction	10-55HZ double amplitude 1.5mm(contact gap is less than 1ms )
Shock resistance		OF 0.49N type: less 98m/s2   OF 1.96N,3.29N type :less 294m/s2 OF 0.98 N type : 196m/s2
Life	Mechanical life (order OT)	100,000 times above (frequency is 20times/min)
	Electrical life(resistive load )	300,000 times above (frequency is 20times/min)
Ambient operation temperature &humidity		-25~+80(with no icing ),  under the 85%RH (+5~35)
Contact material		AgNi alloy ; AgCdO alloy (not in the ROHS order )
Weight		About 6.2g(pin plunger type )



Other information of micro switch RV type

Rating:	21A/16A/11A/6A, AC250V
Contact form	SPDT/SPST-NC/SPST-NO

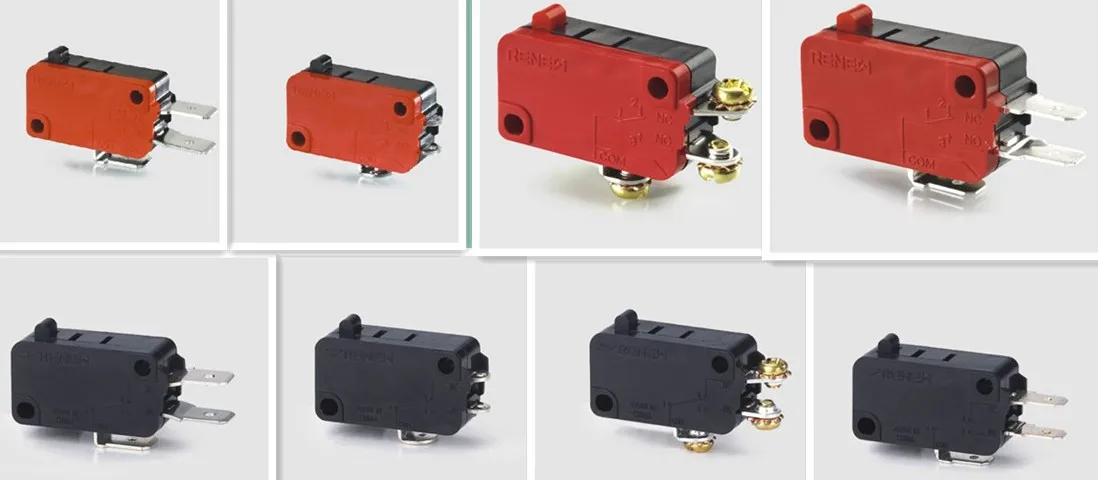

Terminals:	#187/#250 England made/ Screw fixed terminal/Solder terminal
Maximum Operating Force	50gf-400gf



Other information of micro switch RV type

Rating:	21A/16A/11A/6A, AC250V
Contact form	SPDT/SPST-NC/SPST-NO
Terminals:	#187/#250 England made/ Screw fixed terminal/Solder terminal
Maximum Operating Force	50gf-400gf

 Ratings

Model	Rated voltage	No-inductive load				Inductive load
		Resistive load		Lamp load		Inductive load		Motor load
		NC	NO	NC	NO	NC	NO	NC	NO
RV-21	250VAC	21A		3A		12A		4A
	8VDC 30VDC 125VDC 250VDC	21A 14A 0.6A 0.3A		5A 5A 0.1A 0.05A		12A 12A 0.6A 0.3A		7A 5A 0.1A 0.05A
RV-16	250VAC	16A		2A		10A		3A
	8VDC 30VDC 125VDC 250VDC	16A 10A 0.6A 0.3A		4A 4A 0.1A 0.05A		10A 10A 0.6A 0.3A		6A 4A 0.1A 0.05A
RV-11	250VAC	11A		1.5A		6A		2A
	8VDC 30VDC 125VDC 250VDC	11A 6A 0.6A 0.3A		3A 3A 0.1A 0.05A		6A 6A 0.6A 0.3A		3A 3A 0.1A 0.05A
RV-6	250VAC	6A		3A		4A		--
	8VDC 30VDC 125VDC 250VDC	6A 6A 0.4A 0.3A		3A 3A 0.1A 0.05A		4A 4A 0.4A 0.2A		--

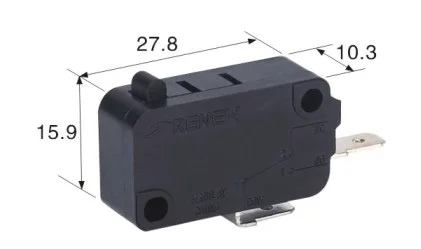

Demension size of micro switch RV type:

Perfomance

Item	RV-16-1C5
OF max.	1.96N(200gf)
RF min.	0.49N(50gf)
PT max.	1.2mm
OT min.	1.0mm
MD max.	0.4mm
OP	14.7±0.4mm
