Product Description
*JS36DC1-3-S is available in several standard colours to fifit into a wide range of desk designs.
*The function of anti-collision minimize the risk of damages when desk collision with an obstacle.
*JS36DC1-3-S is compatible with all the standard Jiecang control boxes, and ensures a very low and pleasant noise level, and steady movement. Furthermore, the system has a very low standby power consumption less than 0.1W.

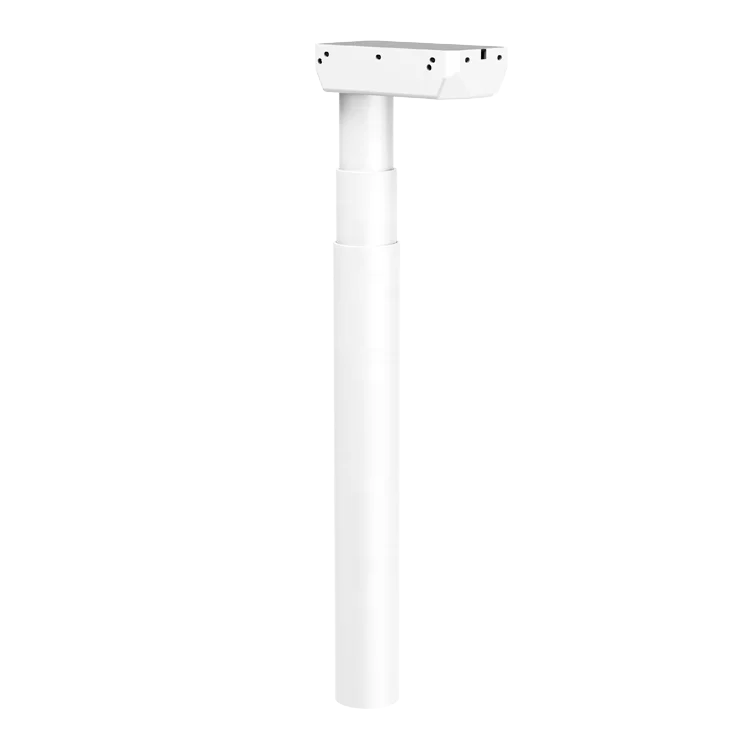

Product Name | JS36DC1-3-S Lifting Column |
Rated load | 800N |
Self locking | 1200N |
Typical current at rated Load | 5A |
Typical max speed 0 load~ Rated load | 35mm/s |
Built-in length | 560mm |
Standard installation length | 650mm |
Features
·2mm thickness round tube and 3mm optimized motor housing design for extra strength and stability
·2mm thickness round tube and 3mm optimized motor housing design for extra strength and stability
·The tube is no hole design
·Max. load capacity is 800N per column.
·Fit with JCB35N series Jiecang control boxes to realize max speed 35mm/s
·Low noise level <50dB
·Max. Bending moment: 150N.m
·Standard installation length: 560mm
·Standard stroke length: 650mm

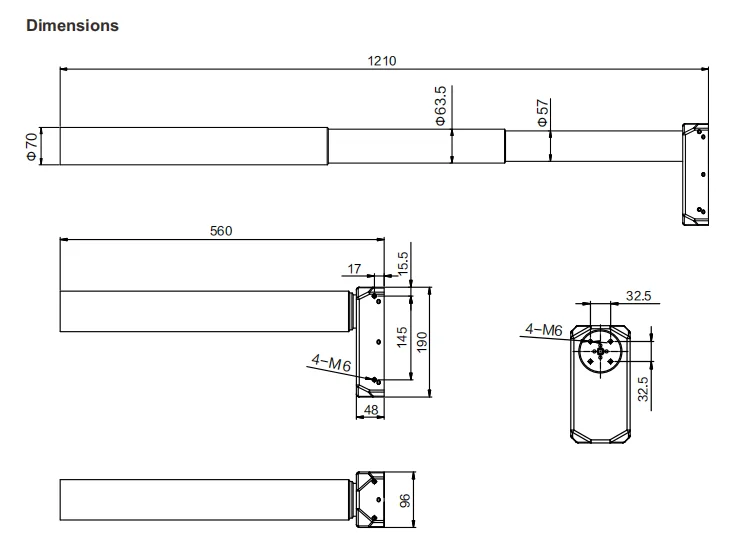

·Column dimensions: outer tube diameter: Ø70mm，middle tube diameter: Ø63.5mm, inner tube diameter: Ø57mm
·Motor housing dimension: 190x96x48mm
·Motor: Jiecang design high power motor
·Hall sensor enabling parallel drive
·Surface: Powder coating with standard color: White (RAL9016), Black (RAL9005), Grey (RAL7045)
·Max. load capacity is 800N per column.
·Fit with JCB35N series Jiecang control boxes to realize max speed 35mm/s
·Low noise level <50dB
·Max. Bending moment: 150N.m
·Standard installation length: 560mm
·Standard stroke length: 650mm
·Column dimensions: outer tube diameter: Ø70mm，middle tube diameter: Ø63.5mm, inner tube diameter: Ø57mm
·Motor housing dimension: 190x96x48mm
·Motor: Jiecang design high power motor
·Hall sensor enabling parallel drive
·Surface: Powder coating with standard color: White (RAL9016), Black (RAL9005), Grey (RAL7045)
Option
·Customized colours
·Compatible with several difffferent styles of feet.
·PVC-free column
·Bracket for crossbar
·Customized colours
·Compatible with several difffferent styles of feet.
·PVC-free column
·Bracket for crossbar
Usage
·Single or 2, 3, or 4 parallel drive or even multi-parallel with up to 12 columns,
·and can fifit with Jiecang QT, TS, TT, TF standard frame.
·Compatible with Jiecang control box: JCB35N1, JCB35N2, JCB35N3 JCB35N4
·Duty cycle: 10 %, Max. 2 minutes operation/Min. 18minutes rest of continuous use at full load
·Working environment: Indoor
·Storage and transport temperature :-10°C + 70°C
·Approved according to EN60335-1 and UL 962
·and can fifit with Jiecang QT, TS, TT, TF standard frame.
·Compatible with Jiecang control box: JCB35N1, JCB35N2, JCB35N3 JCB35N4
·Duty cycle: 10 %, Max. 2 minutes operation/Min. 18minutes rest of continuous use at full load
·Working environment: Indoor
·Storage and transport temperature :-10°C + 70°C
·Approved according to EN60335-1 and UL 962
Detailed Images
Related Products
Company Introduction
Jiecang has passed system certifications of ISO9001, ISO14001, ISO/IEC27001 and so on, and our products has been approved by UL, CE, ROHS, SAA, PSE KC. We have set branches in America, Germany, Japan, India, Brazil and Malaysia.
Company Strength
FAQ
Q:What is your MOQ?
Our MOQ is usually 10 sets.
Q:What is the shipping port?
Shanghai or Ningbo Port
Q:How can I get the quotation?
Usually you need to send up information, we will quote within 12 hours after we get it.
The details you should to give:
material, size, input, Load capacity,quantity, color ,speed or frequency , etc.
Q:May I have a sample order before bulk one?
After you pay the sample price and freight charge, send us confirmed files, Samples in stock will be delivered within 3 days.
Customized samples will be delivered within 15 days. Delivery date for bulk order depends on order quantity.
Q:Do you get the relevant certifications?
Yes, so far, we have got certification of CE,TUV, UL, PSE, KC, SAA, ROSH,ISO9001:2015,ISO14001:2015,OHSAS18001:2007 and so on.
When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
Our MOQ is usually 10 sets.
Q:What is the shipping port?
Shanghai or Ningbo Port
Q:How can I get the quotation?
Usually you need to send up information, we will quote within 12 hours after we get it.
The details you should to give:
material, size, input, Load capacity,quantity, color ,speed or frequency , etc.
Q:May I have a sample order before bulk one?
After you pay the sample price and freight charge, send us confirmed files, Samples in stock will be delivered within 3 days.
Customized samples will be delivered within 15 days. Delivery date for bulk order depends on order quantity.
Q:Do you get the relevant certifications?
Yes, so far, we have got certification of CE,TUV, UL, PSE, KC, SAA, ROSH,ISO9001:2015,ISO14001:2015,OHSAS18001:2007 and so on.
When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
