Product Description

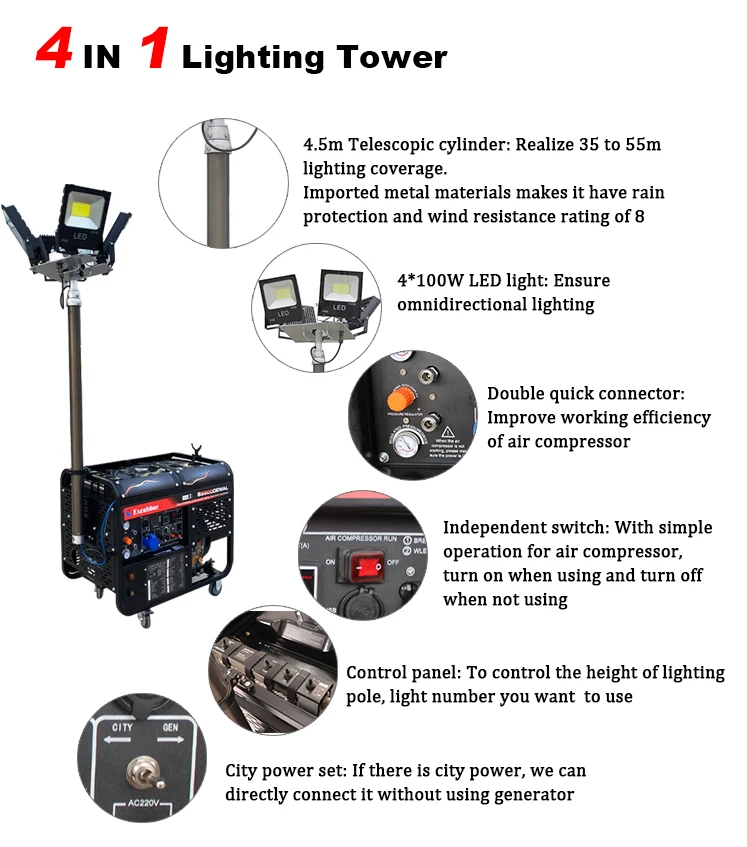

Excalibur 4in1 lighting tower is designed with 4 main functions in one machine, which is equal to a welding machine+a generator+ a mobile towable trailer+an air compressor. It adopts IGBT technology and smart module inside which will ensure 8kva output and all functions can work together.
Product Specification
Model | 4in1 Lighting Tower S9800DEWAL | ||
Welding Function | Rated Output | 7.5kw | |
Rated Current | 230A | ||
Rated Voltage | 28V | ||
Rated Usage Rate | 60% | ||
No-load Voltage | 65V | ||
Current Range | (20～230）A | ||
Welding Rod | 1.6-5.0mm | ||
Engine | Model | SD650E | |
Type | Single cylinder, vertical, 4-stroke, air cooled | ||
Rated output power (HP)/rpm | 11.2（15）/3000 | ||
Max output power (HP)/rpm | 13.4（18）/3600 | ||
Cooling Way | Air-cooled | ||
Bore* Stroke | 98×84mm | ||
Displacement | 633cc | ||
Combustion System | Direct Injection | ||
Fuel | Diesel | ||
Starting System | Electric start | ||
Lubricating System | Pressure Splashed | ||
Lubricating Oil Capacity | 2.0L | ||
Air Compressor | Gas Storage Capacity | 20L | |
Displacement | 120L/min | ||
Speed | 1410rpm | ||
Pressure | 0.8Mpa | ||
Output | 750W | ||
Light Part | Lifting Height | 4.5m | |
Rise Time | 30s | ||
Rated Voltage | 220V-240V | ||
Power Source | Led/4*100W | ||
Luminous Flux | 80-100lm/W | ||
Generator | Frequency | 50/60HZ | |
Rated Voltage | 110/120/220/230/240 | ||
Rated Output | 7.5/8.0KW | ||
Power Factor | 1 | ||
Completed Machine | Fuel Tank Capacity | 25L | |
Protection Level | IP23 | ||
Frame Size | 930*600*720 | ||
Related Products

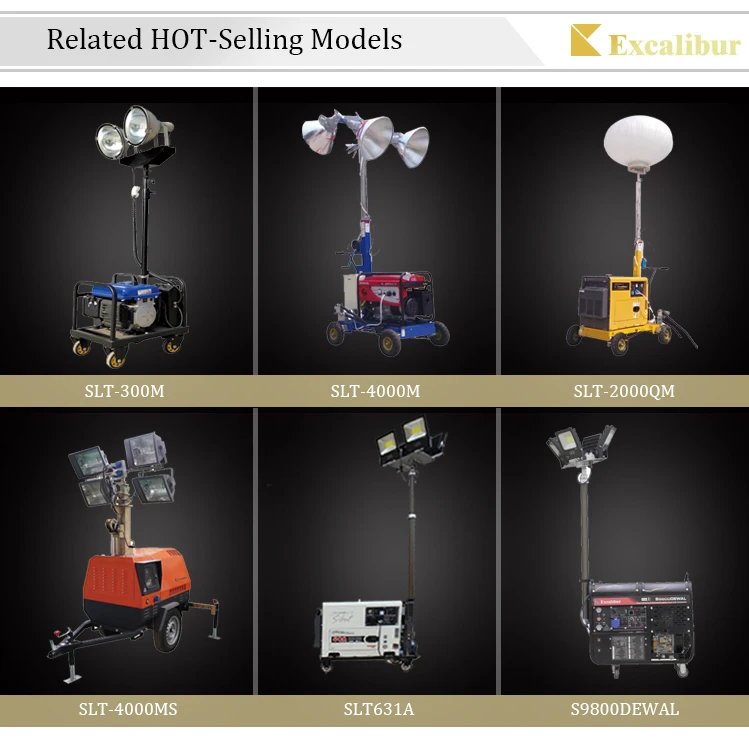

Excalibur HOT Lighting Tower Models
Application
Excalibur 4in1 lighting tower is suitable for public security, firefighting, military, railway, oil field, steel, power, etc. to provide mobile lighting for various operations, accident repairs, abnormal conditions, brightness, long-distance night operations and other work sites. Lighting Tower
Packing & Shipping
All Excalibur Lighting Towers are packed in strong cartons and wooden case.
Wooden case for lighting part and carton for generator part.
Company Profile
Excalibur has been focused on manufacturing engines, generators, water pumps and construction machinery, such as lighting tower, floor saws, etc. for over 10 years. We are looking for distributors for our 4in1 lighting towerworldwide.
FAQ
Q1:What is your MOQ of 4in1 lighting tower?
How long is your processing time for MOQ? 1 set. Within TWO working days or 48 hours....4in1 lighting tower
Q2:Is the engine featured with the 4in1 lighting tower customized?
Yes. Engines can be customized according to customers design....4in1 lighting tower
Q3:What is your company production capacity for the 4in1 lighting tower?
1000 sets per month....4in1 lighting tower
Q4:What is the delivery time for the 4in1 lighting tower?
20 days after advance payment.If the items which you purchase is in stock we can send them out immediately....
Q5:How long is your warranty? 4in1 lighting tower
1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order....4in1 lighting tower
Q6:What are your payment terms? 4in1 lighting tower
T/T 30% deposit, 70% balance should be paid against the B/L copy.D/P for regular good reputation customers. Paypal is accepted for one set, but please discuss to our sales person first....4in1 lighting tower
Q7:Is it alright to make customer's own brand name on the 4in1 lighting tower?
Sure, as long as you authorize us to use your brand on your behalf.We have over 10 years OEM/ODM experience....
