Цена по прейскуранту завода серный порошок компост 2 слоя из нержавеющей стали тумблер вибрирующий
- Категории: Вибрационное сито >>>
- Поставщик: Xinxiang,Dongzhen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Size Information
Model | Screen mesh area(m²) | Frequency (r/min) | Granularitysize (mm) | Amplitude(mm) | Power(kw) |
DZYS-600 | 0.28 | 220-280 | ≤100 | 20-70 | 0.75 |
DZYS-1000 | 0.66 | 220-280 | ≤100 | 20-70 | 1.5 |
DZYS-1200 | 0.98 | 220-280 | ≤100 | 20-70 | 2.2 |
DZYS-1500 | 1.67 | 220-280 | ≤100 | 20-70 | 3.0 |
DZYS-1800 | 2.37 | 220-280 | ≤100 | 20-70 | 4.0 |
DZYS-2000 | 2.89 | 220-280 | ≤100 | 20-70 | 4.0 |
DZYS-2600 | 5.3 | 220-280 | ≤100 | 20-70 | 5.5 |

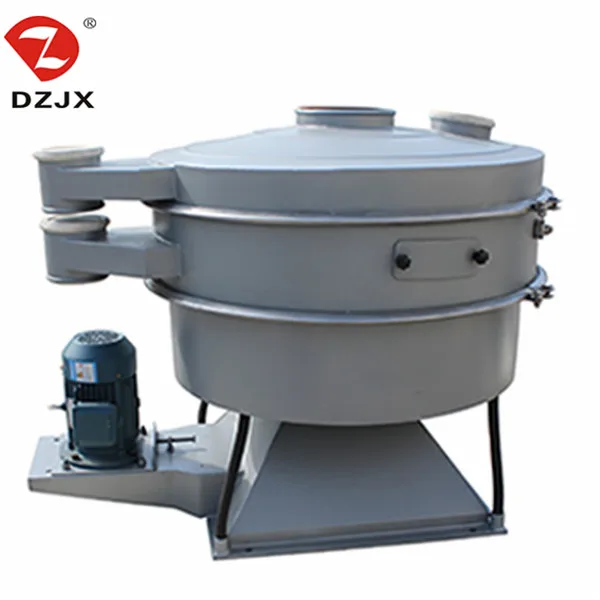

Product Description

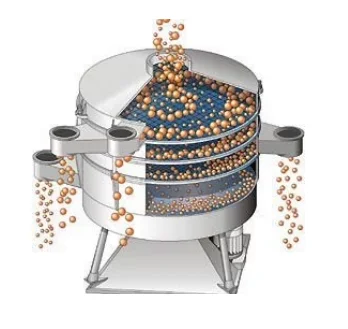

DZJX series swing screening machine is a kind of inertial equipment with mature technology and classical application.Its new design Philosophy and unique structure making it the closest manual screen machine. The Tumbler screening machine have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen. The Tumbler screening machine is particularly used to classify small materials and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving.
Working principle

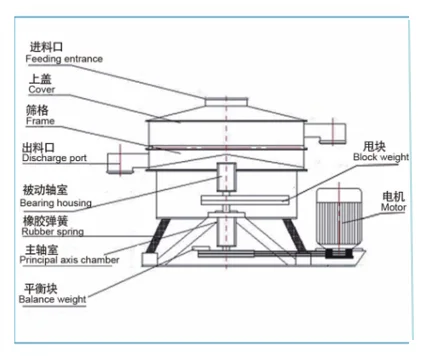

The machine is drived by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft, The screening time and movement of material on the screen surface can be controlled by adjusting the angle of the two eccentric weights.
Application
--Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
--Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
--Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.--Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
--Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
--Food industry: sugar, salt, alkali, flour powder, nut powder, farina, gourmet powder, starch, milk powder, yeast powder,
pollen,food additive, bean milk, juice, etc.
pollen,food additive, bean milk, juice, etc.

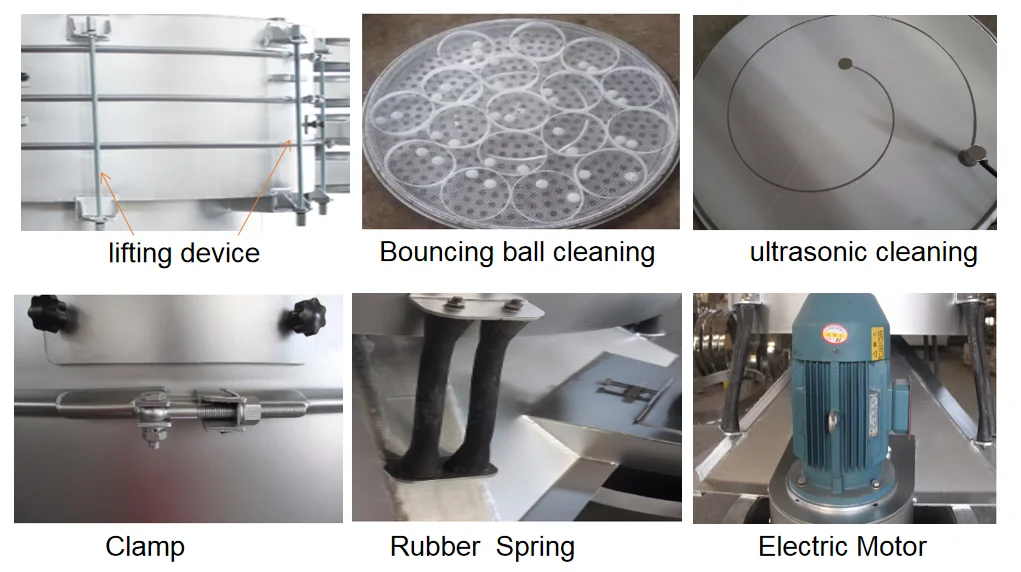

Details Images

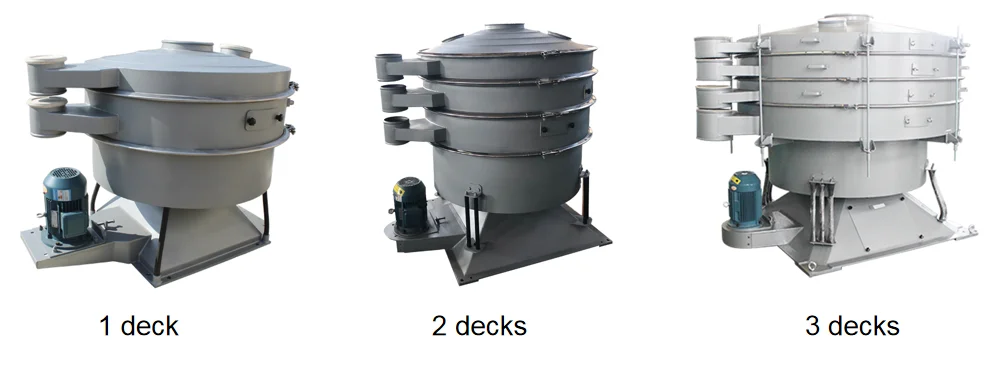

Customized construction deck
According to the needs of the buyer, the number of swing screen layers can be customized. At present, our factory supports the customization of one to four layer swing screen.

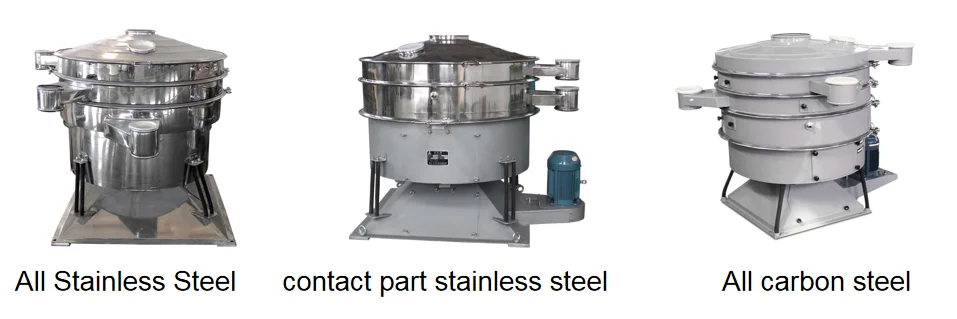

Customized construction material
Stainless steel material is the first choice for medical grade and food grade buyers, carbon steel is the first choice for cost saving, contact with stainless steel can not only meet the health requirements, but also save costs.
Packing&Shipping
Company Introduction
We are direct factory of Vibrating Screen, Conveyor equipment and Mixer for many years, we are glad to build longlasting business relationship with you.
We have the enterprising and energetic team of excellence who are dedicated to their career. More than 200 staff work for us, including 65 technicians and engineers with senior title . In 2000, we established CAD workstation earlier than others in China.
We have the enterprising and energetic team of excellence who are dedicated to their career. More than 200 staff work for us, including 65 technicians and engineers with senior title . In 2000, we established CAD workstation earlier than others in China.
Exhibition
FAQ
Q:What factors I need to get a quotation?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
A: Material size and bulk density,height of discharge port, ideal capacity for proper type is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage &
Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DZJX for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DZJX for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.
If you are interested in our products, please feel free to send me an inquiry or contact any time. I will provide you with the best service and the most favorable price.
