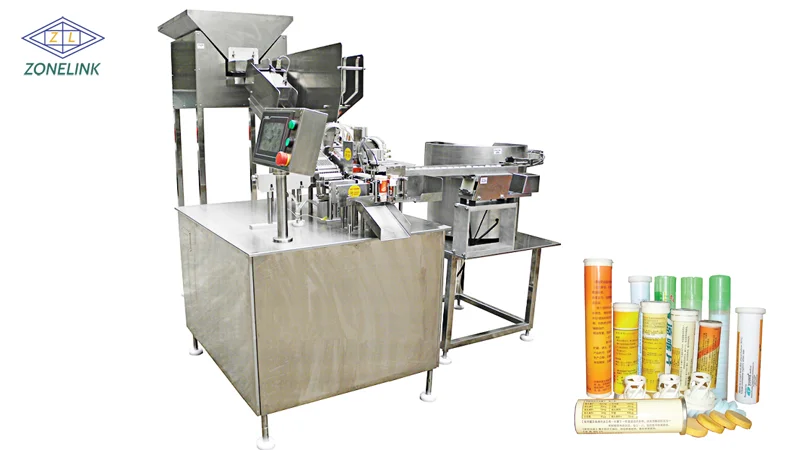

ZPP-40A tablet bottling machine for bobbin bottles
The ZPP-40A Tablet Bottling Machine for bobbin bottles is applicable to the packing of bigger and thinner tablets which are orderly fed into bobbin bottles/tube in a single row in an overlapping way. The device utterly adopts a PLC for centralized control. It is verified in fiber and photoelectric detection and other kinds of detection to have steady performance and reliably automatic operation. It can automatically give alarms and shut down in case of no tablets, bottles or covers. Its part in contact with the tablets is made of superior 316 stainless steel.which can fully requirement of GMP.
Specification
Model
ZPP-40A
Production
30-40 bottles/minute
Voltage
220V
Power
1.5KW
Purified compressed air
0.5~0.6MPa
Respectively
0.28m3/minute
External dimensions
2400mm*1600mm*1800mm
Weight
About 480KG
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
