Product Description

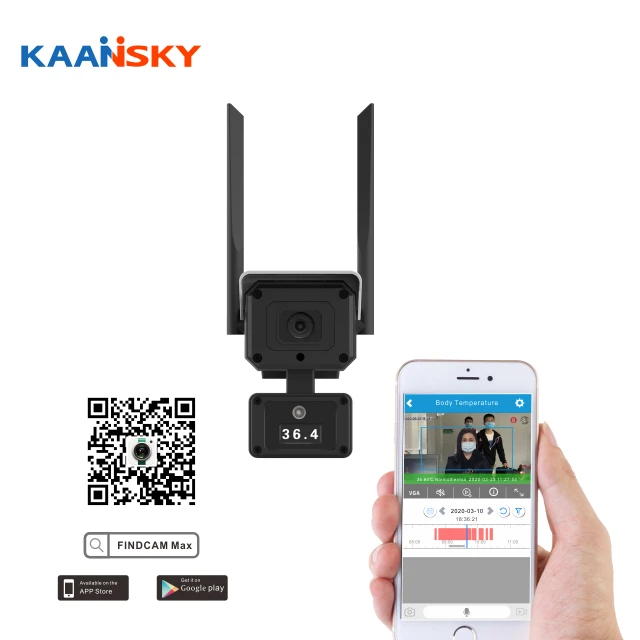

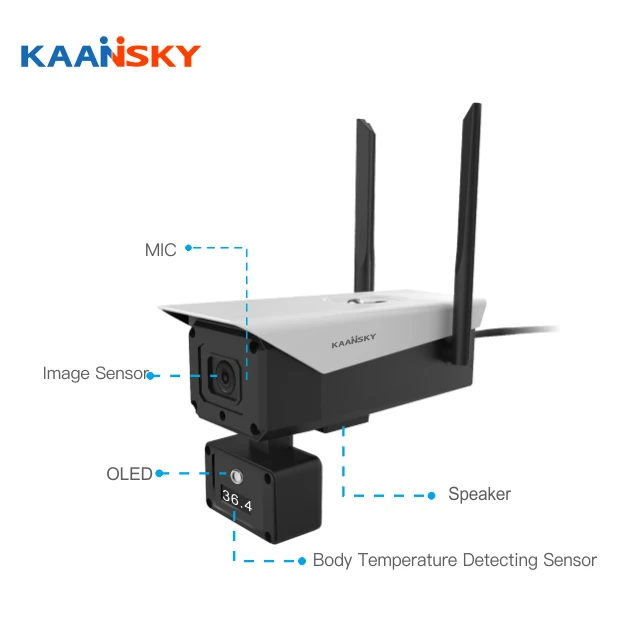

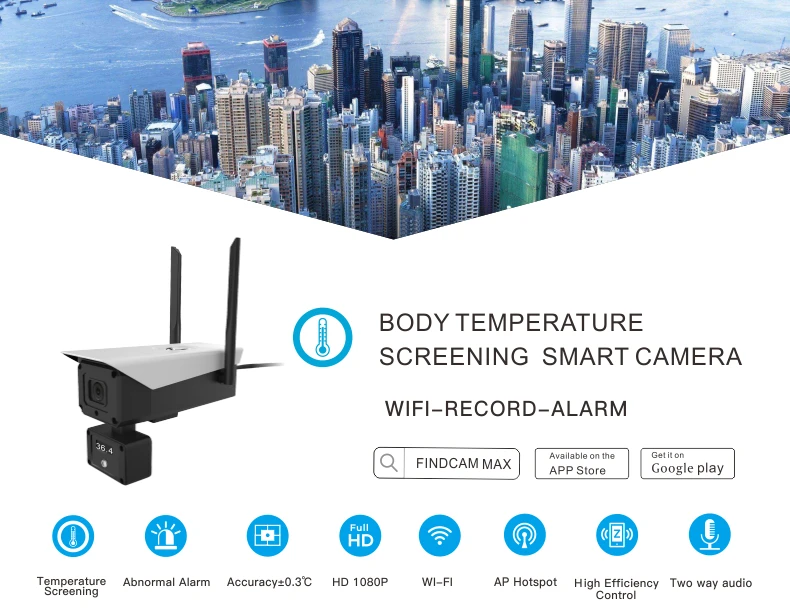

About TB02
TB02 is an intelligent camera that uses thermal imaging technology and network processing system to perform high-speed temperature measurement, screening,recording and real-time surveillance video.
It is a complete epidemic prevention solution integrating body temperature screening and pre-warning monitoring. Built-in warning system, which can realize on-site alarm of body temperature abnormality.
Built-in network transmission module,can realize remote monitoring, remote transmission of temperature measurement results, and push abnormal body temperature information.
Details Images

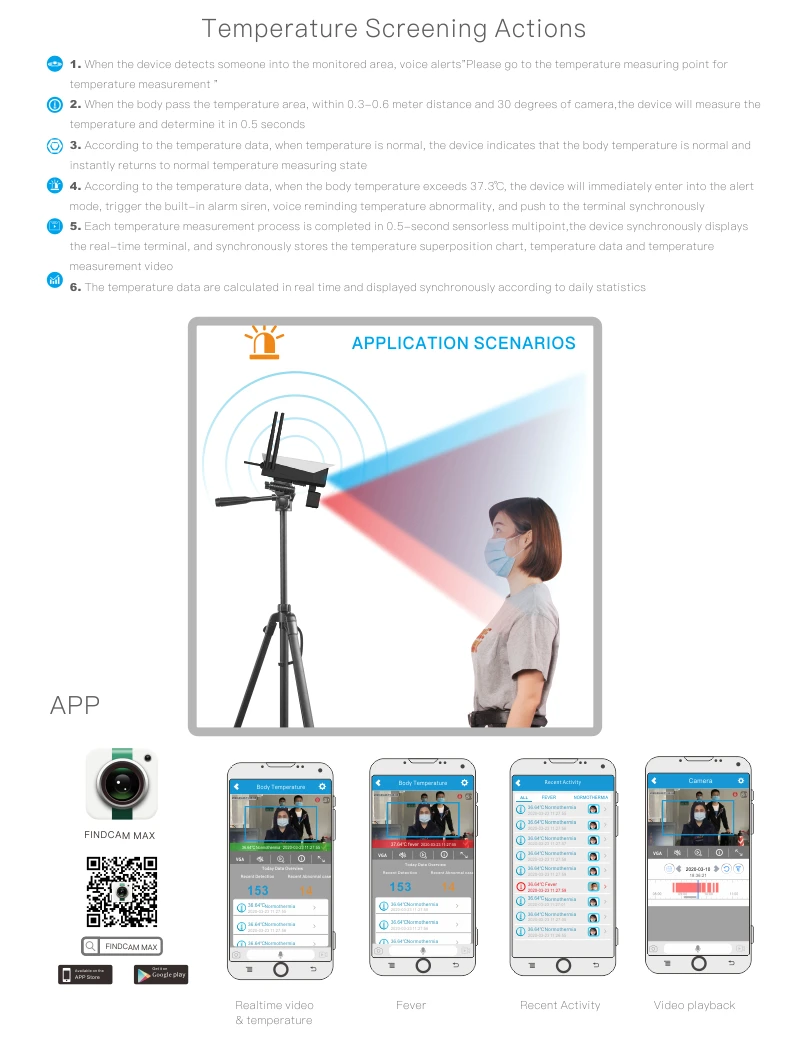

Temperature Screening Actions
1. When the device detects someone into the monitored area, voice alerts"Please go to the temperature measuring point for temperature measurement "
2. When the body pass the temperature area, within 0.3-0.6 meter distance and 30 degrees of camera,the device will measure the temperature and determine it in 0.5 seconds
3. According to the temperature data, when temperature is normal, the device indicates that the body temperature is normal and instantly returns to normal temperature measuring state
4. According to the temperature data, when the body temperature exceeds 37.3℃, the device will immediately enter into the alert mode, trigger the built-in alarm siren, voice reminding temperature abnormality, and push to the terminal synchronously
5. Each temperature measurement process is completed in 0.5-second sensor less multipoint,the device synchronously displays the real-time terminal, and synchronously stores the temperature superposition chart, temperature data and temperature measurement video
6. The temperature data are calculated in real time and displayed synchronously according to daily statistics
2. When the body pass the temperature area, within 0.3-0.6 meter distance and 30 degrees of camera,the device will measure the temperature and determine it in 0.5 seconds
3. According to the temperature data, when temperature is normal, the device indicates that the body temperature is normal and instantly returns to normal temperature measuring state
4. According to the temperature data, when the body temperature exceeds 37.3℃, the device will immediately enter into the alert mode, trigger the built-in alarm siren, voice reminding temperature abnormality, and push to the terminal synchronously
5. Each temperature measurement process is completed in 0.5-second sensor less multipoint,the device synchronously displays the real-time terminal, and synchronously stores the temperature superposition chart, temperature data and temperature measurement video
6. The temperature data are calculated in real time and displayed synchronously according to daily statistics

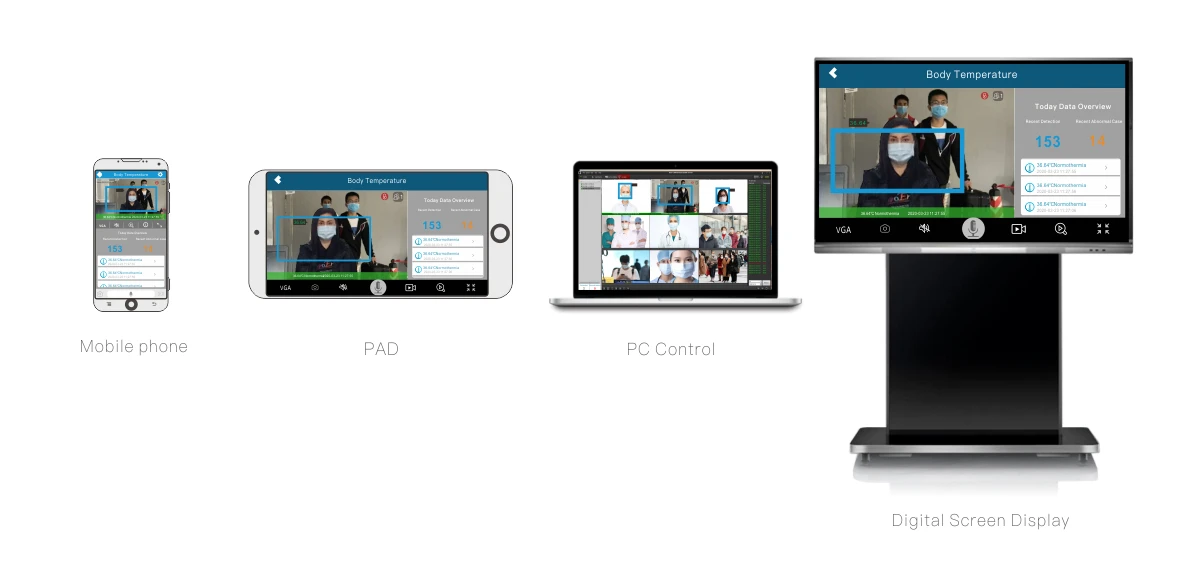

Diversified Display

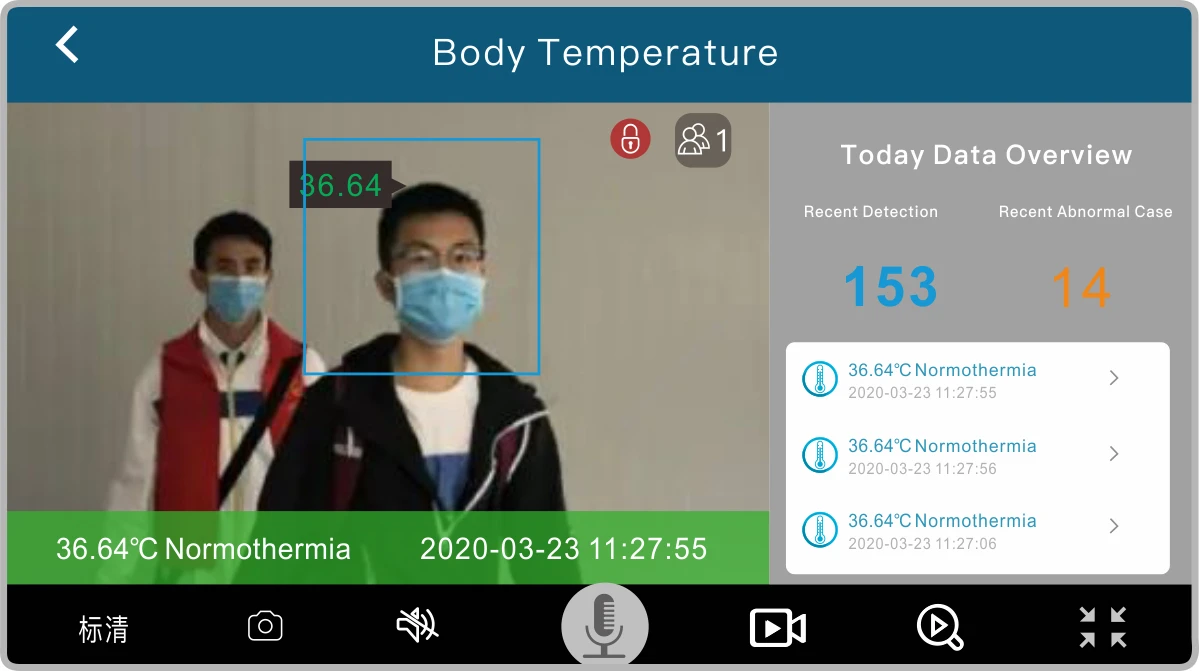

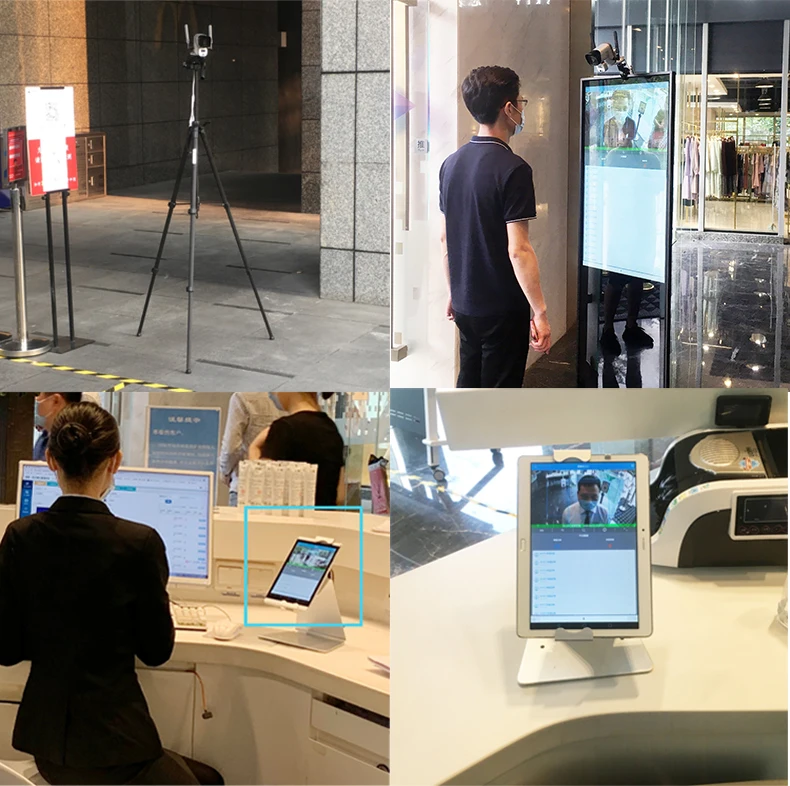

TB02's real-time temperature measuring interface and historical playback can be realized on mobile phone, PAD terminal, computer windows software and digital screen TV software through wireless network and wired network
Data Output
Temperature measurement data output and video presentation, which can be output wirelessly through WIFI and AP hotspot or through RJ network cable. The temperature data is also displayed synchronously on the OLED screen in front of the device, temperature screening results are synchronized to the device and broadcast by voice. All temperature data and video records are stored on the device's memory card

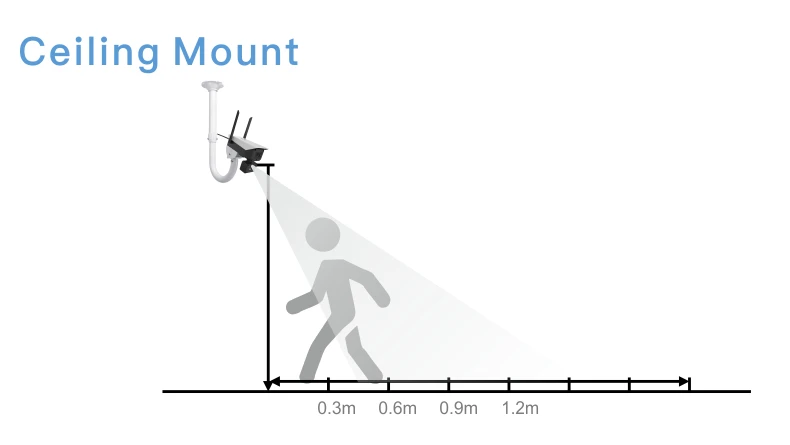

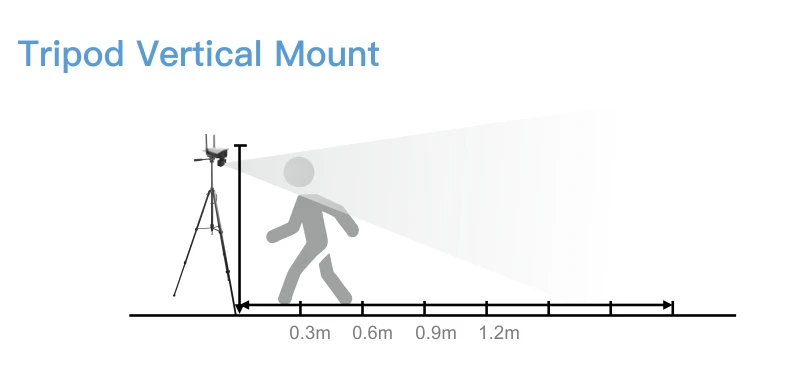

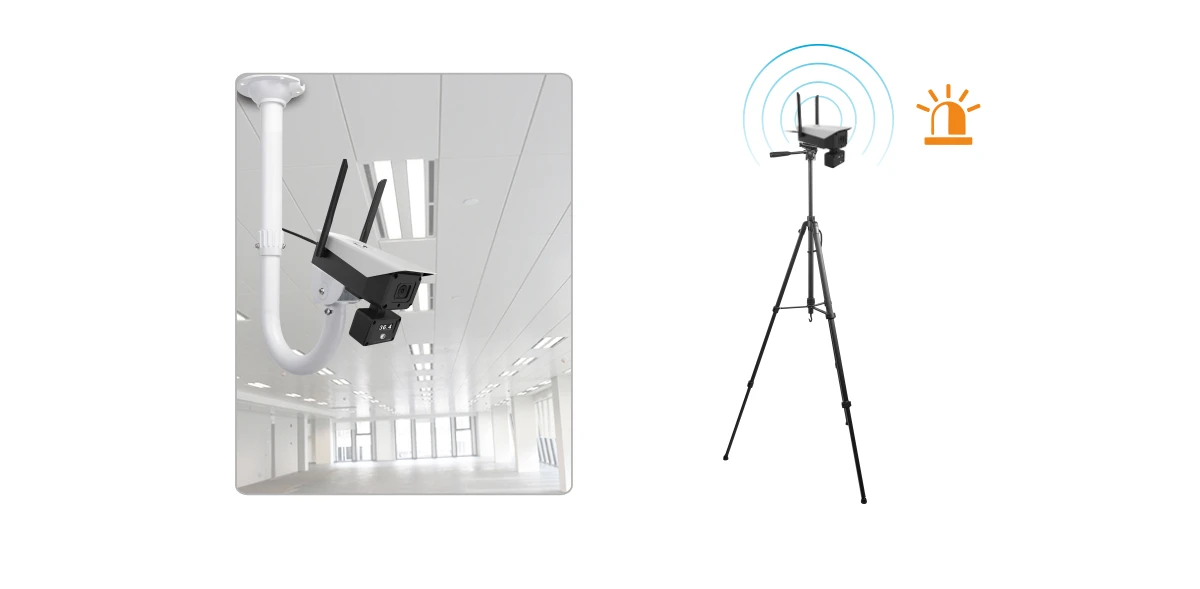

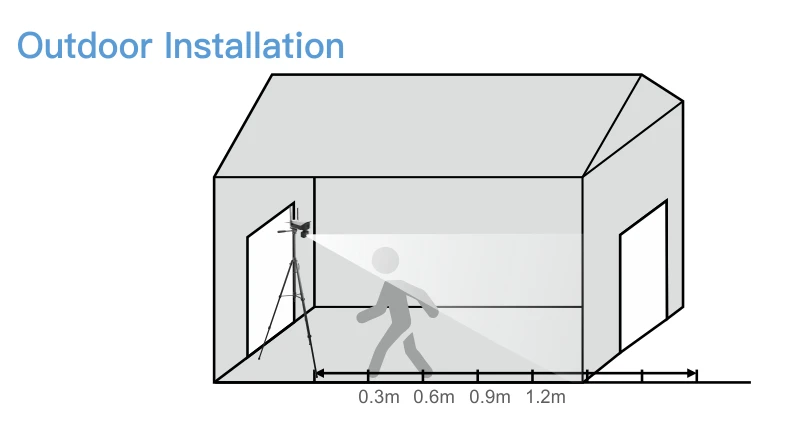

Usage Mode
Specification
Specififications | TB02 | |
Thermal Module | ||
Temperature Distance | 0.3-0.6M | |
Temperature Accuracy | ±0.3℃ | |
Thermal Pixel Time Constant | <4ms | |
Temperature Angle | 32 degrees left and right, 32 degrees up and down | |
Hardware | ||
Processor | HI3516EV200 | |
Image Sensor | 2 Megapixels, 1920 * 1080 CMOS Sensor | |
Frame Rate | 1~30fps | |
Lens/ Visual Angle | 3.6mm/90° | |
Apply System | Software version IOS7.1, Android 4.0 and above | |
Operating System | Linux | |
Video Storage | Support Max 128G TF Card | |
Audio Compression | G.711A | |
Audio Input | Built-in 38dB microphone | |
Audio Output | Built-in speaker (8Ω 2W) | |
Wireless | WiFi 802.11b/g/n wireless network | |
Network Interface | 1 RJ45 10M / 100M Ethernet port | |
Detection | High body temperature, >37.3 | |
General Specifification | ||
Operating Temperature | Operating temperature: 10° c ~ + 32 ° c | |
Power | Maximum power <5w, 12V/1A USBpower supply | |

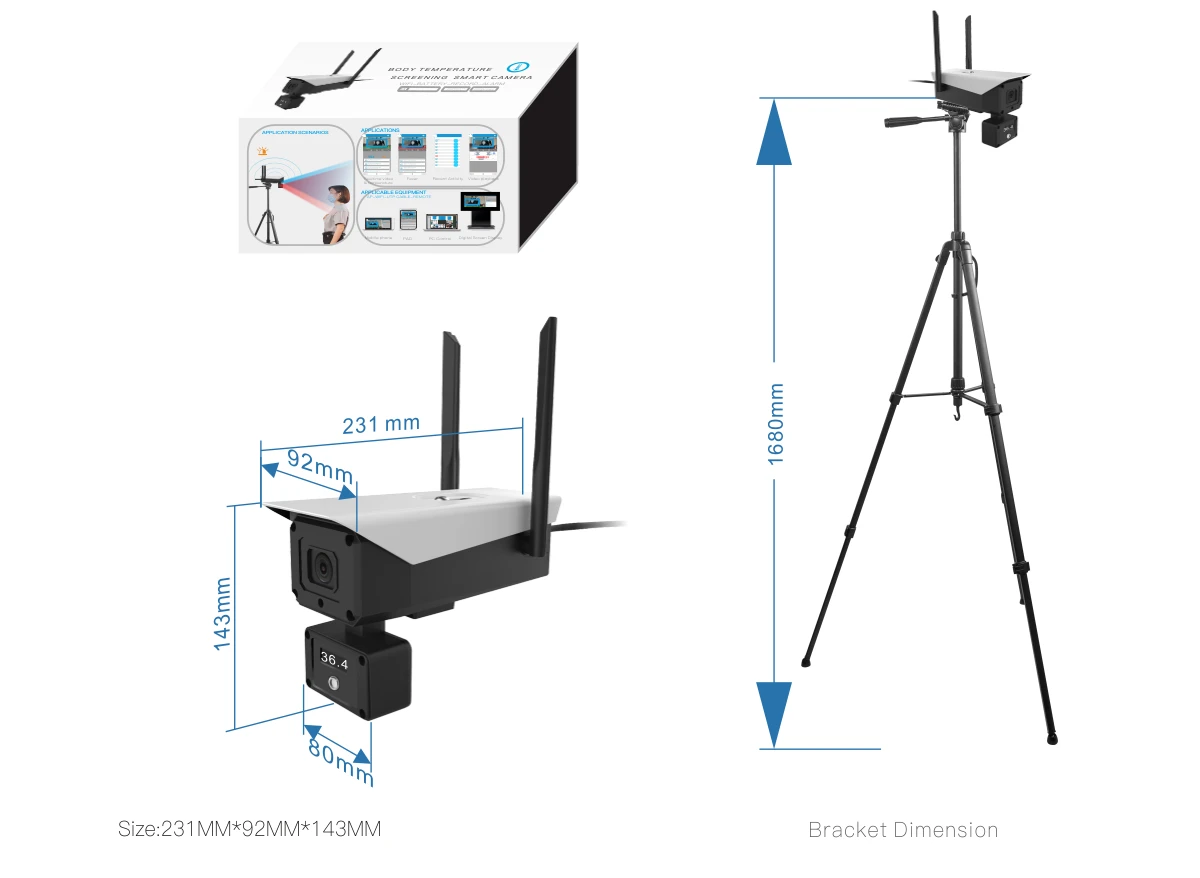

Product Size | 231mm*92mm*143mm | |
Package Size | 266mm*129mm*166mm | |
Weight | 0.5/1.24Kg | |

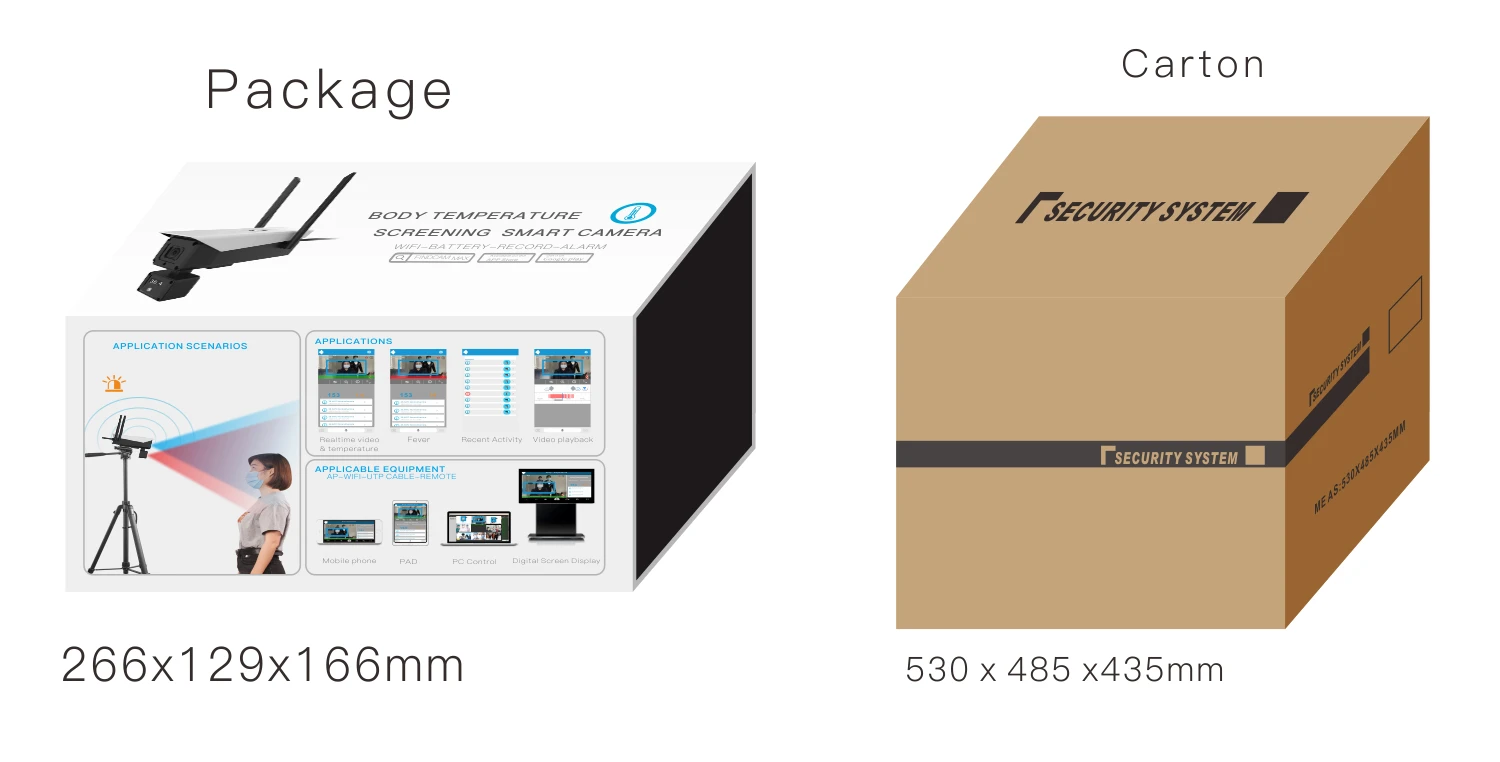

Packing&Shipping
Related Products
Company Introduction
KAANKSY Technology Co., Ltd is one of leading manufactures integrating R&D, production and sales of CCTV products in China. We are focus on CCTV Surveillance products, we are aim to make excellent design security products to covering a diverse vertical markets including retail, building, industry, education, commercial, city surveillance.
COMMON MADE UNCOMMON is a managerial belief we persist in and carry out, and it is a goal of each KAANSKY person pursues. Join us and let’s make a new future.
COMMON MADE UNCOMMON is a managerial belief we persist in and carry out, and it is a goal of each KAANSKY person pursues. Join us and let’s make a new future.
Our Services & Strength
KAANKSY Technology Co., Ltd was established in 2010.We hold 3000 square meters for R&D manufacture warehouse and have long term and extensive experience on OEM/ODM Service.

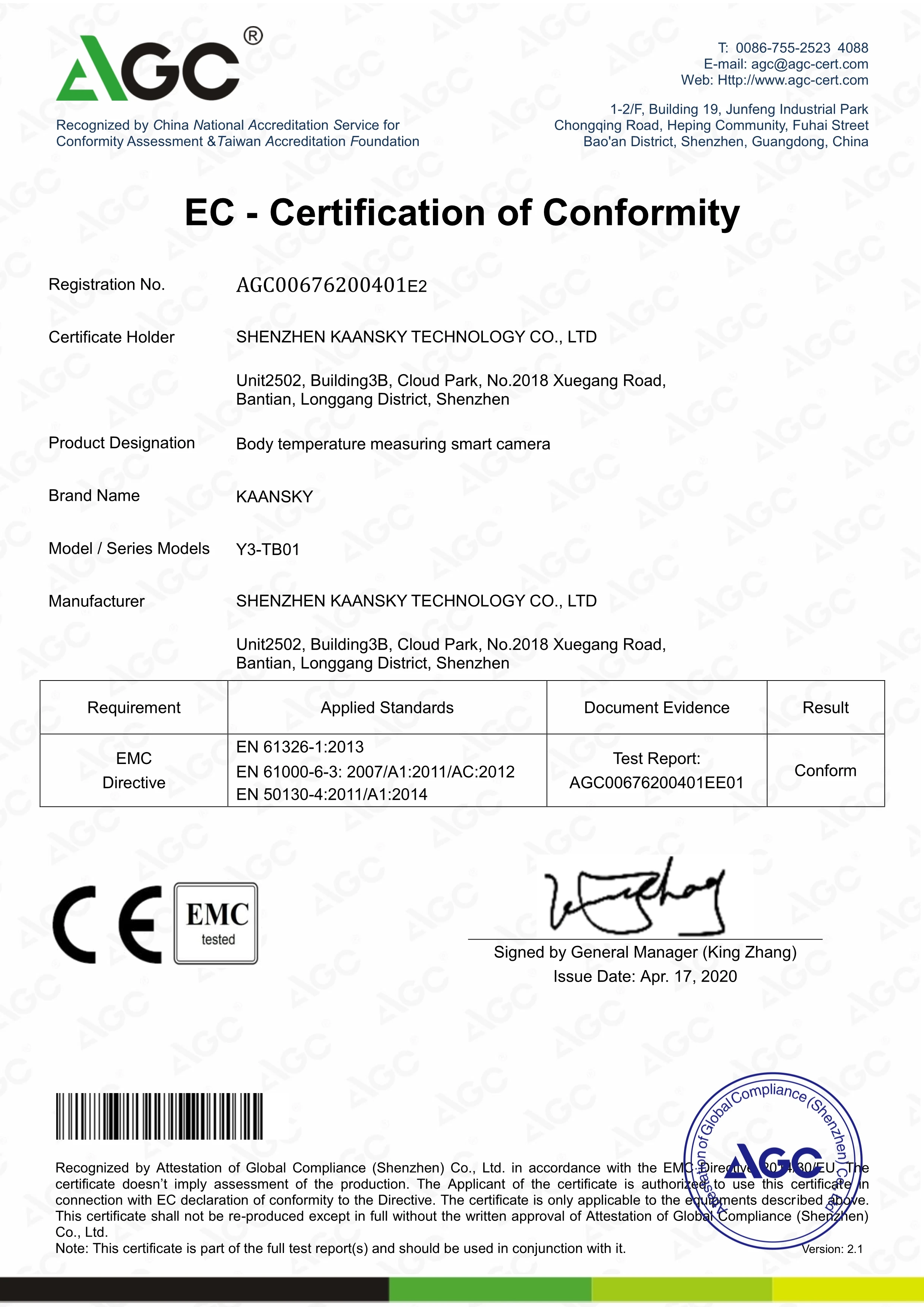

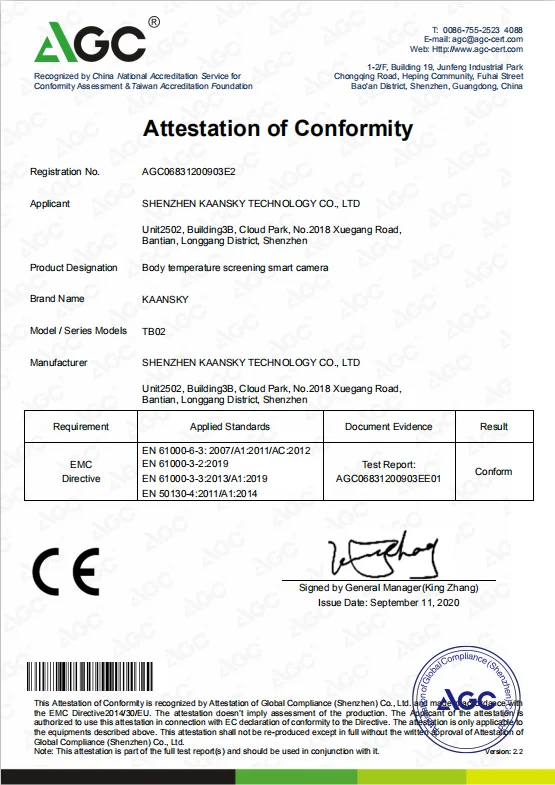

Certifications
FAQ
Q: 1. How can I buy?
A: Contact with us or place the order directly. We will contract you immediately and prepare the goods.
Q: 2. What is the MOQ?
A: The MOQ of this model is 10pcs, 1-2pcs sample order is available.
Q: 3.What is the delivery time?
A: 5-7 days for sample order after we get the payment, 15-25 days for bulk order.
Q: 4.Can you provide SDK?
A: Yes. We will provide SDK as you need.
Q: 5. How will you deliver?
A: All fit for your choice. By air or by sea. In the mean time, we cooperate with international expresses , such as DHL, UPS, FedEx,TNT to enable our customers get their goods rapidly.
Q: 6.What is the cost for your OEM service?
A: For OEM logo, no need to pay extra for our OEM service if order qty over 20pcs of this model. Further discussion of other quantity.
Q: 7.What payment methods do you accept?
A: T/T, Western Union, etc.
Q: 8.What is your warranty?
A: 1 year
A: Contact with us or place the order directly. We will contract you immediately and prepare the goods.
Q: 2. What is the MOQ?
A: The MOQ of this model is 10pcs, 1-2pcs sample order is available.
Q: 3.What is the delivery time?
A: 5-7 days for sample order after we get the payment, 15-25 days for bulk order.
Q: 4.Can you provide SDK?
A: Yes. We will provide SDK as you need.
Q: 5. How will you deliver?
A: All fit for your choice. By air or by sea. In the mean time, we cooperate with international expresses , such as DHL, UPS, FedEx,TNT to enable our customers get their goods rapidly.
Q: 6.What is the cost for your OEM service?
A: For OEM logo, no need to pay extra for our OEM service if order qty over 20pcs of this model. Further discussion of other quantity.
Q: 7.What payment methods do you accept?
A: T/T, Western Union, etc.
Q: 8.What is your warranty?
A: 1 year
