Микропереключатель Zing Ear G606 125 250VAC 40T125 DPDT NO NC рычажный
- Категории: Микро переключатели >>>
- Поставщик: Huizhou,Grandye,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
Products Description
G6 Miniature Micro Switch
Rating | 0.5A 125/250VDC 0.5A /6A 125/250VAC 1/4HP 250VAC 5E4 u 40T125 |
Operating Frequency - Electrical | 10-30 cycles/minute |
Operating Frequency - Mechanical | 120 cycles/minute |
Contact Resistance(Initiative) | 30~100mΩ Max |
Insulation Resistance (at500VDC) | 100mΩ Min |
Dielectric strength | AC , 750V RMS (50-60HZ) |
Storage Temperature | -40℃~+125℃ |
Storage Humidity | 85%RH Max |
Service Life - Electrical | 50,000~100, 000 cycles(Depend on part No.) |
Service Life - Mechanical | 1,000,000 cycles |
G606 Micro Switch Features
1. Small compact size and long service more than 1000000 cycles;
2. Global safety approvals, such as ENEC, CQC, UL, CUL, etc.
2. Global safety approvals, such as ENEC, CQC, UL, CUL, etc.
3. DPDT design
4. Variety of actuator and terminals, like straight, roller, simulated roller levers.
5. Custom service for you
6. Widely used in industrial control
5. Custom service for you
6. Widely used in industrial control

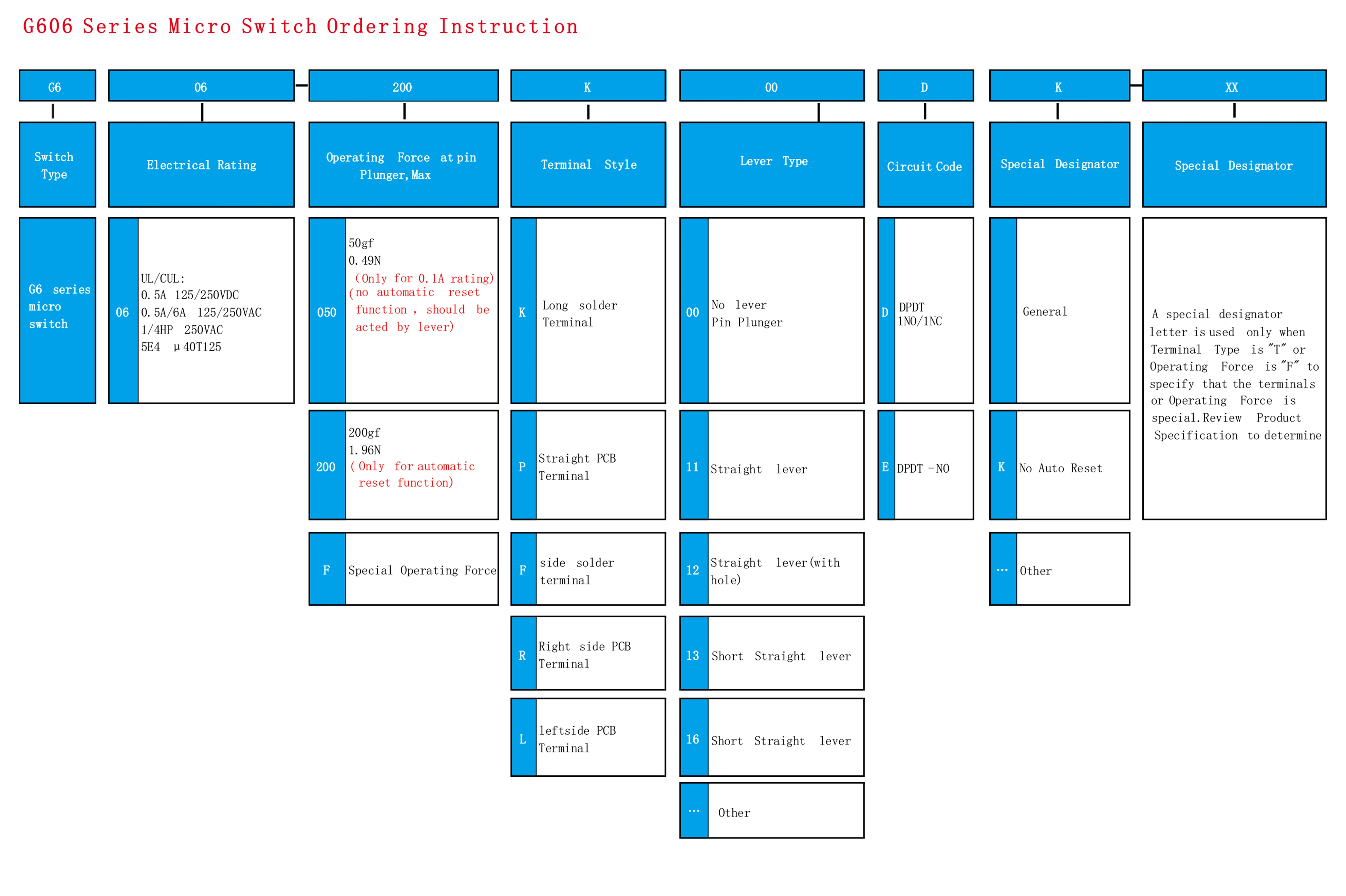

G606 Item

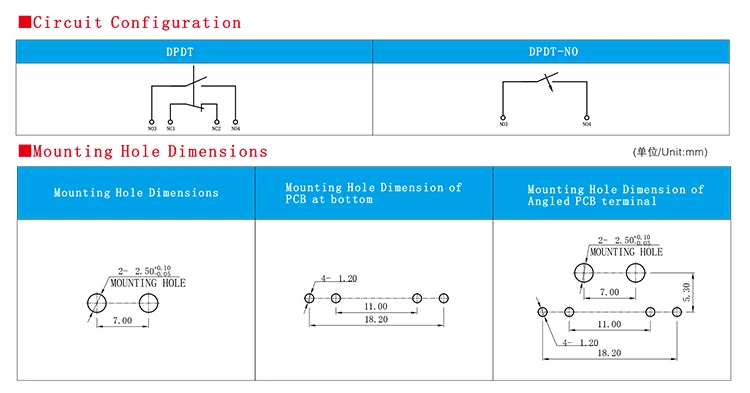

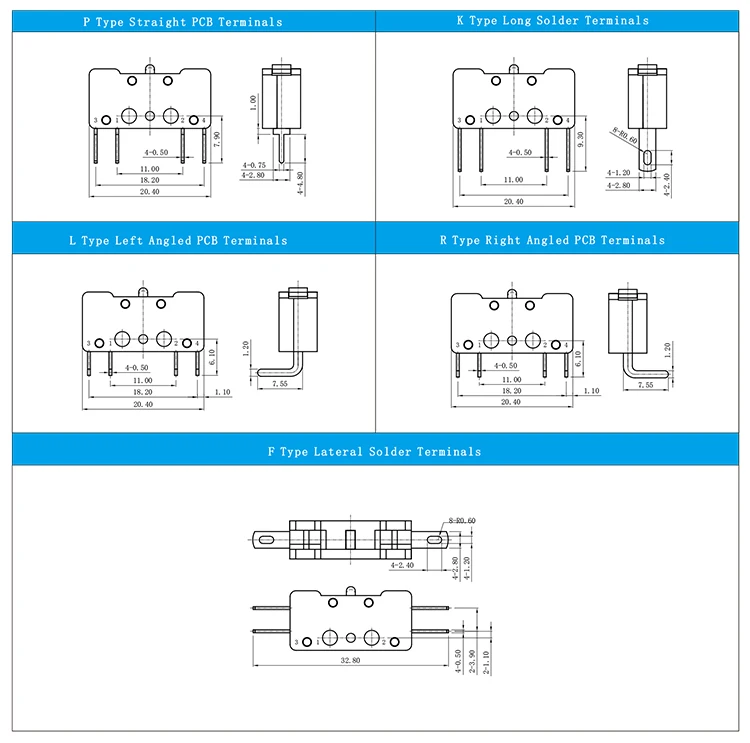

G606 DPDT Microswitch Drawing

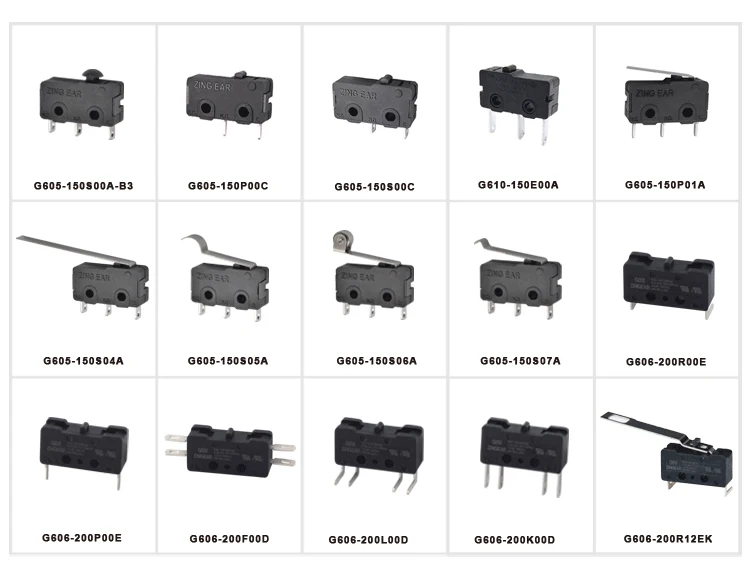

Some of G6 Serious Micro Switches
Application of G6 Serious
Household ice machine
ice cream machine
Soymilk
hair dryer
Juicer
Lipstick machine
Roller shutter machine
Meat grinder
Kneading machine
Blender
Whisk
Alarm
Timer
Oven controller
ice cream machine
Soymilk
hair dryer
Juicer
Lipstick machine
Roller shutter machine
Meat grinder
Kneading machine
Blender
Whisk
Alarm
Timer
Oven controller
Electric screwdriver
electrical tools
Electric tailgate
electric screw driver
Car charging gun
Automotive crimping
Electric vehicle charging connector
Military equipment signal trigger
Tubular motor control switch
Brake system
Forklift handle control
Scanning instrument
Handheld barcode scanner
G605 Vending Machine
Power and socket
Earth leakage protection socket
Meat grinder
Car radio
air purifier
Putter motor
Electronic handbrake
Sewage pump
float
Battery automation equipment
Car radio
air purifier
Putter motor
Electronic handbrake
Sewage pump
float
Battery automation equipment
Household appliances Sweeping robot Fish tank door Electronic locks Putter motor Medical seat
Microwave oven Massage chair
vacuum cleaner
Our Main Products
Company Information
R&D Team
Production Line
Our Advantage
1.30 years manufacture experience
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
Package & Shipment
About Package:
1. Color box inside with foam and carton outside, which can protect goods;
2. Special package is available；
About Shipment:
1. By air, By sea, By land
2. By Express, like DHL, TNT, UPS, Fedx
3. By post or other carrier, this type of shipment will be slow but more cheaper
Certificates
ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
Inquiry Now
LOW MOQ & Free Sample
1Pcs Sample, 10Pcs Order
One-stop Service
Saving Your Time & Money
Fast Delivery &
Cheap Shiping Fees
1-5 Working Days Item In Stock
1. Get the free sample before palce order for all customer
2. Get 3 usd coupon for the first 10 customers each day that send us inquiry
3. One-stop service for free for the first 5 customers each day that send us inquiry.
2. Get 3 usd coupon for the first 10 customers each day that send us inquiry
3. One-stop service for free for the first 5 customers each day that send us inquiry.
