Product Description
Main Features:
● Load power factor is 0.8, adaptive for the develplent trend fo electrical
● Equipment and the load capacity is more strong
● Active input power factor correction (PFC), input power factor is over 0.98
● Wide input voltage and frequency range, adaptive for extreme adverse grid environment of remote areas
● It can be connected with generators
● Zero transfer time effective ensures the safety and reliability of load operation

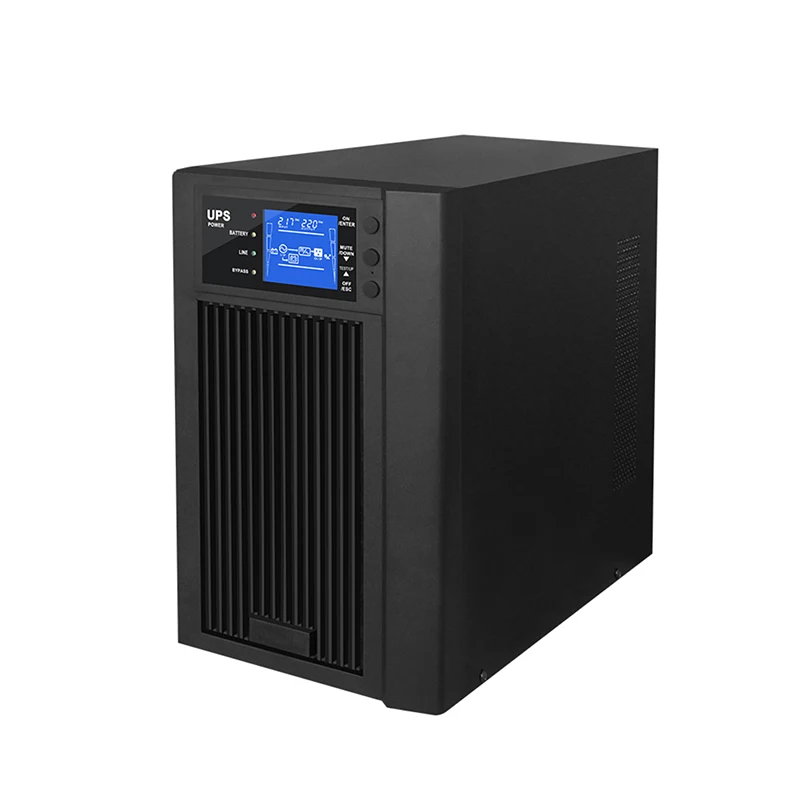

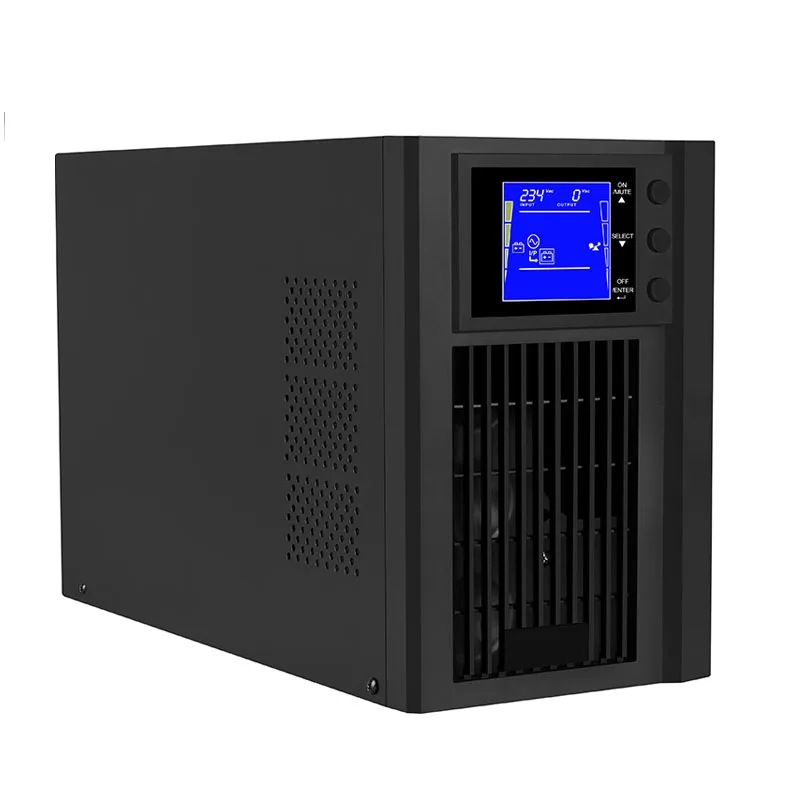

Online ups long backup uninterruptible power supply 10 kva online ups
Paramenters
Rated output capacity | 10KVA/8KW |
Rated voltage | 220/230/240VAC |
Input voltage | 120-275VAC±5 |
Frequency | (45-55)±0.5Hz |
Bypass voltage | 80VAC*(1±5%)-285VAC*(1±5%) |
Battery group voltage | 192VDC |
Battery method | Internal |
Battery capacity&quantity | 12V 7AH*16PCS |
Backup time | half load≥10min. full load≥5min. |
Charging time | 5hours charge to 90%(standard) |
Ouput voltage | 220VAC±1% |
Power factor | 0.8 |
Overload protection | 105-125% |
Output current peak coefficient | 3:1 |
Communication port | RS232(can transfer to RS485, dry node, smart slot, expand to SNMP, SMS and other monitoring methods) |

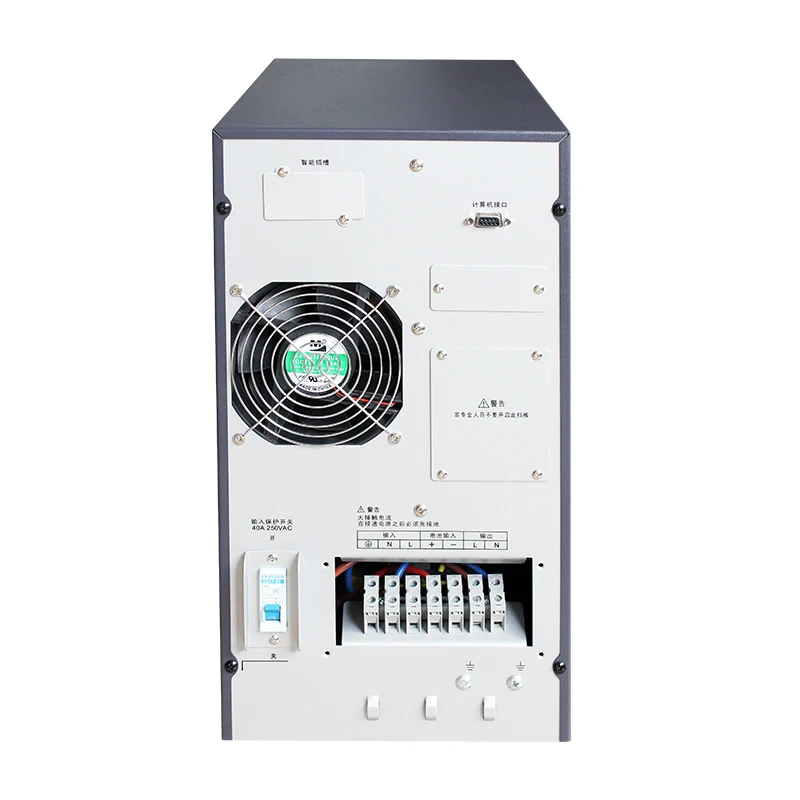

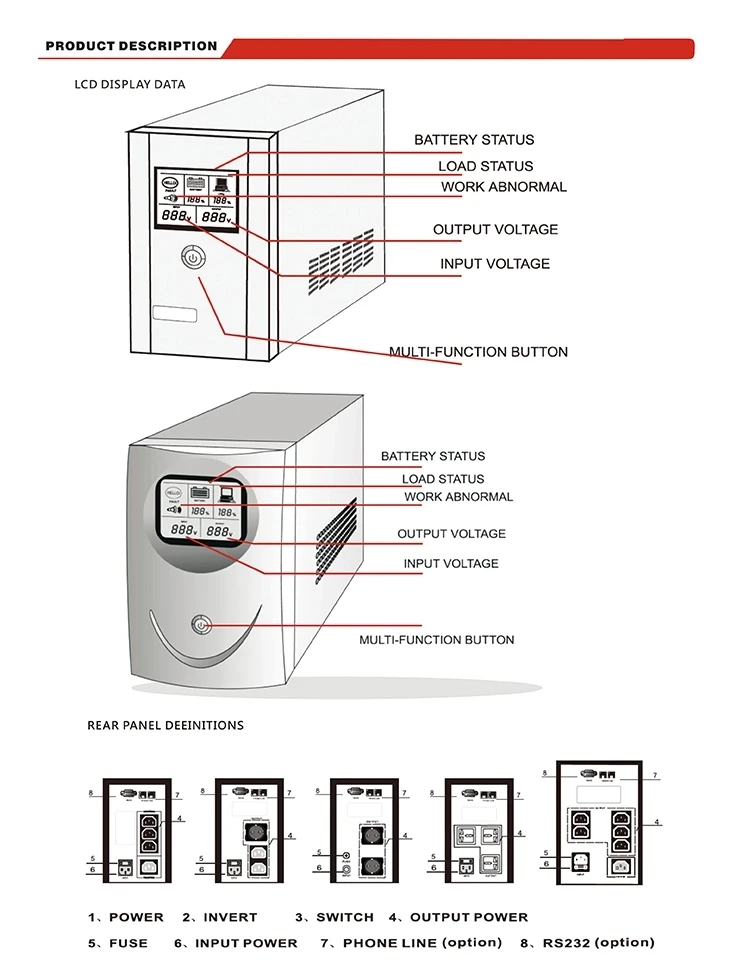

Product Details

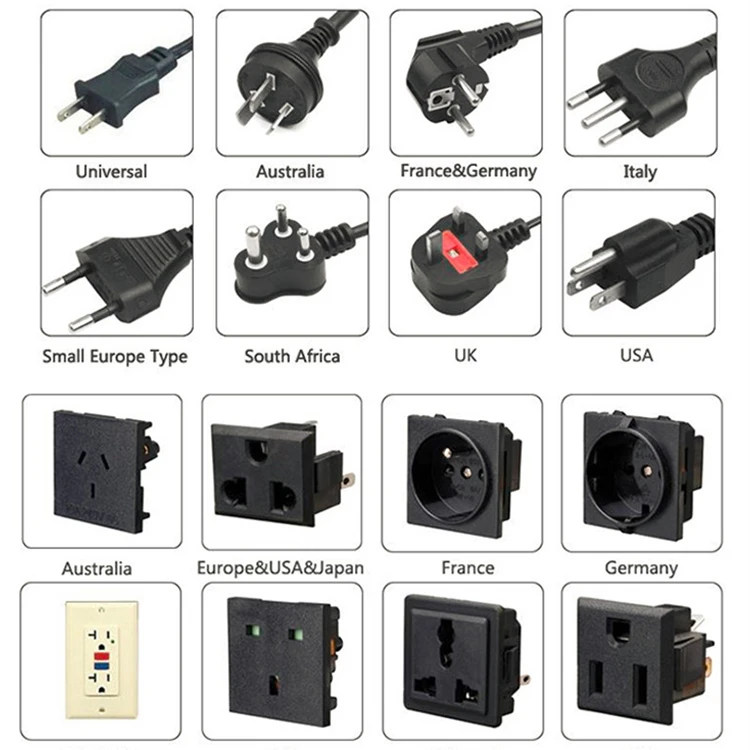

Various socket and plug type for your choice
Packing & Delivering
Application

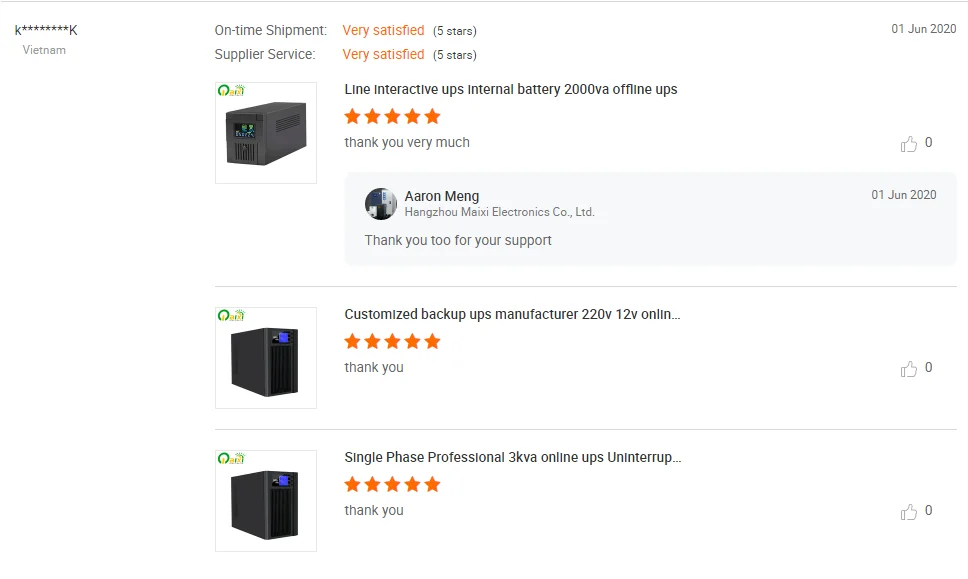

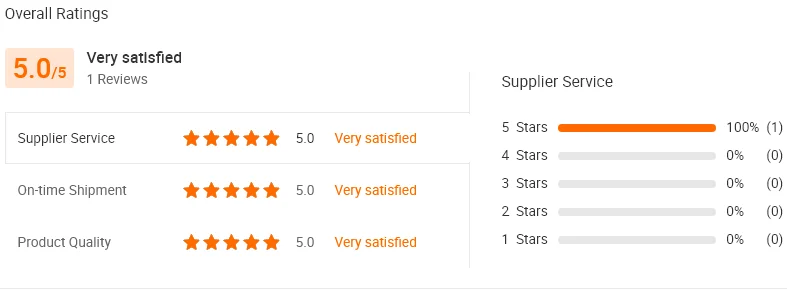

Customer Reviews
Highly Recommended
