Pharmaceutical Cargo Air Shower For Cleanroom
As an important part of dust-free clean pharmaceutical plants, air shower system is installed in the partition between required cleanliness
room and normal production room,It's used for shower and removing dust when personnel or objects entering into the cleanroom,It can effectively keep the rooms have high cleanliness requirement under good condition.
Main Characters:
Our air shower's advantages and functions are as follows:
1) Material: Stainless Steel SUS304;
2) Electronic Interlock. When A door opens, B door is locking. A B doors can not open when blowing;
3) The emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;
4) Color LCD screen, touch-point switch to control blowing time, and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor automatic blowing, automatic stop;

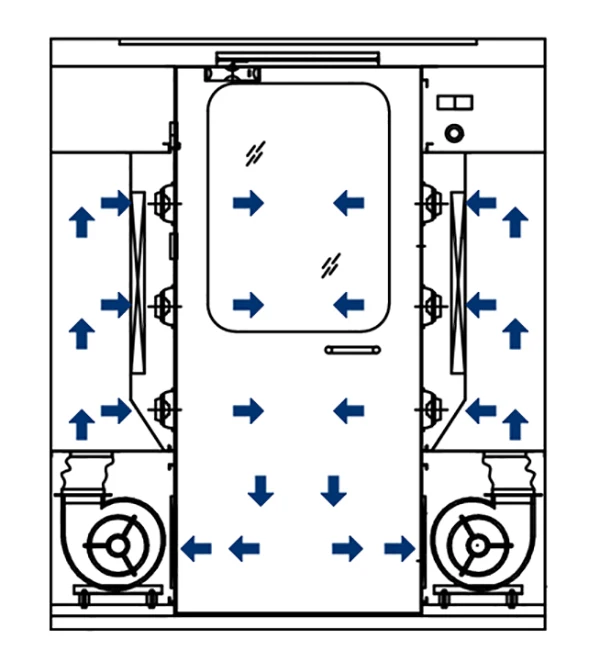

6) Two-side blowing: left and right, stainless steel nozzles. Three-side blowing can be provided according to customers' needs;
7) Germany Dorma door closer, stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;
9) Have electronic interlock air shower patent.
Model | AS-1 | AS-2 | AS-3 | AS-4 |
Applicable Number of People | 1 | 3-4 | 5-6 | 8-10 |
Air Shower Time | 0- 99s (Adjustable) | |||
Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) | 36 (Two Sides) | 48 (Two Sides) |
Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ30 mm | Φ30 mm |
Air Velocity at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
The dimension of High-Efficiency Air Filter (mm) | 600×600×120 | 600×600×120 | 600×600×120 | 600×600×120 |
The dimension of Air Shower Area (mm) | 800×900×1960 | 800×1900×1960 | 800×2900×1960 | 800×3900×1960 |
Outside Dimension (mm) | 1400×1000×2100 | 1400×2000×2100 | 1400×3000×2100 | 1400×4000×2100 |
Power Supply | ||||
Maximum Power Consumption | 1.1KW | 2.2KW | 3.3KW | 4.4KW |
