Плетеная медная электрическая проволока плоская оплетка из луженой

Specification:

1.pure copper wire99.9%
2.flexible and conductive
3.ISO CERTIFICATE

Production standards:
Flexible insulating busbar don't have a special standard in the world, The United States borrow UL758 electronic line standards for production certification, China's enterprises refer to GB/T5023 insulation cable standard and UL758 electronic line standard.

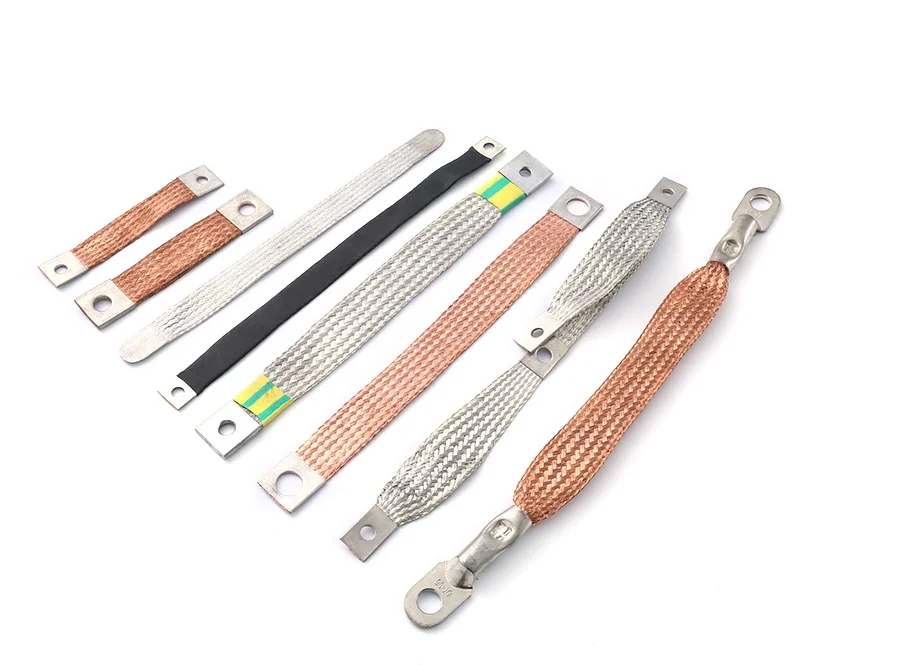

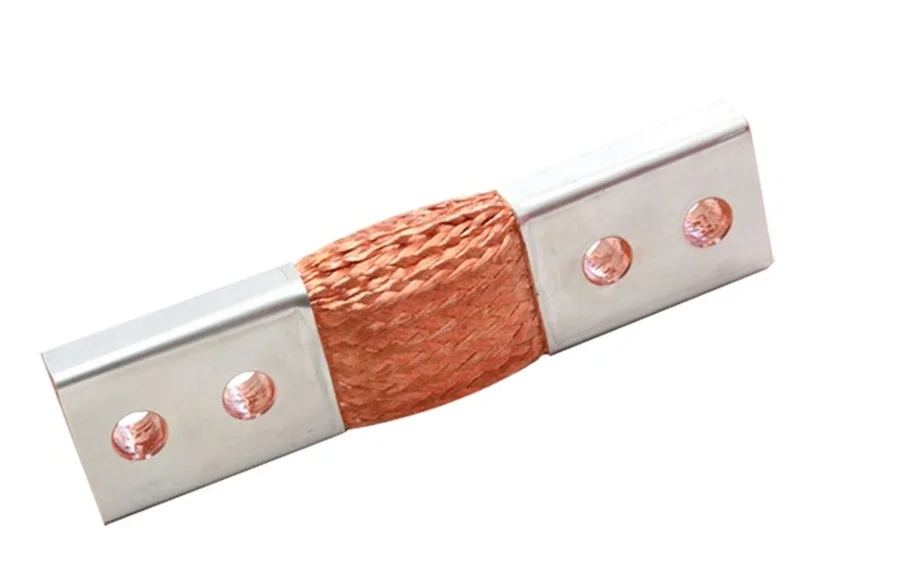

The flexible copper braided connectors are made of flexible copper braids with solderless pressed ferrules at each side as contact areas. The flexible copper braids consist o Cu-ETP wires which are braided according to standard JB/T6313.2-2001.
When you place an order, please specify (Customize request):
1.Cross sectional area, ferrule width
2.Ovweall Length(L)(including ferrules)
3.Ferrule Type & Hole Type, needed hole pattern(note: drilling required to accommodate hardware)
4.Hole Diameter(D), the mounting hole size and number of needed holes
5.Single wire Diameter(default 0.15mm)
6.Amperage or wire size equivalent

Part specification:

copper braided wire square  mm2	construction	width(mm)	thickness(mm)
4	48×4×1/0.15	9	1
4	36×6×1/0.15	9	1.5
6	48×6×1/0.15	12	1.2
10	48×12×1/0.15	20	1.4
10	36×16×1/0.15	16	2
16	48×20×1/0.15	22	2
16	36×26×1/0.15	20	2.5
20	36×32×1/0.15	22	3
25	48×30×1/0.15	22	3
25	36×40×1/0.15	26	3
35	48×20×2/0.15	26	3.2
35	36×56×1/0.15	32	3
50	48×20×3/0.15	28	4.8
50	36×40×2/0.15	28	5
70	48×28×3/0.15	36	5
70	36×56×2/0.15	35	6
75	36×40×3/0.15	30	7
95	48×28×4/0.15	40	6
120	48×28×5/0.15	42	7

   Part specification:

Part No.	Cross Section (mm²)	W/W1 Approx. (mm)	Thickness Approx.    (mm)	L(mm)	D(mm)
1.5/L/D/Aa	1.5	4	1.6	According to your requet
2/L/D/Aa	2	5	1.6
2.5/L/D/Aa	2.5	6	1.6
4/L/D/Aa	4	7	1.8
6/L/D/Aa	6	10	1.8
8/L/D/Aa	8	12	1.8
10/L/D/Aa	10	15	1.8
12/L/D/Aa	12	20	1.9
14/L/D/Aa	14	20	2.1
16/L/D/Aa	16	19	2.2
20/L/D/Aa	20	20	2.4
		25	2.6
25/L/D/Aa	25	25	2.7
35/L/D/Aa	35	25	2.8
50/L/D/Aa	50	20	3.3
		25	4.2
		30	4
		40	3.5
		45	4
70/L/D/Aa	70	20	7
		25	5.7
		30	5.5
95/L/D/Aa	95	25	5.3
100/L/D/Aa	100	20	8.5
		25	7
		30	6.5
		40	5.4
		45	5.5
		50	5.4
120/L/D/Aa	120	25	8.5
		30	7.3
		45	6.3
		50	5.9
150L/D/Aa	150	30	8.6
		40	6.9
		45	7.1
		50	6.6
185L/D/Aa	185	30	10
		40	8
		50	7.5
200L/D/Aa	200	30	10.6
		40	8.4
		50	7.8
		60	7
		75	6.7
		100	7

dominant position

We have high technology in machining,forging,welding ,such as friction welding ,explosion welding ,press welding,can do bimetal welding,copper aluminum transition.we have powerful inspect team .we have our own testing room. accurately data is available in our company.

Application

power substation,generator,transformer,switchgear,bus duct,industrial furnace,Electrolytic smelting,welding equipment,rectifying installation Mine explosion-proof electric appliance etc

copper braided connector order details:

1.provide copper braided wire square (check the following form),and length and if have hole,hole

size,width,thickness

2.shipment:by sea or by air

3.payment:T/T

4.Sample Available
