CE/FCC/QDID wireless nrf52840 small size ble 5.0 module


Certifications


Minew module can save your money up to US$8000
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000


Products Description




--Powerful nRF52840 Module
-- mesh networking supported.

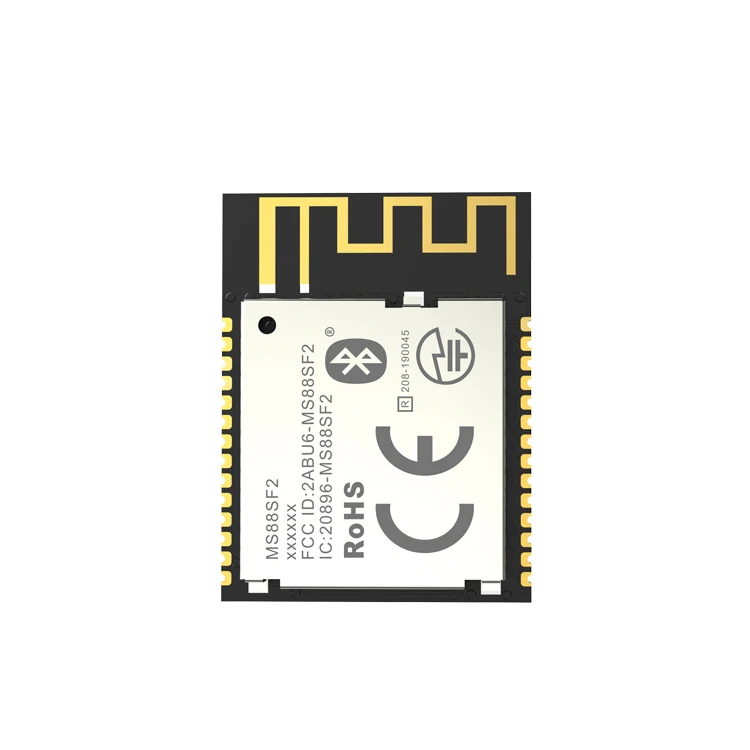

With feature of advanced, ultra low power consumption, highly-flexible, MS88SF2 is a multiprotocol SoM for mesh embedded systems.
Newest Chipset nRF52840 can support Bluetooth 5.0 and IEEE 802.15.4, that is Zigbee and Thread. With an ARM® Cortex™-M4F CPU,
integrated 2.4GHz transceiver and PCB antenna, MS88SF2 is much easier to reduce the development costs and making faster speed.






Application






Feature


Frequency:


2400 to 2483 MHz



Max. Output power:



+8dBm



Single power supply:



1.8 – 3.9V



Range:



10-100m (BER<0.1%, open space)

Chip:


nRF52840 (Nordic)



GPIO Quantity:



20



Module size:

23.2 x 17.4 x 2.0 mm
Operating temperature range:


-25 to 85 degree Celsius



1MB Flash and 256kB RAM



ARM Cortex-M4F processor

Metal shielding with marking


Supports USB data interfac

50ΩPCB antenna type
IEEE 802.15.4 with Thread and Zigbee support

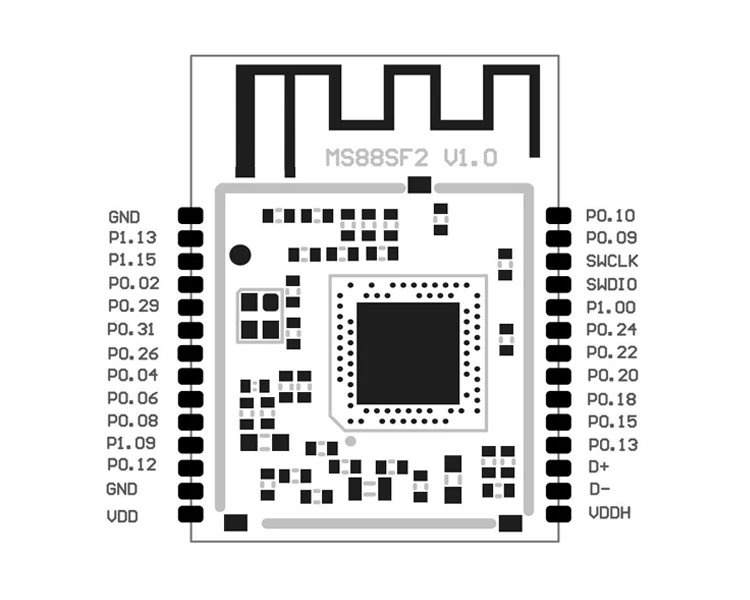

Pin description




Pin
Type
Description
VDD
Power
Power supply
VDDH
Power
Power supply，2.5V-5.5V
GND
Power
Ground
SWDIO
Digital I/O
System reset (active low). Hardware debug and
D-
Digital I/O
USB D-
D+
Digital I/O
USB D+
P 0.13
Digital I/O
General purpose I/O
P 0.15
Digital I/O
Digital I/O General purpose I/O
P 0.20
Digital I/O
General purpose I/O
P 0.22
Digital I/O
P 0.22 Digital I/O General purpose I/O
P 0.24
Digital I/O
General purpose I/O
P 0.08
Digital I/O
General purpose I/O
P 0.06
Digital I/O
General purpose I/O
P 0.26
Digital I/O
General purpose I/O


SWCLK



Digital input
（debug）




Hardware debug and flash programming I/O



Recommend Products






Company Profile


About minew
Minewtech was established in 2007. We are an Apple Certified Bluetooth Module/iBeacon/Google Eddystone Official/RFID(NFC)/Key Finder manufacturer in Shenzhen, China.

• Leading IoT Hardware Manufacturer
• ISO9001, ISO14001 & OHSAS18001 &TUV certified manufacturer
• Professional R&D Team, Plenty of Products Line
• All Products compatible with CE, FCC, RoHs, ANATEL, Japan Radio Frequency Permit Certificates
