Новые с высокой пропускной способностью и энергосберегающий маленький гусеничный
- Категории: Экскаваторы >>>
- Поставщик: Xingtai,Huaya,Machine,Tool,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

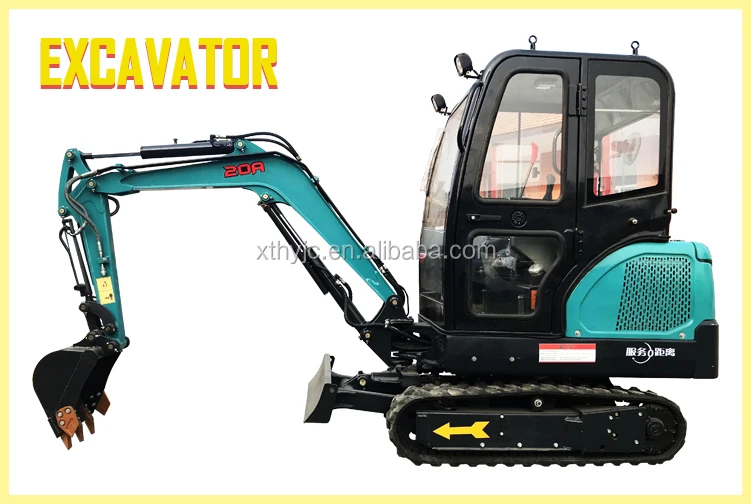

New high-efficiency and energy-saving small crawler excavator
| MODEL | PC0812 | PC1012 | PC1526 | PC1526 | PC1830 | PC2230 |
| Total weight | 860kg | 1000kg | 1300kg | 1450kg | 1700kg | 2200kg |
| Total length | 2480mm | 2550mm | 2650mm | 2650mm | 3160mm | 4082mm |
| Total width | 750mm | 970mm | 1120mm | 1120mm | 1150mm | 1220mm |
| Total height | 1375mm | 2050mm | 2200mm | 2200mm | 2280mm | 2300mm |
| Max.digging radius | 2450mm | 2550mm | 2850mm | 2850mm | 3670mm | 3760mm |
| Max.digging depth | 1200mm | 1600mm | 1650mm | 1650mm | 2150mm | 2050mm |
| Max.digging height | 2350mm | 2500mm | 2500mm | 2600mm | 3175mm | 3200mm |
| Max.dumping height | 1600mm | 1750mm | 1850mm | 1850mm | 2310mm | 2300mm |
| Min.ground clearance | 80mm | 150mm | 150mm | 150mm | 170mm | 210mm |
| Engine brand | Changchai | Changchai | Changchai | Changchai | Changchai | Changchai |
| Engine model | 192F | 192F | EV80 | EV80 | 390Q | 390Q |
| Output power | 8.2kw | 8.2kw | 9.2kw | 9.2kw | 20kw | 20kw |
| Walking speed | 0-1.8km/h | 0-3.5km/h | 0-4.5kw/h | 0-4.5km/h | 0-4.5km/h | 0-4.5km/h |
| Climbing angle | 35° | 35° | 35° | 35° | 35° | 35° |
contact us :
WhatsApp: 86 15833600378
