SDEKON PHB-3000

Portable Hydraulic Brinell Hardness Tester

Product Description

Application:

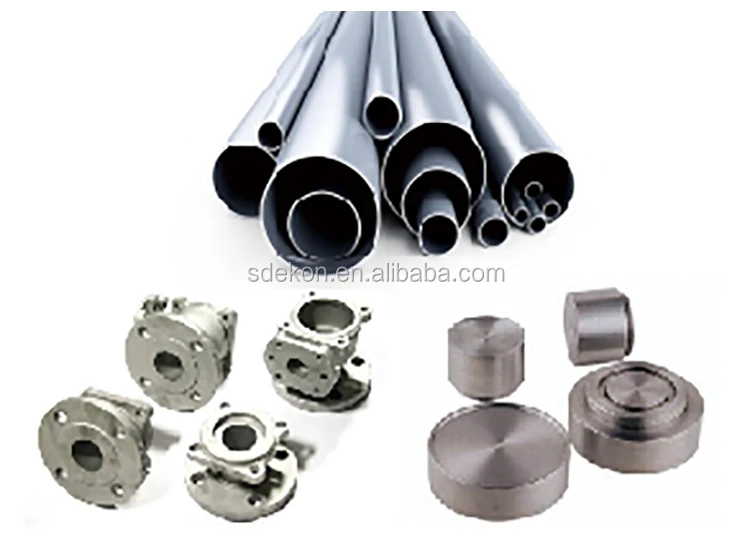

On-site test of steel products, nonferrous metal, castings, forgings and semi-finished heat

treatment parts. Applied to too large parts for desk testers to test. Replace Leeb testers

which are in low accuracy and reliability. Indentation could be read by Brinell indentation

measurement system and hardness values displayed directly.

Technical Parameter:

Model	PHB-3000
Test Force	3000 Kgf
Test Ball	10mm Carbide Alloy Ball
Test Range	32~650 HBW
Opening Dimension	350mm (Height) x 100mm (Throat Depth)
Indicator Error	Complies With ISO 6506, ASTM E10 and ASTM E110
Repeatability Error	Complies With ISO 6506, ASTM E10 and ASTM E110
Test Force Error	Complies With ISO 6506, ASTM E10 and ASTM E110
Weight	13.80 KG

Product Physical Pictures:

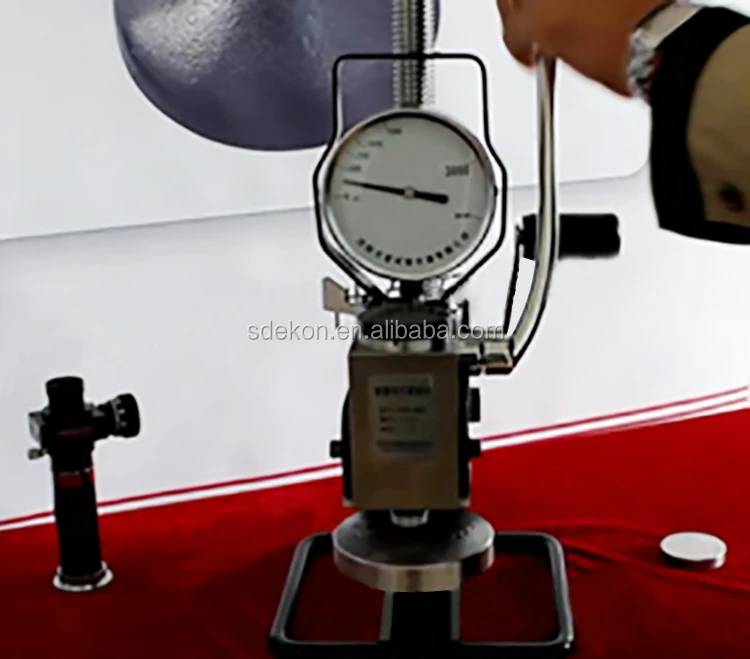

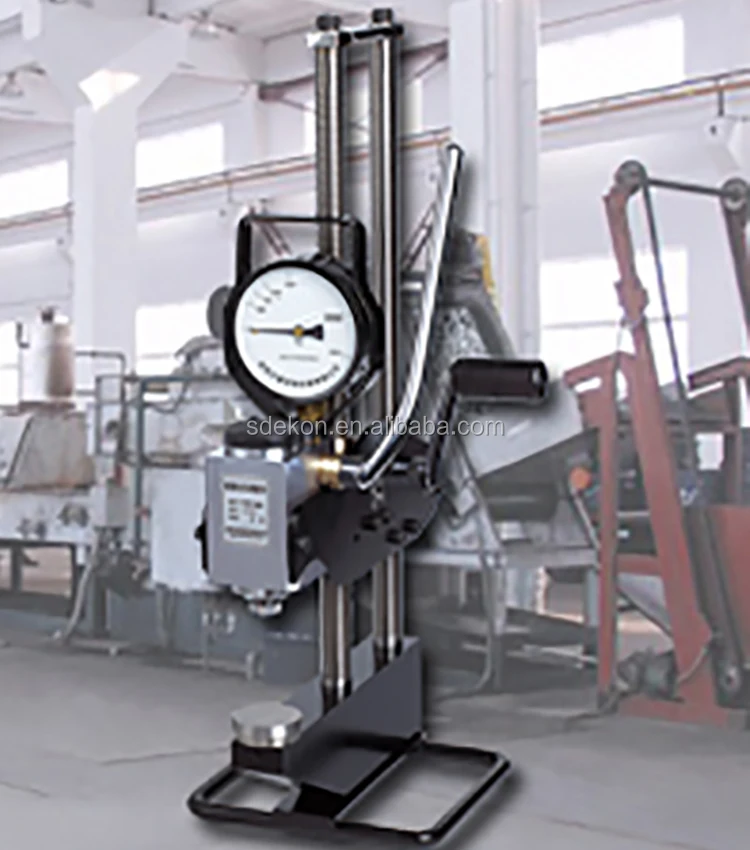

PHB-3000(1)

PHB-3000(3)

PHB-3000(2)

PHB-3000(4)

PHB-3000(5)
