Пластиковая георешетка для дороги
US $0.11-$3.20
Высокая прочность на растяжение двухосное липкий сварки геосетка pp60 Для мягкую почву для
- Категории: Geogrids >>>
- Поставщик: The,Best,Project,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

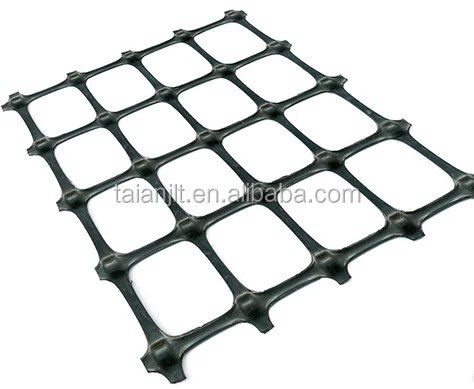

High tensile strength biaxial sticky welding geogrid pp60 for soft soil foundation reinforcement
Introduction :
The properties of biaxial geogrid, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of biaxial geogrid lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. Biaxial geogrid can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill. Standard Roll Dimensions
Technical parameter :
| Index Properties | Test Method | Unit | GG1515 | GG2020 | GG3030 | GG4040 |
| MD TD | MD TD | MD TD | MD TD | |||
| Polymer | -- | -- | PP | PP | PP | PP |
| Minimum Carbon Black | ASTM D 4218 | % | 2 | 2 | 2 | 2 |
| Tensile Strength@ 2% Strain | ASTM D 6637 | Kn/m | 5 5 | 7 7 | 10.5 10.5 | 14 14 |
| Tensile Strength@ 5% Strain | ASTM D 6637 | Kn/m | 7 7 | 14 14 | 21 21 | 28 28 |
| Ultimate Tensile Strength | ASTM D 6637 | Kn/m | 15 15 | 20 20 | 30 30 | 40 40 |
| Strain @ Ultimate Strength | ASTM D 6637 | % | 13 10 | 13 10 | 13 10 | 13 10 |
| Structural Integrity biaxial geogrid pla V stic geogrid | ||||||
| Junction Efficiency | GRI GG2 | % | 93 | 93 | 93 | 93 |
| Flexural Rigidity | ASTM D 1388 | Mg-cm | 700000 | 1000000 | 3500000 | 10000000 |
| Aperture Stability | COE Method | mm-N/deg | 646 | 707 | 1432 | 2104 |
| Dimensions | ||||||
| Roll Width | -- | M | 3.95 | 3.95 | 3.95 | 3.95 |
| Roll Length | -- | M | 50 | 50 | 50 | 50 |
| Roll Weight | -- | Kg | 39 | 50 | 72 | 105 |
| MD denotes Machine direction. TD denotes transverse direction. plastic geogrid | ||||||
biaxial geogrid

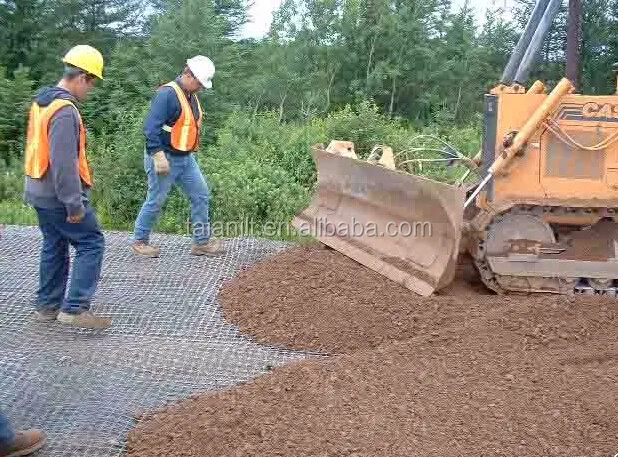

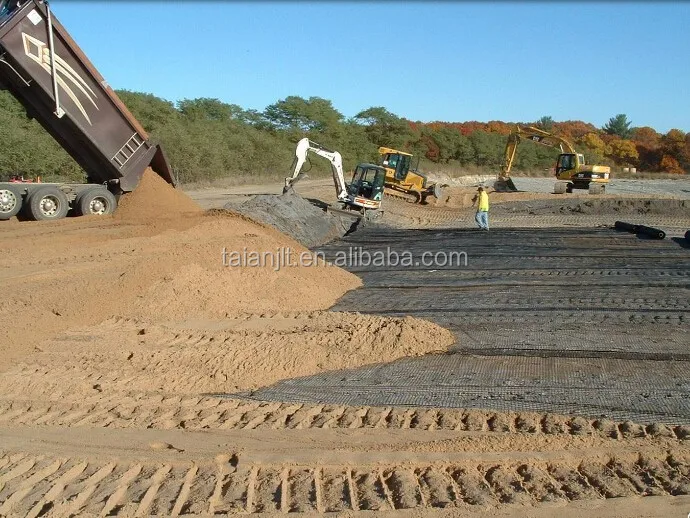

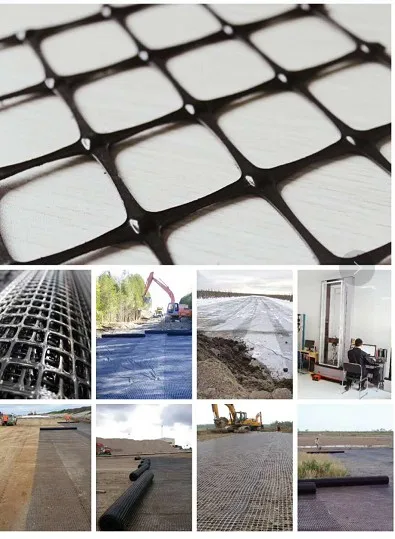

Applications:
Make reinforce treatment for various kinds of soft soil foundation to evenly distribute load stress and reduce uneven settlement, not easy to generate static electricity, and flammability property good in the coal mine. It is easy to wash coal.
Used in highway, railway, port, airport and municipal project. Support in the recovery working face of coal mine and roadway in the coal mine.
Function:
1. Improving bearing capacity of road foundation and prolong its service life
2. Preventing road surface from subsiding and cracking plastic geogrid
3. Be convenient for construction, reducing cost and maintaining expense for the project
4. Providing stability for slopes and avoid the losing of the water and soil
If you have any questions or inquiries for biaxial geogrid,Contact us at amanda@hdpetgm.com we will reply as soon as possible.
Whatsapp / Wechat / Line Number +86 150 6417 8771
