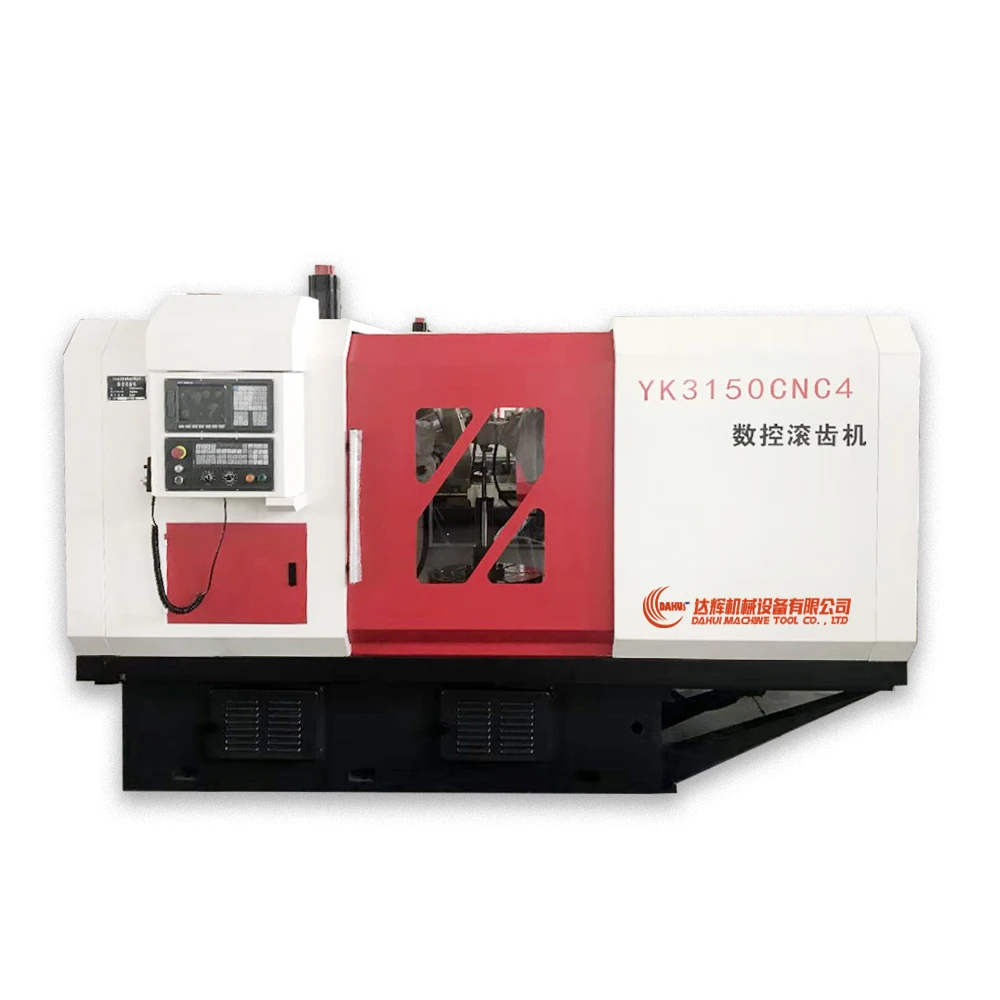

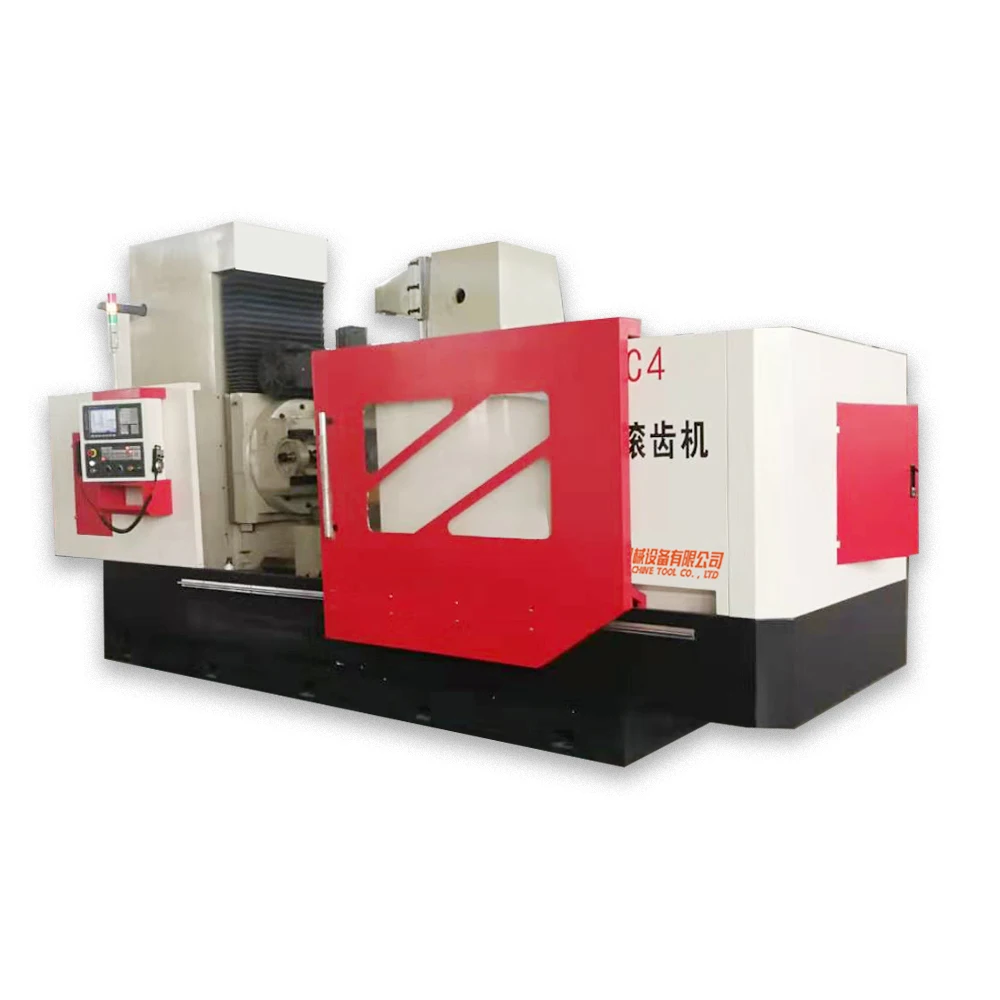

YK31200-6 Heavy Duty 6 Axis CNC Зубофрезерный станок
- Категории: Gear Cutting Machines >>>
- Поставщик: Dalian,Dahui,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
YK3150 CNC gear hobbing machine general precision type two axis numerical control, two axis numerical control system (also according to customer orders can be imported or domestic other numerical control system), the radial feed movement of workbench (X axis) and axial feed movement of hob (z-axis) ac servo control, can easily achieve a clamping, many, many times square loop.According to the principle of generating method, adopt the method of continuous points tooth gear hob can finish straight gear, helical gear, small taper gears, drum gear processing;At the same time, the spline hob can processing spline;The sprocket hob can processing chain wheel;With the worm gear hob, using the method of radial rolling cut worm gear.
YK31200-6 | YK31250-6 | YK31315-6 | YK31400-6 | YK31500-6 | ||||||||
Max. workpiece diameter | mm | 2000 | 2500 | 3150 | 4000 | 5000 | ||||||
Max. workpiece module | mm | 32 | 32 | 32 | 36 | 36 | ||||||
Number of teeth | Any | Any | Any | Any | Any | |||||||
Max. tooth width | mm | 1000 | 1000 | 1000 | 1800 | 1800 | ||||||
Radial travel (X-axis) | mm | 170～1500 | 200～1500 | 520～2140 | 950～3200 | 1200～3450 | ||||||
Tool post slide travel (Z-axis) | mm | 855～2155 | 855～2155 | 855～2155 | 765～2765 | 645～2645 | ||||||
Max. rotation angle of tool post (A-axis) | ° | ±45º | ±45º | ±45º | ±45º | ±45º | ||||||
Max. installation diameter of hob | mm | 350 | 350 | 350 | 450 | 450 | ||||||
Max. installation length of hob | mm | 405 | 405 | 405 | 700 | 550 | ||||||
Max. tangential movement of the hob (Y-axis) | mm | 340 | 340 | 340 | 340 | 490 | ||||||
Distance between hob center and worktable center | mm | 170～1500 | 200～1500 | 520～2140 | 950～3200 | 1200～3450 | ||||||
Distance between hob center and worktable surface | mm | 855～2155 | 855～2155 | 855～2155 | 765～2765 | 645～2645 | ||||||
Hob speed | r/min | 25～120 | 25～120 | 25～120 | 25～120 | 12～120 | ||||||
Max. speed of worktable | r/min | 1.5 | 1.5 | 1.5 | 3 | 1 | ||||||
Worktable diameter | mm | 1890 | 2040 | 2640 | 3400 | 3835 | ||||||
Diameter of worktable center hole | mm | 800 | 800 | 1200 | 1200 | 1200 | ||||||
Tangential travel speed (Y-axis) | mm/min | 1～3000 | 1～3000 | 1～3000 | 1～3000 | 1～3000 | ||||||
Min. programming amount of CNC axes | mm | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | ||||||
Main motor power | KW | 35 | 35 | 35 | 115 | 75 | ||||||
Total power | KW | 77 | 77 | 77 | 167 | 120 | ||||||
Machine net weight | Kg | 42000 | 45000 | 55000 | 110000 | 95000 | ||||||
Machine dimensions (LxWxH) | mm | 7800X5090X4300 | 8050X5240X4300 | 8400X5840X4300 | 8780X6200X5300 | 10400X6635X5300 | ||||||
Optional: 6 axis, 4 axis, 2 axis | ||||||||||||
Detailed Images

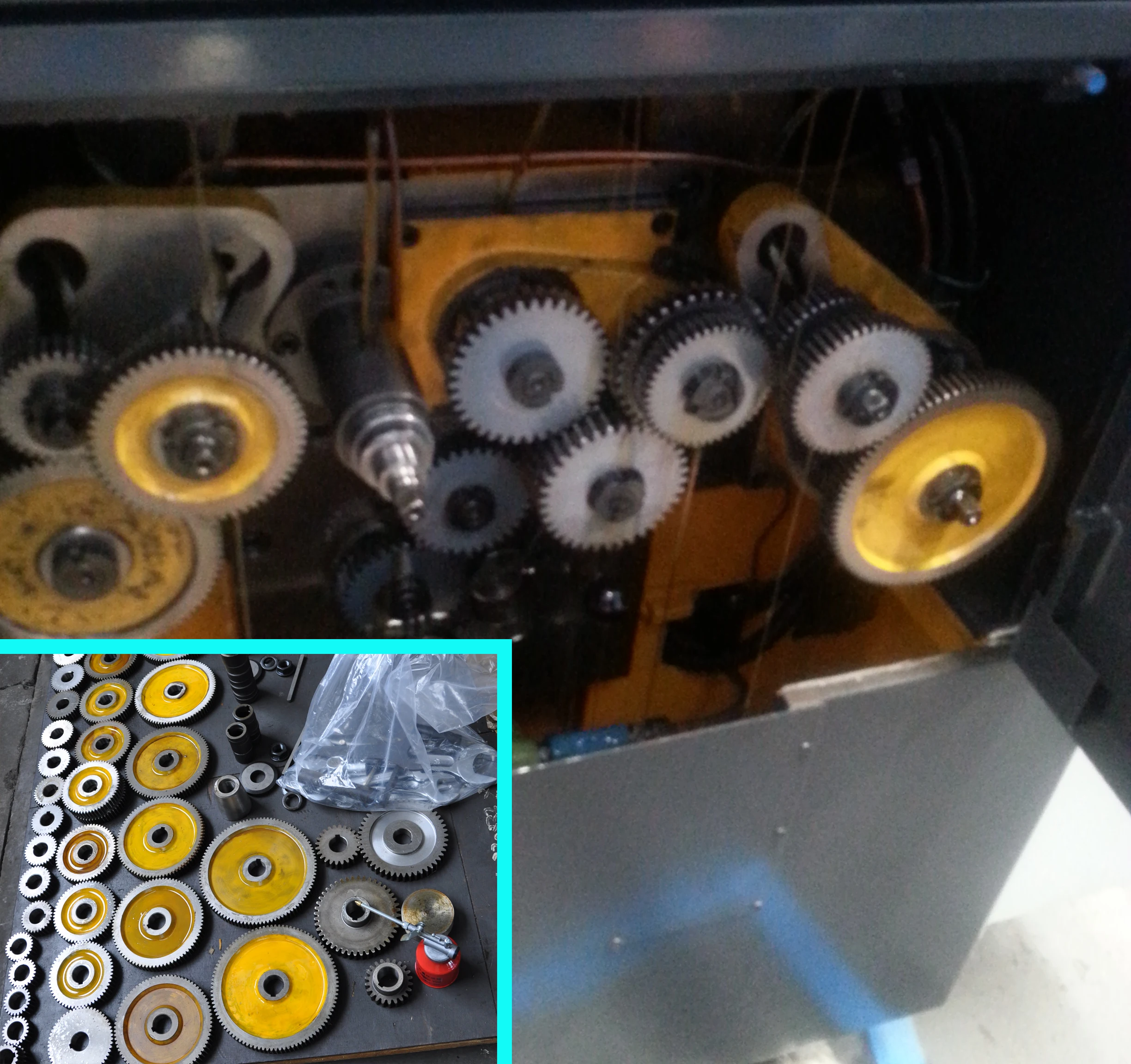

Change Gear:
2 or 3 Axis CNC has the change gear, the 4/5/6 axis CNC don't have the change gear, which don't need to calculate and directly control by CNC system.
Hob carriage:
The hob holder is used to support the hob main shaft and drive the hob mounted on the main shaft to make vertical feed motion. The internal bearing adopts domestic famous or imported bearings with long life.

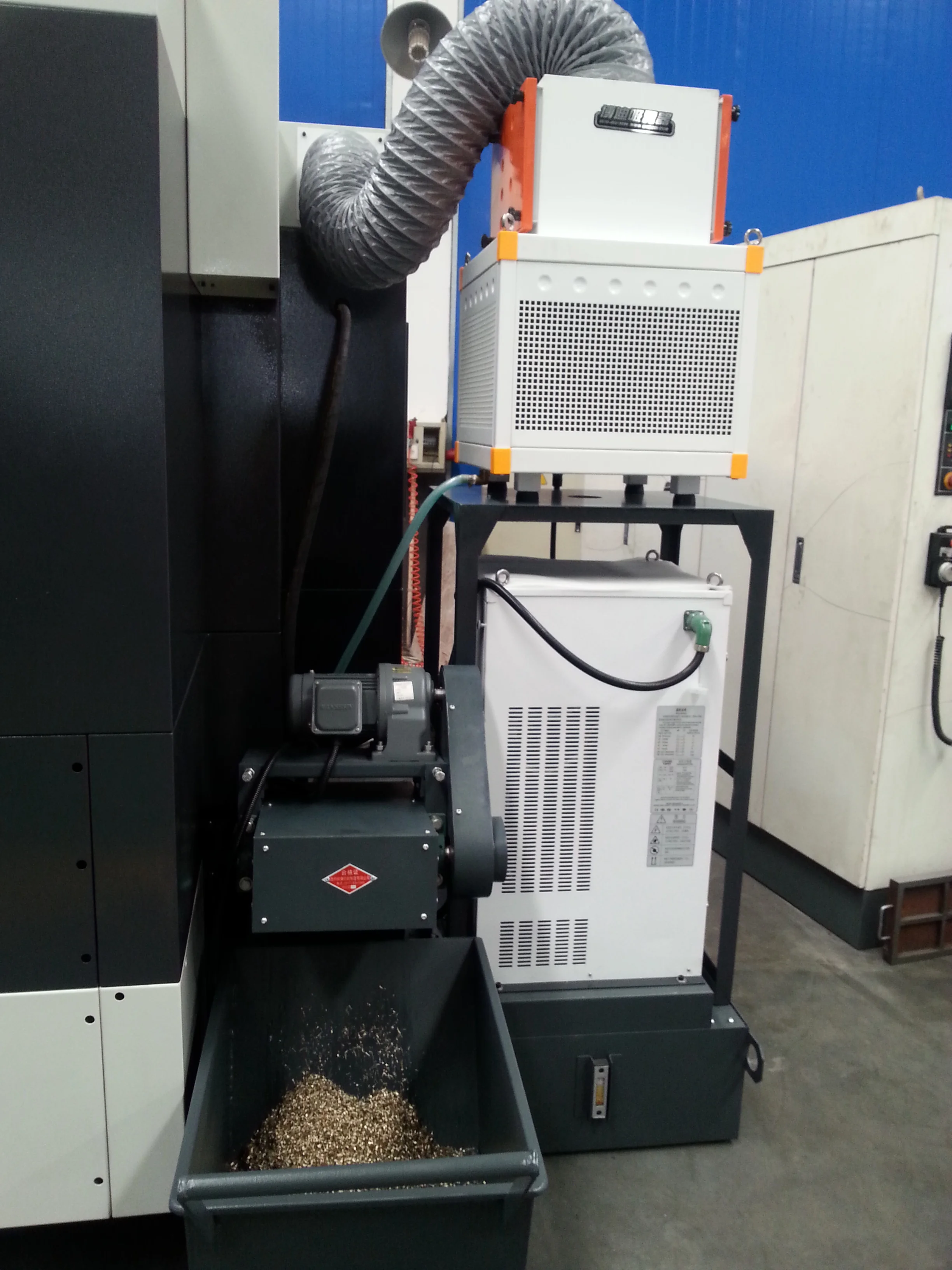

Chip Coveyor:
Different types of chip conveyors are equipped with drag chain chip conveyors. At the same time we also provide spiral chip conveyors and magnetic chip conveyors. (The specific choice is determined by the material of the workpiece processed by the customer)
Hobber:
The hob is a gear processing tool whose teeth are arranged in a spiral line along a cylinder or a cone. It is used to process cylindrical gears, worm gears and other cylindrical workpieces with a gearing method.
Oil mist collection device
Remark: Cooling oil device is Freon free. This is Optional Accessory.

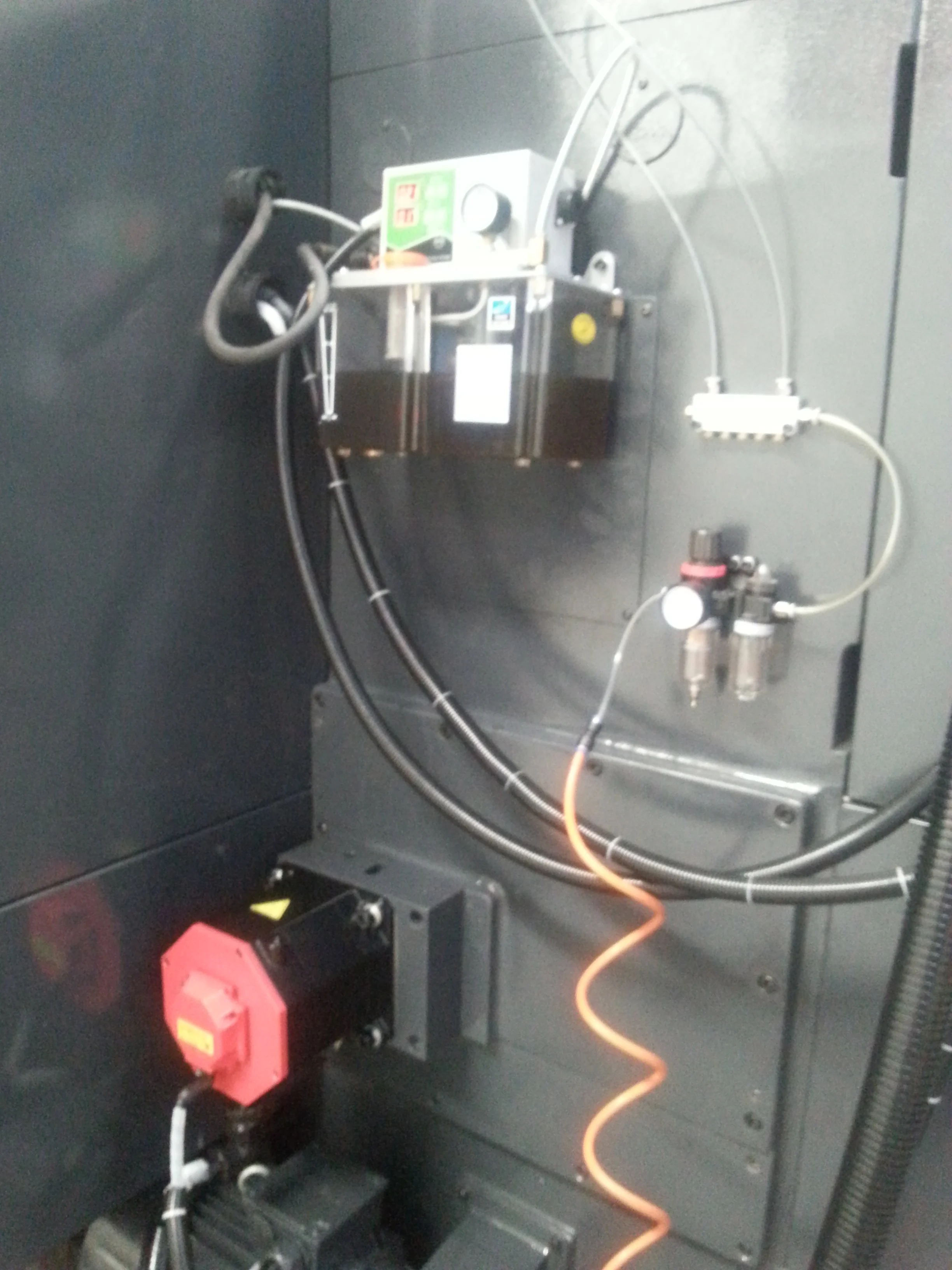

Lubrication
Independent of circulating lubrication system and quantitative lubrication system;Ball screw and guide rail pair adopts
quantitative lubrication, the lubrication time interval is adjustable;Tool carrier transmission and bearing with continuous
lubrication;Lubrication fully reliable with fault detection alarm system.
quantitative lubrication, the lubrication time interval is adjustable;Tool carrier transmission and bearing with continuous
lubrication;Lubrication fully reliable with fault detection alarm system.

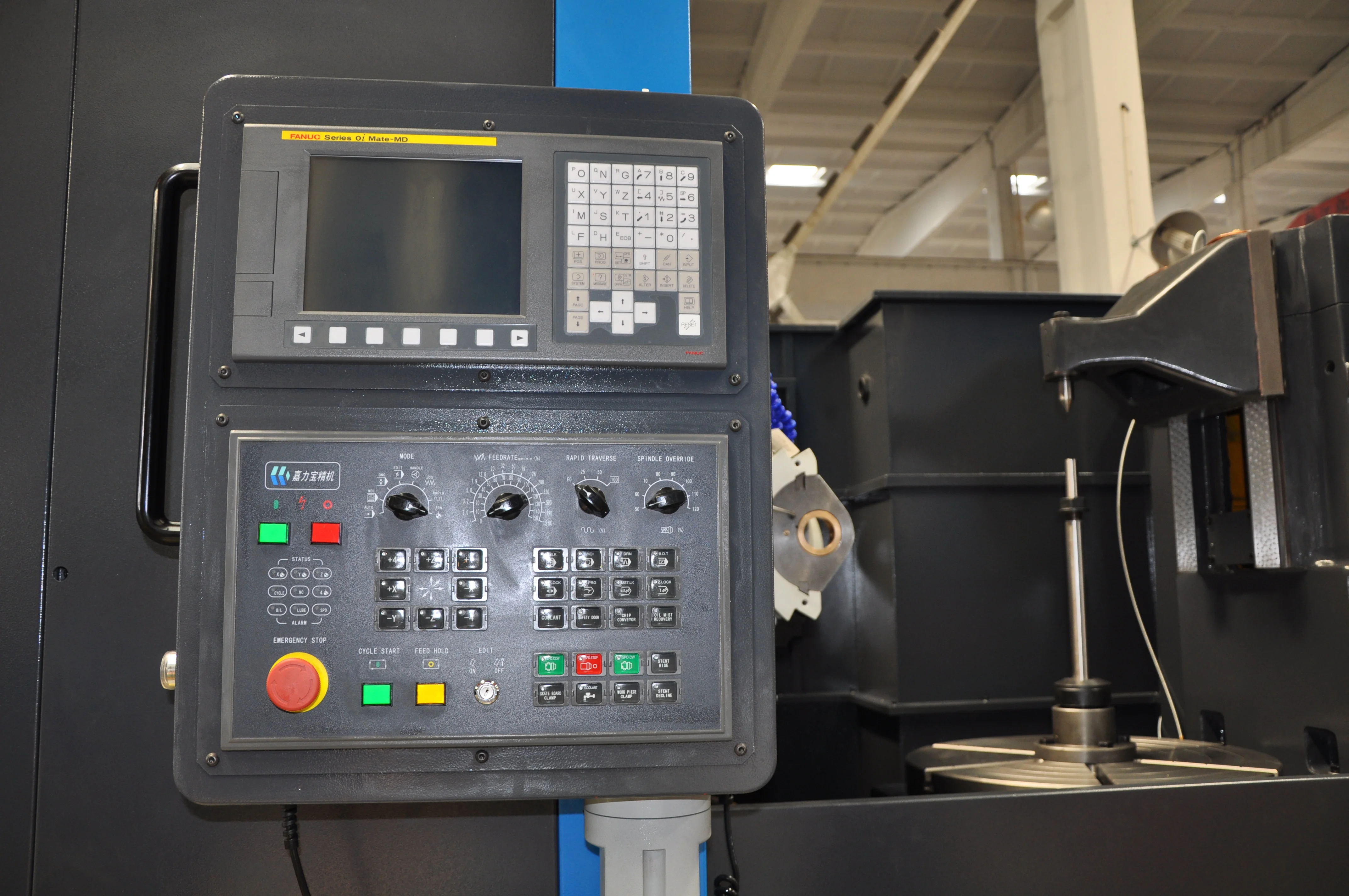

CNC Controller
FANUC, SIEMENS, GSK can be choosen.
There are 2, 3 .4. 5. 6 axis CNC that can be option.

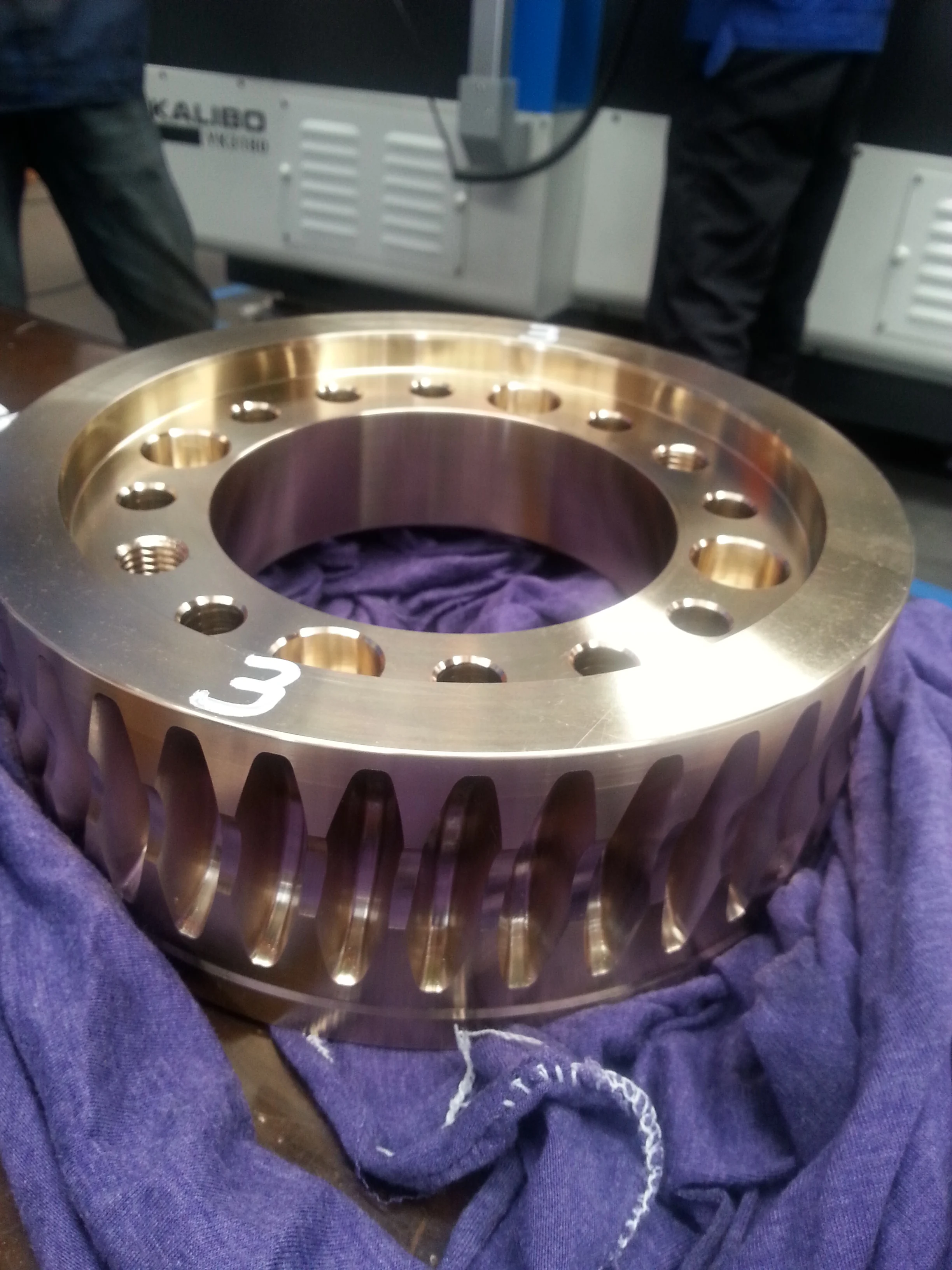

Workpiece Sample
Brass workpiece sample trial-cut sample

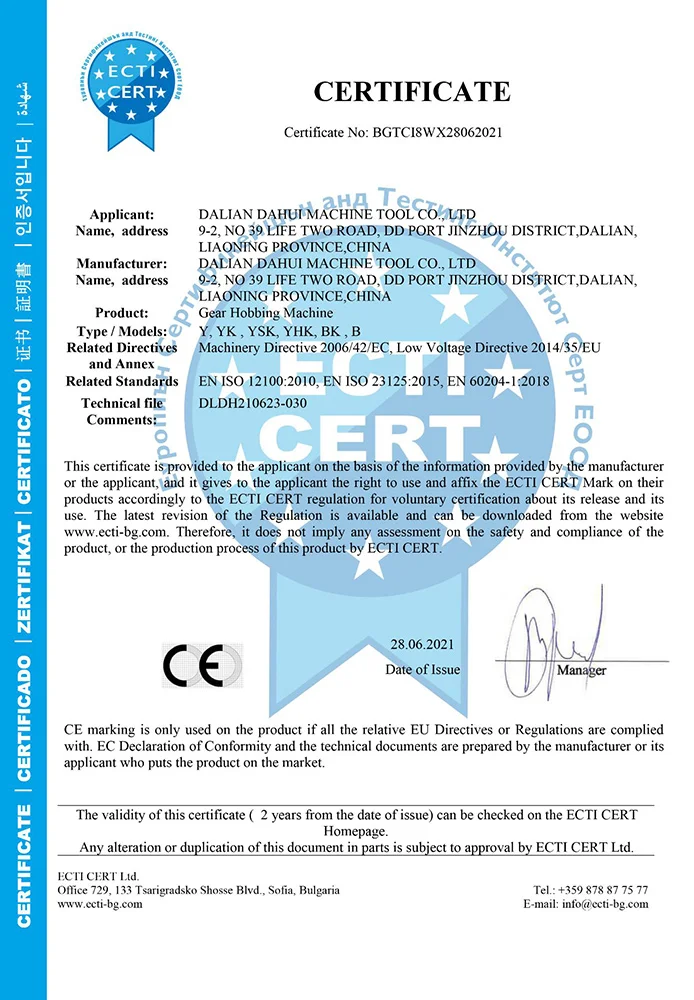

Certificate
Packing&Shipping
