P1.8 мм P2MM P2.5MM Pixel шаг 4K 16:9 тонкий внутренний
- Категории: Цифровые вывески и дисплеи >>>
- Поставщик: Shenzhen,Ledful,Electronics,Company,LimitedShenzhen,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Paramenters
Model | BM1.2 | BM1.5 | BM1.6 | BM1.8 | BM2 | BM2.5 | BM3 | BM4 | |||||||
Pixel Pitch(mm) | 1.25 | 1.53 | 1.66 | 1.86 | 2 | 2.5 | 3 | 4 | |||||||
Pixel Matrix Per Sq.m | 422500 | 422500 | 360000 | 288906 | 250000 | 160000 | 90000 | 62500 | |||||||
Pixel Configuration | SMD1212 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | |||||||
Cabinet Resolution | 415x312 | 415x312 | 384x288 | 344x258 | 320x240 | 256x192 | 192x144 | 160x120 | |||||||
Power Con.(W/㎡) (Max / Avg) | 600W/200W | 600W/200W | 600W/200W | 580W/180W | 580W/180W | 550W/160W | 450W/160W | 450W/160W | |||||||
Refresh Rate (HZ) | ≥3840 | ≥3840 | 3840 | 3840 | 3840 | ≥1920 | ≥1920 | ≥1920 | |||||||
Brightness (cd/㎡) | 500-900 | ||||||||||||||
Module Dimension | 320x160mm / 1.05x0.53ft | ||||||||||||||
Cabinet Dimension | 640x480mm / 2.10x1.57ft | ||||||||||||||
Cabinet Material | Die Casting Aluminum | ||||||||||||||
Cabinet Weight | 7KG | ||||||||||||||
Service Access | Front | ||||||||||||||
Grey Scale (bit) | 14 | ||||||||||||||
Viewing Angle (H/V) | 140°/140° | ||||||||||||||
IP Rate | IP45 | ||||||||||||||
Operation Temperature | -20℃ ~ +80°℃ | ||||||||||||||
Input Voltage (AC) | 110V / 220V | ||||||||||||||

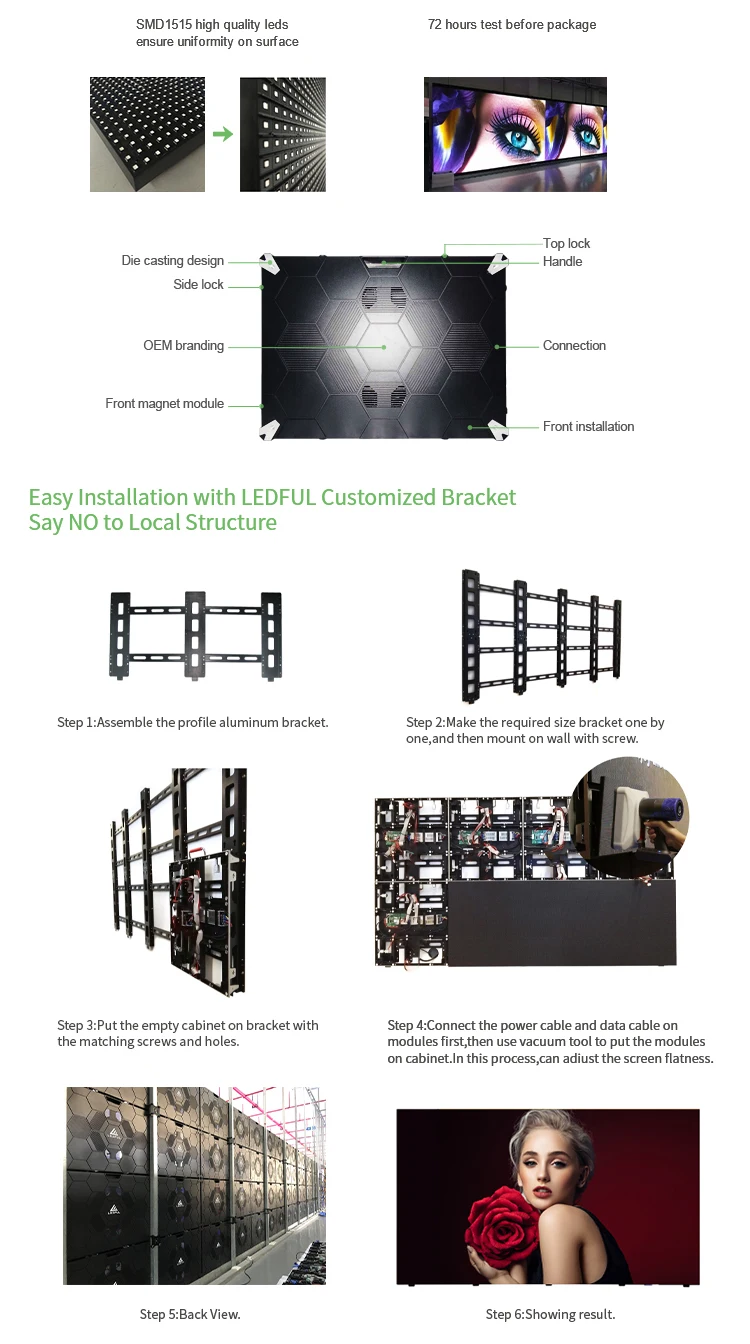

Details Images
