Product Description

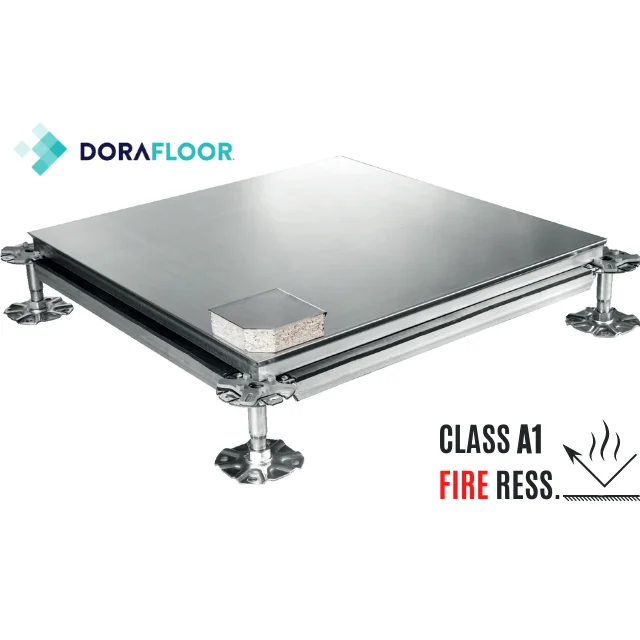

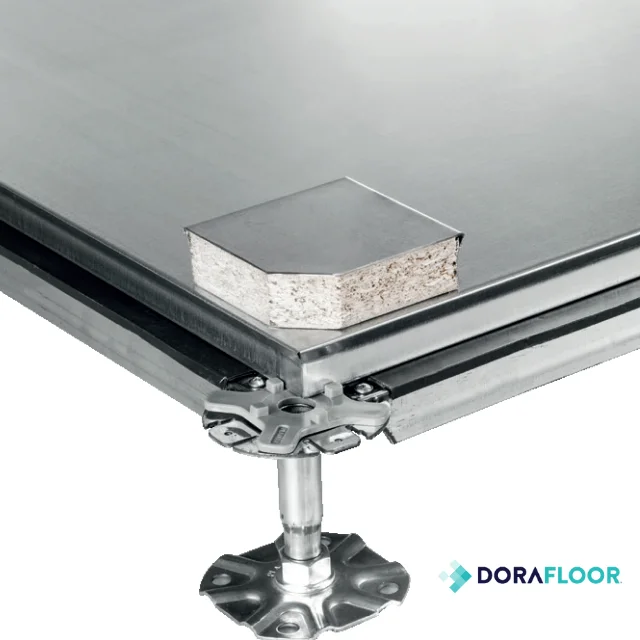

Encapsulated Calcium Sulphate Core Panel - Galvanized Sheet Panel
Steel encapsulated panels are available with a choice of high-density chipboard or a calcium sulphate core.
The steel box construction encapsulates a high-density chipboard or calcium sulphate core in a steel casing. The high bearing capacity and minimum thickness make the SB Series ideal for renovation projects.
The casing is made out of 0.5mm steel on the top surface and 0.5mm steel for the underside. The SB Series panels can be topped with loose lay systems such as carpet tiles or Attiro magnetic real wood flooring.
The standard dimensions are 600 x 600 x 28mm. The panels are available in various densities and a variety of steel densities which be specified for the requested point load.
The casing is made out of 0.5mm steel on the top surface and 0.5mm steel for the underside. The SB Series panels can be topped with loose lay systems such as carpet tiles or Attiro magnetic real wood flooring.
The standard dimensions are 600 x 600 x 28mm. The panels are available in various densities and a variety of steel densities which be specified for the requested point load.

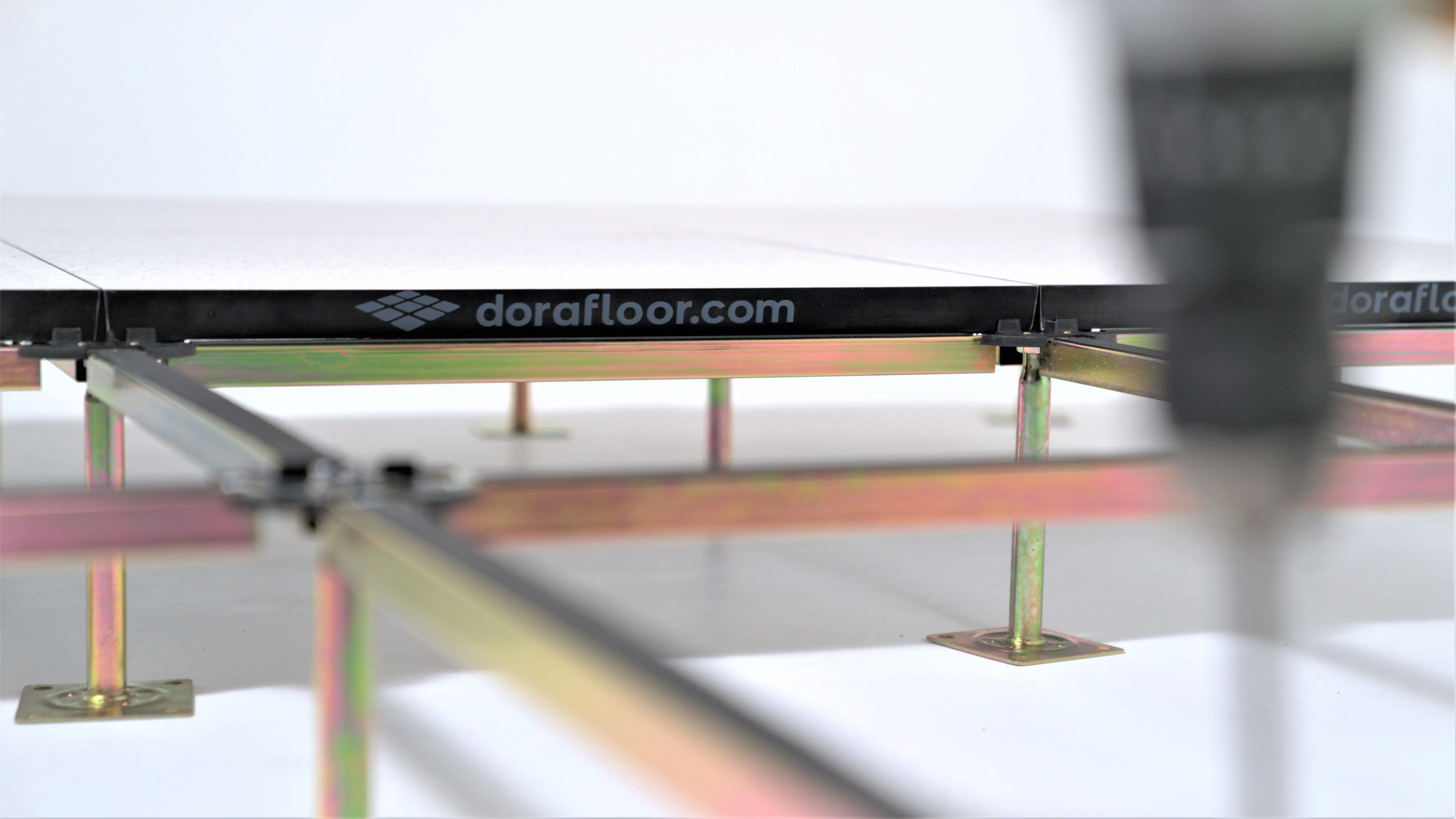

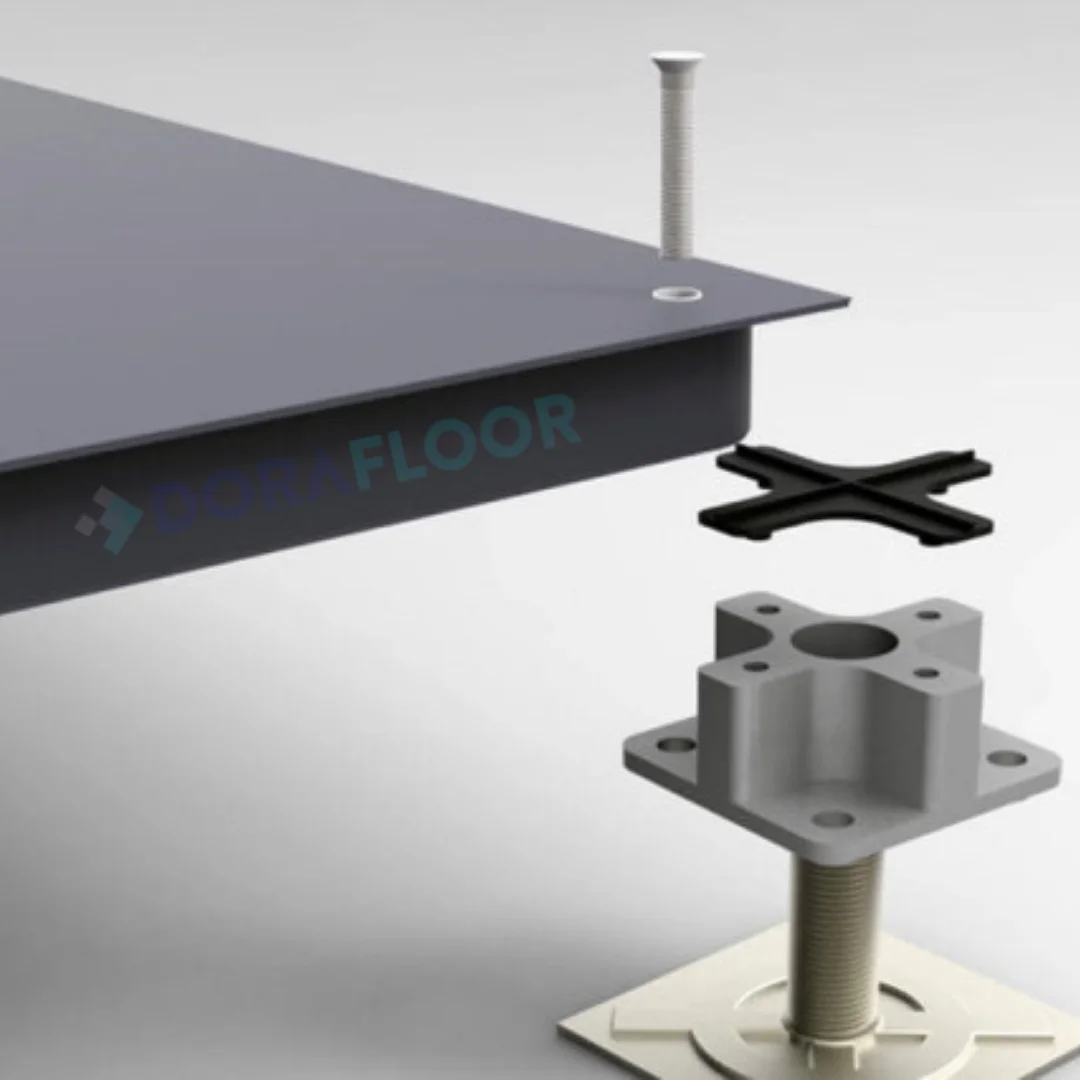

Supports System
If installation height is less than 200mm, you can install without beams. If installation height is more than 200mm, you'd better install with beams to reinforce the connection. The load of the pedestal is more than 3000kg. The beam is made of steel and zinc.
Applicability
5A intelligent office buildings, meeting rooms, audio-visual classrooms, offices, restrooms, exhibition halls, banks and entertainment places.
(products name: Calcium Sulphate Panel with Four Sides of PVC Endings)
Product Name | Calcium Sulphate Encapsulated Panel |
Warranty | 1 YEAR |
After-sale Service | Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection |
Project Solution Capability | Graphic Design, 3D model design |
Design Style | Modern |
Place of Origin | Turkey, Istanbul |
Brand Name | Dorafloor |
Model Number | CS-ENC01 |
Material | Calcium Sulphate |
Product Name | Encapsulated Calcium Sulphate Core Panels |
Size | 600*600*30 mm |
Product Material | Steel Sheet Covered Calcium Sulfate Core |
Covering Material | Steel Sheet |
Bottom | Galvanized Steel Sheet |
OEM | Availble |
HS CODE | 6809190002 |
Finish Material | Galvanized Steel Plate |
Related Products
Company Profile
We offer our customers access floor solutions with our innovative product, Calcium Sulphate Core PVC-HPL coating, Fiber Concrete Steel, and Encapsulated panel alternatives. Our panels are green products and do not contain moisture and bacteria. At the same time, due to its high fire resistance,it can prevent fire spread for a long time. Our panels comply with the LEED-certified building standards and are in the green product category.
With our "smart solutions" approach, we offer our customers the right product at affordable prices with a two-year warranty. Our products comply with EN-12825 standards and are A1 Class fire-resistant. Chipboard core panels, which are preferred in low-budget projects, prevent moisture, fire, etc. We do not recommend it because it is not durable in conditions. We offer alternative products that are more economical in the long term, do not contain moisture and bacteria, and are fireproof.
FAQ
1. Who are we?
We are based in -, Turkey, start from 2016,sell to Domestic Market(40.00%),Eastern Europe(30.00%),Northern Europe(10.00%),Western Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Calcium Sulphate Core Access Floor Panels | PVC Covered |Anti-Static |Fireproof,Calcium Sulphate Core Access Floor Panels | HPL Covered |Anti-Static |Fireproof,Calcium Sulphate Core Encapsulated (Wrapped with Galvanized Plates),Steel Cementitious Panel | Bare Panel with corner-lock system,Pedestals (FFH15CM- FFH20CM- FFH27CM- FFH50CM) and Stringers
4. Why should you buy from us not from other suppliers?
Manufacturer Company
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Russian
We are based in -, Turkey, start from 2016,sell to Domestic Market(40.00%),Eastern Europe(30.00%),Northern Europe(10.00%),Western Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Calcium Sulphate Core Access Floor Panels | PVC Covered |Anti-Static |Fireproof,Calcium Sulphate Core Access Floor Panels | HPL Covered |Anti-Static |Fireproof,Calcium Sulphate Core Encapsulated (Wrapped with Galvanized Plates),Steel Cementitious Panel | Bare Panel with corner-lock system,Pedestals (FFH15CM- FFH20CM- FFH27CM- FFH50CM) and Stringers
4. Why should you buy from us not from other suppliers?
Manufacturer Company
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Russian
Packing & Delivery
Packaging And Shipping | Pallet |
Minimum Order Quantity | 100 pieces |
Delivery Time | 2 weeks |
Loading and Deflection Class | Fire Performance of the Panels | Sound Value |
Point load: ≥ 3550N | Building materials class acc. To DIN 13501-1\tA1 (non-combustible) | Rated degree of longitudinal sound reduction Dn,f,w: 51dB |
Ultimate load: ≥ 10700N | Fire resistance class acc. To DIN 4102-1\tA2 (non-combustible) | Degree of improvement in footfall sound ΔLw: 26dB |
Safety factor: 2.0 | Rated footfall sound level Lnfw: 51dB |
