Новый сетевой петля сигнализации VLAN 16-портовый гигабитный

Specifications

I/O Interface

Power

AC  input (100-240V)

Ethernet

16*RJ45 10/100/1000Mbps Ports

Performance

Switching Capacity

32Gbps

Throughput

23.8Mpps

Packet Buffer

4M

MAC Address

8K

Jumbo Frame

4K

Transfer Mode

Store and forward

MTBF

100000  hour

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX/FX)

IEEE802.3ab (1000Base-TX/FX)

IEEE802.3x (Flow control)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5  or above UTP(≤100m)

1000Base-TX : Cat5 or aboveUTP(≤100m)

Protection

Security Certificae

CE,FCC,RoHS

Environment

Working Environment

Working Temperature:-10~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing

Working Height:Maximum10,000 feet

Storage heigh:Maximum 10,000 feet

Mechanical

Structure Size

Product Size:270*180*45mm

Package Size:312*262*84mm

Product Net-Weight:1.0kg

Product Gross-Weight:1.5kg

Packing Info

MEAS:540*435*332mm

Packing Qty:10 unit

Packing weight:16.5KG

Power Voltage

Input Voltage: AC 100-240 V

Output Voltage:12V2A

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair(Optional)

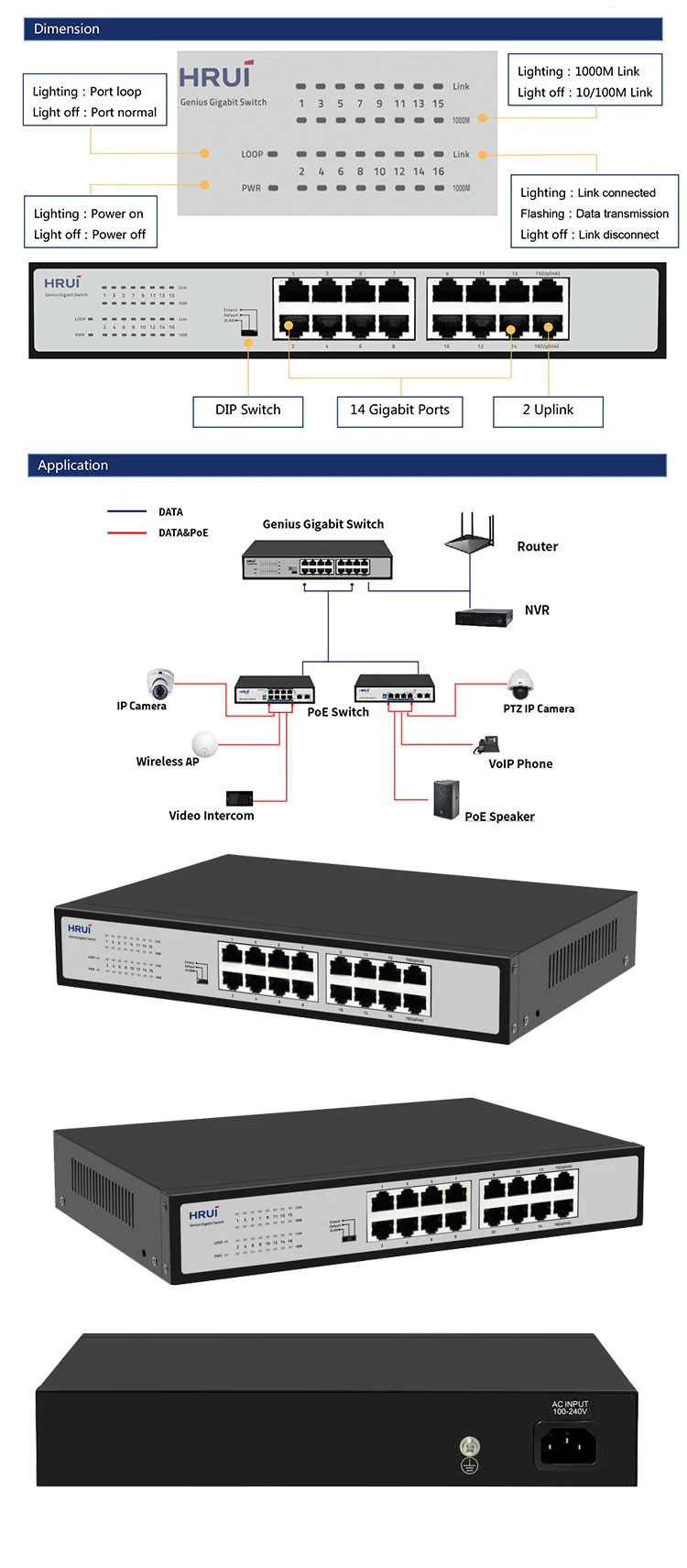

Indication

DIP Switch

VLAN:Port Isolation, 1-14 ports are isolated each other, all communicate with uplink port 15/16;

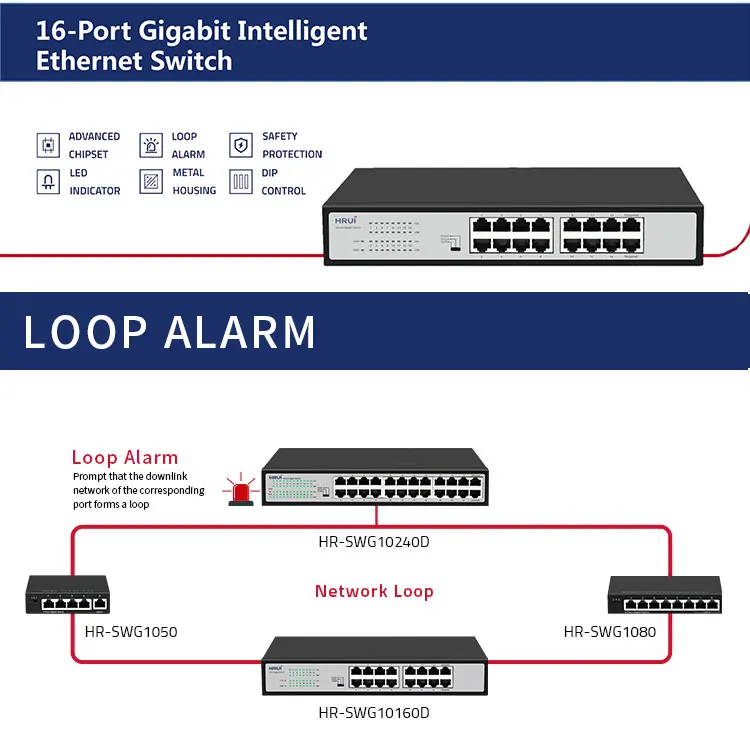

Default:Default mode, Support loop alarm;

Extend:Monitor Mode, 1-14 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode,  port 15 and port 16 as uplink port;

LED Indicators

PWR,LOOP,Link,1000M

Ordering Info

HR-SWG10160D

16-Port Gigabit Intelligent Ethernet Switch
