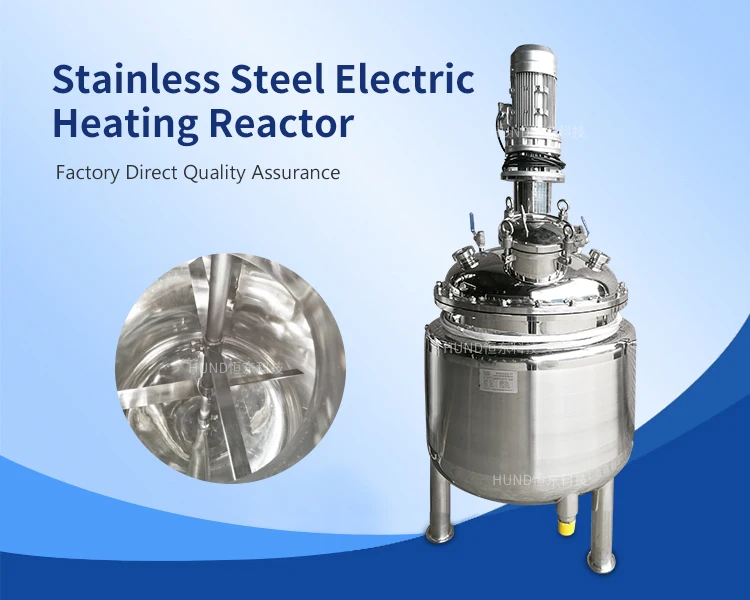

5000L Stirred Tank Reactor/double Jacketed Reactor Tank/heated Reactor Vessel





Structure:

Stainless steel mixing tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards .



1.Capacity :50-50000L

2,Single layer / Double layers / Three layers

3.Motor power:0.75-75kw

4.Materials are all sanitary stainless steel 304/316 .

5.Humanized structure design and easy to operate .

6.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation .

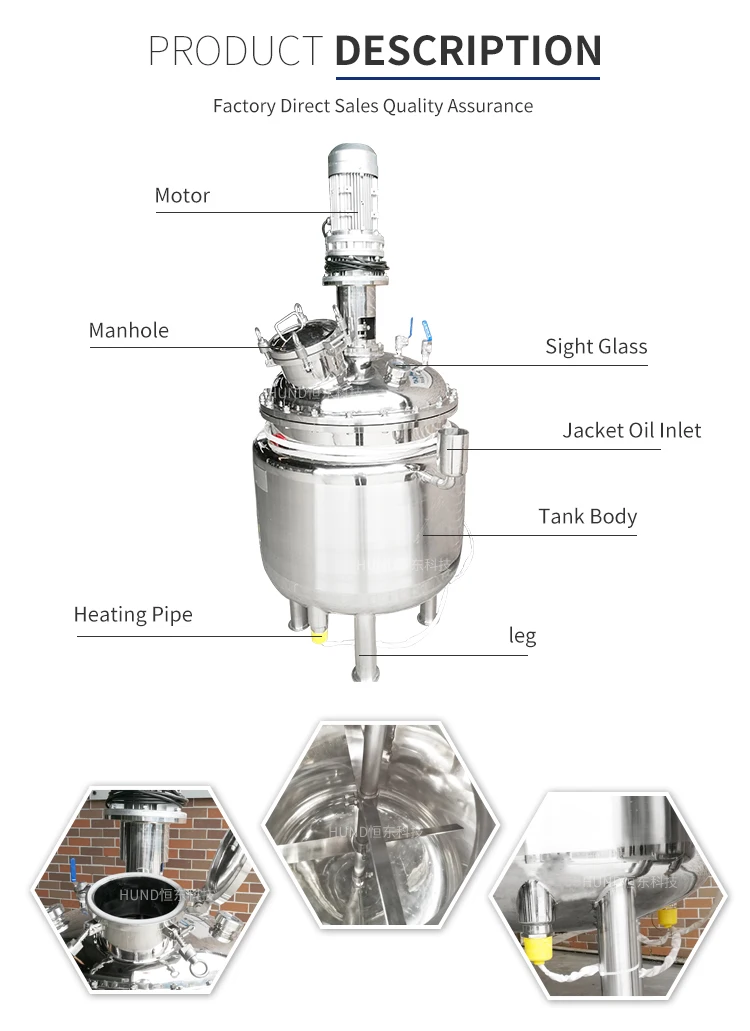

Configuration of tank :

1.Quick open manhole .

2.Various types of CIP cleaners .

3.Fly and insect resistant sanitary breathing cover .

4.Adjustable triangular bracket .

5.Dismountable materials input pipe assembly .

6.Thermometer (According to customer requirements ).

7.Ladder (According to customer requirements).

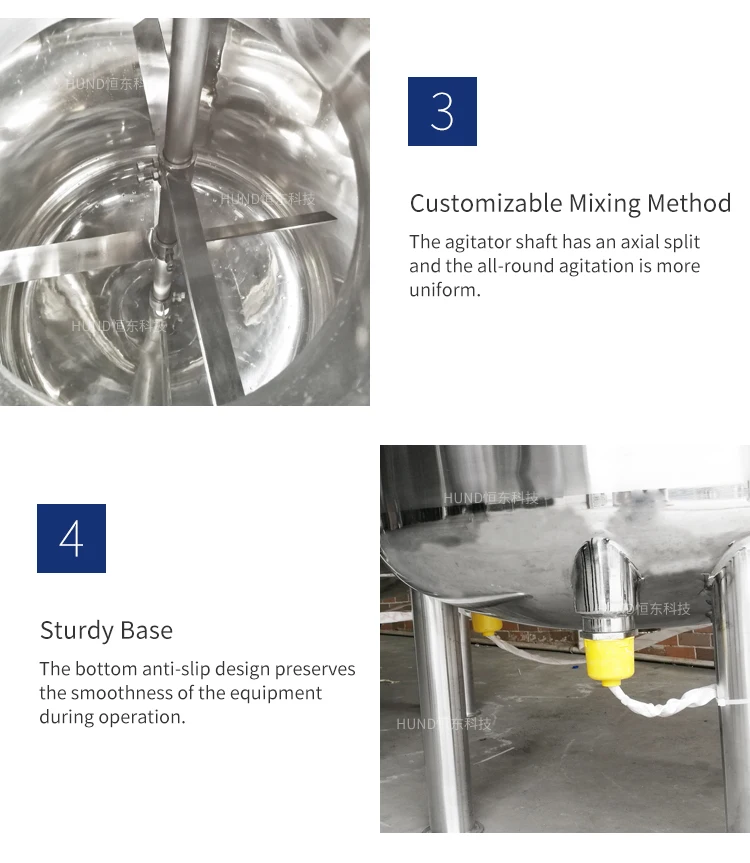

8.Paddle blender .

9.Liquid level meter and lever controller (According to customer requirements) .

10.Eddy-proof board .



Techinical Parameters:

Products Name	Stainless steel single wall blending machine, syrup/ liquid stirring tank, durable mixing reactor
Material	SS304/SS316L
	Jacket: full jacket ,dimple jacket , coil tube
	Insulation layer: PU / rockwool
	as to the thickness, we can make it according to your requirement.
Description:	Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries
Heating mothed:	By electricity (oils or water), by steam , circulation heating (hot water or oil)
Configuration:	1.manhole
	2.CIP spraying ball
	3.adjusting feet
	4.sight glass
	5.temperature gauge
	6.pressure gauge / vacuum gauge
	7.breather
Capacity:	50L-50000L
Mixer Type:	Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller )
Mechanical seal:	SIC/SiC/EPDM(Standard)
Agitator power:	0.55kw -75KW
Sealing option:	Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:	220V -480V
Motor:	ABB, SIEMENS , SEW , Domestic
Surface treatment:	Inner polished and outside polished
Availably connection:	Clamp, Thread Butt weld, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Export Plywood case
Delivery details:	Usually within 25-30 days after receiving T/T down payment



Can according to customer’s requirement customize.
