Outdoor universal rechargeable led power bank mobile LTE wireless portable router wifi 4g with sim card for
- Категории: Беспроводная сеть >>>
- Поставщик: Shenzhen,iStartek,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Outdoor universal rechargeable led power bank mobile LTE wireless portable router wifi 4g with sim card for MiFi
MF21 Introduction
MF21 is a new 4G mobile hotspot which could achieve high speed 4G connection.
MF21 can provide superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network (LAN). Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the device simultaneously.

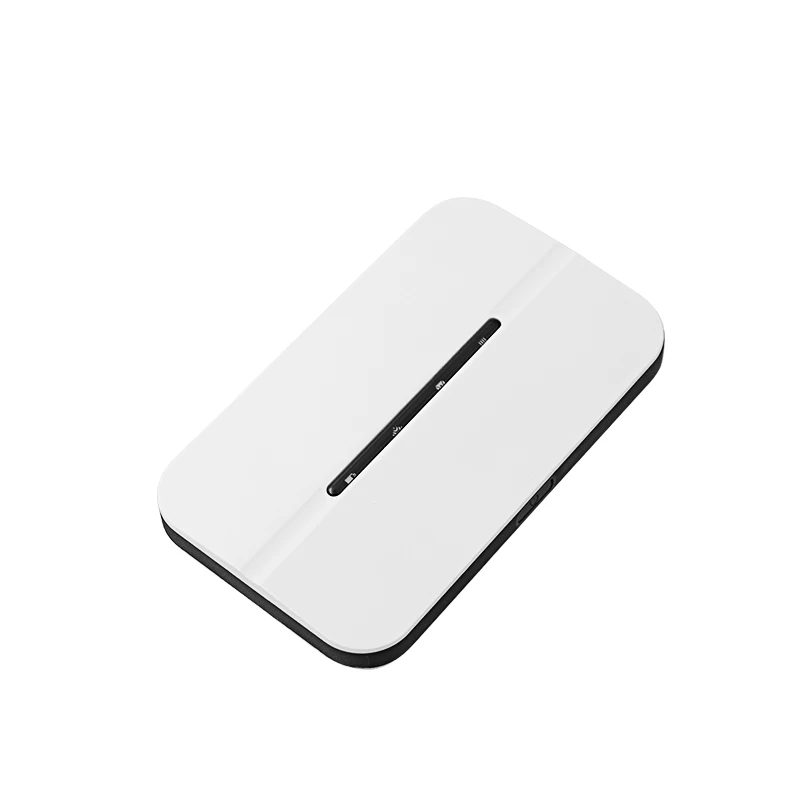

Picture of MF21:
1. Basic Specifications
|
Item |
Description |
|
USIM Slot |
1.8V/3.0V USIM 2FF |
|
CPU |
ZX297520V3E |
|
Wi-Fi chipset |
SV6158 |
|
Memory |
ROM/RAM: 1Gb NAND Flash/512Mb RAM |
|
USIM Slot |
1.8V/3.0V USIM 3FF |
|
USB Port |
Micro USB 2.0×1 for Charge |
|
Power Button |
Hold on 3s to power on/off Short press to wake up /Light the LED |
|
Reset Button |
Tactile button. Long press over 10s to restore the factory settings |
|
LED Indicators |
Power LED×2(Red & Blue) WLAN LED×1(Blue) SMS LED×1((Blue) LTE Connection Status LED×2(Red/Blue) |
|
Battery |
1800mAh/2100mAh(removable) |
|
Dimensions |
100mm (H) x 60mm (W) x 14mm (D) |
|
Weight |
About 100g |
2. 4G/3G/2G Technical Specifications
|
Item |
Description |
|
Wireless Access Technology |
TD-LTE/FDD/WCDMA |
|
3GPP/3GPP2 protocol |
LTE FDD/TDD Rel 9 CAT4 |
|
Bands |
MF21-E(Europe & Africa &Asia) FDD:B1/B2/B3/B5/B7/B8/B20/B28A/B28B TDD: B38/B40/B41(120M) WCDMA:B1/B2/B5/B8
MF21-A(America) FDD:B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B66 TDD: B38/B40/B41(120M) WCDMA:B1/B2/B4/B5/B8 |
|
Data Rate |
LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL); LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL); WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL); |
|
Receive Sensitivity |
Compliance with 3GPP standard |
|
MAX Output Power |
LTE FDD:23dBm±2dB; LTE TDD:23dBm±2dB; WCDMA:24dBm+1dB/-3dB; |
|
Wireless MIMO technology |
LTE 1T2R ,DL MIMO 2*2 |
|
Antenna Type |
Internal Antenna |
|
Antenna Gain |
4~5dBi |
Why Choose iStartek?
Coupon & Application
MF606 Specifications
|
Hardware information Cat4 |
|
|
The processor |
ZX297520V3 |
|
spectrum |
LTE:1/2/3/4/5/6/7/8/9/12/13/ |
|
Peak rate |
LTE DL: 150Mbps, upload speed: 50Mbps (Category 4) |
|
LCD/LED |
LCD/LED |
|
The keys |
The power button |
|
T CARD |
Upward compatible to 32 GB |
|
WIFI |
Support 802.11 b/g/n 150Mbps |
|
The battery |
2100mAh lithium battery |
|
interface |
MicroUSB interface |
|
The antenna |
built-in |
|
The adapter |
The input voltage:100V~240V,50Hz~60Hz |
|
Working temperature |
-10°C to 60°C |
|
Working humidity |
5% - 65% |
|
Storage temperature |
-30°C to 80°C |
|
Store humidity |
5% to 95% |

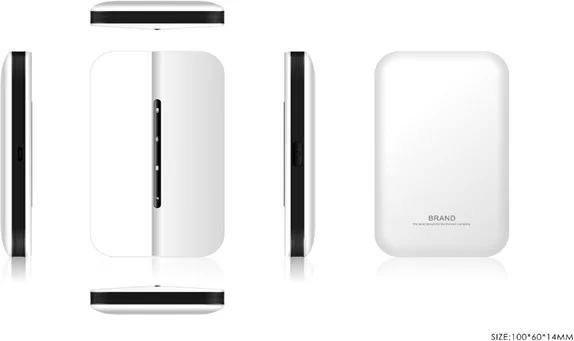

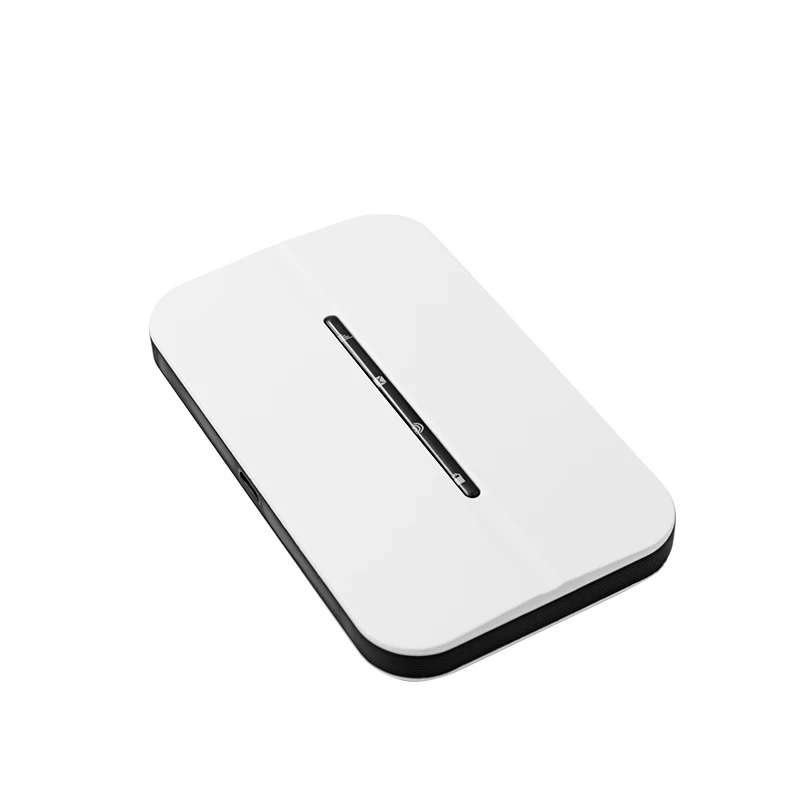

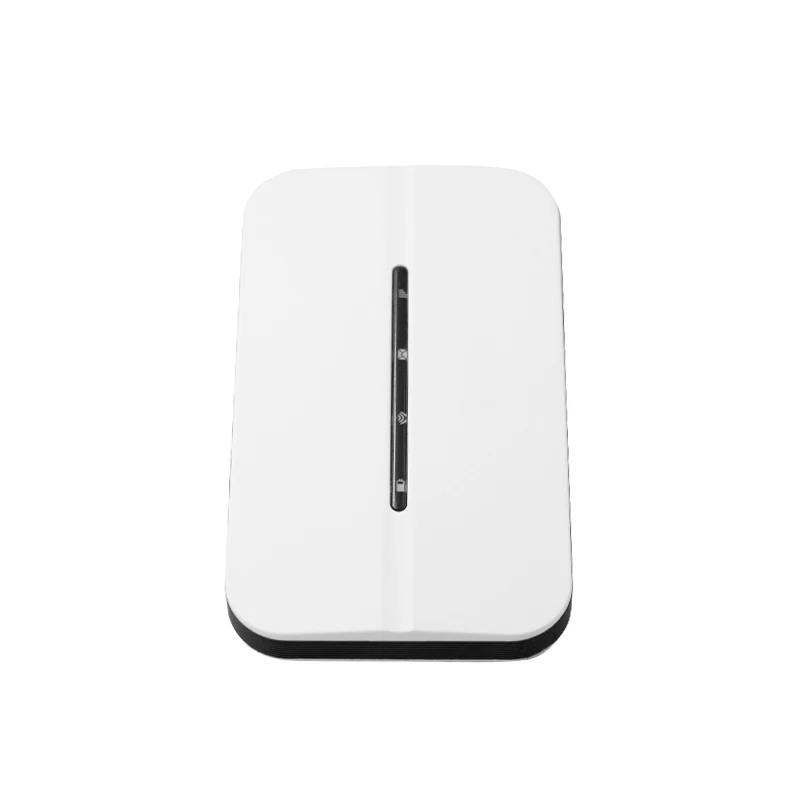

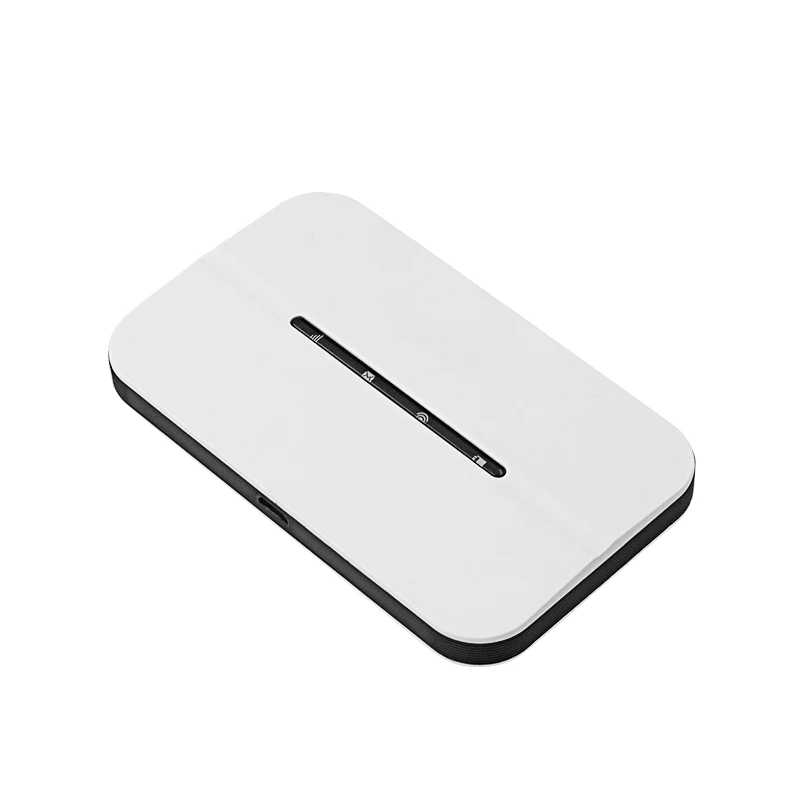

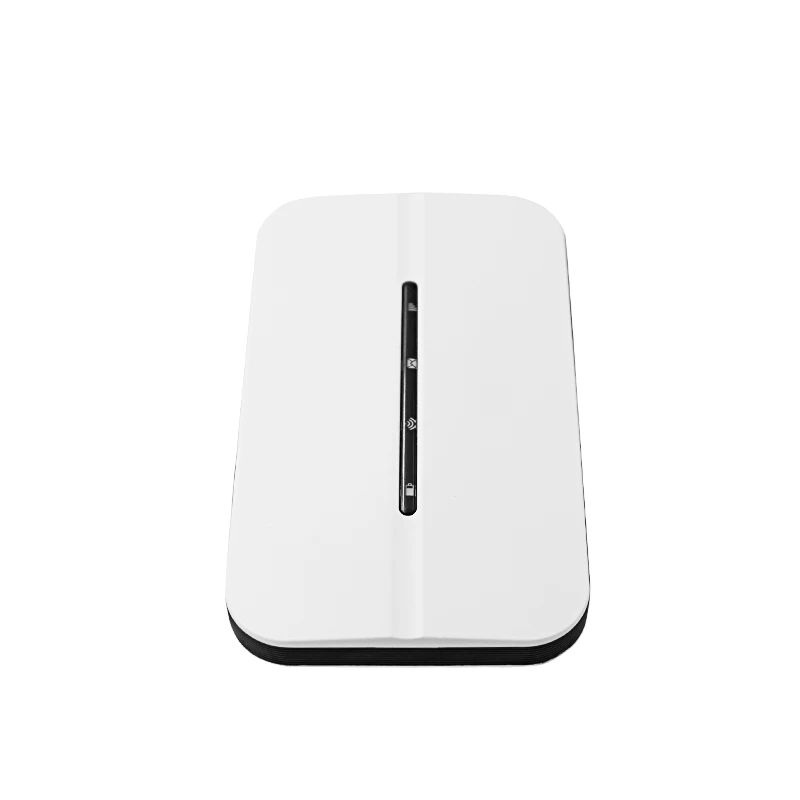

Products Pictures
Company Infomation
FAQ
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1. Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2. Do you accept PCBA orders only?
Of course, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3. Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
4. Do you....?
Maybe, why don't contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
